6200mm Wood Based Laminated Panel Beam Board Hydraulic Press Machine Four Side Rotary Clamp Carrier Composer
- Category: >>>
- Supplier: Shandong STX Machinery Trade Co. Ltd.
Share on (1600434335461):
Product Overview
Description
Product Overview

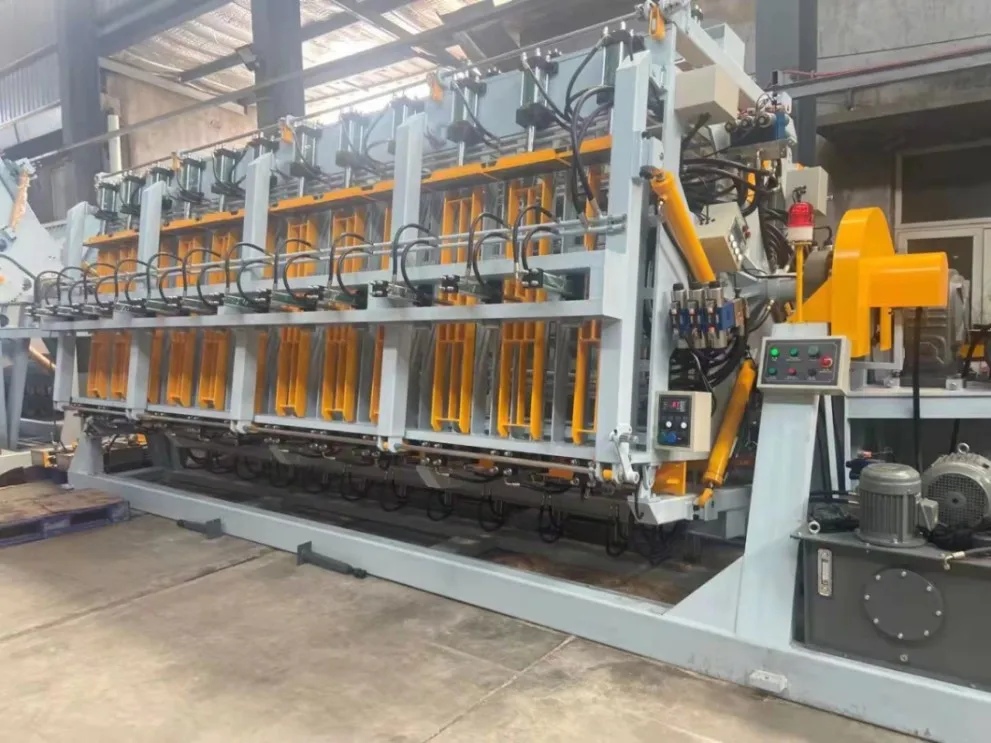

Four Worksides Hydraulic Wood Clamp Carrier for Wood Board Production
Four worksides are operated in a cycle, which can be continuously complete four-sided clamping work; Using numerical control technology, one-button operation, set automatic pressureaccording to the program
With pressure compensation, and pressure holding time control, When the pressure fluctuates, the side pressure and the pressure are automatically supplemented, and the pressure is suppressed. The gluing time is set to be consistent to avoid human errors affecting the standard requirements so product quality can be ensured;
With pressure compensation, and pressure holding time control, When the pressure fluctuates, the side pressure and the pressure are automatically supplemented, and the pressure is suppressed. The gluing time is set to be consistent to avoid human errors affecting the standard requirements so product quality can be ensured;
According to the workpiece specifications (workpiece length, thickness), the required pressure is different, the system pressure can be adjusted. It can realize automatic pressure compensation, so as to ensure the processing of the workpiece. The required pressure and pressure are constant, and each side is based on the wood material. It can be multi-layered at the same time, with a wide processing range and high efficiency. Suitable for processing needs of different orders;
FEATURES AT A GLANCE
STABLE ROTATION SPEED
NUMERICAL CONTROL
PRESSURE RECOVERY SYSTEM
BIG HYDRAULIC PRESSURE
LONG SERVICE LIFE (MORE THAN 20 YEARS)
HIGH EFFICIENCY
HIGH FLATNESS
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
PRODUCT CONFIGURATION
No | Item | Data |
1 | Max. working length | 2700mm |
2 | Max. working width | 1300mm |
3 | Working thickness | 10-150mm |
4 | Top cylinder diameter | 80mm |
5 | Top cylinder qty. of each side | 6-8 |
6 | Side cylinder diamter | 40mm |
7 | Side cylinder qty. of each side | 6-8 |
8 | Lift cylinder diameter | 63mm |
9 | Lift Cylinder qty. of each side | 2 |
10 | Total power | 10KW |
11 | Overall dimensions (L x W x H) | 4700 x 2850 x 2980mm |
12 | Weight | 6300-7000kg |
Cylinder control lock
Manual lock method
SALES AND SERVICE NETWORK
Production process---Laser cutting
High precision cutting
ISO 9001 Quality control
Production process---Frame painting
Painting workshop, machine color can be customized
Production process---Mechanical Parts
1 main work table:40mm thickness cold rolled sheet
2 base basic： 200*100*8mm rectangular tube
3front frame： 100*100*6mm square pipe
2 base basic： 200*100*8mm rectangular tube
3front frame： 100*100*6mm square pipe
