JWIPC High-end Intel Core I5/i7 Mini Pc Win10pro/linux Desktop Gaming Pc 4k Hd Intel Uhd Graphics 8gb Ddr4 256 Gb Nvme Ssd Ops
- Category: Industrial Computer & Accessories >>>
- Supplier: Jwipc,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Fatures.
1. Intel OPS standard module
2. Supports Intel 11th Gen Mobile processor
3. Dual channel DDR4 Memory
4. 1 x M.2 2280 NVMe SSD Slot/ 1 x 2242 SSD slot
5. 2 x USB3.1, 2 x USB2.0 , 1 x Type-C ; 1 x USB3.0, 2x USB2.0(80Pin connector) .
6. M.2 2230 WIFI/BT slot
7. M.2 3042 slot, support 4G module
8. Displays：1 x HDMI 2.0，1 x HDMI 2.0 (80pin）, 1 x Type-C Support 4K60Hz
9. Support Intel vPro/AMT
10. Support TPM2.0
11. 12V/19V DC in
3. Dual channel DDR4 Memory
4. 1 x M.2 2280 NVMe SSD Slot/ 1 x 2242 SSD slot
5. 2 x USB3.1, 2 x USB2.0 , 1 x Type-C ; 1 x USB3.0, 2x USB2.0(80Pin connector) .
6. M.2 2230 WIFI/BT slot
7. M.2 3042 slot, support 4G module
8. Displays：1 x HDMI 2.0，1 x HDMI 2.0 (80pin）, 1 x Type-C Support 4K60Hz
9. Support Intel vPro/AMT
10. Support TPM2.0
11. 12V/19V DC in
Specification
Processor System | CPU | Intel® Tiger lake-U platform, 11th Gen processor, TDP Lock to 20W |
BIOS | AMIUEFIBIOS | |
Graphics | Chipset | Intel UHD Graphics |
VRAM | 64GB(Max) | |
Multi displays | Supportthree displays | |
Interface | 1xHDMI2.0,resolution 4096x2160@60Hz 1 x 80pin JAE Con.(HDMI2.0), resolution 4096x2160 @ 60Hz 1 x DP1.2 (Integrated in Type C) , resolution 4096x 2160 @ 60Hz | |
Memory | Type | 2 x SO-DIMM DDR4-2666(Max support 3200) |
Max | 32GB | |
Ethernet | Lan IC | 1xIntel I219LM |
Interface | 10/100/1000Mbps | |
Connector | 1 x RJ45 | |
Wireless | Type | PCIe+USB Wi-Fi/BT module PCIe+USBLTEmodule |
Interface | 1 x M.2 2230for Wifi+BT module 1 x M.2 3042for 4G module | |
Storage | Type | SSD |
Interface | 1 x M.2 2280for NVMe SSD, Support Optane 1xM.2 2242forSATASSD | |

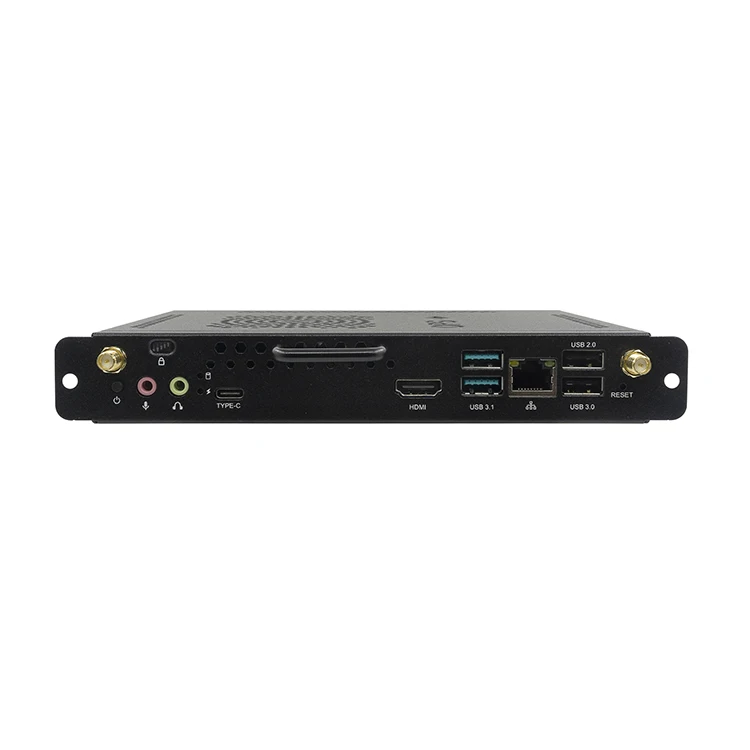

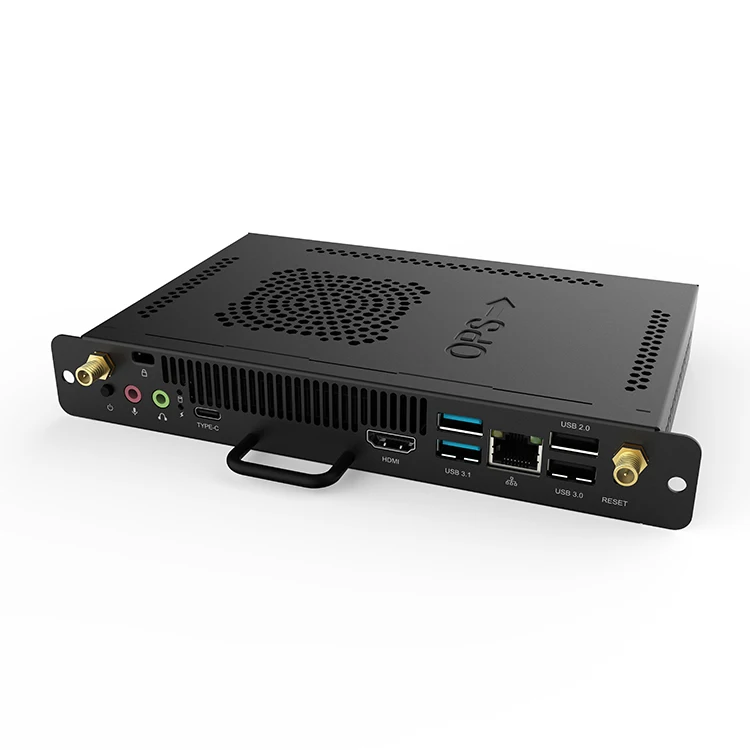

IO Interface | Front panel | 1xHDMI2.0 2x USB3.1 Gen2 , 1 x USB3.1 Type-C, 1xUSB2.0 , 1x USB 3.0 1xRS232, DB9 (Option) 1 x RJ45 1xMICIN,1xLineout 2xWi-Fi/BTANT 1 x Power button, 1 x Reset button |
Rear panel | 1xJAE80pin : 1 HDMI 2.0, 2 USB2.0,1 USB3.0, TTL, Audio, LAN (Option) 1x2.5/5.5 DC IN JACK 1 x Micro SIM Card | |
Software | OS Supports | WINDOWS 10/LINUX |
Watchdog | Support | |
vPro/AMT | Support | |
TPM | Support,TPM2.0 | |
Power | Power input | 12V/ 19V DC IN, 2.5/5.5 DC Jack & JAE 80pin DC IN |
Size | Comply with ops standard module, 119 x 180 x 30 mm | |
Environment | OperatingTemp. | -5~45℃ |
Operating Humidity | 10%~90% non-condensing | |
Storage Temp. | -20~70℃ | |
Operating Humidity | 5%~95% non-condensing |
