PVC Plastic Sewer Pipe Water Pipe Making Machine / Production Line
- Category: >>>
- Supplier: Zhangjiagang Eans Machinery Co. Ltd.
Share on (1600434344793):
Product Overview
Description
Product Description
PVC Electrical Conduit Pipe Extruder Line / Production Line / Machine
Pipe diameter range | Extruder Model | Max Output | Max Speed | Total Power |
16 - 50 mm | 65 / 132 *2 | 250 kg/h | 10 m/min | 85 kw |
50 - 110 mm | 55 / 110 | 180 kg/h | 10 m/min | 70 kw |
63 - 160 mm | 65 / 132 | 300 kg/h | 5 m/min | 90 kw |
110 - 250 mm | 80 / 156 | 400 kg/h | 3.5 m/min | 120 kw |
250 - 450 mm | 92 / 188 | 700 kg/h | 1.5 m/min | 200 kw |
315 - 630 mm | 92 / 188 | 700 kg/h | 0.9 m/min | 230 kw |

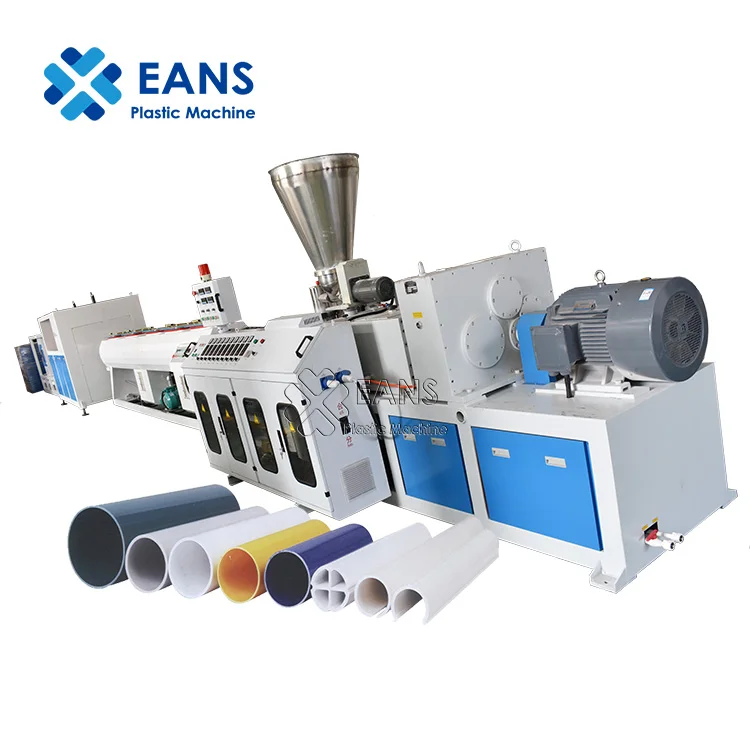

PVC single cavity production line :

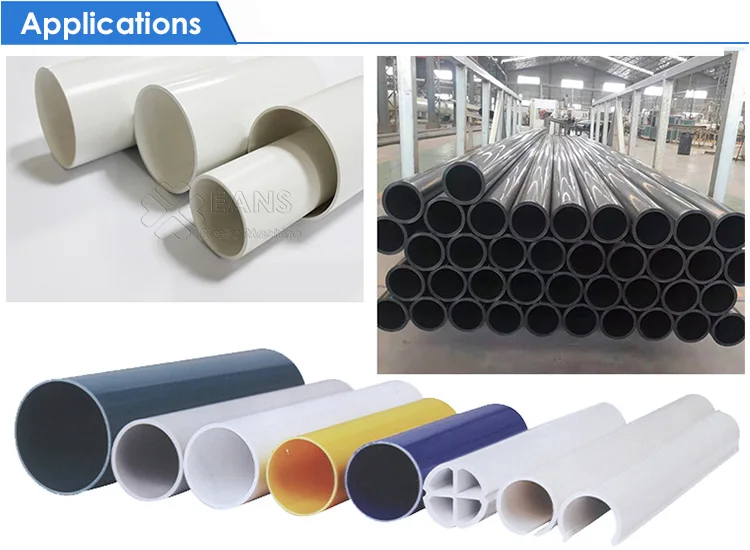

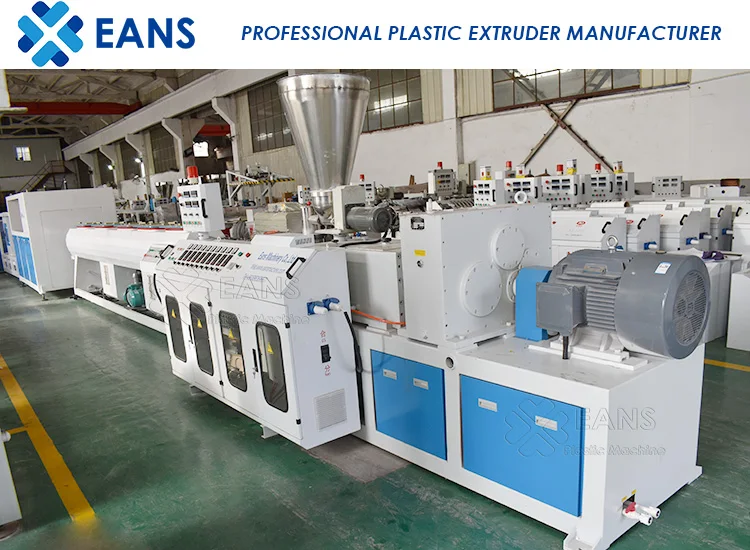

Φ20-Φ630 series PVC pipe extrusion production line is mainly used in plastic PVC pipes with various diameters and wall thickness, This line is composed of conical twin screw extruder, Vacuum calibration tank, haul off, motors, cutter and stacker etc. The extruder and haul off methods are two-claw, three-claw four-claw, six-claw, eight-claw, ten-claw, twelve claw etc. You may choose saw blade cutting type or planetary cutting type. It is additionally attached with length counter and intensifying device. This line with reliable performance and high production efficiency. Our company can also manufacture special pipe production lines, such as, spiral silencing pipe and core foaming pipe according to your requirements.
PVC double-pipe production line:
The production line is developed with the advanced technology of west Europe by our company. The main machine is SJSZ55/110 or SJSZ65/132 conical twin screw extruder is equipped with double-tube single control stainless steel spraying calibration,it avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cutting machine are combined with the front double calibration technology to make operation more flexible let you enjoy economic benefit which is brought by separate-control double tube extruding.
PVC four cavities production line:
Four cavities PVC electrical tube,water supply pipe extrusion line can extruder four pipes at same time on one machine.This line can save investment cost in factory building and production,which increase the capacity a lot and reduce production time. SJSZ65 conical twin-screw extruder can easily reach 5.5-6.5 ton/per day,the production speed take 16 mm as example can get more than 8-10 m/min. The whole line is composed of conical twin-screw extruder 65 mm, 4 cavity mould,4 cavity cooling calibration tank,4 station haul off, 4 station cutter and 4 station tipping table.
Φ20-Φ630 series PVC pipe extrusion production line is mainly used in plastic PVC pipes with various diameters and wall thickness, This line is composed of conical twin screw extruder, Vacuum calibration tank, haul off, motors, cutter and stacker etc. The extruder and haul off methods are two-claw, three-claw four-claw, six-claw, eight-claw, ten-claw, twelve claw etc. You may choose saw blade cutting type or planetary cutting type. It is additionally attached with length counter and intensifying device. This line with reliable performance and high production efficiency. Our company can also manufacture special pipe production lines, such as, spiral silencing pipe and core foaming pipe according to your requirements.
PVC double-pipe production line:
The production line is developed with the advanced technology of west Europe by our company. The main machine is SJSZ55/110 or SJSZ65/132 conical twin screw extruder is equipped with double-tube single control stainless steel spraying calibration,it avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cutting machine are combined with the front double calibration technology to make operation more flexible let you enjoy economic benefit which is brought by separate-control double tube extruding.
PVC four cavities production line:
Four cavities PVC electrical tube,water supply pipe extrusion line can extruder four pipes at same time on one machine.This line can save investment cost in factory building and production,which increase the capacity a lot and reduce production time. SJSZ65 conical twin-screw extruder can easily reach 5.5-6.5 ton/per day,the production speed take 16 mm as example can get more than 8-10 m/min. The whole line is composed of conical twin-screw extruder 65 mm, 4 cavity mould,4 cavity cooling calibration tank,4 station haul off, 4 station cutter and 4 station tipping table.
Why Choose us
Formula
1 - We can free offer detailed formula for each products, please feel free send an inquiry for detailed information.
2 - We also can offer the design of workshop and product suggestion.
Installation / Debug / Training
1 - We will arrange seasoned technician for installation, debug and test production.
2 - Our company offers technology training to the customer in his factory.
3 - We promise that our goods are all new and not used.
Quality Guarantee
1 - The equipment will be tested and run for few hours before leaving the factory, to ensure the smooth working
2 - One year warranty for PVC line, after warranty, we offer best price of easy broken parts.
After-sales Service
1 - We offer main parts and offer other parts at the favorable price at any stage.
2 - After quality guarantee, we offer technology support, online and offline guidance.
1 - We can free offer detailed formula for each products, please feel free send an inquiry for detailed information.
2 - We also can offer the design of workshop and product suggestion.
Installation / Debug / Training
1 - We will arrange seasoned technician for installation, debug and test production.
2 - Our company offers technology training to the customer in his factory.
3 - We promise that our goods are all new and not used.
Quality Guarantee
1 - The equipment will be tested and run for few hours before leaving the factory, to ensure the smooth working
2 - One year warranty for PVC line, after warranty, we offer best price of easy broken parts.
After-sales Service
1 - We offer main parts and offer other parts at the favorable price at any stage.
2 - After quality guarantee, we offer technology support, online and offline guidance.
Related Products
Company Introduction
Eans Machinery since 2000, is a professional manufacturer in plastic sheet board extrusion lines, and also a professional manufacturing enterprise that integrates development, manufacturing, technical services and marketing. Our products are popular accepted by domestic market and many other countries and regions, such as, United States, Pakistan, India, Kazakhstan, Uzbekistan, Malaysia, Algeria, etc.
Our main products including: PVC ceiling wall panel production line, PVC WPC profile extrusion line, WPC wall panel making machine, PVC door window making machine, PVC marble sheet extrusion machine, SPC flooring extrusion line, PVC edge band making machine, PVC pipe making machine, PVC foam board extrusion line and other plastic auxiliary machine.
Certificates
Packing&Shipping
FAQ
Customer's satisfaction is our aim
1. How many days for delivery time?
Generally, We have semi finished products in stock, So the delivery is fast. Normally, it is about 30 - 40 days after payment
2. What is the payment terms?
LC at sight or TT.
3. What is machine packing?
Standard packing
4. What is the guarantee?
12 months after installation,
5. How to install machine?
We will arrange our engineer to customer factory for installation and teach local workers to operation and maintenance. We also can send experienced master to work at customer's factory three month or more according to requirements
Generally, We have semi finished products in stock, So the delivery is fast. Normally, it is about 30 - 40 days after payment
2. What is the payment terms?
LC at sight or TT.
3. What is machine packing?
Standard packing
4. What is the guarantee?
12 months after installation,
5. How to install machine?
We will arrange our engineer to customer factory for installation and teach local workers to operation and maintenance. We also can send experienced master to work at customer's factory three month or more according to requirements
