New Design Polystyrene Beadboard Panels Pvc Ceiling Wall Panel Making Machine Made In China
- Category: >>>
- Supplier: Zhangjiagang City Far Creative Plastic Machinery Co. Ltd.
Share on (1600434355406):
Product Overview
Description
Products Description
PVC Wall Panel Making Machine

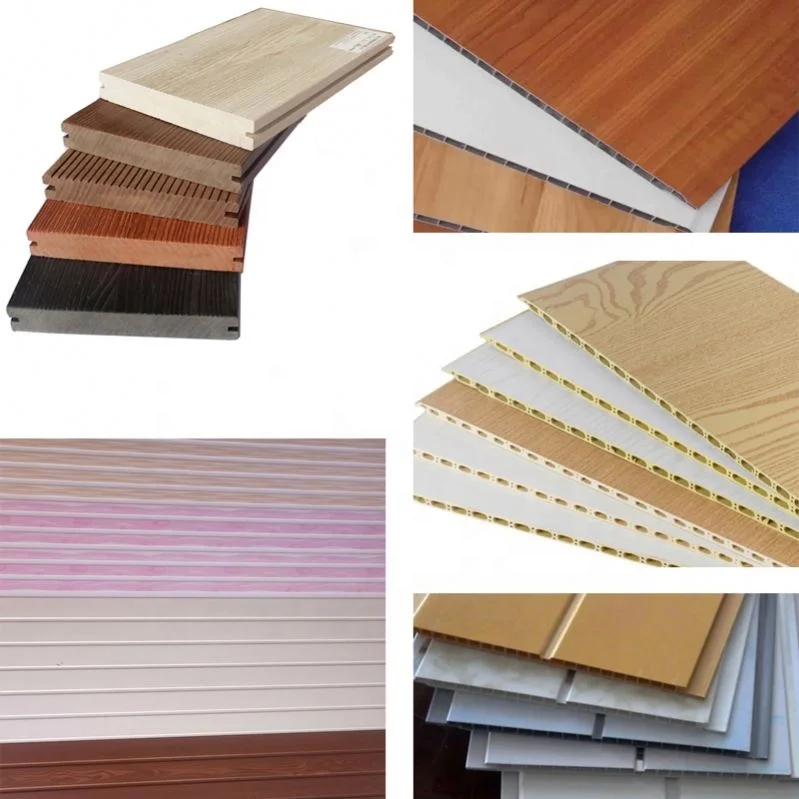

Series PVC Wall Panel Making Machine is mainly used in PVC Wall Panel, PVC door & window profiled material,wide door plate, window plate, For different sectional surface and molds, twin conical screw extruder of different specifications can be chosen together with corresponding vacuum calibrating table, haul-off unit, cutting unit, tilter, etc.
Capacity of main frame can be optionally chosen from 150-250 kgs/hour.
Capacity of main frame can be optionally chosen from 150-250 kgs/hour.
Product Appliaction
Process flow of PVC ceiling production line:

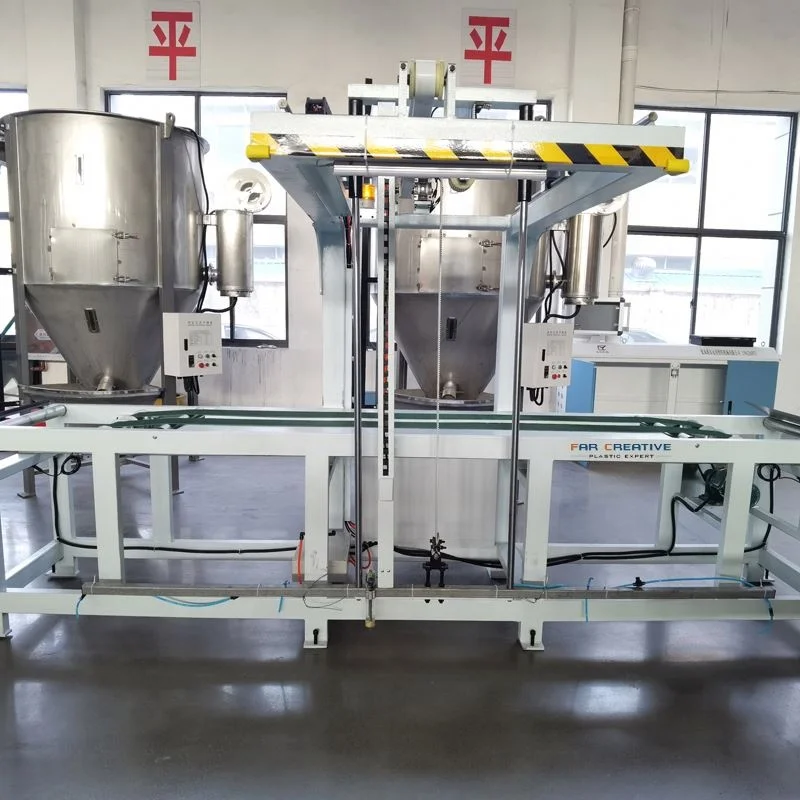

Automatic loader→double screw extruder machine→mould→vacuum calibration spraying platform→online lamination or hot stamping
transfer machine(option)→blade cutter→stacker
Features of the PVC Wall Panel Making Machine:
1. The calcium powder required in the board formula can be increased up to 5%-25% and the required amount of the auxiliary
material decreased by 30%.
2. The products made using the PVC Wall Panel extrusion machine offer a fine appearance and uniform plasticization.
3. Through the use of a PID controller, the extrusion machine provides an automatic alarm in case of a problem with any component.
transfer machine(option)→blade cutter→stacker
Features of the PVC Wall Panel Making Machine:
1. The calcium powder required in the board formula can be increased up to 5%-25% and the required amount of the auxiliary
material decreased by 30%.
2. The products made using the PVC Wall Panel extrusion machine offer a fine appearance and uniform plasticization.
3. Through the use of a PID controller, the extrusion machine provides an automatic alarm in case of a problem with any component.
Equipment List
Specification of Equipment List | |||||||
NAME | Quantity/Set | Description | Remarks | ||||
1 | Spiral loader | ||||||
Automatic feeding machine | 1 | With twin screw to feed evenly | |||||
Extruder SJSZ-51/105 or 65/132 | 1 | 18.5/22/37 KW for choice | |||||
Moulds | 1 | Moulds shape can be designed | |||||
Calibration Table | 1 | Moulds shape can be designed | |||||
Laminator films | 1 | Surface treatmen | on line | ||||
Haul off machine | 1 | For driving the products | |||||
Cutting | 1 | Cut | |||||
Conical twin Screw extruder techinical parameters:
Model | SJSZ51/105 | SJSZ55/120 | SJSZ65/132 | SJSZ80/156 |
Power(kW) | 18.5 | 22 | 37 | 55 |
Screw Diameter(mm) | ∅51/∅105 | ∅55/∅120 | ∅65/∅132 | ∅80/∅156 |
Rotational Speed | 36 | 36 | 36 | 36 |
Output(PVC Power kg/h) | 100 | 150 | 250 | 400 |

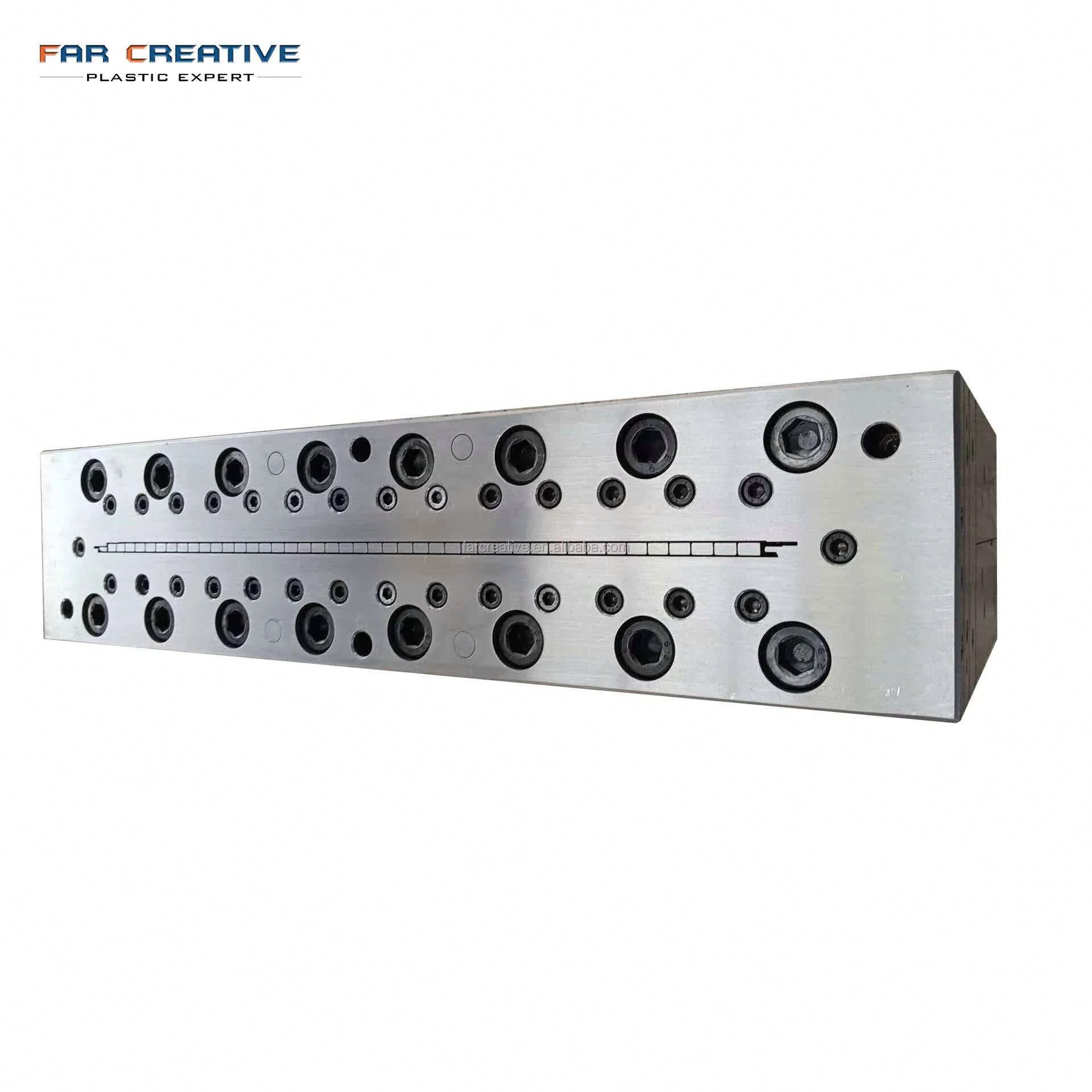

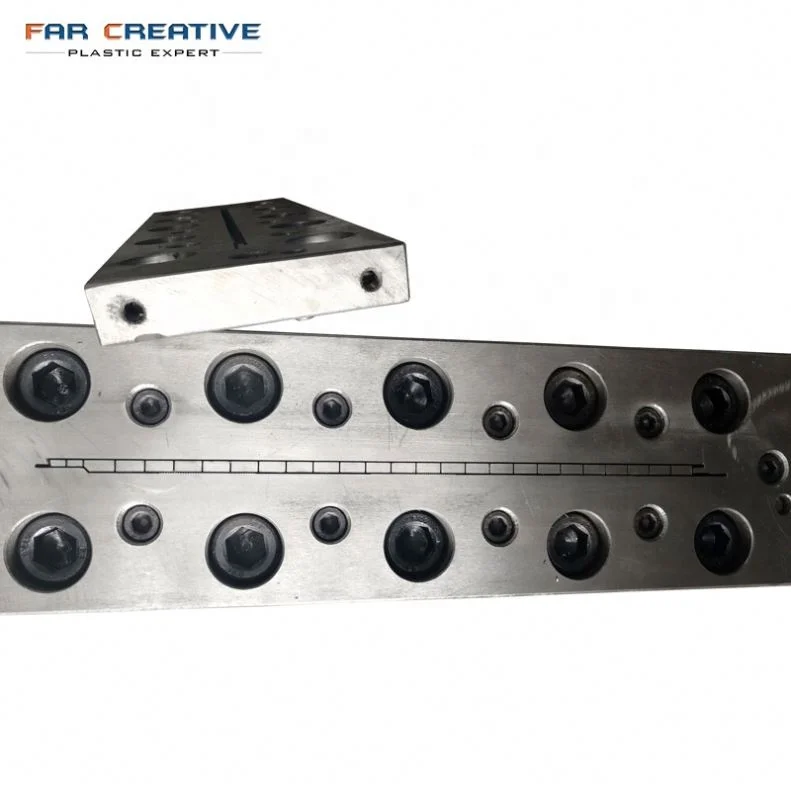

MOLD
Company Information
Far creative Plastic Machinery Co. Ltd was founded in 2010 and is a scientific and technological knowledge-intensive enterprise integrating research and development, production and sales.
The company has ten years of production research and development experience and our product includes full biodegradable granulation production line, wood plastic outdoor profile production line, degradable straw production line, PE,PVC, PPR plastic water supply pipe line production line, drainage pipe line production line, power pipe line and other plastic pipeline equipment.
Our factory is located in zhangjiagang city, and it only takes around two hours driving from Shanghai international airport. Welcome to visit our factory, and hope to cooperate with you in near future.
Why Choose Us
Packaging & Shipping
FAQ
Q1: Is your company a factory or trade company?
A: We are a factory, we are engaged in this business for 11 years.
Q2: Can you guarantee your quality?
A: Of course.
Q3: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient( Payment terms:T/TLC Western Union etc.)
Q4: How about after service?
A: We can offer 12 months free warranty since the machinery arrived at your factory. We also offer space parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.
Q5: How to reach our factory?
A: It will take about 1-2 hours from Shanghai International Airport to our factory by car and we will arrange for our driver to pick up you to our factory anytime.
