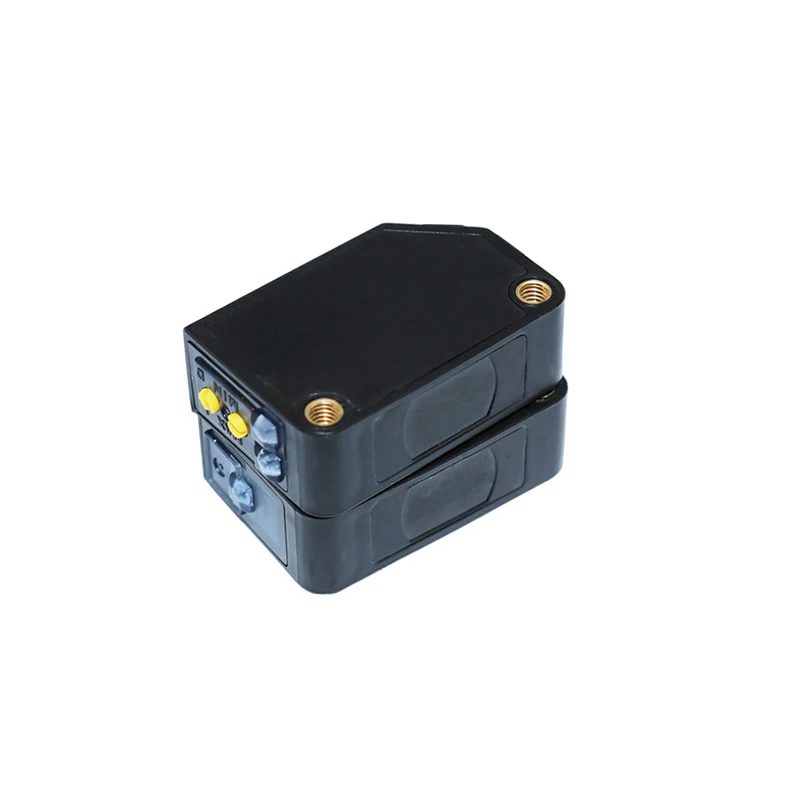

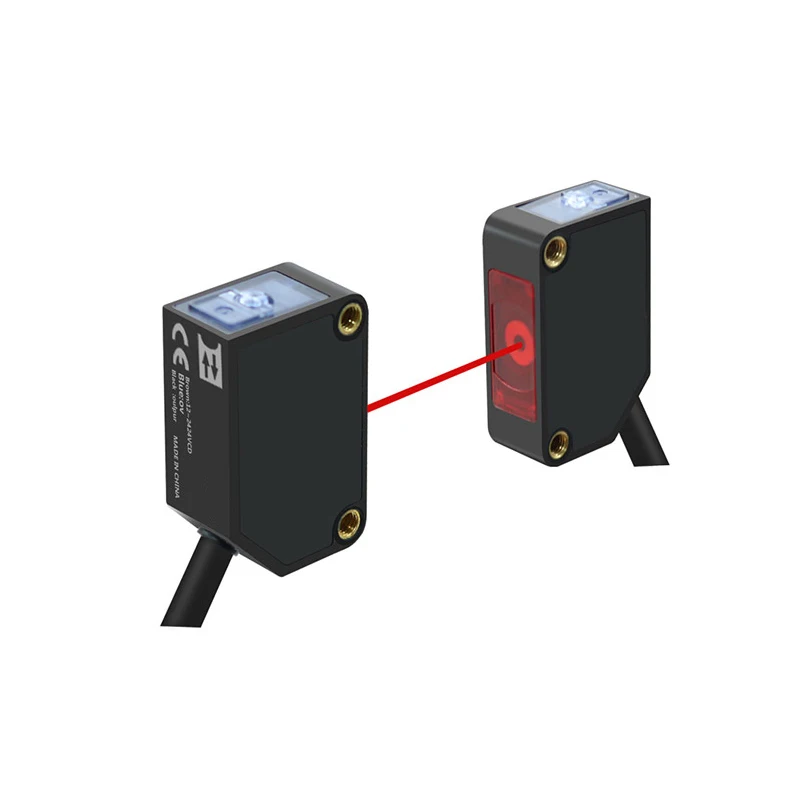

Square Type Red LED Thru beam Automatic Warehouse Photoelectric Sensor AC 2 wire Photo Sensor Switch
- Category: >>>
- Supplier: Shenzhen ESPE Technology Co. Ltd.
Share on (1600434367956):
Product Overview
Description
Welcome to ESPE
Welcome to ESPE!
Here we just show an example, please contact us for more models. You're special for us and deserve our special customization service.
- Cost-effective and high quality
- Quick delivery time
- Support ODM & OEM service
- Professional technical service support
- 19 years experience and Chinese top 2 factory
Product Description
| Sensing distance | 20m |
| Detection object | φ 12mm opaque object |
| Response time | <2ms |
| Directional angle | 2~10° |
| Power voltage | DC 12 ~24V ripple (p-p) 10% included |
| Current consumption | <35mA |
| Output signal | NPN transistor: maximum current 80mA; external voltage 30V DC (output-0V); residual voltage <2v (when current 80mA), <1v (when current 16mA); PNP transistor: maximum current 80mA; external voltage 30V DC (output-+V); residual voltage <2v (when current 80mA), <1v (when current 16mA); |
| Output way | NO/ NC switchable |
| Indicate light | Power indicator light (yellow) |
| Circuit protection | ourput short-circuit protection, power reverse polarity protection, output reverse polarity protection, Mutual interference prevention |
| Protection degree | IEC standard IP64 |
| Ambient illuminance | Incandescent light interference ≤3,000 lux; sunlight: <10000 lux |
| Ambient temperature range (operating) | -20 ~ +60 ℃ (no freezon or condensation) |
| Ambient temperature range (storage) | -40~+70℃ (no freezon or condensation) |
| Ambient humidity | Operating:35-85% RH, storage: 35~95% RH (no freezon or condensation) |
| Insulation resistance | 20MΩ min (500 v DC megger) |
| Dielectric strength voltage | AC1000V 50/60Hz 1 min |
| Vibration resistance | Destruction:10~55Hz, 1.5mm double amplitude each in X, Y, and Z directions for 2h |
| Shock resistance | Destruction: 500 m/s*2 3 times each in X, Y and Z directions. |
| Shied material | Case: PBT; Lens: Methacrylate resin |

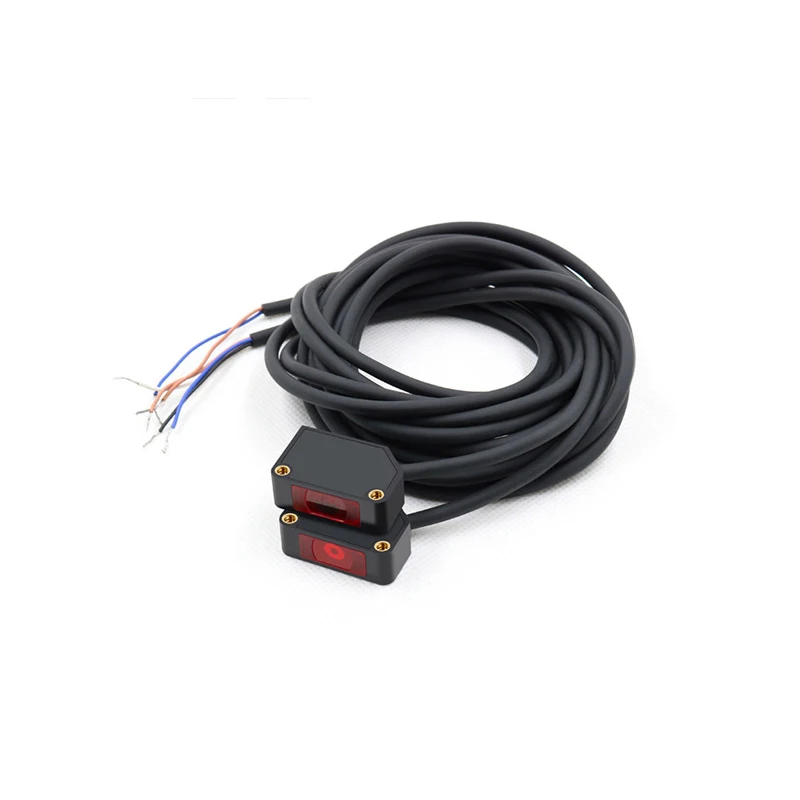

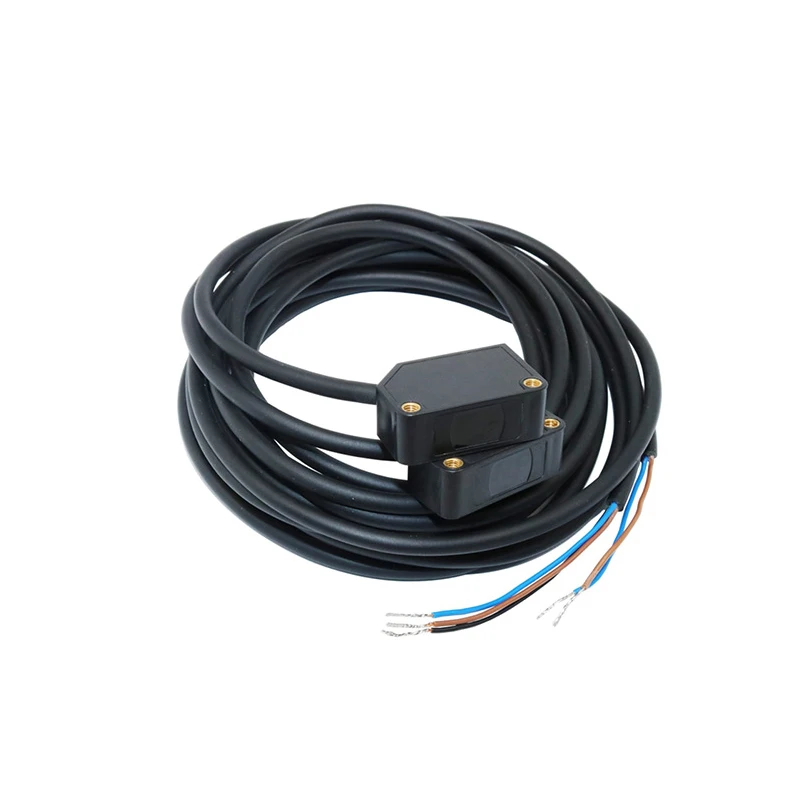

| Connection method | Pre-wired models (cable length 2m) |
| Accessories | instruction, screwdriver, optical reflector (retro-reflection) |
Our Services
Company Information
Packaging & Shipping
FAQ
Q1.What is the MOQ?
AC: 1 pair order is also accepted.
Q2.Do you customize logo, color, and label of product?
AC: Of course, we support ODM service, can customize logo, color etc.
Q3.Do you have certification?
AC: Factory pass ISO9001:2015, product with EU TYPE 4, CE, FCC, CCC etc. certification.
Q4.How long will you take once a order placing?
AC: We have 18 years experience. All product is mature, small order is finished in 2-3 work days; big order around 10-15 days.
Q5.How is your quality? What's your quality assurance?
AC: ESPE become leader of Chinese safety light curtain industry.
Our workers will inspect material 1 by 1. Every procedure is made by skilled workers. After sensor finished, inspector will check the response time, sending distance etc. After all, we do aging testing to ensure every product is good.
And we have 1 year warranty.
20 enginerrs team and top sales for you.
Q6. How can I get a lower price?
AC: Large order quantity with lower price, you can contact us to confirm the certain discount with different quantity order.
Q7. How to select the correct model?
AC: a. The best way, contact us, we can assist you . (We provide 24h online service)
b. To confirm four techical parameters, the beam spacing ,the protective height , the working voltage, and sensing distance. and find the model selection table on above to select the certain model by yourself.
