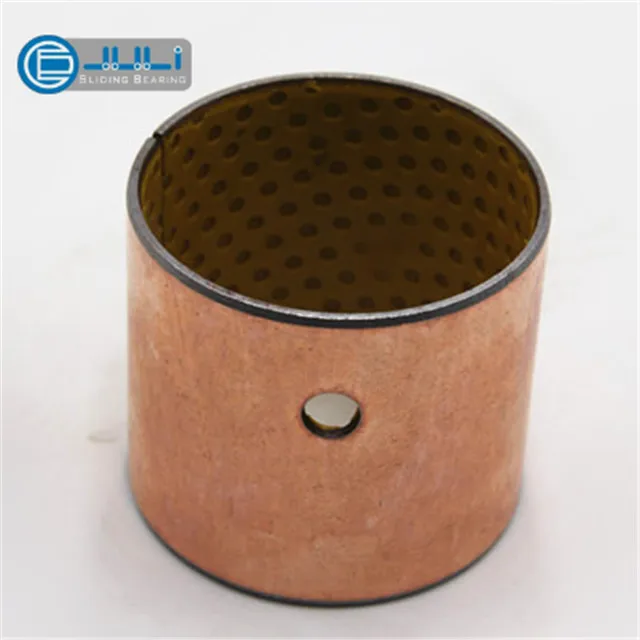

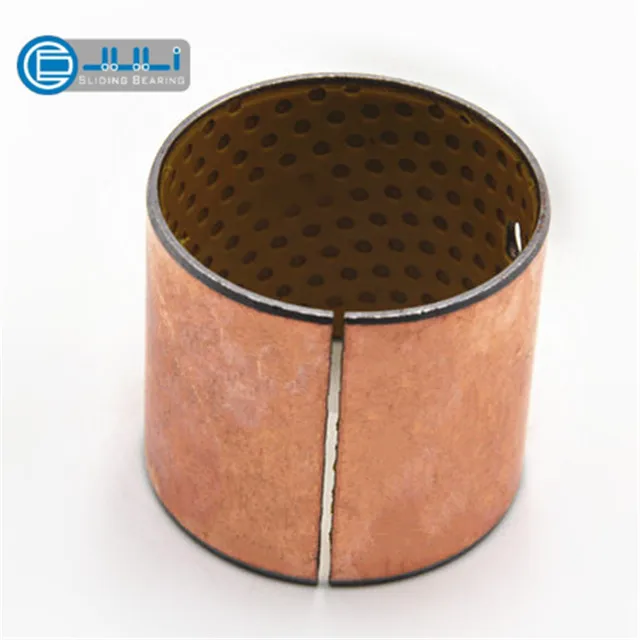

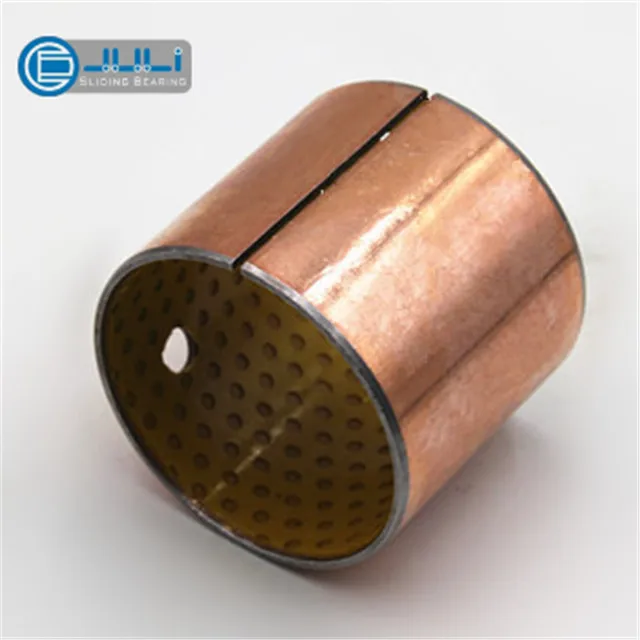

slide bearing 55x60x25mm DX 5525 King Pin Bush

Suitable for grease or oil lubrication and all kinds of movement, good load capacity, robust and insensible to dirt.

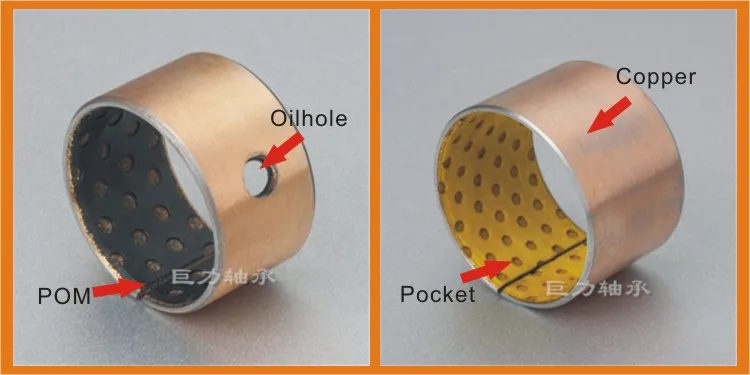

Wrapped composite sliding bearing steel / POM - with lubrication pockets
TECHNISCHE DATEN POM-MET
Wrapped composite sliding bearing
Tin-plated steel / acetal resin (POM)
DIN 1494 / ISO 3547
Low-maintenance
With lubrication pockets
Flanged sliding bearings on request

Max Move Load Capacity                                 250 N/mm2

Max Sliding Speed                                            dry 2.5 m/s

Max PV Value Limit                                           2.8 N/mm ·m/s

Friction coecient                                                0.05~0.20μ

Tensile Strength                                                >750 N/mm2

Thermal conductivity                                        50W(m·k)-1
Coecient of thermal expansion                        11×10-6·K-1

Hardness                                                           > 270 HB

Working Temperature                                        - 60 ~ + 120 ℃

Initial pre-lubrication at assembly is strongly recommended
