SmarTEC PCM L04S150 F59 12V 100Ah 150Ah 200Ah lifepo4 battery bms 4s 12v 150a
SmarTEC PCM-L04S150-F59 12V 100Ah 150Ah 200Ah lifepo4 battery bms 4s 12v 150a
SmarTEC PCM-L04S150-F59 12V 100Ah 150Ah 200Ah lifepo4 battery bms 4s 12v 150a
SmarTEC PCM-L04S150-F59 12V 100Ah 150Ah 200Ah lifepo4 battery bms 4s 12v 150a
SmarTEC PCM-L04S150-F59 12V 100Ah 150Ah 200Ah lifepo4 battery bms 4s 12v 150a
SmarTEC PCM-L04S150-F59 12V 100Ah 150Ah 200Ah lifepo4 battery bms 4s 12v 150a
SmarTEC PCM-L04S150-F59 12V 100Ah 150Ah 200Ah lifepo4 battery bms 4s 12v 150a

SmarTEC PCM L04S150 F59 12V 100Ah 150Ah 200Ah lifepo4 battery bms 4s 12v 150a

Share on (1600434509360):


Price:$60.00 - $80.00

Quantity:


Product Overview

Description



Specification


SmarTEC Battery Management System (BMS)
A battery management system (BMS) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and / or balancing it. A BMS may monitor the state of the battery as represented by various items, such as:
Voltage: total voltage, or voltages of individual cells
Temperature: average temperature, or temperatures of individual cells
State of charge (SOC) or depth of discharge (DOD): to indicate the charge level of the battery
State of health (SOH), a variously-defined measurement of the overall condition of the battery
Current: current in or out of the battery
SmarTEC has our own factory to design and manufacture high quality PCM and BMS for all types Lithium battery packs. We test each PCM BMS before shipping and promise it is functional and safe. If you have any question in using PCM, please feel free to contact us


item
Parameters
Brand Name
SmarTEC
Model Number
PCM-L04S150-F59
Communication Interface
Blue-tooth SMBus,HDQ,I2C,RS232,RS485
Size
L200*W115*T12mm
Applied for
3S to 4S lithium ion or LiFepo4 battery
Maximal continuous Discharging current
150A
Charging&discharging port
Common
Balancing Function
YES (4.2V for li-ion (NMC) and 3.6V for LiFepo4)
Battery type
LiFePO4 & Li-ION(NMC)
Nominal Voltage
LiFepo4 3.2V/Cell; Li-ion 3.6/3.7V/Cell;
Charging Voltage
LiFepo4 DC:3.6V/Cell; Li-ion DC:4.2V/Cell;
High/Low cutoff voltage
3.9V/2.0V for LiFePO4; 4.25V/2.5V for li-ion /li-po battery ( Adjustable )
Temperature protection
60 degree for cell ,90 degree for BMS

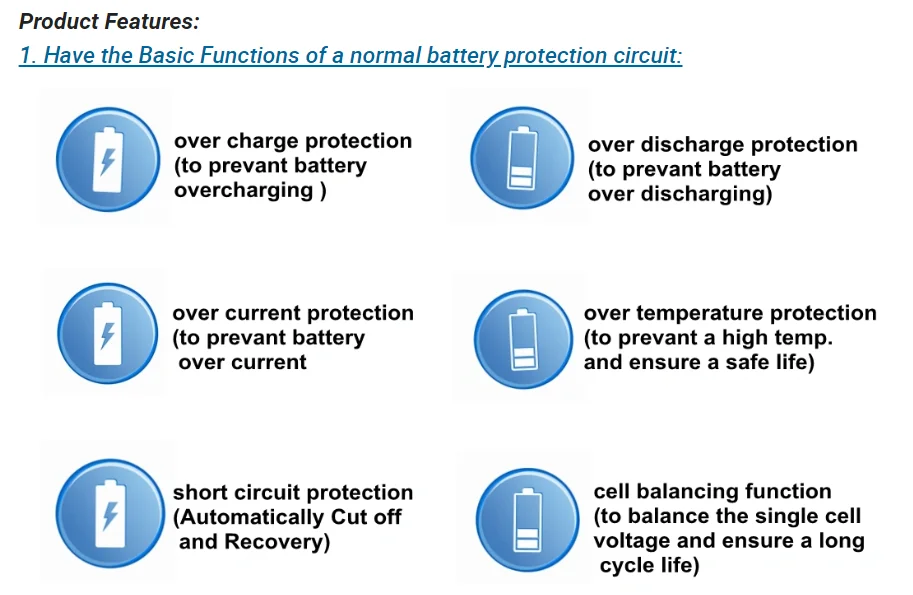

Protective function
Over charge/discharge/current/temperature/short circuit Protection
Temperature
Operating -40~+85℃; Storage'-40~+125℃
Testing Service
100% E-testing
Package
Anti-static Bubble Bag
Need detailed Datasheet or Specification, please feel free to contact us.

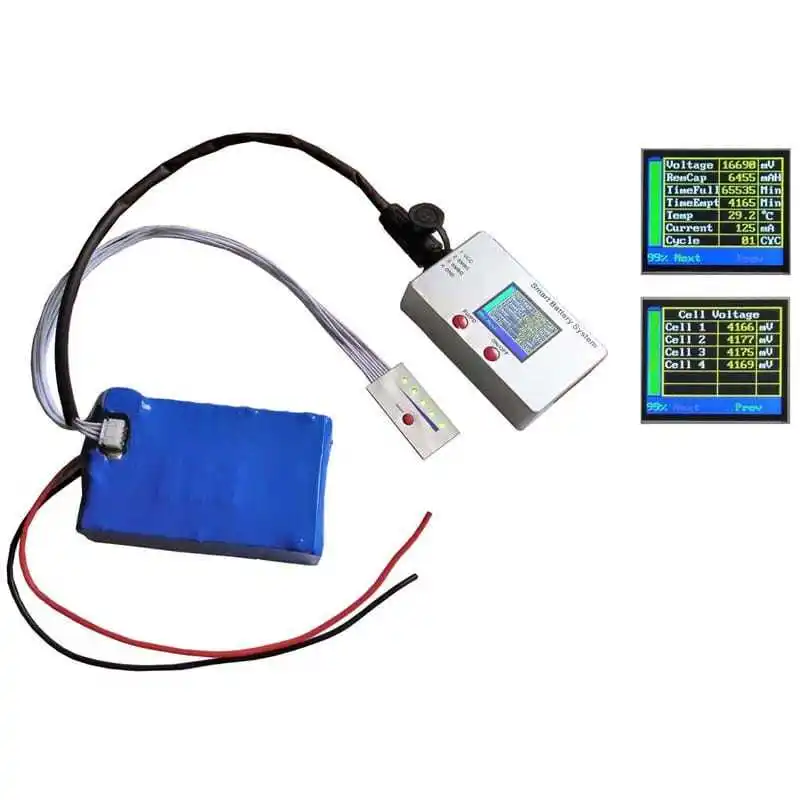

How to connect
Host PC software
1. With communication toll EV2400 or EV2300
2. Connect the battery terminals of GND、SMBC、SMBD with data cable to the above tool interface GND、SMBC、SMBD，then connect The tool with USB data cable to PC (Note: do not connect P+ of the battery
when communicating with upper computer) as figure1
3.Open host computer software of TI “Battery Management Studio”
Note: The above three kinds of communication tools with SMBUS can not be used at the same time. If two of them are used at the same time, SMBUS communication might be interrupted resulting in the loss of data.
