Automatic Stainless Steel Pipe And Tube Milling Machine Profile Roll Forming Machines

Automatic Stainless Steel Pipe And Tube Milling Machine Profile Roll Forming Machines

Category: Pipe Making Machinery >>>
Supplier: Foshan,YXH,Import,&,Export,Co.,Ltd.

Price:$16,800.00

Price in USD:Details

Quantity:

Product Overview

Description

Products Description

Model	S-ZG 40 Pipe Making Machine
Pipe Material	stainless steel , carbon steel , galvanized steel
Round Pipe Dia.	6-31.8mm
Round Pipe Thickness	0.2-1.2mm
Square Pipe Dia.	10×10—25×25mm
Square Pipe Thickness	0.3—0.8mm
Rectangle Pipe Dia.	10×10—20×30mm
Rectangle Pipe Thickness	0.3—0.8mm

Factory Price Stainless Steel/Ms Pipe Tube Mill Machine Making SS Square/Round Pipes

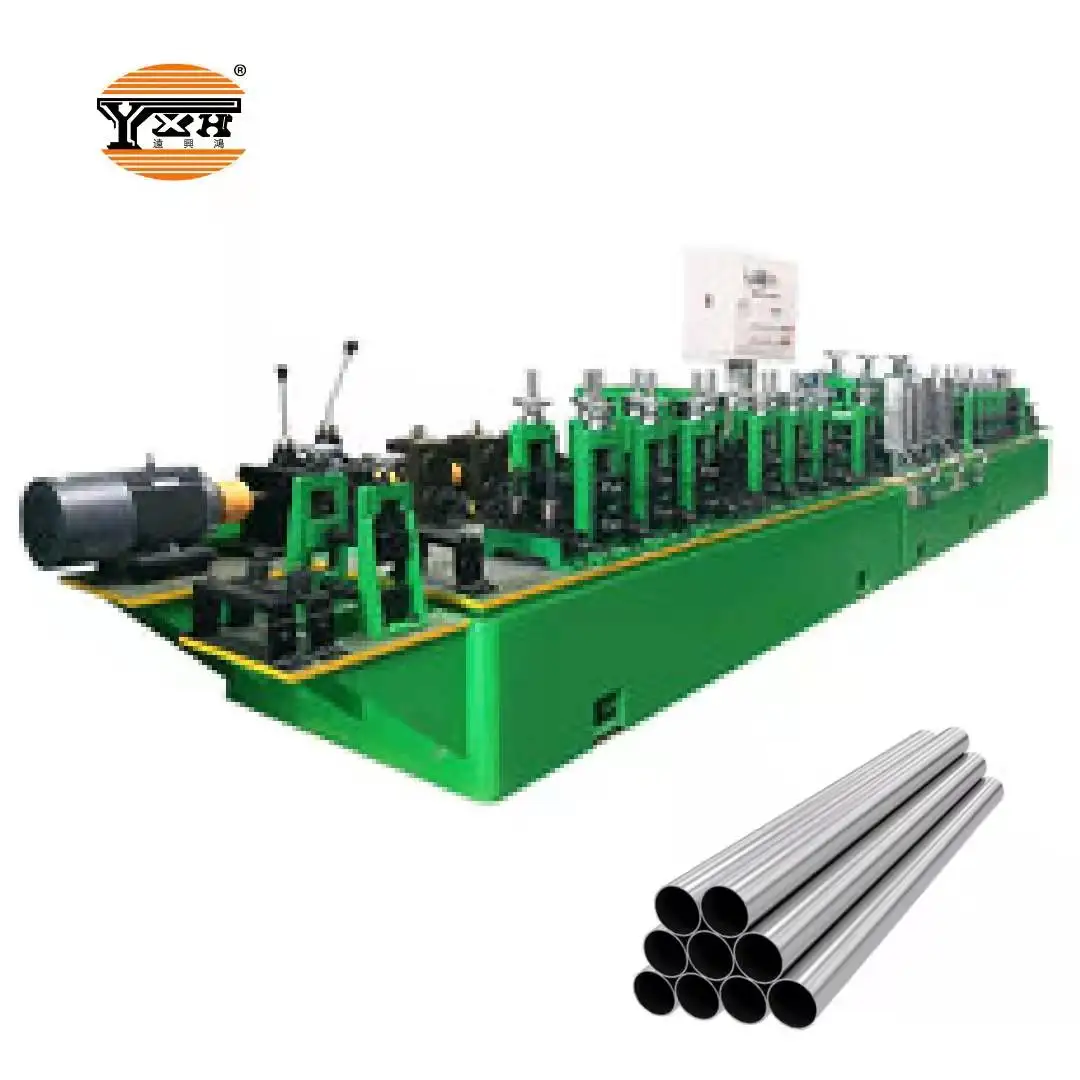

S-ZG40 Stainless Steel Tube Mill is designed to produce welded round pipes, with the characters of advance, steady, perfect and maturity etc. The mill line is newly designed based on practical producing and acquiring the advantages of equipment home and abroad，which is also convenient in operation and maintenance.

Part 1: Un-coiler

Manual operation with adjustable brake

Two sides, coil adapting cone with loading weight: ≤1T per side

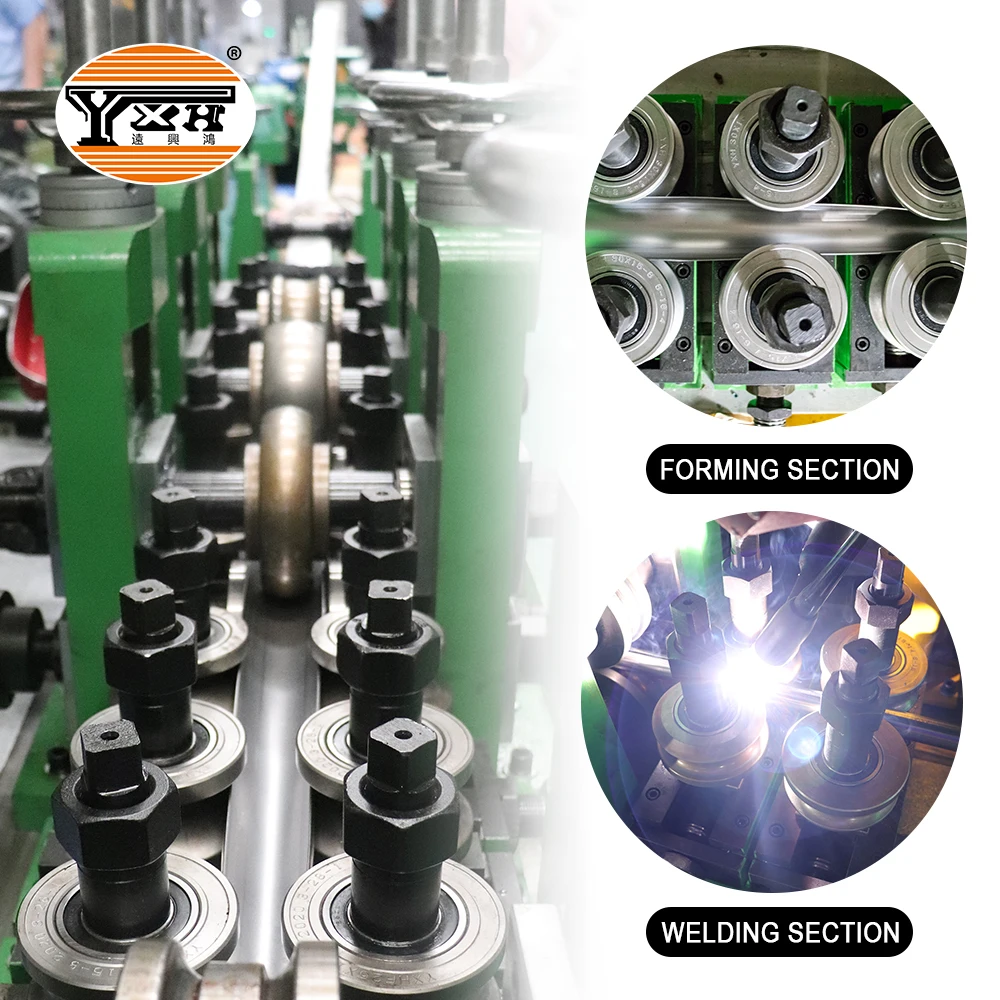

Part 2: Forming Section

Feeding equipment: 2 roller guide apparatus
3 break down+3 by-pass+3 fin pass
Horizontal Stands shaft dia.: 40mm
Vertical Stands shaft dia.: 25mm

Arrangement:

3-3-1-4 or 4-4-1-4 or customized

Horizontal Stand:

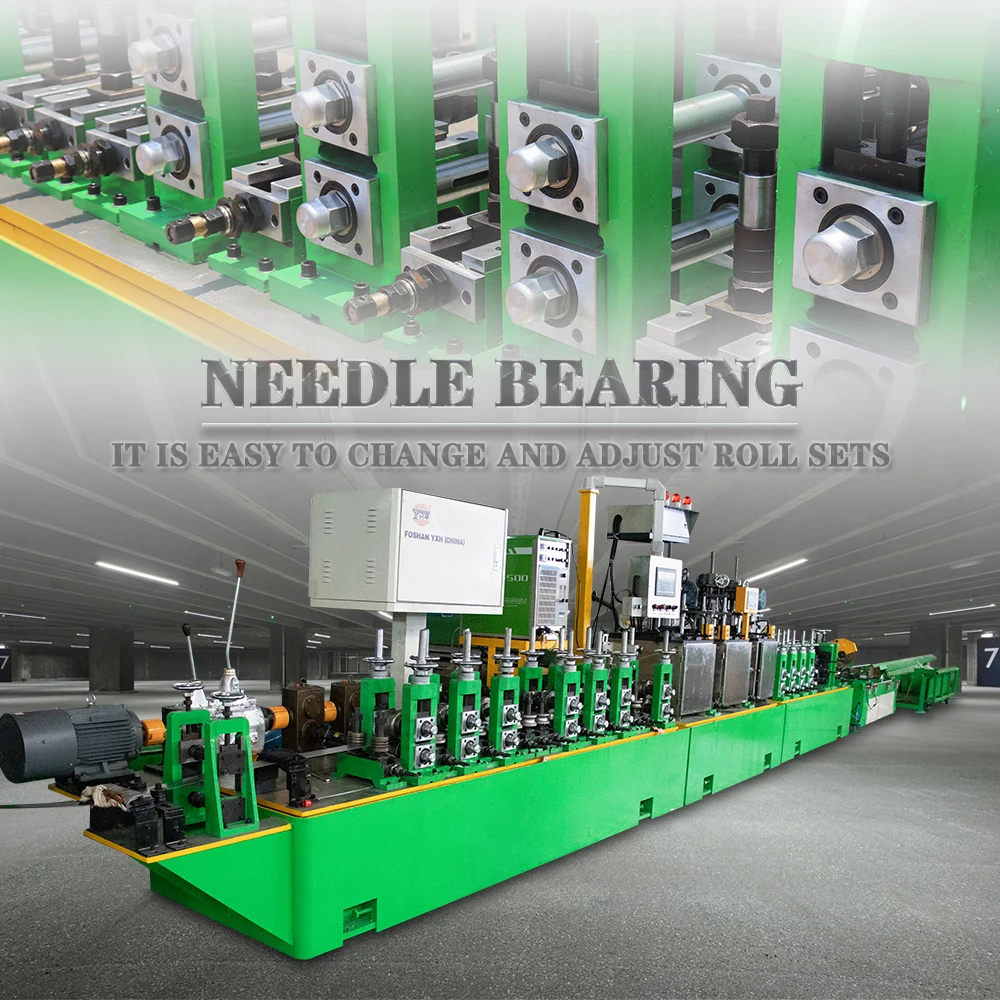

Needle Bearings in operation side Horizontal Stand,it is easy to change and adjust roll sets, will take roughly 40 minutes to change full set roll sets

Part 3: Welding Section

Welding Torch: Single
2 sets squeezing Rollers

Advantage for UT Welder:
(1) Dust proof, to protect the machine
(2) Pipe Welding quality will be much better than TIG Welder;
(3) It saves about 30% Argon Gas Consumption;
(4) It will improve production speed about 30%

Part 4: Seam Polishing Section

Totally enclosed automatic Grinding head

In automatically pressing down polishing system by electric motor, one engineer can operate five set tube mill. And it can make grinding section cleaner and grinding more stable.Totally Enclosed box with grinding head can make grinding section cleaner.

Part 5: Sizing &Turk-Head

Straightening and sizing for pipes

To reset the roundness of pipes
Turk Head: 2 Units

Part 6: Cutting Section

Friction Saw Cutter
Auto-mechanical
Operational panel
Cutting length: 4-10m

Metal Saw Cutter

Less burr in the end of the pipe

Part 7: Run-out table

IncludedL: 6m

More specifications

Stainless Steel Pipe Making Machine, covering range from 4.8mm to 325mm,and thickness is 0.18mm to 6.0mm. The pipe production machine mainly produces stainless steel pipe, carbon steel pipe. And this pipe making machine not only can make round pipe, square pipe, rectangle pipe, oval pipe and other irregular pipe as well.

Model	Pipe Diameter	Pipe Thickness	Capacity	Major Power
S-ZG40	6-31.8mm	0.2-1.2mm	1-20m/min	5.5KW
ZG40	8-50.8mm	0.2-1.5mm	1-15m/min	7.5KW
B-ZG40	12.7-63.5mm	0.3-2.0mm	1-10m/min	11KW
ZG50	25.4-76.2mm	0.4-2.5mm	1-7m/min	15KW
ZG60	38.1-114mm	0.5-3.0mm	1-5m/min	18.5KW
ZG80	76.2-168mm	1.0-4.0mm	1-3m/min	22KW
ZG100	159-325mm	1.0-6.0mm	1-15m/min	30KW

Product Advantage

What We Can Provide

Welcome To Contact us

If you are interested in our tube mill machine, please don’t be hesitated to contact us. All the staff in our company are looking forward to hearing from you soon.

Packing & Delivery

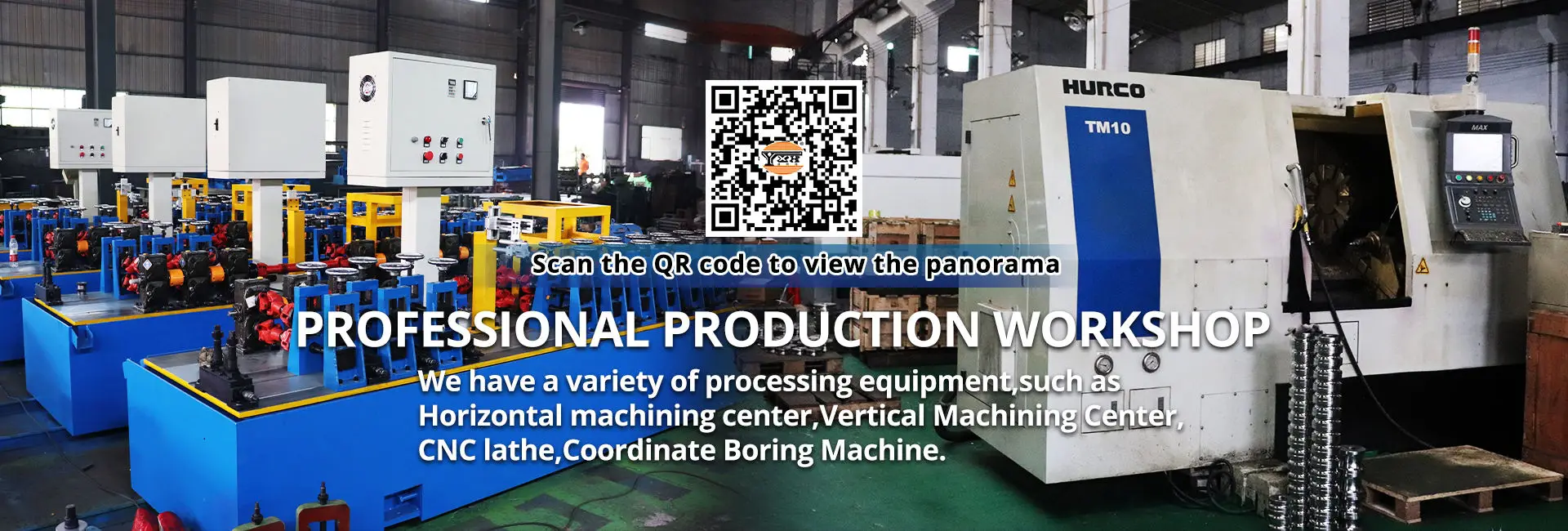

Company Profile

As one of the leading enterprises in stainless steel tube mill machine industry, YXH has been specializing in producing steel pipe making machine, tube polishing machine and Rollers etc.In last 20 years.To ensure the finished tube mill product quality,YXH controls every production process by professional teams, such as design, purchasing of raw material, prouction, process and quality inspection. High quality, competitive price, we are pretty sure that we will be your best choice.
