High quality rotary tablet press machine Tablet Compression Machine / Pill Press for Pharmaceutical Tablet press machine
- Category: >>>
- Supplier: Hefei Kerrian Machinery Co. Ltd.
Share on (1600434629136):
Product Overview
Description
Product Description
This tablet press machine is a double pressing type automatic rotating and continuous tablet pressing machine, which presses
granular raw materials into round tablets, lettering, special-shaped and two-color tablets. This is mainly used for tablet
production in the pharmaceutical industry, as well as chemical, food, electronics and other industrial enterprises. (Note: the
production of two-color chips only requires the replacement of parts and the addition of powder absorption device, which not only
reduces the cost but also increases the gain).

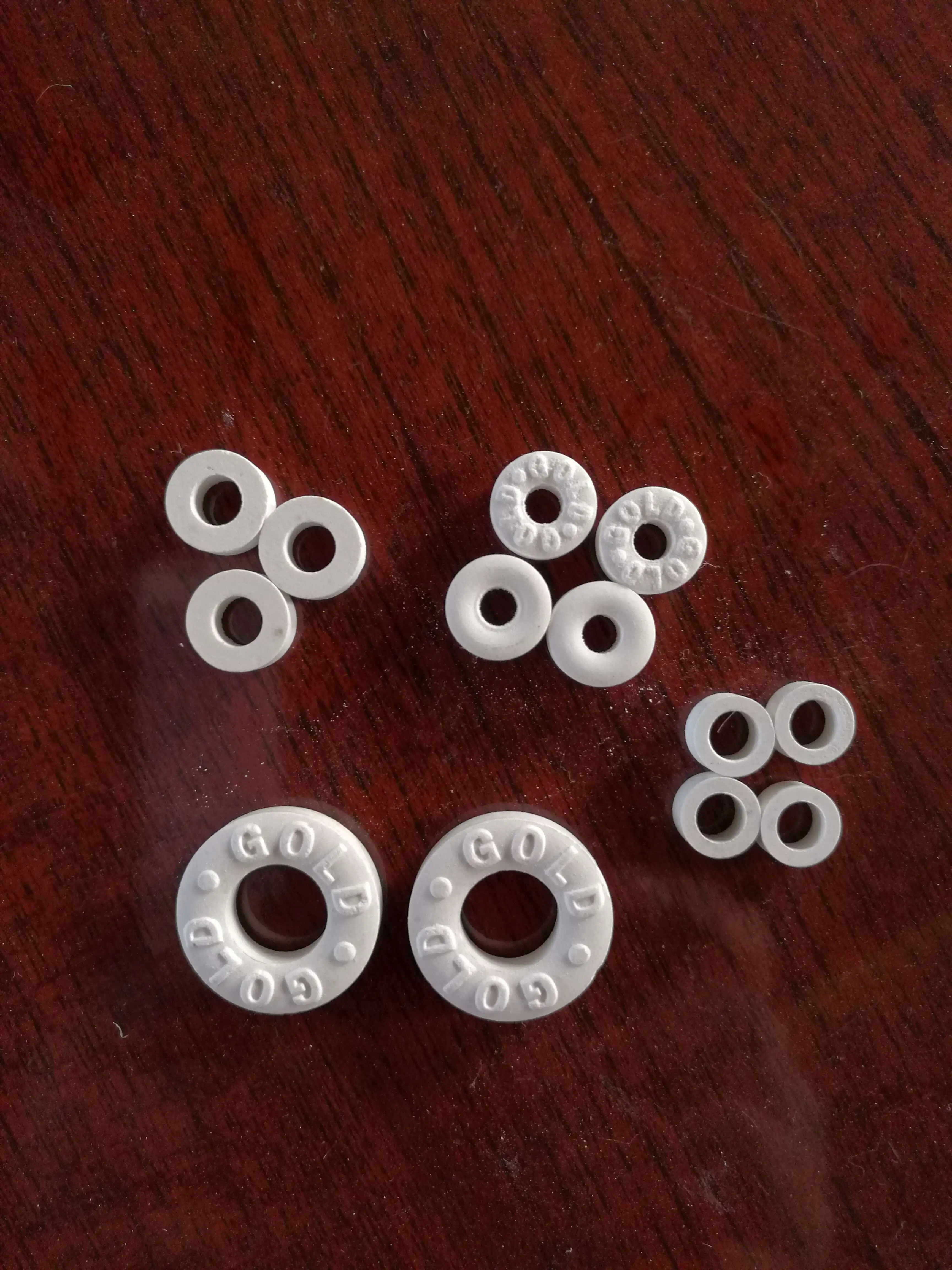

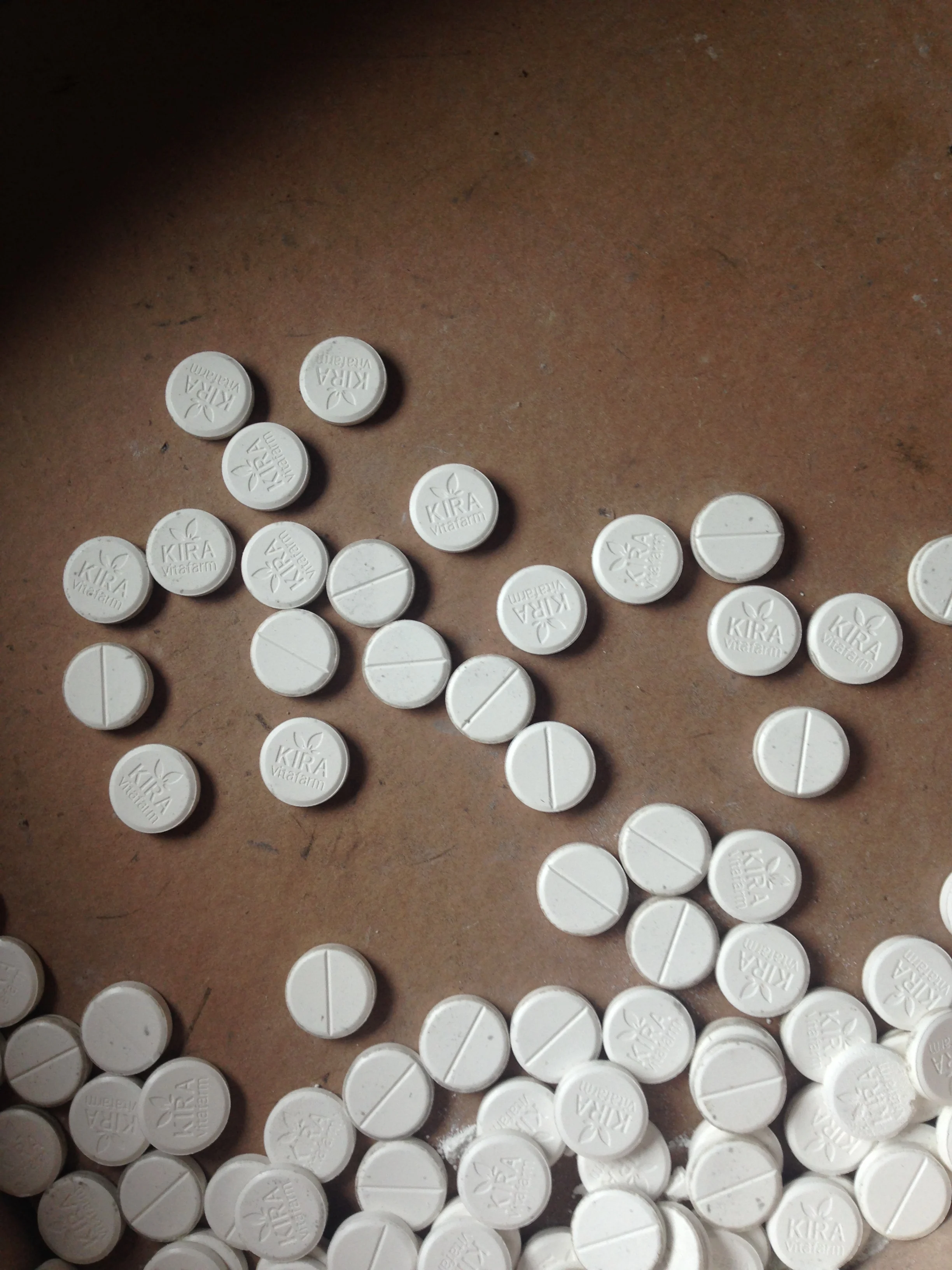

This tablet press machine is suitable to make different specification of tablets by changing moulds with different shape, like
round shape, triangle shape, ring shape, etc., we can make the machine to meet customers’ special requests.
Main features:
1. The outer cover is in the closed form of all stainless steel, and the inner table top is made of stainless steel, which can
maintain the surface luster and prevent cross pollution, and meet the requirements of GMP.
2. It is equipped with plexiglass perspective window, which can see the tablet pressing state, and the side panel can be fully
opened, which is easy for internal cleaning and maintenance.
3. All controllers and operating parts are arranged reasonably.
4. Frequency conversion speed regulation device is used for electrical speed regulation, which is convenient to operate, stable
to rotate, safe and accurate.
5. It is equipped with overload protection device, which can automatically stop when the pressure is overloaded.
6. Take the lead in trying out the semi-automatic lubrication device and plexiglass dust-proof device at the upper end of the
turntable.
7. The transmission system is sealed in the oil tank under the main engine. It is an independent component that can be safely
separated without mutual pollution. It also makes the transmission part soak in the oil pool, which is easy to dissipate heat
and wear-resistant.
8. It is equipped with powder suction device, which can absorb the dust in the pressing room.
granular raw materials into round tablets, lettering, special-shaped and two-color tablets. This is mainly used for tablet
production in the pharmaceutical industry, as well as chemical, food, electronics and other industrial enterprises. (Note: the
production of two-color chips only requires the replacement of parts and the addition of powder absorption device, which not only
reduces the cost but also increases the gain).
This tablet press machine is suitable to make different specification of tablets by changing moulds with different shape, like
round shape, triangle shape, ring shape, etc., we can make the machine to meet customers’ special requests.
Main features:
1. The outer cover is in the closed form of all stainless steel, and the inner table top is made of stainless steel, which can
maintain the surface luster and prevent cross pollution, and meet the requirements of GMP.
2. It is equipped with plexiglass perspective window, which can see the tablet pressing state, and the side panel can be fully
opened, which is easy for internal cleaning and maintenance.
3. All controllers and operating parts are arranged reasonably.
4. Frequency conversion speed regulation device is used for electrical speed regulation, which is convenient to operate, stable
to rotate, safe and accurate.
5. It is equipped with overload protection device, which can automatically stop when the pressure is overloaded.
6. Take the lead in trying out the semi-automatic lubrication device and plexiglass dust-proof device at the upper end of the
turntable.
7. The transmission system is sealed in the oil tank under the main engine. It is an independent component that can be safely
separated without mutual pollution. It also makes the transmission part soak in the oil pool, which is easy to dissipate heat
and wear-resistant.
8. It is equipped with powder suction device, which can absorb the dust in the pressing room.
Model | KRA-YPJ |
Dies(sets) | 31 or other according to request |
Maxe.pressure(KN) | 80 |
Max.dia.of tablet(mm) | 20 or according to request |
Max. filling depth(mm) | 15 or according to request |
Specification
item | value |
Place of Origin | China |
Hubei | |
Brand Name | KERRIAN |
Weight (KG) | 1000 |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Warranty of core components | 1 Year |
Core Components | PLC, Motor |
Warranty | 1 Year |
Applicable Industries | Manufacturing Plant, Home Use |
Showroom Location | China |
style | automatic tablet press |
table shape 1 | round |
table shape 2 | triangle |
table shape 3 | ring |
tablet shape 4 | suqare |
Packing & Delivery
wooden box packing is made on request
