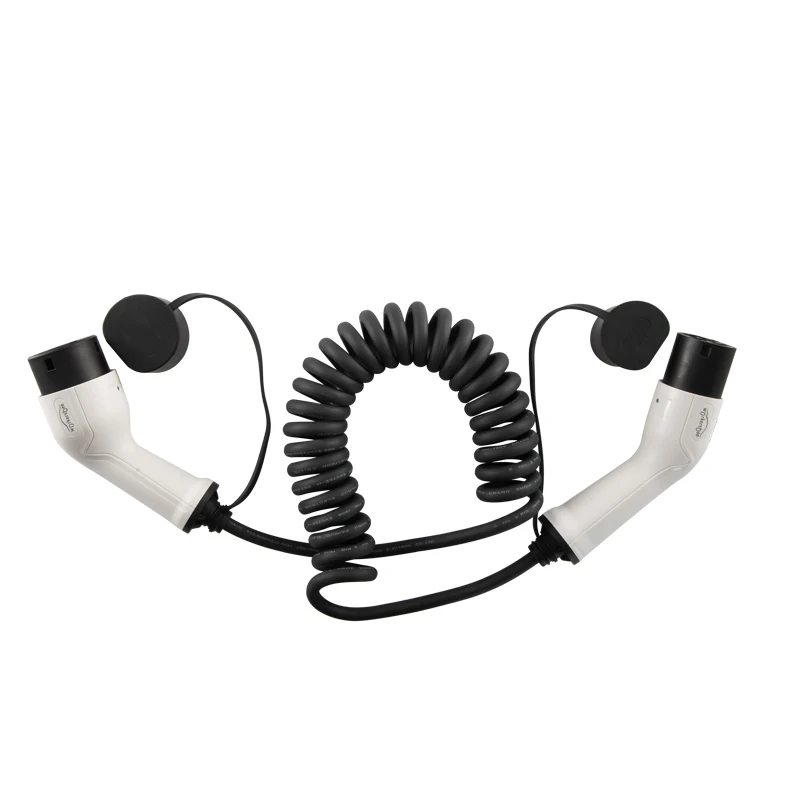

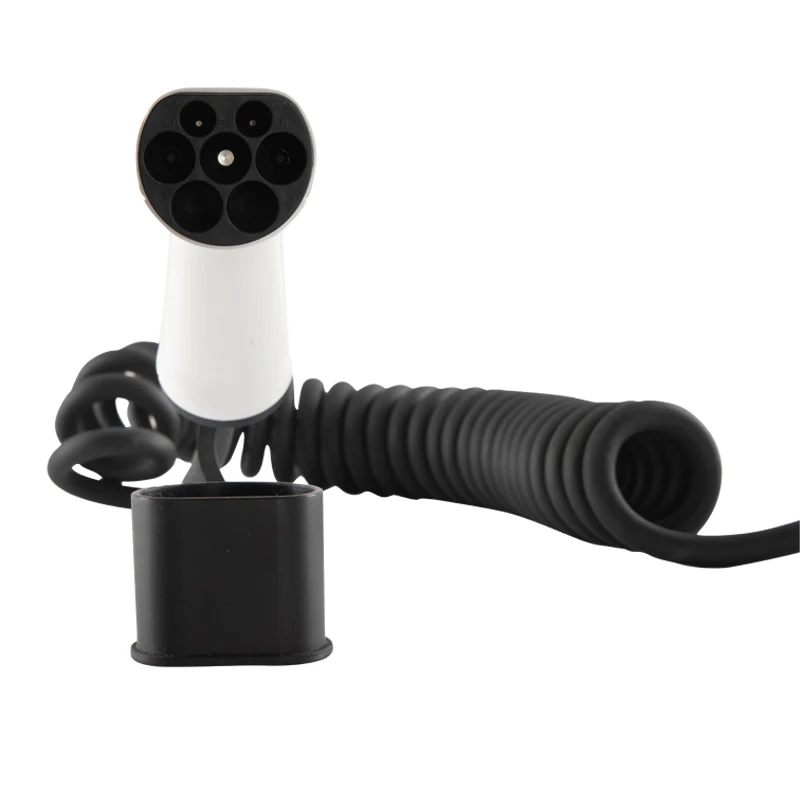

32A 250V Type 2 to Type 2 Coiled EV Charging Cable IEC 62196 Type 2 Coiled EV Cable
- Category: >>>
- Supplier: Littlebee Ev Charging Technology (suzhou) Co. Ltd.
Share on (1600434671301):
Product Overview
Description
Product Description
Mode 3 EV Charging Cable

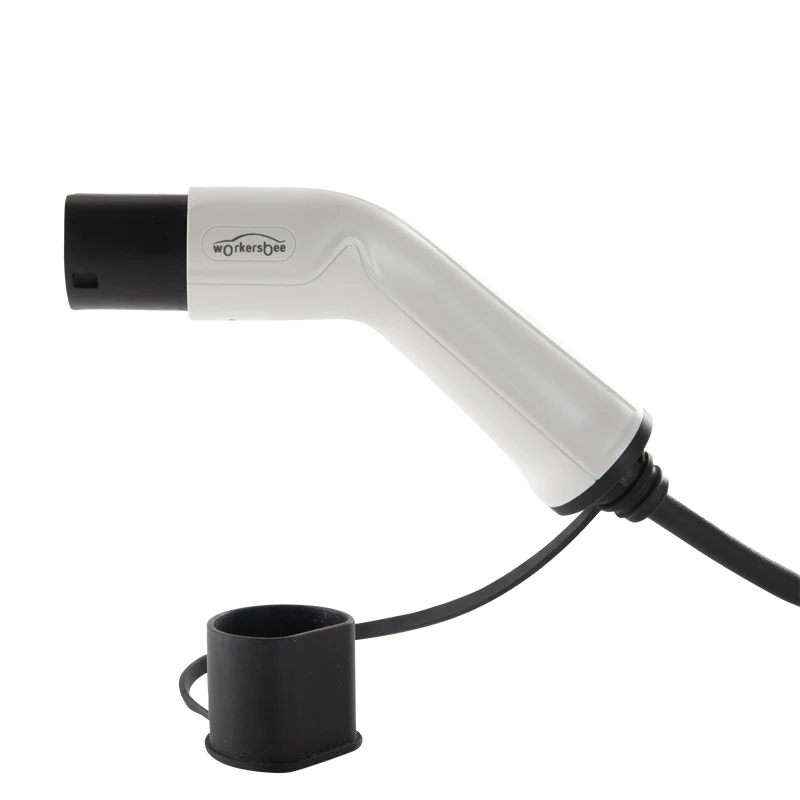

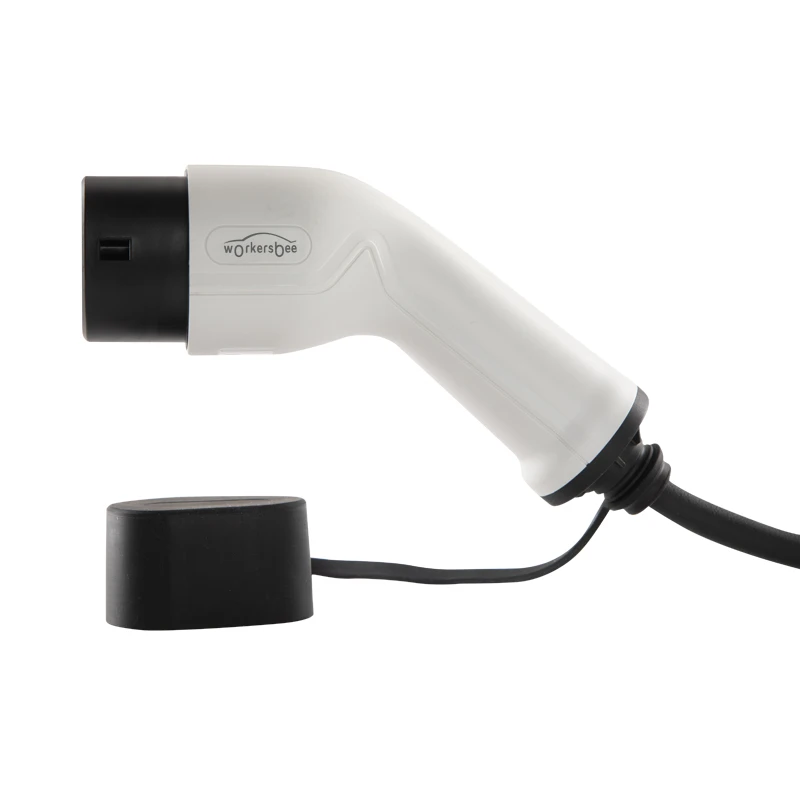

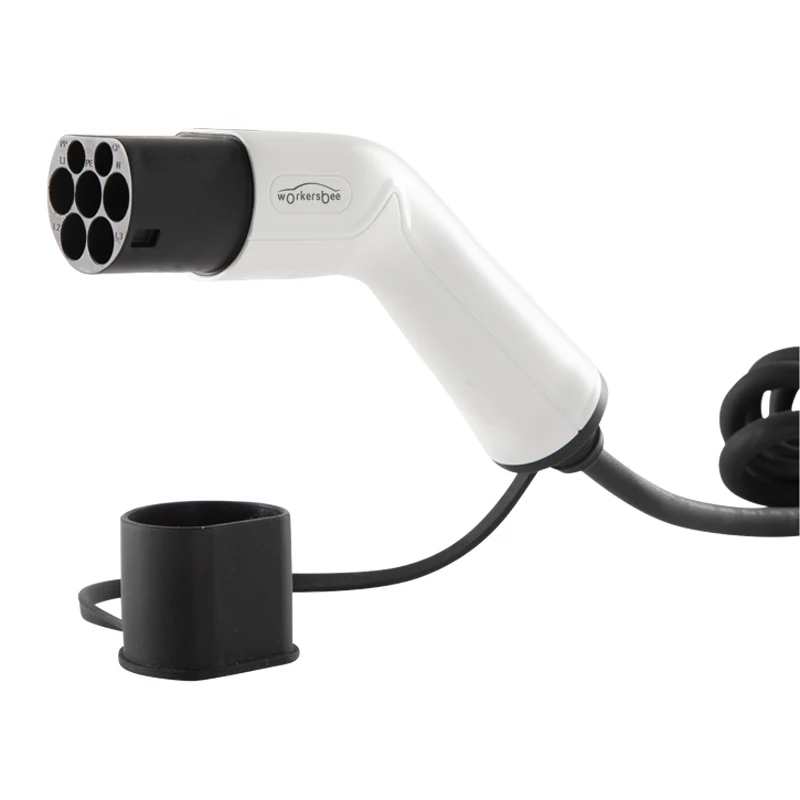

3.5KW/7KW/11KW/22KW EV charging connector for ev charging stations with CE certification. This series of products includes Type1-to-Type 2 and Type 2-to-Type 2 EV charging cables. The plugs have a thermoplastic shell and pins made of silver-plated copper alloy. With ergonomic designs, the plugs are comfortable to hold and easy to plug and unplug. They are compatible with electronic locks on the EVSE or the EV. The vehicle will give a demand to lock the plugs at both ends after it is ready for charging. The current of the Type 2-to-Type 2 EV charging cable can be one phase or three phases.
* Charging cord : Type 1 Vehicle Side – Type 2 Charging Station Side: 240V 16A/32A
* Charging cord : Type 2 Vehicle Side – Type 2 Charging Station Side: 250/480v 16A/32A
* Charging cord : Type 2 Vehicle Side – Type 2 Charging Station Side: 250/480v 16A/32A
Main Benefits Of Workersbee EV Charging Cables/ EV Connectors
* Fast and efficient ev charging connector
* Upgrade IP54 waterproof grade to prevent all kinds of water intrusion, make sure it’s safe during use
* Compression and flame retardant electric car chargers
* Safe and stable charge, the terminal uses copper silver plating material, do not easy to heat and charge more stable
* Two kinds of cable material optional: TPE and TPU
* 16.4-ft or customized length cable makes charging on the go easier and more convenient
* Type 2 to Type 2 ev connectors solve the charging problem for electric cars made with European Standard in European area
* Logo, color, cable length customized service make it easy to help you join in EV Charging business
* Upgrade IP54 waterproof grade to prevent all kinds of water intrusion, make sure it’s safe during use
* Compression and flame retardant electric car chargers
* Safe and stable charge, the terminal uses copper silver plating material, do not easy to heat and charge more stable
* Two kinds of cable material optional: TPE and TPU
* 16.4-ft or customized length cable makes charging on the go easier and more convenient
* Type 2 to Type 2 ev connectors solve the charging problem for electric cars made with European Standard in European area
* Logo, color, cable length customized service make it easy to help you join in EV Charging business
Specification
Specifications | Product Name | EV Charging Cable Type 2 to Type 2 |
Electric Parameters | Rated Voltage | 250V (1 Phase) AC |
Rated Current (Power) | 32A 1 phase, 7.2kw | |
Frequency | 50/60Hz | |
Insulation Resistance | ＞1000MΩ | |
Terminal Temperature Rise | ＜50K | |
Withstand Voltage | 2000V | |
Contact Resistance | 0.5mΩ | |
Mechanical Performance | Mechanical Life | ＞10000 times no-load plug in/off |
Coupled Insertion Force | 45N～100N | |
Withstand Impact | Dropping from a 1m-height and running-over by a 2T vehicle. | |
Material | Enclosure | Thermoplastic, flame retardant grade UL94 V-0 |
Cable Material | Colid /Spiral TPU | |
Terminal | Copper alloy, silver plating | |
Safety and Warranty | Ingress Protection | IP54 |
Certifification | CE/ TUV | |
Certifification Standard | IEC 62196-1/ IEC 62196-2 | |
Warranty | 2 years | |
Plug Type | EV Plug | IEC 62196 Type2 female plug |
EVSE Plug | IEC 62196 Type 2 male plug | |
Environment | Work Temperature | -30℃~+50℃ |
Work Humidity | 5%~95% | |
Work Altitude | <2000m |

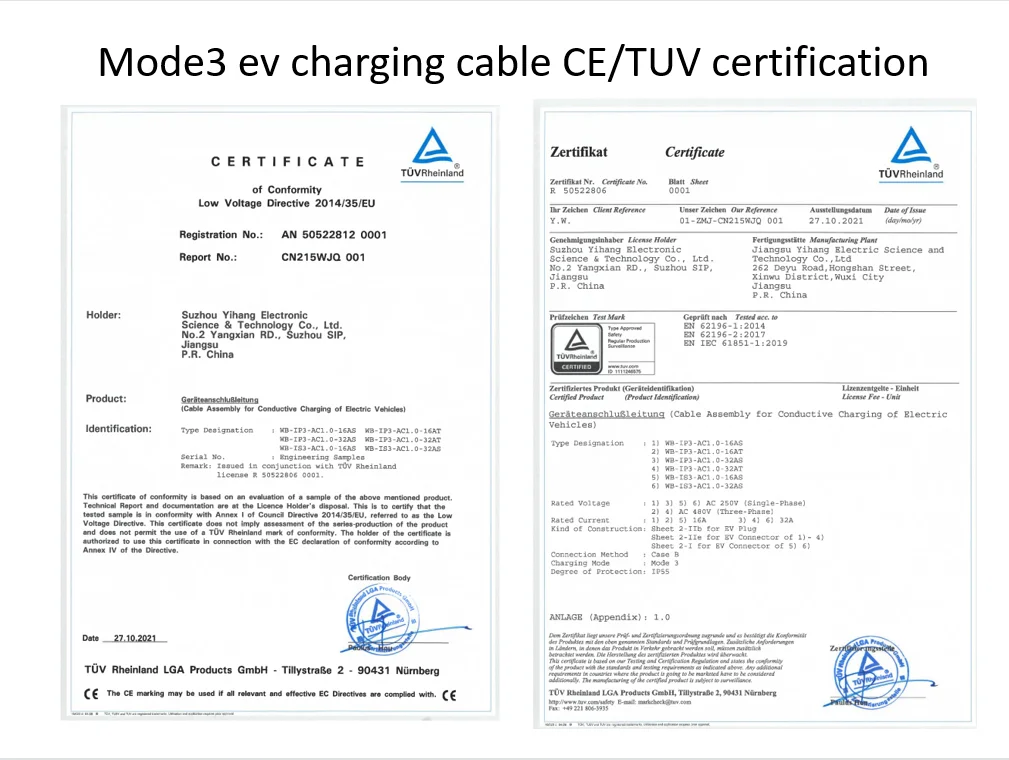

Certifications
User Manual
Use Instructions
A. How to start charging
1. Firmly insert the Type 2 male plug into the outlet socket on the AC EVSE.
2. Insert the Type 2 female plug into the inlet socket on the electric vehicle.
3. Lock your electric vehicle and the AC EVSE will charge the vehicle.
2. Insert the Type 2 female plug into the inlet socket on the electric vehicle.
3. Lock your electric vehicle and the AC EVSE will charge the vehicle.
B. How to stop charging
1. Unplug the Type 2 male plug from the EVSE outlet to disconnect power.
2. Disconnect the Type 2 female plug from the vehicle inlet.
3. Put the EV charging cable away.
2. Disconnect the Type 2 female plug from the vehicle inlet.
3. Put the EV charging cable away.
Good to Know

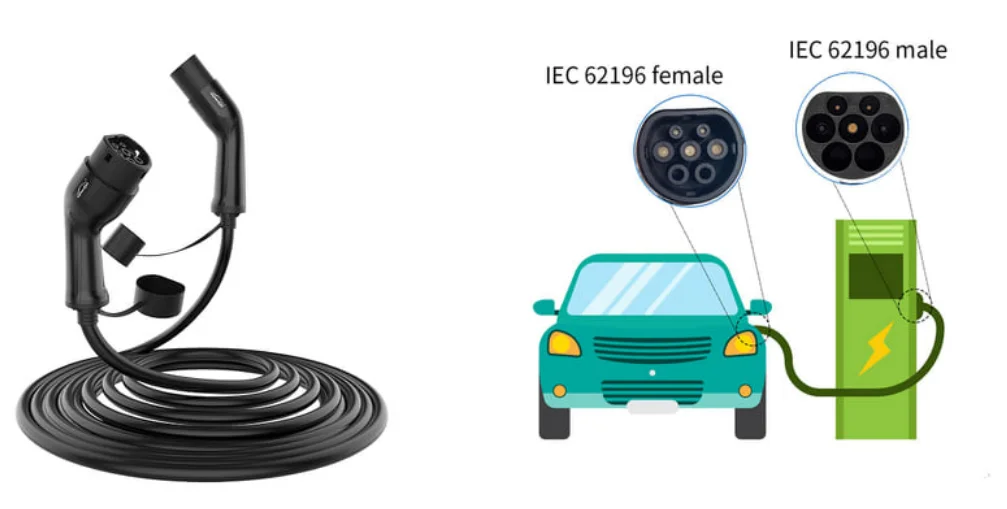

* This is a Mode 3 EV charging cable special for EVs with a Type 2 inlet and the EVSE has a Type 2 outlet. Don't use it for EVs with different inlet types or EVSEs with different outlet types.
* This cable has a precise internal structure. Any questions, please contact our Customer Service at the first time. Please don't disassemble it without any professional technical support.
* Don't use it in water.
* The product is only for EV charging. Please don't use it in any other occasions, including hauling, binding and so on.
* Do not use the device if the cable is damaged.
* The device must be grounded.
* Mind the risk of electrical shock or burn.
* The device does not contain any user-serviceable parts
* This cable has a precise internal structure. Any questions, please contact our Customer Service at the first time. Please don't disassemble it without any professional technical support.
* Don't use it in water.
* The product is only for EV charging. Please don't use it in any other occasions, including hauling, binding and so on.
* Do not use the device if the cable is damaged.
* The device must be grounded.
* Mind the risk of electrical shock or burn.
* The device does not contain any user-serviceable parts
* Please do not disconnect the plugs while the AC EVSE is charging the vehicle
Common Problems
* Pins not latching- Make sure to use considerable force when plugging in the cable until the pins are well connected to the EVSE or the electric vehicle.
* Charging settings on the electric vehicle – Make sure no timers or other settings are turned on.
* The vehicle is locked – The vehicle needs to be unlocked and powered off to start the charging process.
* Plugging into another cable – This cable must be plugged directly into a Type 2 EV inlet socket and a Type 2 EVSE outlet socket.
* Charging settings on the electric vehicle – Make sure no timers or other settings are turned on.
* The vehicle is locked – The vehicle needs to be unlocked and powered off to start the charging process.
* Plugging into another cable – This cable must be plugged directly into a Type 2 EV inlet socket and a Type 2 EVSE outlet socket.
