LSI Megaraid SAS 9361 8i 1GB SATA / SAS 1GB Controller RAID 12G PCIe x8 3.0 Broadcom
- Category: >>>
- Supplier: Shenzhen Datastor Co. Ltd.
Share on (1600434692140):
Product Overview
Description

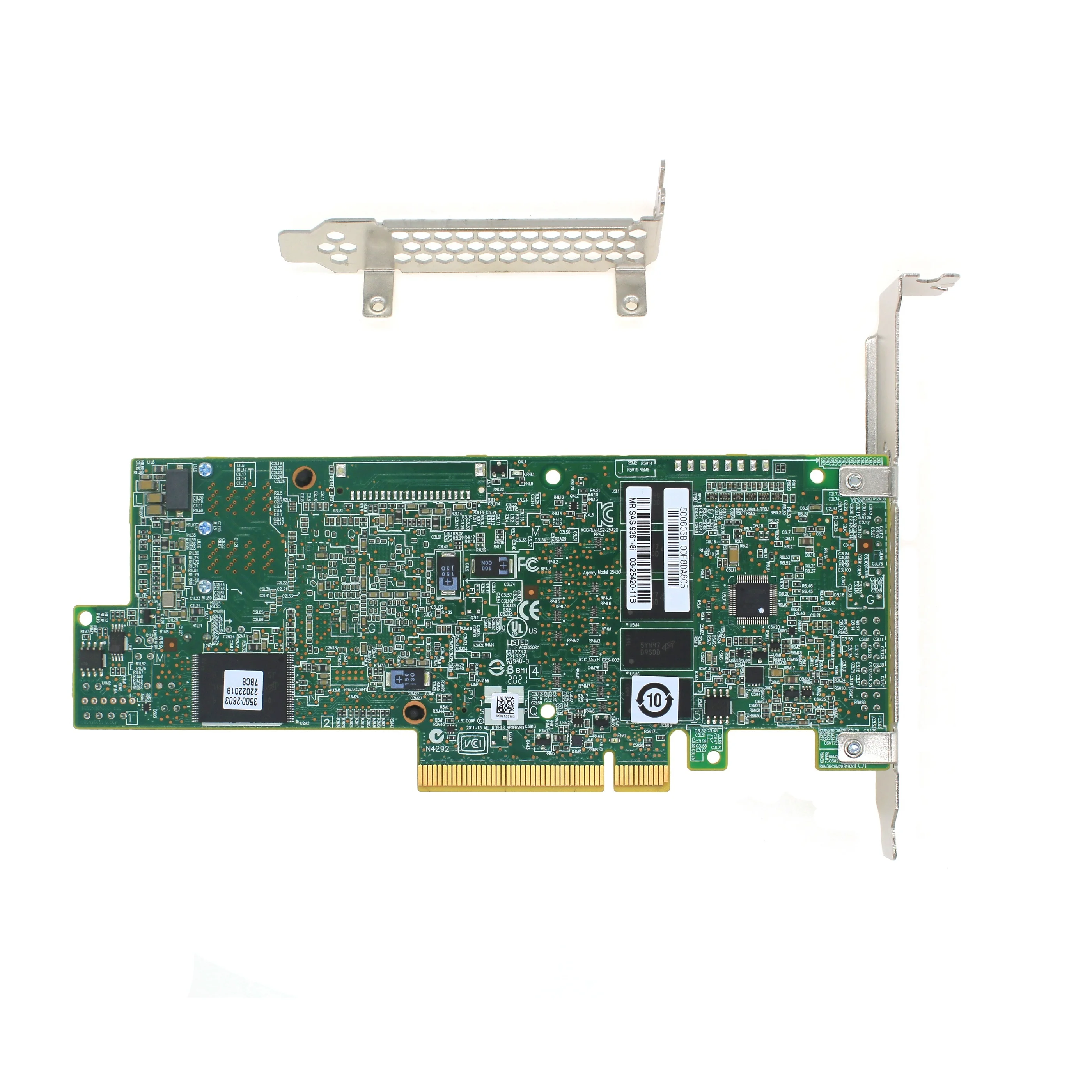

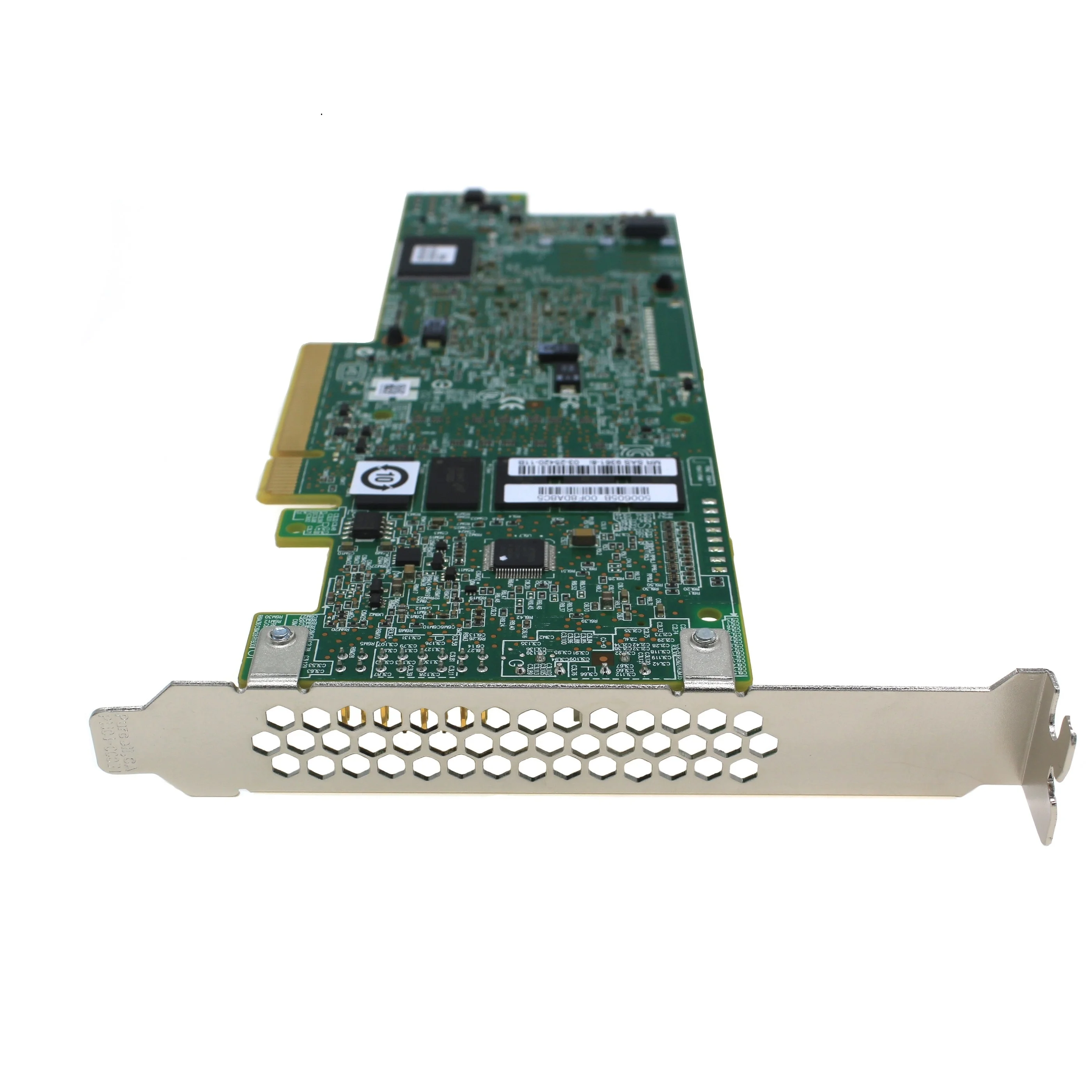

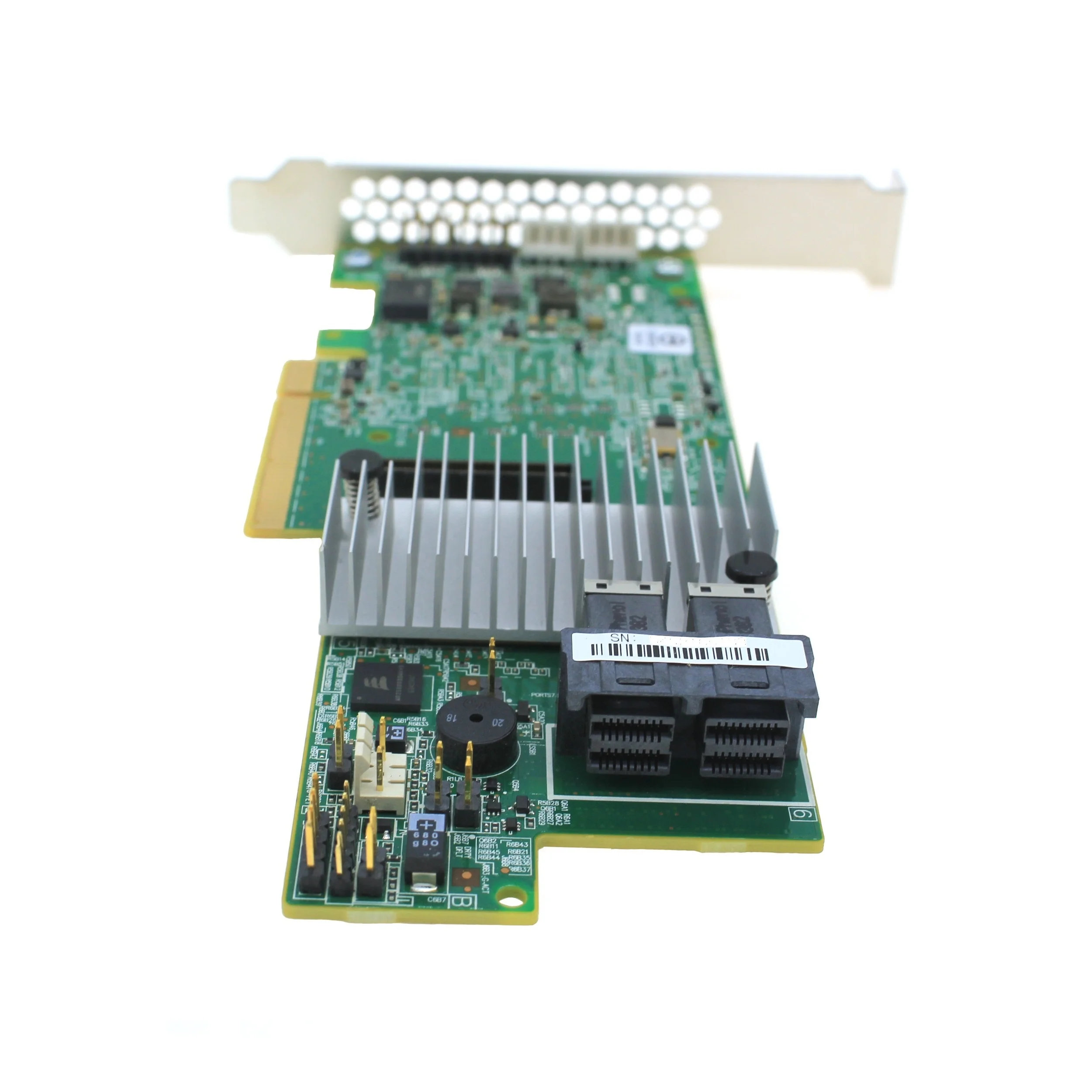

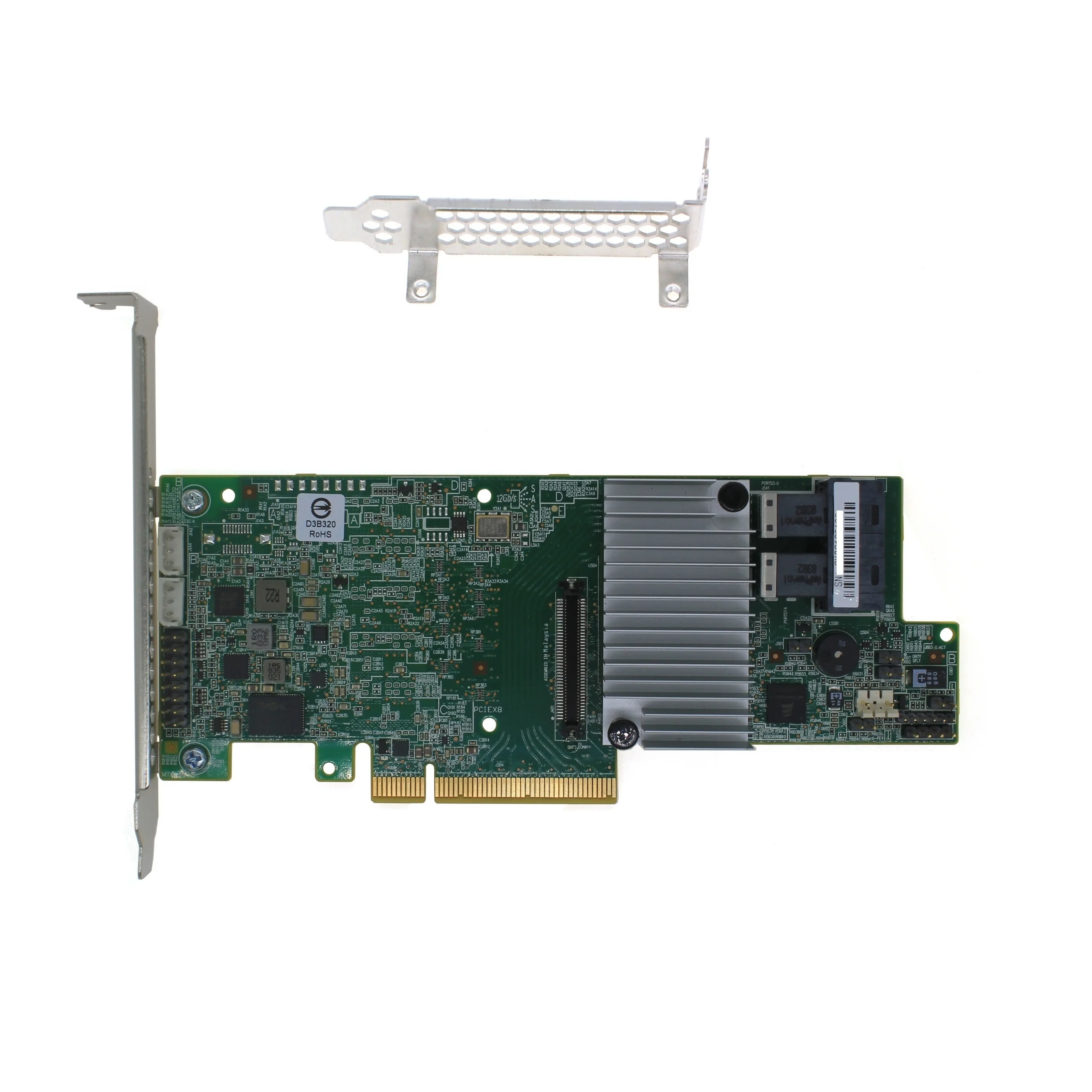

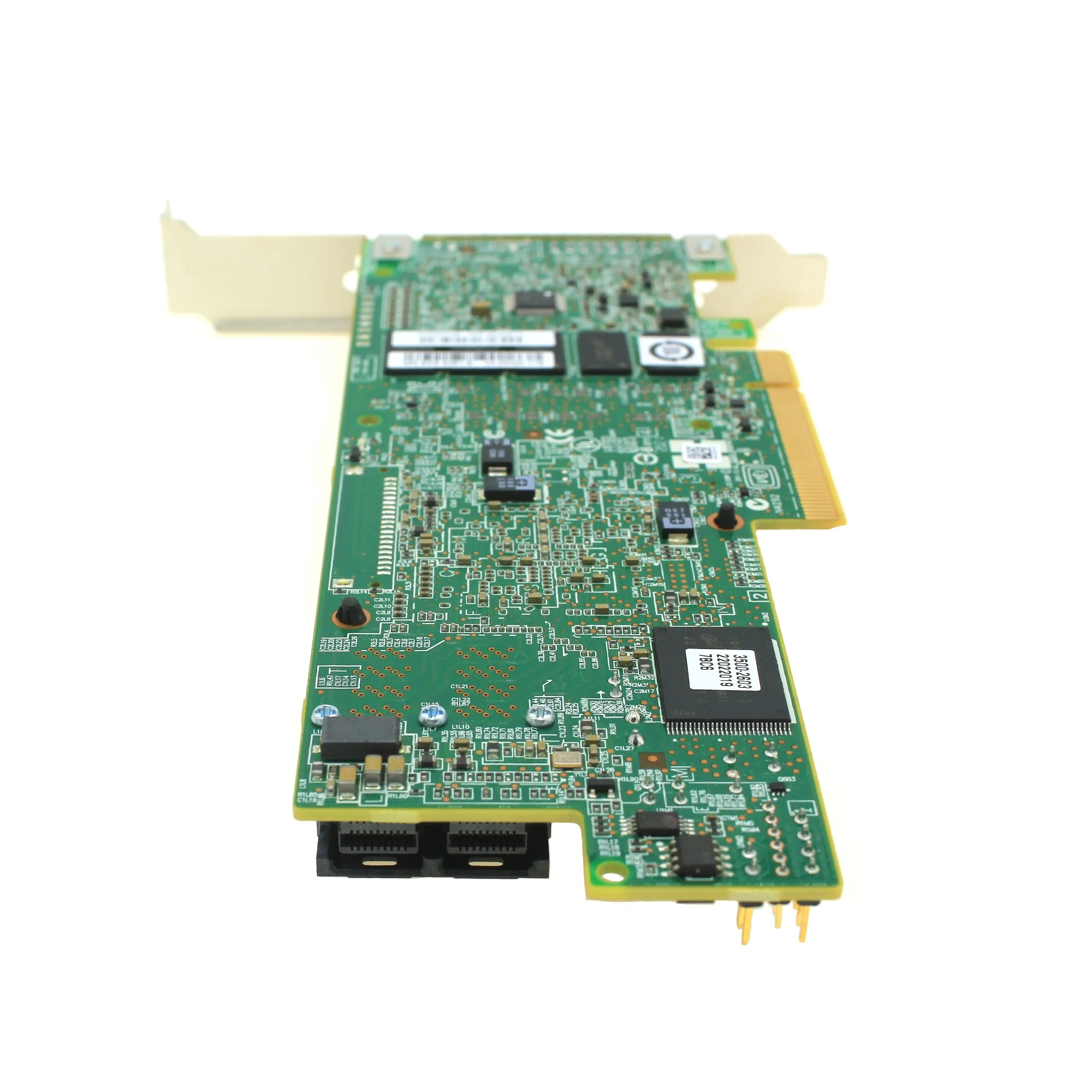

LSI Megaraid SAS 9361-8i 1GB SATA / SAS 1GB Controller RAID 12G PCIe x8 3.0 Broadcom
Product Description
Specification
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Distributor Inventory | No |
| Cache Memory | 1GB or 2GB 1866MHz DDRIII SDRAM |
| Cache Protection | Optional CacheVault Flash Module (LSICVM02) Includes CVFM04, CVPM02, mounting clip, and cable |
| Data Transfer Rates | Up to 12Gb/s per port |
| Devices Supported | Up to 240 SATA and/or SAS devices |
| Generation | 12 Gb/s |
| Host Bus Type | x8 lane PCI Express® 3.0 |
| Internal Connectors | 2 HD Mini-SAS SFF8643 (Horizontal mount) |
| Internal Ports | 8 |
| MTBF | 1,343,187 hours |
| Operating Temperature°C | Maximum ambient: Controller Card with included CacheVault module: 55°C |
| Operating Voltage (V) | +3.3, +12 |
| Ordering Part # | LSI00416 |
| OS | Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems |
| Physical Dimensions | MD2 Low profile (6.6" x 2.536") |
| RAID MANAGEMENT SOFTWARE | LSA (LSI Storage Authority), MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure) |
| RAID on Chip Controller | LSISAS3108 dual core RAID on Chip (ROC) |
| Regulatory Certifications | Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), Japan (V-3/02.04), Safety: EN60950 |
| Warranty | 3 Years |
Packaging & Shipping
1.Packing in factory box / retail box or as you required.
2.All the products are 100% tested before shipment.
3.When you order, We will ship the products within 1-3 working days(depending on Qty) after the payment is received.
4.We can ship to you by DHL / TNT/UPS/EMS/UPS/Fedex... Please contact us directly and we will ship as you required.
Company Information
Shenzhen Stor Data Co.,Ltd, is a professional supplier specializing in raid adapters, HBAS, network cards,SAS SATA and storage systems, with more than 10 years of experience in the storage industry. And our price is much competitive than others, as so many trade companies and suppliers also make orders from us. Besides, we always have a certain quantity in stock, so that our delivery time is shorter than others.
Our Services
We provide 3 years free warranty service.
Only provide 3 years free warranty service for impersonal factor failure or damaged products.
Buyer must bear the freight of the free warranty products at his own expense.
PS:
Faulted or damage of product in the following cases shall not covered by the free warranty service
1.Product is faulted or damaged in the non-specified working environment (temperature, humidity, voltage, current, internal cleanliness of the machine)
2.Product is faulted or damaged due to improper maintenance (e.g. virus infection, water intake, extrusion, etc.)
3.Product is faulted or damaged caused by customers' unauthorized disassembling the parts.
4.Product is faulted or damaged caused by fire, flood, lightning, earthquake or other force majeure events.
