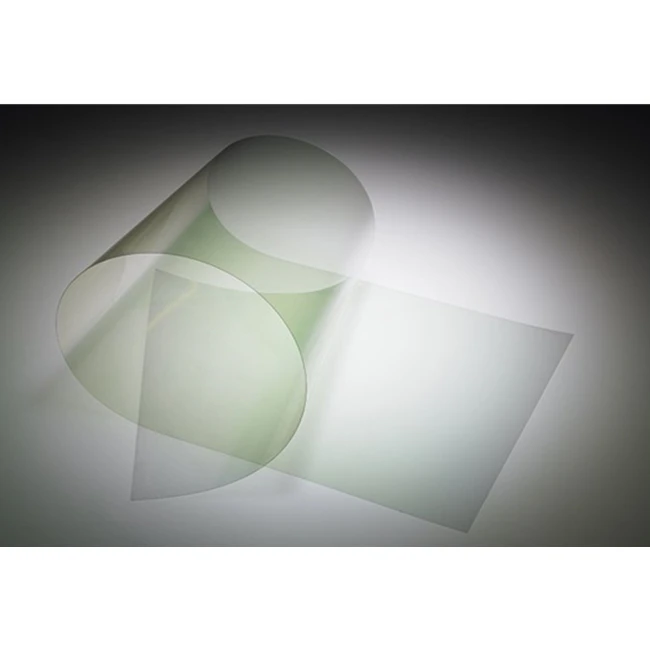

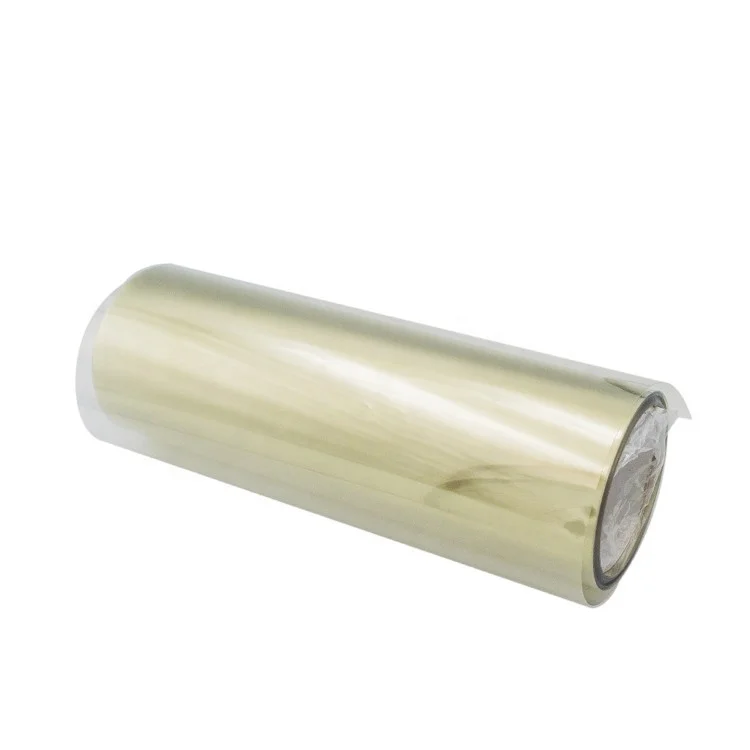

OPV solar cell 50ohm clear conductive plastic ito film
- Category: >>>
- Supplier: Mianyang Prochema Commercial Co. Ltd.
Share on (1600434777201):
Product Overview
Description
Product Description
Brief Introduction
ITO= Indium Tin Oxide
PET= polyester film (polyethylene terephthalate)
PET= polyester film (polyethylene terephthalate)
Production Technology
ITO PET film is magnet vacuum sputter technology, to sputter ITO (Indium Tin Oxide) onto the optical Polyester film, to achieve the film one side conductive meanwhile optical transmittance.
Application Field
Used for making LED Glass
Resistance
50ohm/sq(+/-10)
Transmittance
≥77%
Thickness
125/175um
Product Paramenters
Product Name | ITO PET FILM | Transmittance | ≥77% | |
Product Model | PROX-50 | Haze | <4% | |
Resistance | 50ohm/sq(+/-10) | Shrinkage MD | 0.8% | |
Thickness | 125/175um | Shrinkage TD | 0.3% | |
Adhesion | 100% | Width | 750mm |
Application

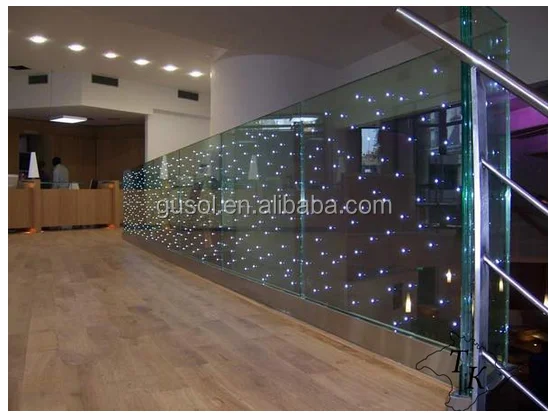

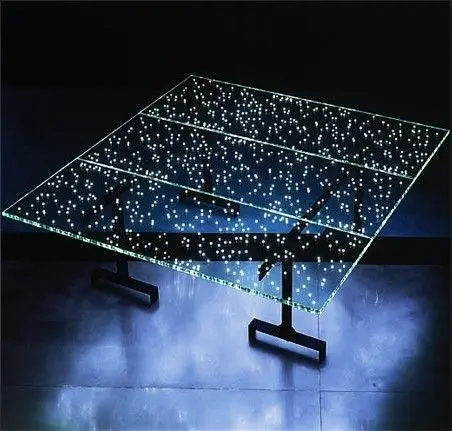

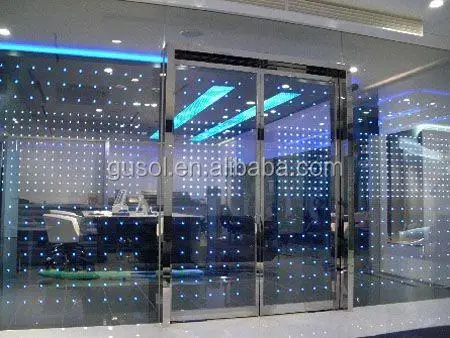

50ohm ITO Film Used For Making LED Glass Film
Due to high transparency and stable resistance, our 50ohm ito film is widely used for producing LED decorative glass.
High transparency to assure final led decorative glass clear enough.
Our Advantages
1.Electrical Uniformity
All ITO PET FILM products feature electrical uniformity of 10% within any one square foot area, defined as the maximum difference from the average ohms per square value within that area. However, touch screen manufacturers typically achieve <1% resistance linearity by orienting their sensors (busbars) so that the electrical current path is always in the direction of the length of the film roll.
2.Handling ITO PET Film
Vacuum deposited ITO coatings are very thin and are easily scratched or cracked if handled improperly. When removing film from a roll, care should be taken not to bend or crease it. It is important never to allow the ITO coated side to come in contact with a surface, such as a table, during processing operations. Sliding ITO coating over a surface will scratch the coating, resulting in elevated surface resistance and visible defects. Please note that all ITO PET FILM product supplied in sheet form is supplied with protective liner on all surfaces.
Product packaging
The Package Details of ITO PET Film
1, PE protective film on ITO Film
2, ITO Film covered with foam plastic
3, Bulkhead on both ends
4, Carton
1, PE protective film on ITO Film
2, ITO Film covered with foam plastic
3, Bulkhead on both ends
4, Carton
Company Profile
About US
Honest and responsible and insistance are the key points for a company to be existed long enough.
Mianyang Prochema Commercial
Co.,Ltd.,a fast growing company with its professional and focus on the films and extension service,is proving its ability to world customers.
Co.,Ltd.,a fast growing company with its professional and focus on the films and extension service,is proving its ability to world customers.
Mianyang Prochema was elected as secretary of Mianyang Commerce Association and Mianyang Exporters Alliance(MYEA),serving and
helping association members with marketing and exportation.
helping association members with marketing and exportation.
History
2004 year, Mianyang Prochema established,initially in insulation and printing plastic film.
2007 year, set up Gus Industry(hongkong)co.,limited for global business management.
2008 year, Set up Shenzhen factory to produce the films and involved in conductive film and interactive touch screen.
2010 year, Deeply involved in in-door advertising which is produced from the conductive film.
2013 year, World wide promoting privacy PDLC switchable film and glass.
Service
1.Transparent Conductive Material (ITO film, Metal mesh film, AgNW film, Silver coated film, ITO glass, FTO glass etc)
2. Touch Solution (Touch screen, touch key)
3. Insulation PET,flame retardant polycarbonate and PP film,fluorine film and tubes(FEP,PFA,ETFE…)
4. Fluoroplastic products and parts , PVDF PIEZO film etc
5.Textured hard-coated PET film
6.White coated synthetic paper
7.Source for other related products
Manufacturing Technique
Exhibition
A. Flexible for order quantity :
We started from small business many years ago,we know the importance of efficient support from supplier.
So no matter how small or how big the order or client is, we do with our heart. For urgent delivery, we are flexible to adjust our production schedule slightly to feed your production.We are flexible to develop new films within our ability upon your request with min.investment when necessary.
So no matter how small or how big the order or client is, we do with our heart. For urgent delivery, we are flexible to adjust our production schedule slightly to feed your production.We are flexible to develop new films within our ability upon your request with min.investment when necessary.
B . Flexible Payment term:
We are flexible to accept below payment terms:
T/T in advance, L/C at sight, L/C irrevocable 30 -60 days,Western Union,Paypal,Alibaba Escrow
T/T in advance, L/C at sight, L/C irrevocable 30 -60 days,Western Union,Paypal,Alibaba Escrow
C.Flexible Trade term:
We are flexible to accept FOB, also we have plenty of good sources of logistics to do CNF,CIF,DDU etc, can even do Door-Door service to save your time and energy.
D. Flexible Work time:
We're on 24 hours working on line, welcome to knock our door!
FAQ:
1.Could you provide ITO Film samples for testing ?
Yes,we could supply our ITO Film sample for your testing:
Size : A4 (210mm*290mm)
Lead time : Within 5 days
Sample : for free
Shipping cost: Freigth collected
2.The detail trade term please ?
The quotation of ITO Film is based on FOB Shenzhen
Payment : T/T , Western Union, Paypal
3.Please contact us for more information.
Thanks for your interest in our material and service.
To get quick quotation and response,please kindly mention below information in your inquiry:
*Your application
*Thickness
*Specification
*Quantity
*Your company information
Yes,we could supply our ITO Film sample for your testing:
Size : A4 (210mm*290mm)
Lead time : Within 5 days
Sample : for free
Shipping cost: Freigth collected
2.The detail trade term please ?
The quotation of ITO Film is based on FOB Shenzhen
Payment : T/T , Western Union, Paypal
3.Please contact us for more information.
Thanks for your interest in our material and service.
To get quick quotation and response,please kindly mention below information in your inquiry:
*Your application
*Thickness
*Specification
*Quantity
*Your company information
