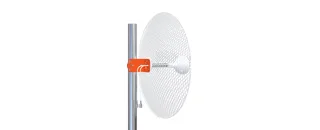

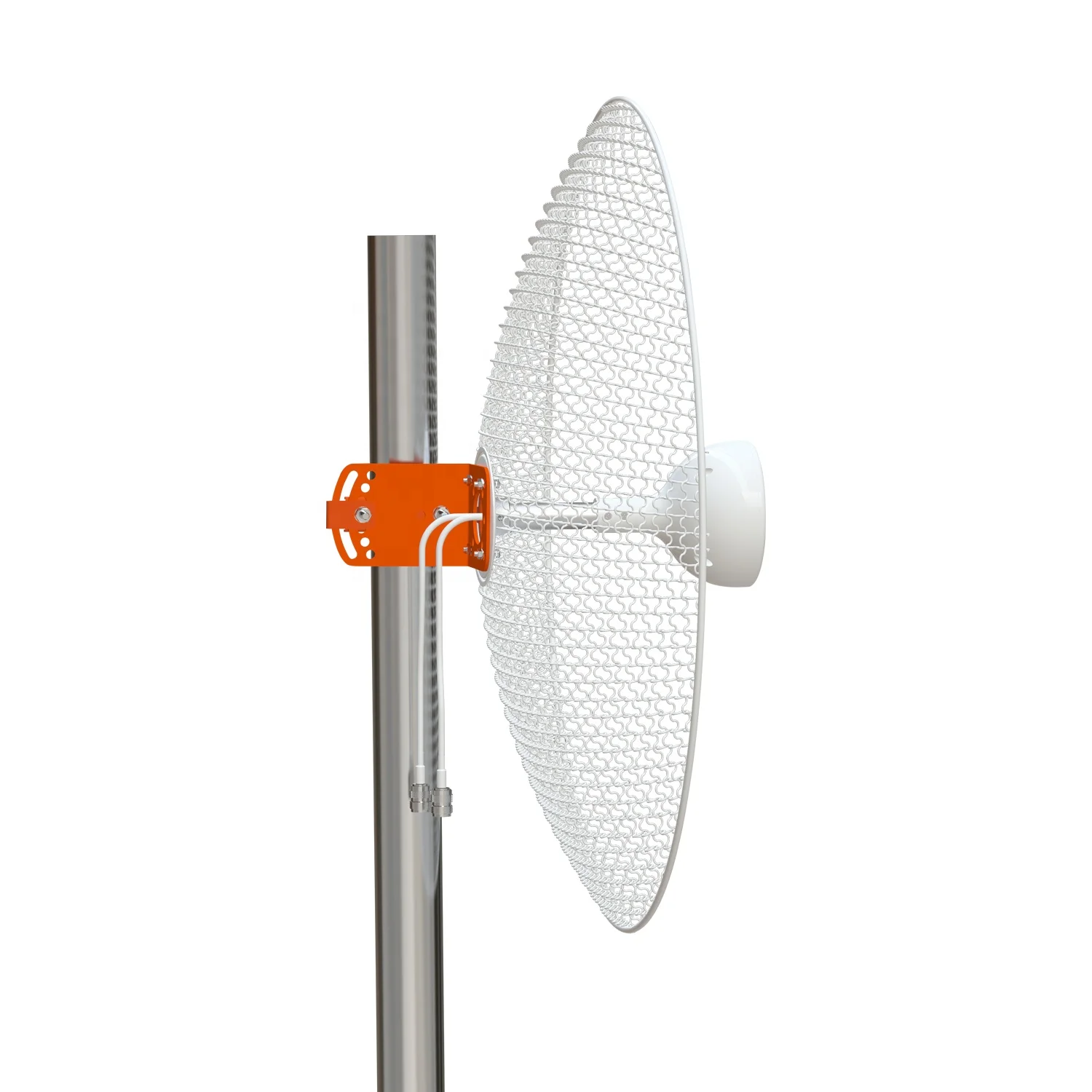

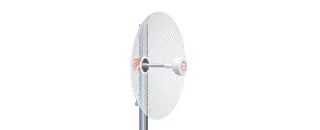

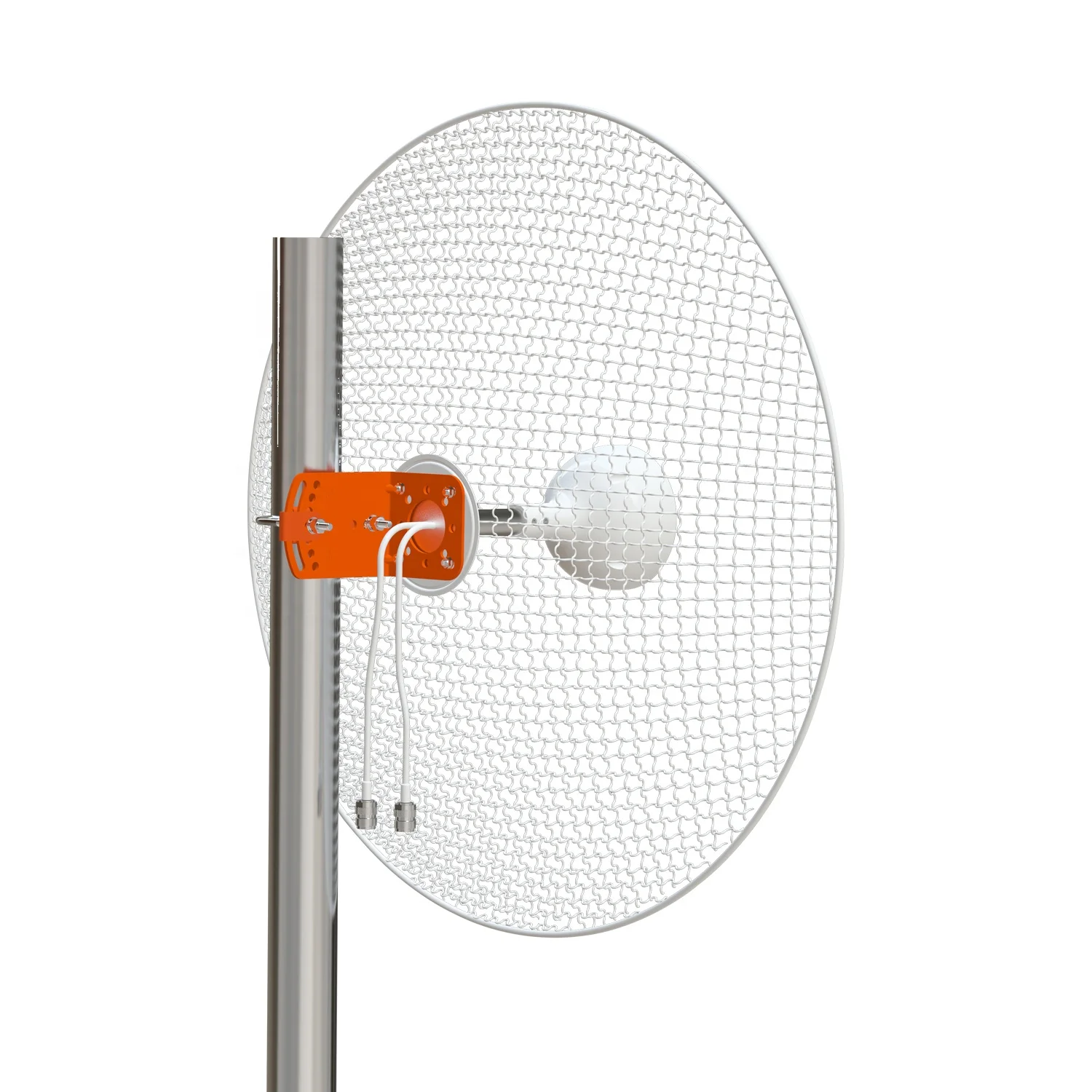

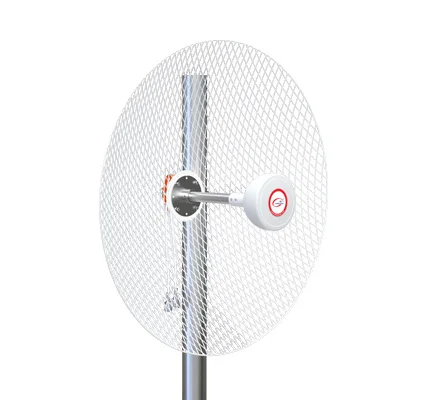

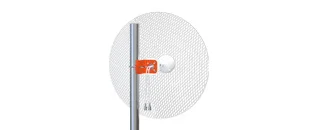

2.3 2.7GHz 0.6m 22dBi mimo Grid Antenna for mimisa A5c radio Lanbowan cambium,ubiquiti
2.3-2.7GHz 0.6m 22dBi mimo Grid Antenna for mimisa A5c radio Lanbowan cambium,ubiquiti
2.3-2.7GHz 0.6m 22dBi mimo Grid Antenna for mimisa A5c radio Lanbowan cambium,ubiquiti
2.3-2.7GHz 0.6m 22dBi mimo Grid Antenna for mimisa A5c radio Lanbowan cambium,ubiquiti
2.3-2.7GHz 0.6m 22dBi mimo Grid Antenna for mimisa A5c radio Lanbowan cambium,ubiquiti

2.3 2.7GHz 0.6m 22dBi mimo Grid Antenna for mimisa A5c radio Lanbowan cambium,ubiquiti

Share on (1600434829675):


Price:$69.00 - $89.00

Quantity:


Product Overview

Description



Product Description




Features
• 2.3-2.7GHz Frequency
• 22dBi High Gain
• 2x2 MIMO
• Double Dual Slant (V/H or ±45°)


Application
• 2.4 GHz ISM band
• IEEE 802.11b/g/n wireless LAN, WiFi systems
• Long range directional applications
• Point to point and point to multi-point applications
• Wireless bridges and backhaul applications


Product Paramenters




Electrical
Model
ANT2327D22PG-MIMO
Frequency Range
2.3-2.7GHz
5.1-5.9GHz
5.9-6.5GHz
Gain
22dBi
30±1.5 dBi
30±1.5 dBi
VSWR
<2.0
<2.0
<2.0
Polarization
Dual Slant (V/H or ±45°)
Isolation
>25dB
Front to Back Ratio
>25dB
Horizontal Beam width
12°
Vertical Beam width
12°
Maximum Power Per Port
50W
Impedance
50Ω
Lighting protection
DC Ground
Mechanical
Connector
2*N or RP SMA
Antenna Size
φ0.6 m
Antenna Weight
3kg
Antenna color
white
Dish material
iron
Diameter of the Pole
Φ30 to φ50 mm
Operational Temperature
-40°C to +70°C (-32°F to +158°F)






Antenna Patterns
