Односторонняя автоматическая печатная плата с ЧПУ, многопанельная пластина, лезвие, резак, сепаратор, Светодиодная лента, разрезка, конвейерная лента, машина для удаления панелей
- Category: >>>
- Supplier: Guangzhou Minder-Hightech Co. Ltd.
Share on (1600434842338):
Product Overview
Description
Product Description

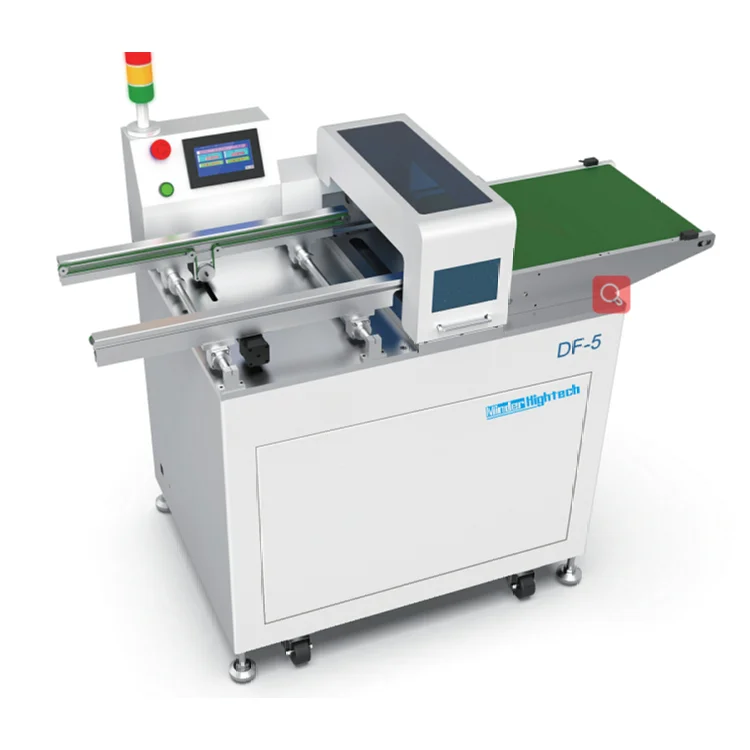

This machine can be connected to the assembly line to realize automatic board division, without manual board laying. The scuttled circuit board can be directly imported into the assembly line to enter the next station, which can meet the requirements of single PCS LED light strip panel with a width of more than 8MM, and realize the whole board one-off scuttling, which is 20 times the efficiency of traditional single-blade board division.
Application
SMT, Instrumentation, tablet, Automotive electronics, new energy, medical equipment, communications, White Goods, LED lighting, etc
Feature
1, The front and back two groups of knife design, the first pre-cutting and then fine cutting, cutting without deformation, reduce the shearing stress
2.Tool modular design, easy tool change, quick product switching
3.The front and rear are equipped with conveyor belt, the height and Angle can be adjusted freely, and the operation of putting and retracting plate is convenient
4.Track online design, can be connected to the upper and lower plate, to achieve fully automated production and save labor
5.V-cut strip PCBA plate one cutting, high efficiency
6.The upper and lower knives can be precisely adjusted, and the blade can be turned and grinded repeatedly to improve the service life of the blade
7.PLC touch screen control, fault sound and light alarm, simple and safe operation
Machine Parameters
equipment model | DF-5 |
overall dimension(L/W/H) | 1030x640x1000 (MM) |
equipment weight | 280 KG |
blade diameter size | 80/125 MM(optional) |
blade material | Imported high quality high speed steel |
PCB width | 50-300 (MM) |
track length | 600MM(Can be customized) |
conveyor length | 460MM(Can be customized) |
cut type | One -way multi -panel V-cut products |
control mode | PLC touch screen |
drive way | servo/stepper motor(optional) |
working voltage | 220V/ 50-60Hz |
equipment power | 300W |
FAQ
Q: How to buy your products ?
A: We have some products in stock , you can take away the products after you arrange the payment ;
If we don’t have the products in stock you want, we will start production once getting the payment.
Q: What’s the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified.
Q: Can we visit your factory ?
A: Of course, welcome to visit our factory if you come to China.
Q: How long is the validity of quotation ?
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the
price fluctuation of raw material in the market.
Q: What’s the production date after we confirm the order ?
A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production
Q: What’s the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified.
Q: Can we visit your factory ?
A: Of course, welcome to visit our factory if you come to China.
Q: How long is the validity of quotation ?
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the
price fluctuation of raw material in the market.
Q: What’s the production date after we confirm the order ?
A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production
