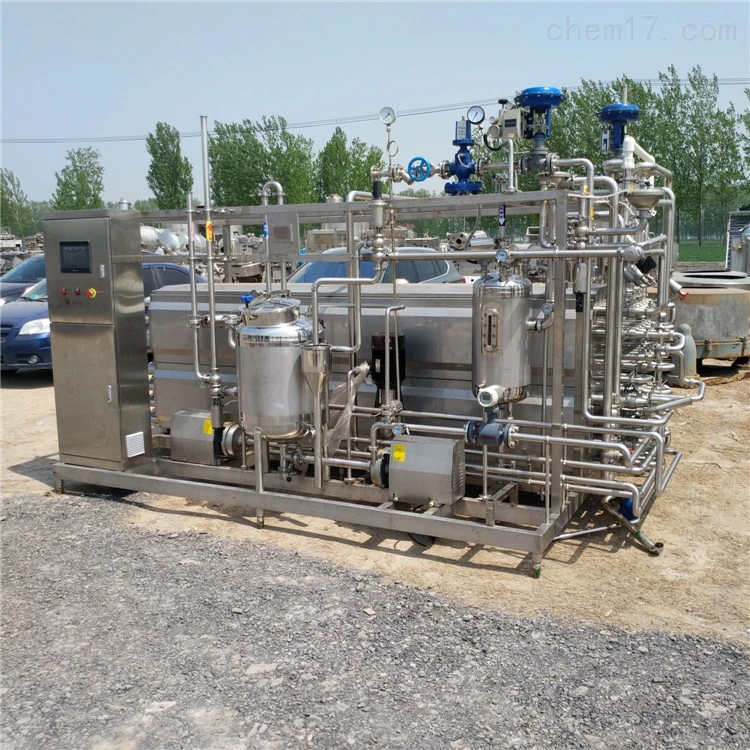

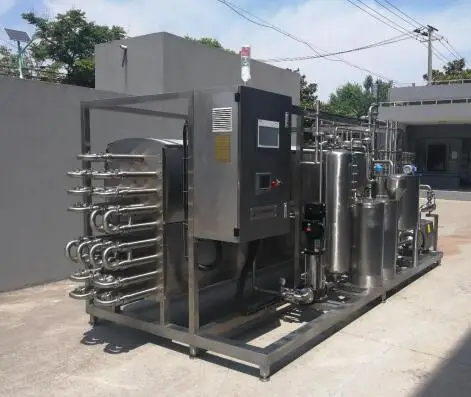

Tomato Paste Sterilizer Ketchup Production Line Automatic UHT Pasteurizer Tomato Paste Processing Plant
- Category: >>>
- Supplier: Shanghai Unibang International Trading Co. Ltd.
Share on (1600434846300):
Product Overview
Description
Product Description

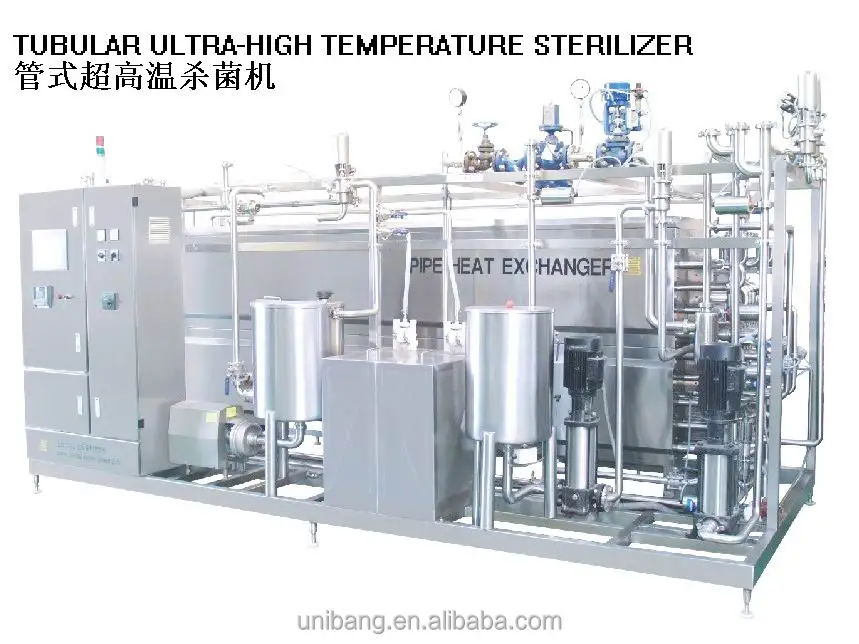

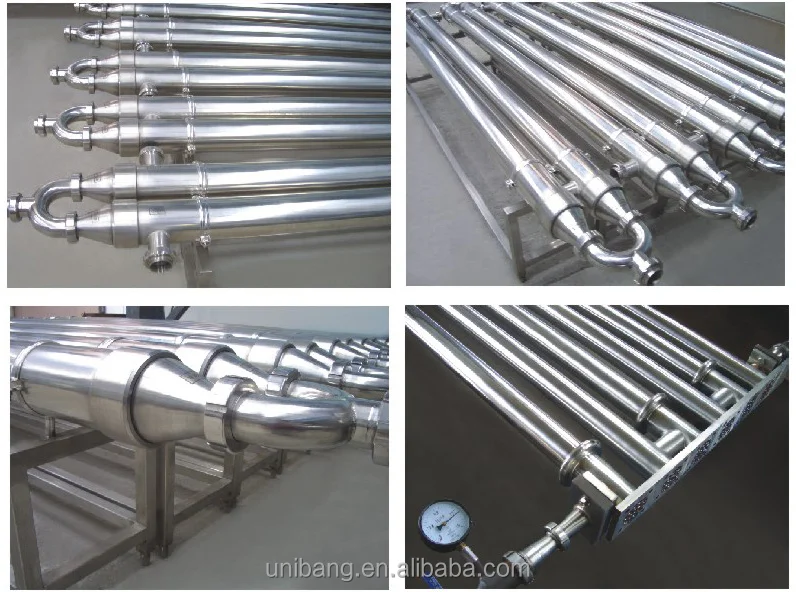

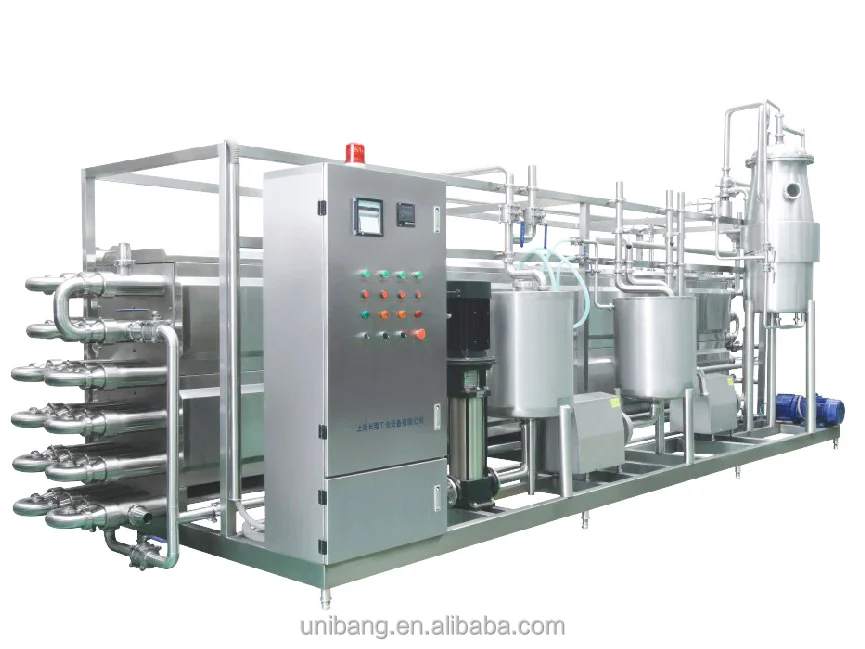

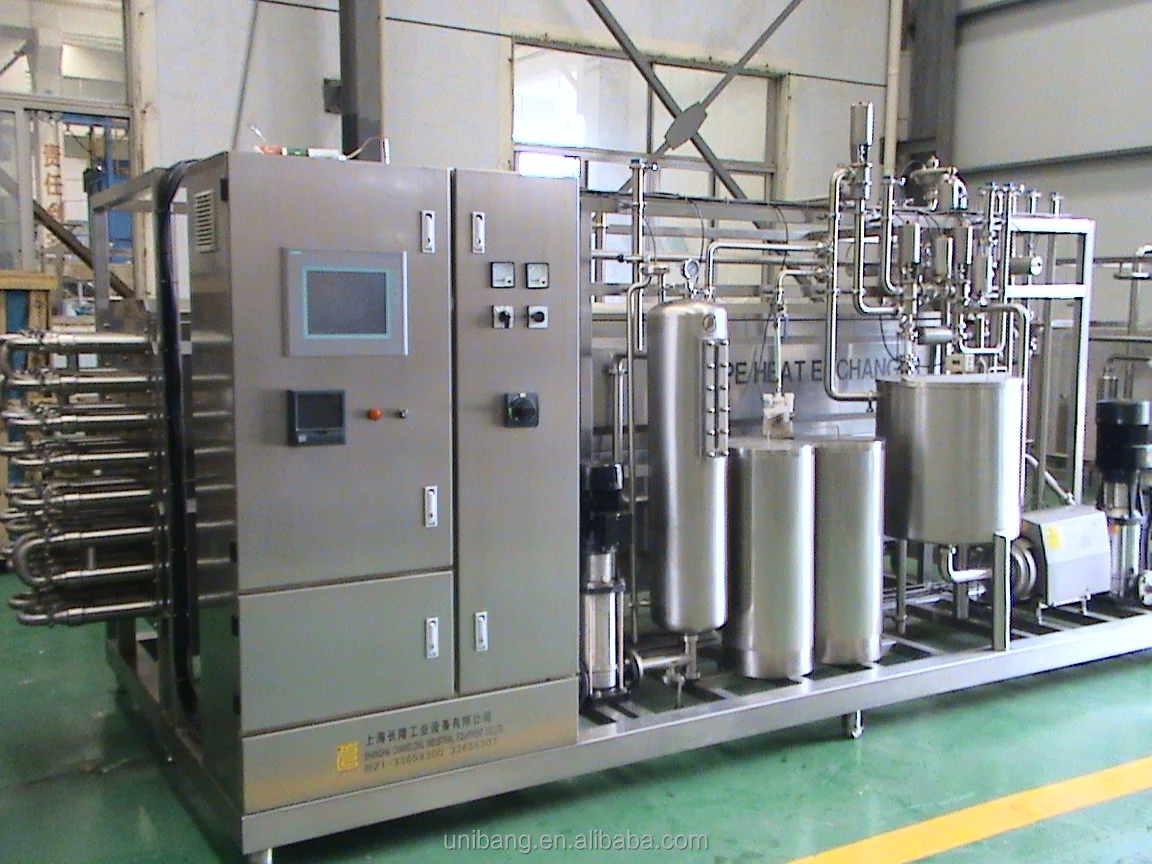

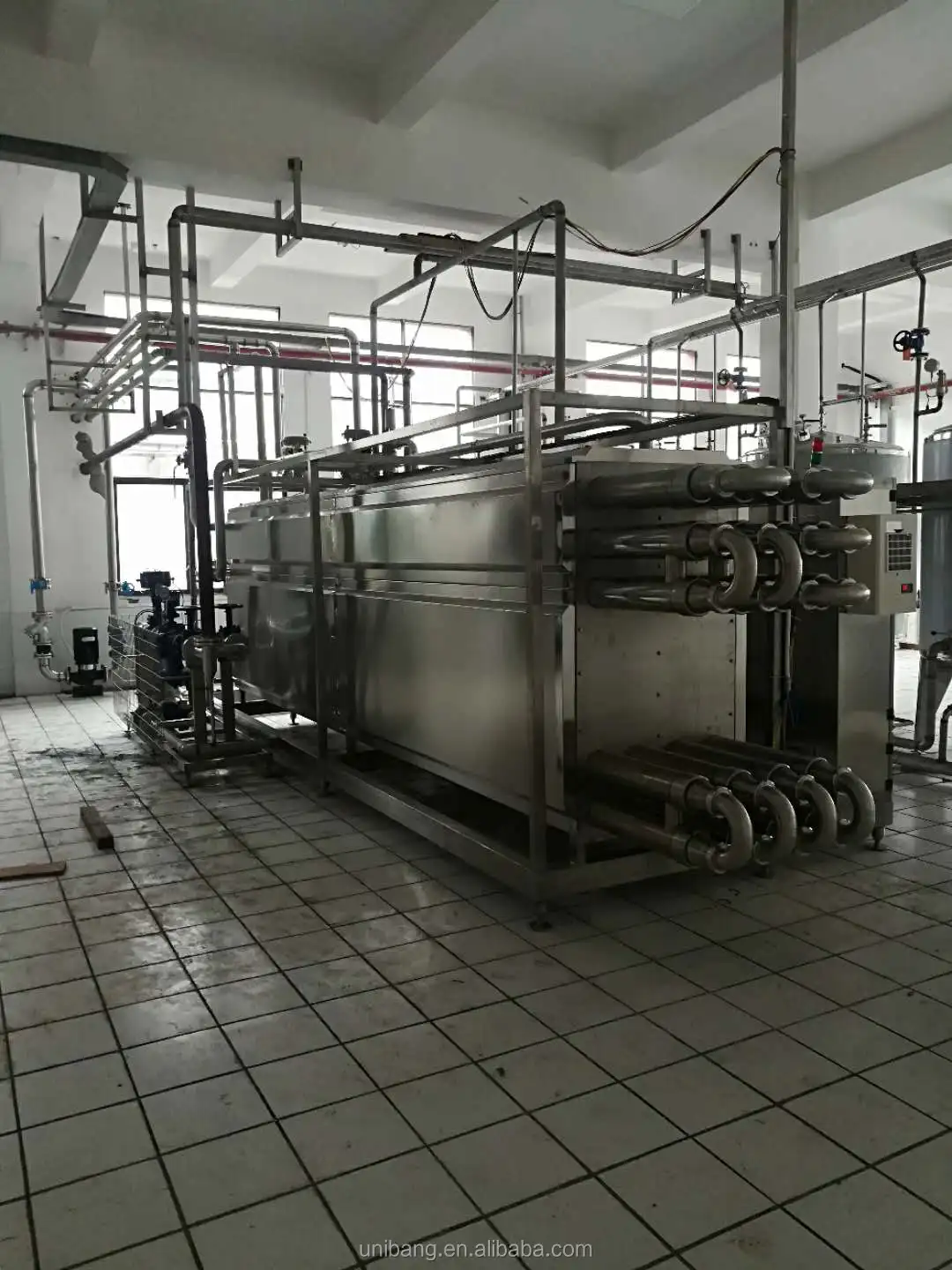

TUBULAR ULTRA-HIGH TEMPERATURE STERILIZER
Technical Parameter
Name |
| TG-7-1.6-35 | TG-7-1.6-45 | TG-7-1.6-58 | TG-7-1.6-72 |
Production capacity | t/h | 2 | 3 | 4 | 5 |
Heat exchanging area | m2 | 35 | 45 | 58 | 72 |
Temperature of material inlet | ℃ | 5 | 5 | 5 | 5 |
Temperature of material outlet | ℃ | 25 | 25 | 25 | 25 |
Sterilizing temperature | ℃ | 95-137 | 95-137 | 95-137 | 95-137 |
Heat preservation period | S | 15-4 | 15-4 | 15-4 | 15-4 |
Ice water consumption | multiple | 3 | 3 | 3 | 3 |
Cooling water consumption | multiple | 2 | 2 | 2 | 2 |
Energy consumption | kw | 10 | 10 | 12 | 14 |
Outline dimensions | mm | 4500*1900*1880 | 4500*1900*1880 | 4500*1900*1880 | 6500*2000*1880 |

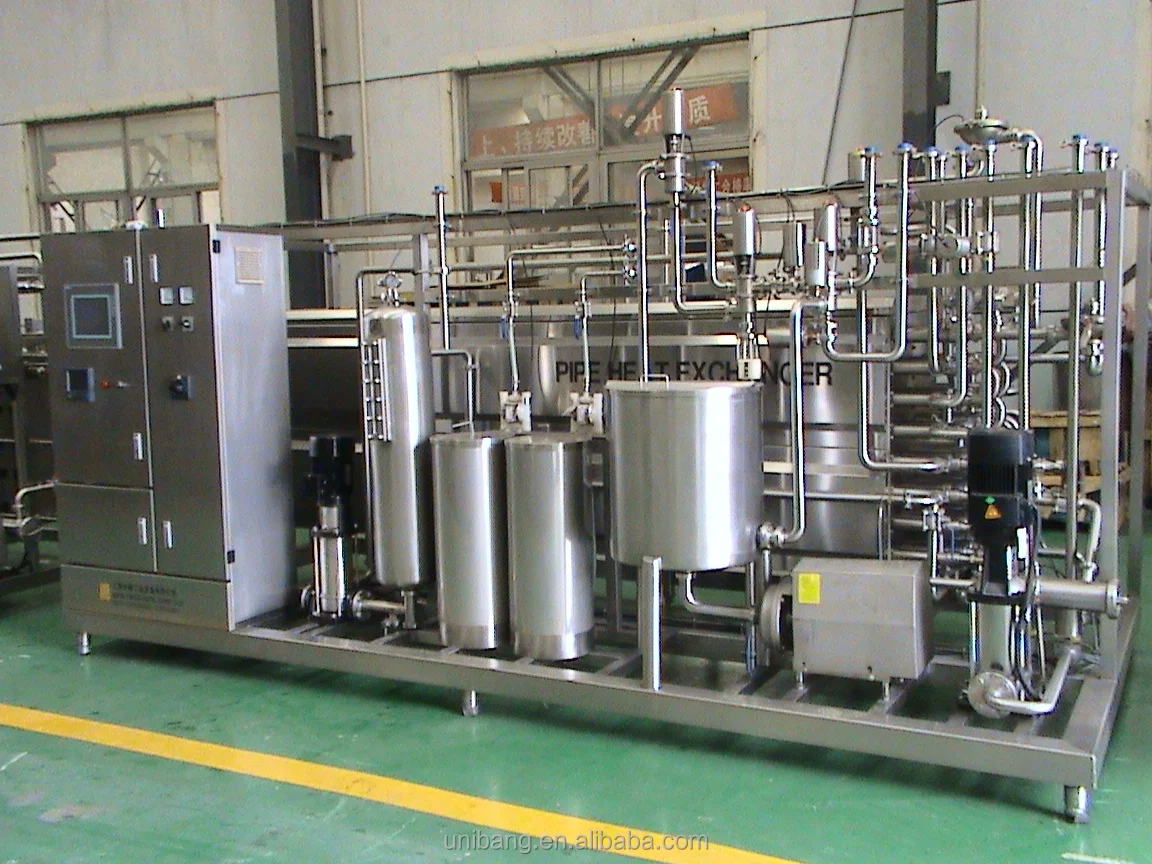

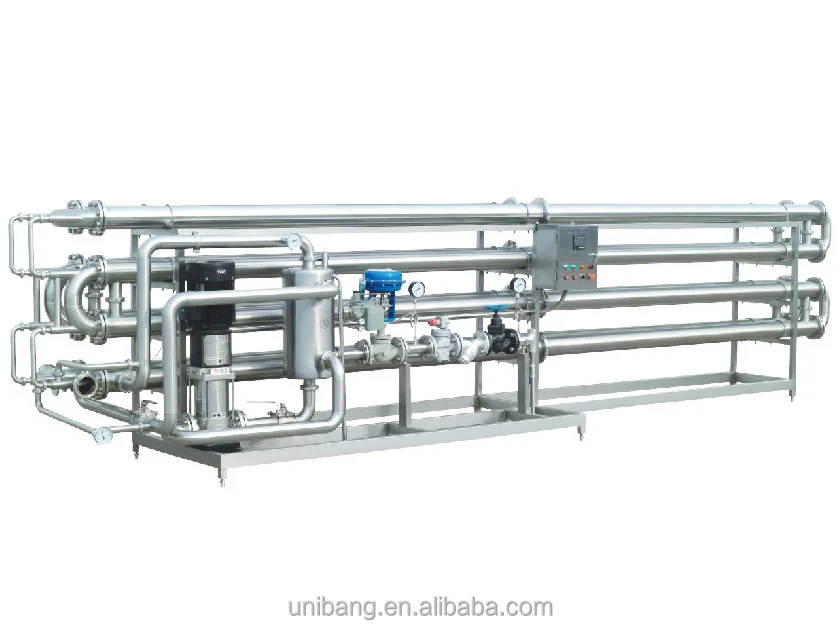

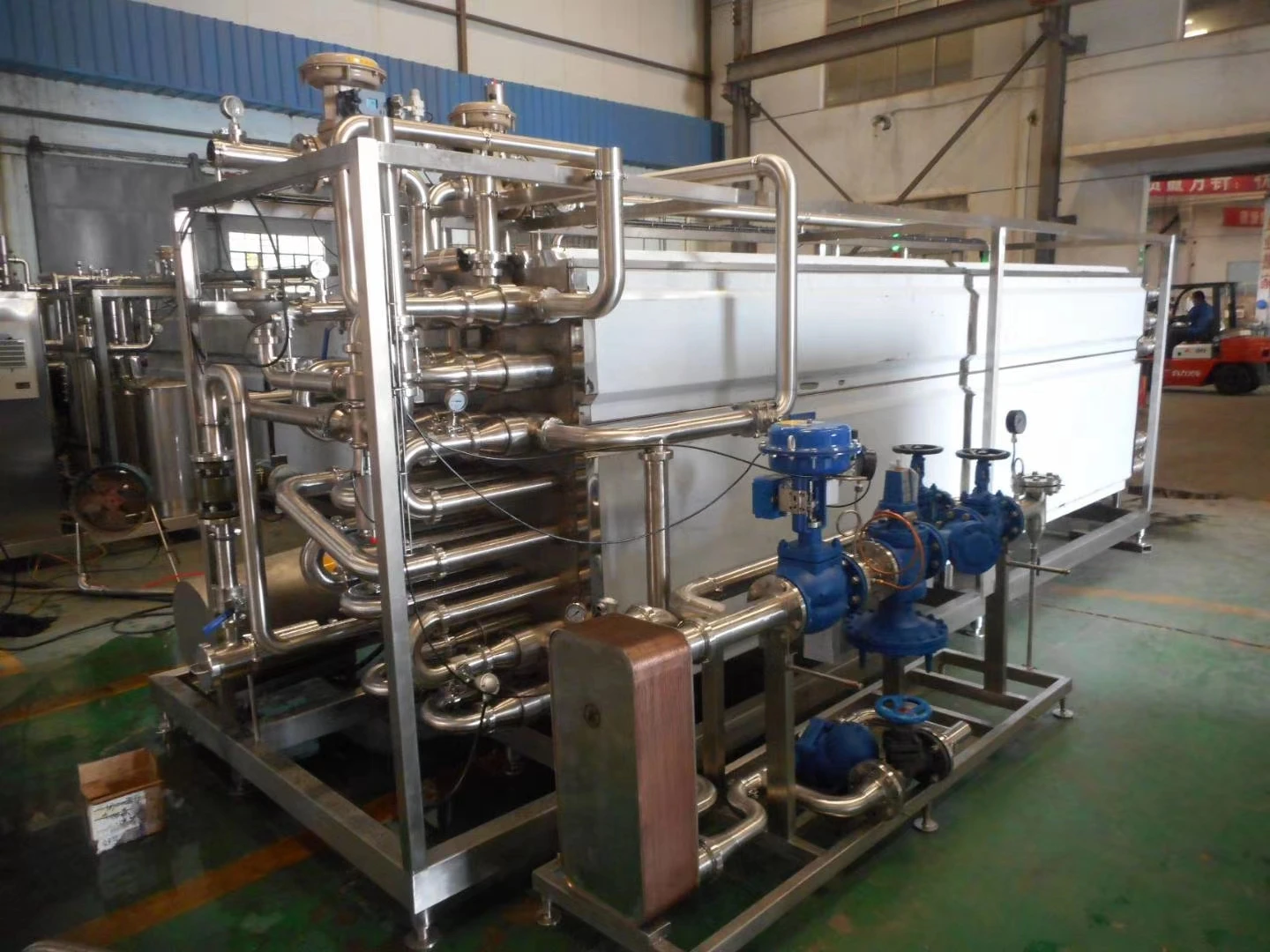

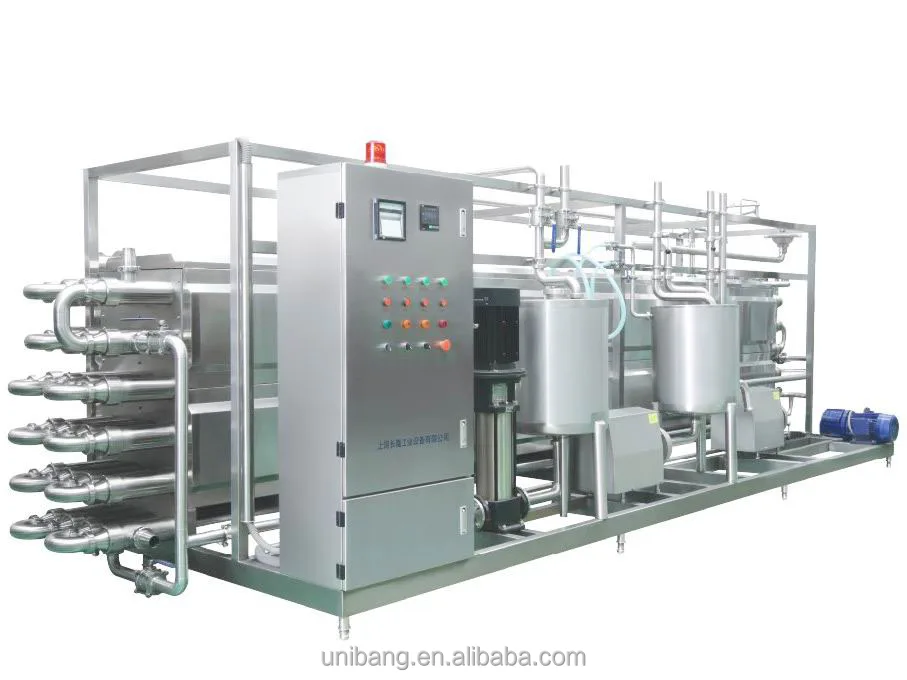

TUBULAR PASTEURIZER
Technical parameters
Name |
| TG-PUT-15 | TG-PUT-20 | TG-PUT-25 | TG-PUT-30 | TG-PUT-55 | TG-PUT-105 |
production capacity | t/h | 2 | 3 | 4 | 5 | 10 | 20 |
heat exchanging area | m2 | 15 | 20 | 25 | 30 | 55 | 105 |
temperature of material inlet | ℃ | 5 | 5 | 5 | 5 | 5 | 5 |
temperature of material outlet | ℃ | 5 | 5 | 5 | 5 | 5 | 5 |
sterilizing temperature | ℃ | 85-95 | 85-95 | 85-95 | 85-95 | 85-95 | 85-95 |
heat preservation period | S | 15 | 15 | 15 | 15 | 15 | 15 |
ice water consumption | multiple | 3 | 3 | 3 | 3 | 2 | 2 |
cooling water consumption | multiple | 2 | 2 | 2 | 2 | 2 | 2 |
energy consumption | kw | 10 | 10 | 12 | 14 | 16 | 20 |
outline dimensions | mm | 3500*1900*1880 | 3500*1900*1880 | 4500*1950*1880 | 4500*2000*1880 | 6500*2000*1880 | 6500*2000*1880 |
Technology
Fresh Milk Sterilizing Technology :

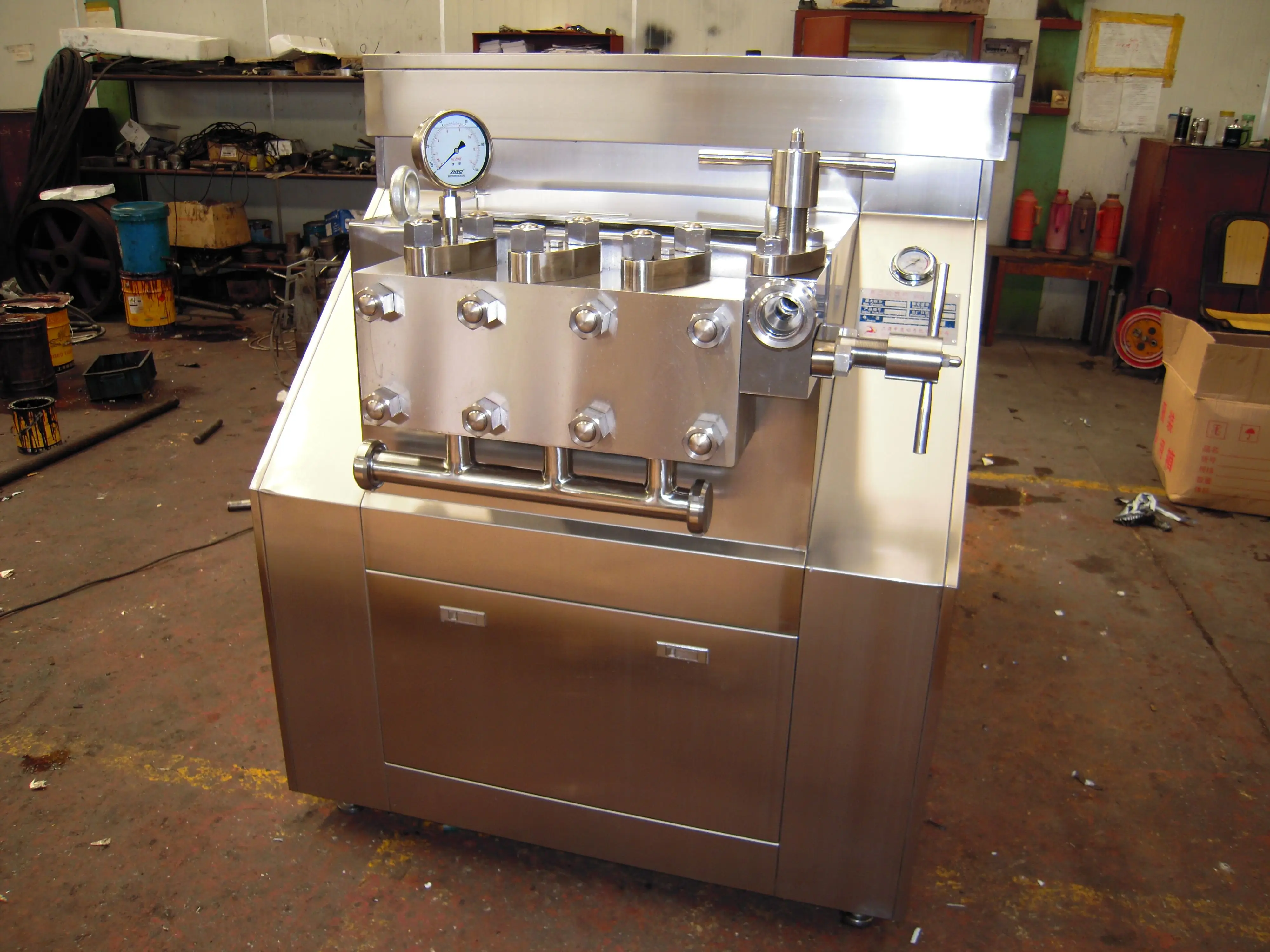

5℃ inlet→45℃ Cream Separator →65℃ homogenizer →85-95℃ Sterilizing, holding : 30S →5℃ Storage Tank / Filling Machine
Coconut Milk Sterilizing Technology : :
5℃ inlet→{ 45℃ Cream Separator } →65℃ homogenizer →85-95℃ Sterilizing, holding : 30S →5℃ Storage Tank / Filling Machine

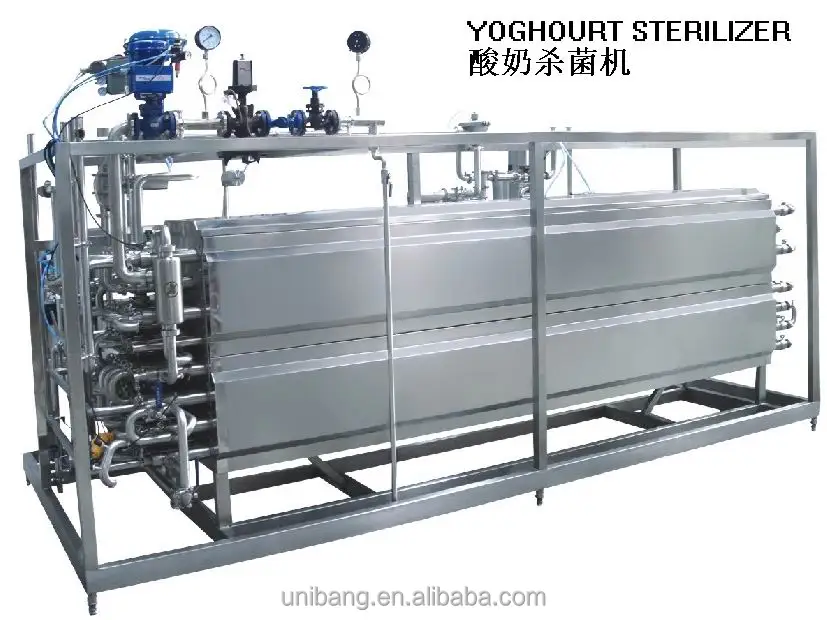

Stirred Yoghurt Sterilizing Technology : :
5℃ inlet→65℃ homogenizer →95℃ Sterilizing, holding : 300S →43℃ fermentation tank
UHT Juice Sterilizing Technology : :
25℃ inlet→{ 65℃ homogenizer , selectable } →135℃ Sterilizing, holding : 5S →35℃→88℃ filling machine →40℃ return back cooling .
Juice Aseptic UHT Sterilizing Technology :
25℃ inlet→65℃ homogenizer →95℃ 30S →137℃ 5S →25℃ Aseptic Filling
