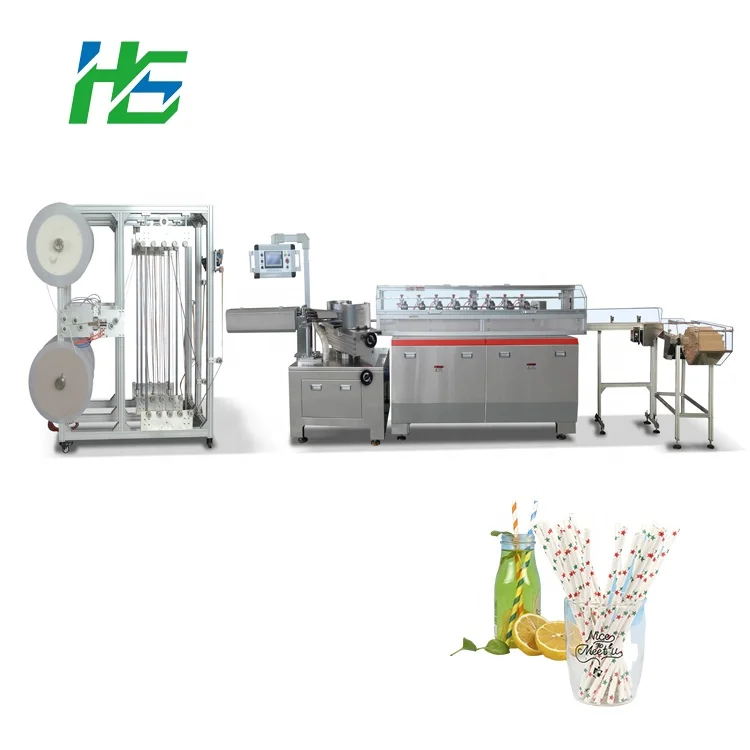

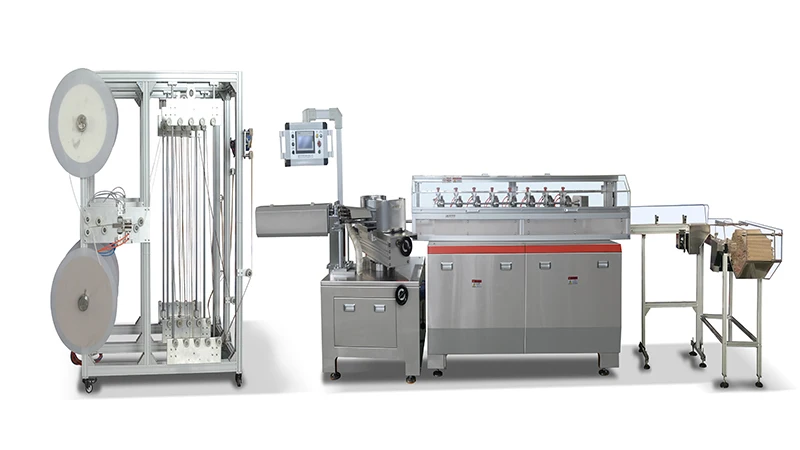

HS-XGJ-QSF Paper Suction Machine
HS-XGJ-QSF Full servo non-adhesive paper suction machine is our latest research and development of new products. The machine integrates automatic paper connection, forming, cutting and collecting,and adopts a CNC multi cutter system to directly produce finished paper straws.The paper straw produced by the machine can withstand high temperature of100 degrees (normal one is 70 degrees) but also can be degraded without pollution to the environment.

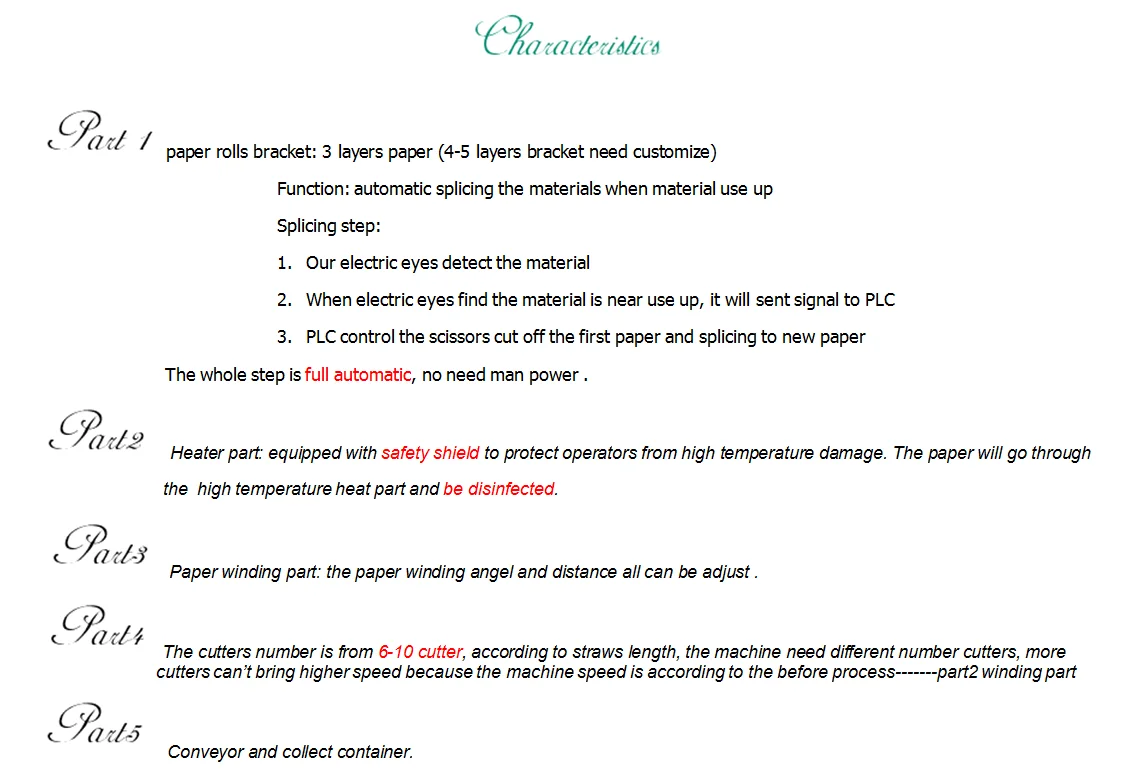

FEATURES AT A GLANCE
(1)Save space and time.
(2) The machine has sterilization function.
(3) Have no problems caused by weather and glue.
(4) The paper straws can withstand in high temperature and be degradable.
(5) The product. loss rate is greatly reduced.
(6)The hardness increases with the same thickness raw materials.
(7) The whole machine adopts servo motor.
(8) It is suitable for double-use models with glue and no glue.
(2) The machine has sterilization function.
(3) Have no problems caused by weather and glue.
(4) The paper straws can withstand in high temperature and be degradable.
(5) The product. loss rate is greatly reduced.
(6)The hardness increases with the same thickness raw materials.
(7) The whole machine adopts servo motor.
(8) It is suitable for double-use models with glue and no glue.

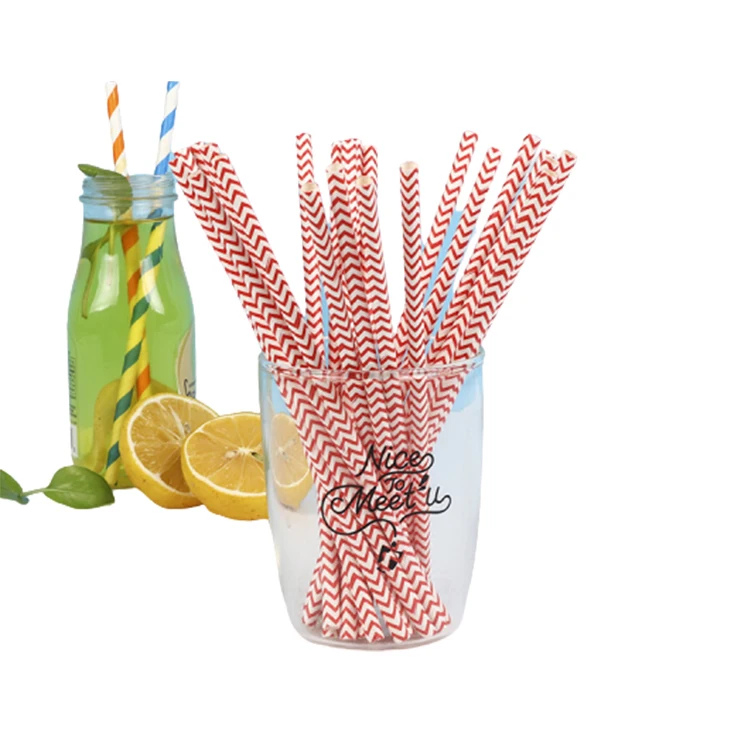

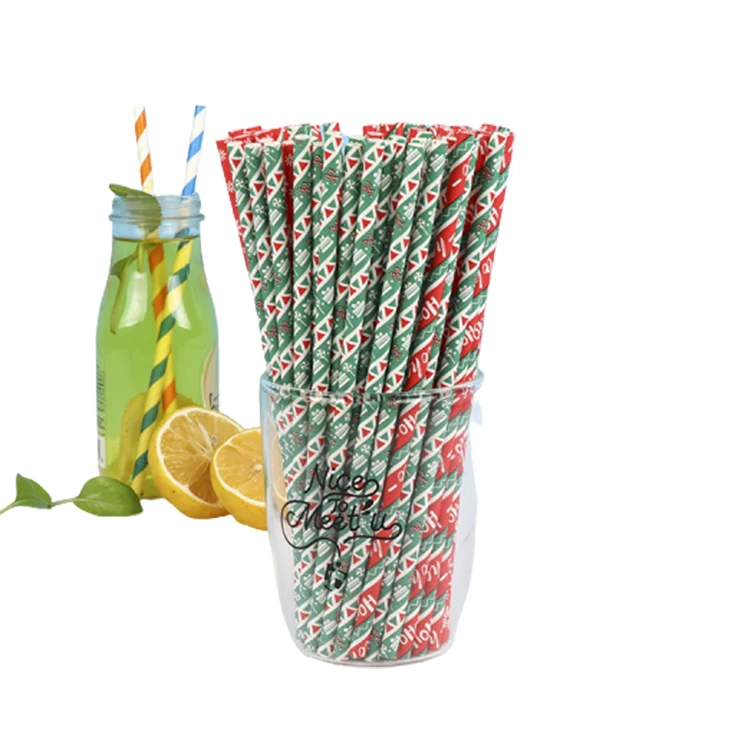

Sample1
Sample2
Sample3
Certifications
PRODUCT SPECIFICATIONS
Raw Material | Pure Wood Pulp Paper |
Paper Layers | 3 layers |
Paper Thickness(from inside to outside) | 120g/m²,120g/m²,60g/m² |
Tube Thickness | 0.3-2mm |
Running Speed | 40-100meters/min |
Tube Size | 4.5-12mm |

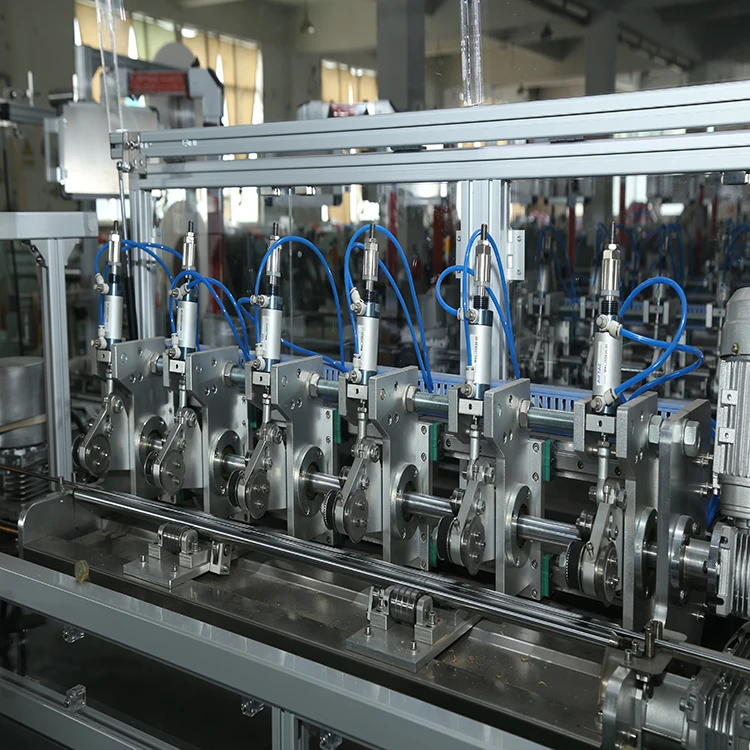

Cutting System | servo motors,8 set knives |
Cutting Length | 70-1050mm |
Power Source | 380V,50Hz |
Operation Person | 1-2person |

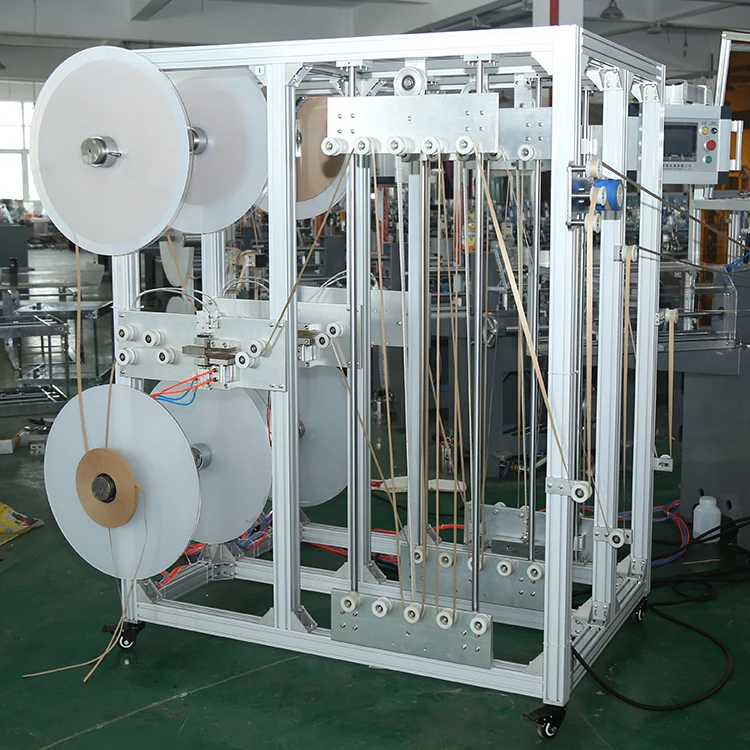

Paper Roll Bracket | 1600*2000*1100mm |
Main Part | 2300*860*1270mm |
Collection Part | 1900*970*1770mm |
Weight | 1400kg |
PRODUCT CONFIGURATION
Main Motor | co-trust(1.5kw) |
Drive | co-trust |
Touch Panel | siemens |
Servo Motor | co-trust |
Bearing | HRB |
Electronic components | Omron |
Pneumatic parts | Airtag |
SALES AND SERVICE NETWORK
Hongshuo Machinery is the no glue paper straw machine inventor ,this new type machine solve all the problem which caused by white emulsion.we are the Korea Starbucks only supplier of paper straw machine.

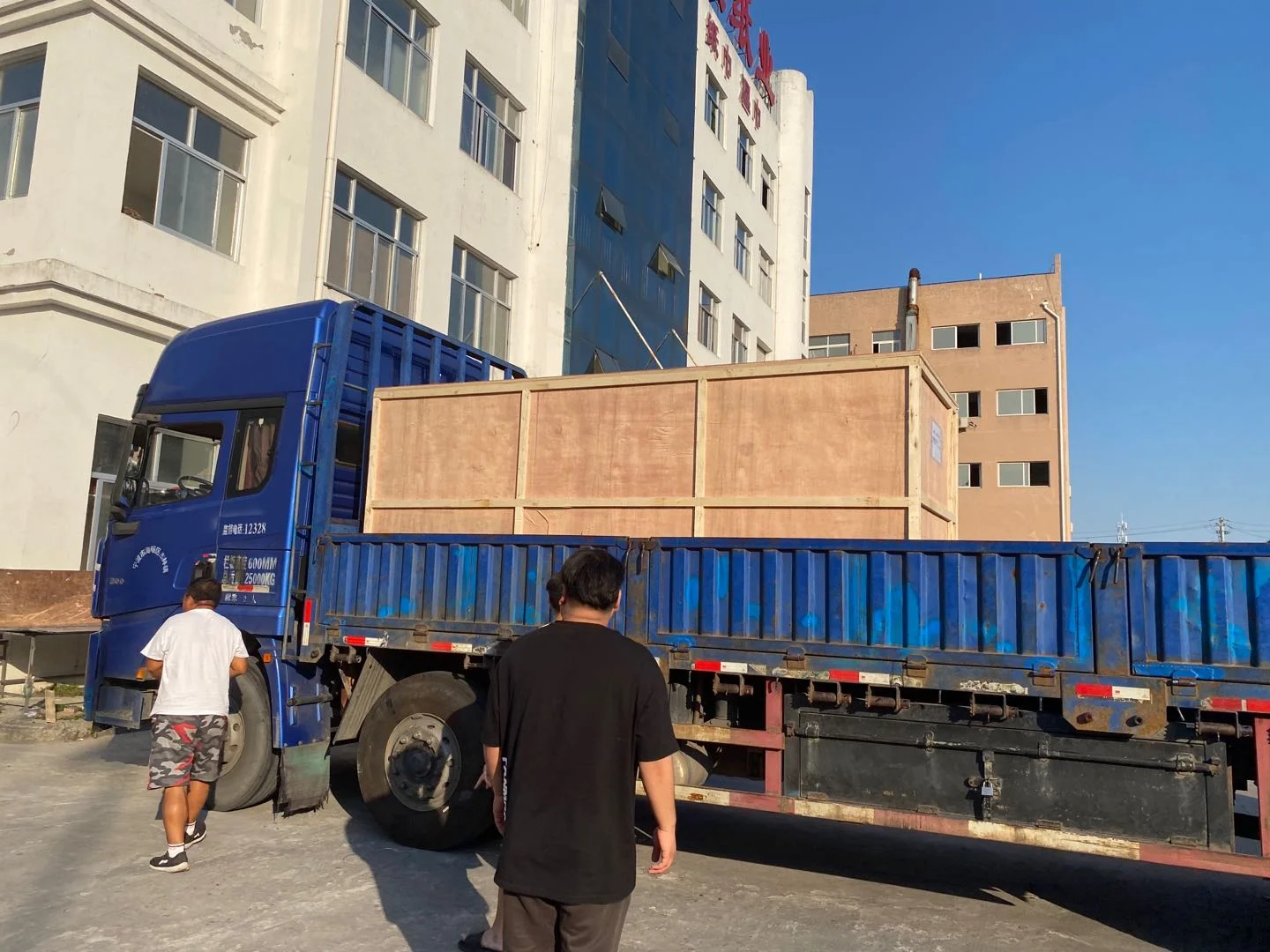

Product packaging
FAQ
1.Who are we?
We are based in Zhejiang, China, start from 2019,sell to North America(30.00%),Eastern Asia(30.00%),Western Europe(30.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Paper straws machine,hamburg box machine,cake box machine,paper cup machine,kraft paper food container machine
4. Why should you buy from us not from other suppliers?
The inventor of no glue paper straw machine,have more than 20 years hamburg box machine experience,Korea Starbucks nominated paper straws machine supplier.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 2019,sell to North America(30.00%),Eastern Asia(30.00%),Western Europe(30.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Paper straws machine,hamburg box machine,cake box machine,paper cup machine,kraft paper food container machine
4. Why should you buy from us not from other suppliers?
The inventor of no glue paper straw machine,have more than 20 years hamburg box machine experience,Korea Starbucks nominated paper straws machine supplier.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
