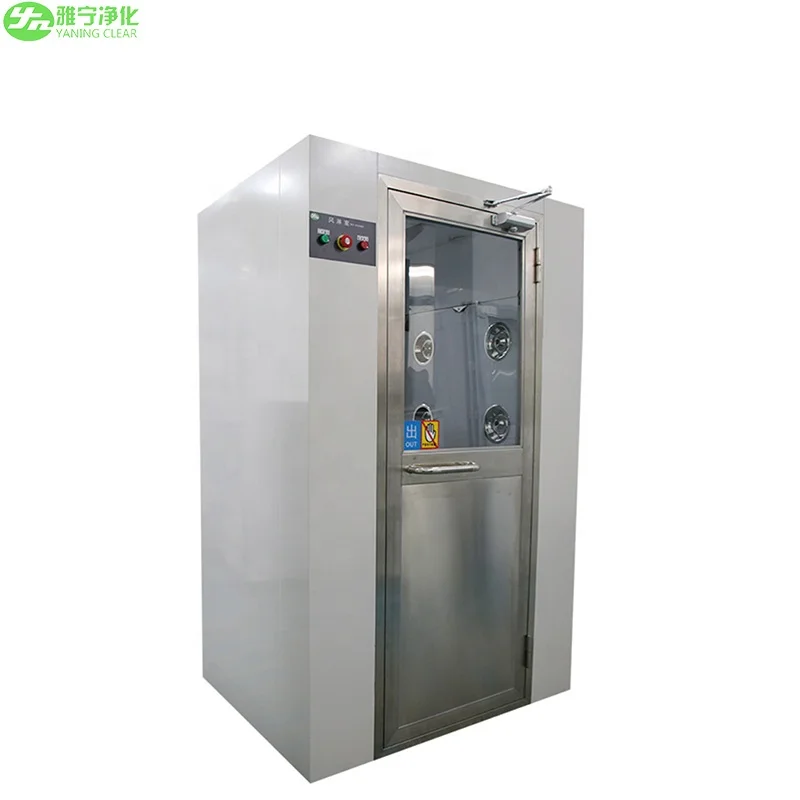

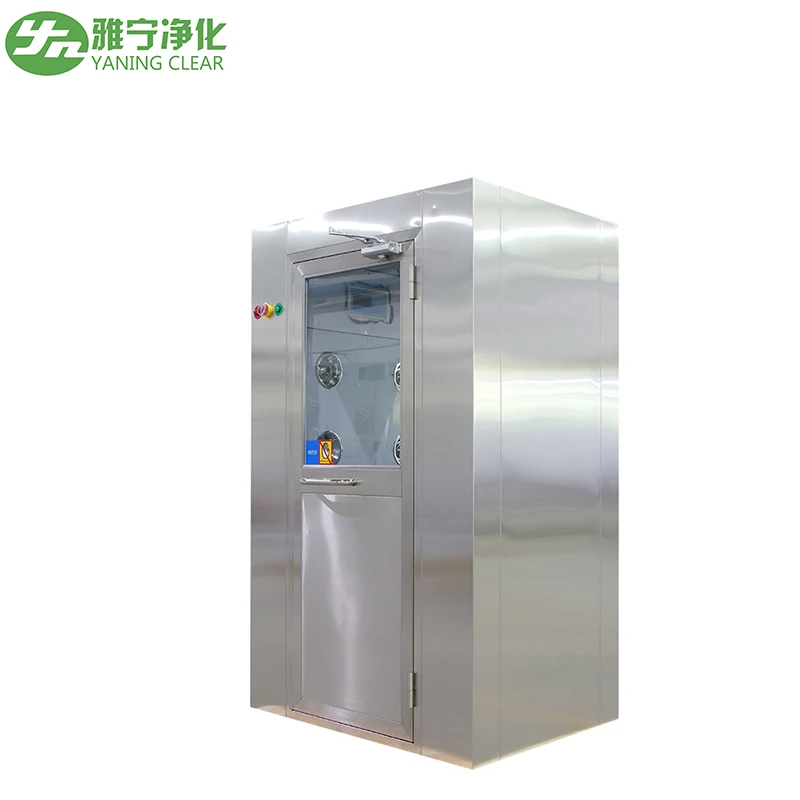

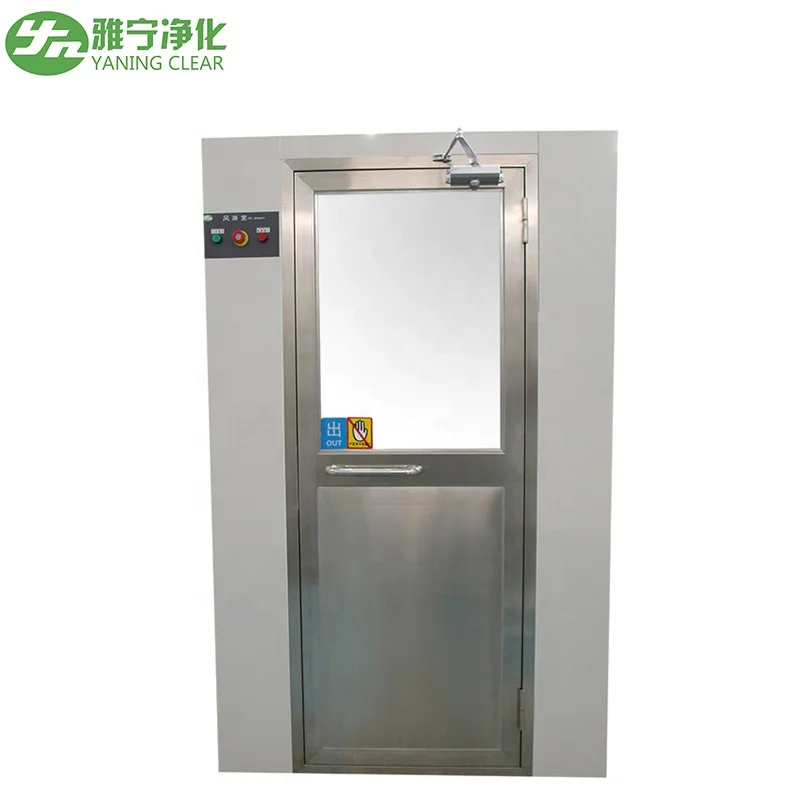

YANING GMP Standard Electronic Air Clean Equipment Customized Modular Clean Room Air Shower
- Category: Air Cleaning Equipment >>>
- Supplier: Dongguan Yaning Purification Equipment Co. Ltd.
Share on (1600434872318):
Product Overview
Description
Products Description

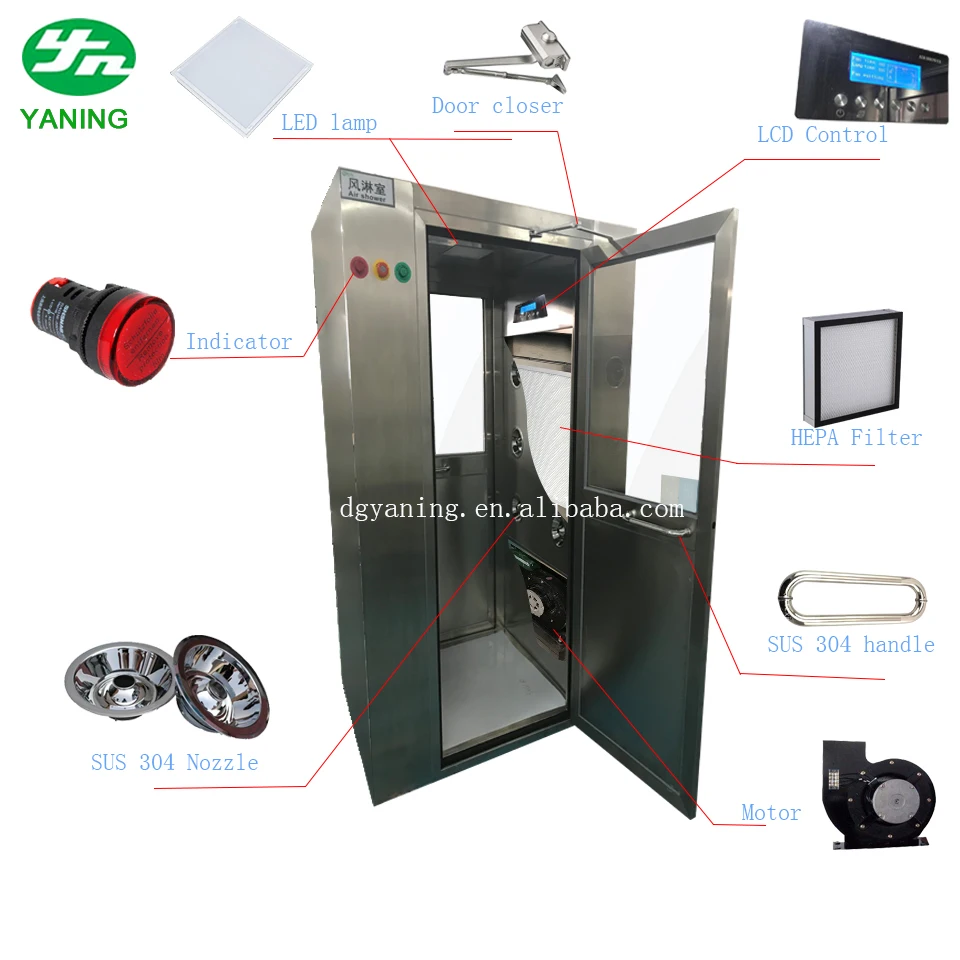

Removes surface-deposited particles from personnel prior to entering the cleanroom
• Self-contained, turnkey chambers are preassembled at the factory and shipped in two sections (top and bottom) for fast
installation
• HEPA-filtered air (rated 99.99% efficient at 0.3 microns) washes over personnel to dislodge loose particles that accumulate on garments
• Electromagnetic interlock system prevents the doors from opening before the air shower cycle is completed, protecting the cleanroom from cross-contamination
• Door locks automatically release in the event of a power outage or if one of the Emergency Exit buttons are depressed
• Shower time and door interlock duration can be programmed using the touchscreen control panel

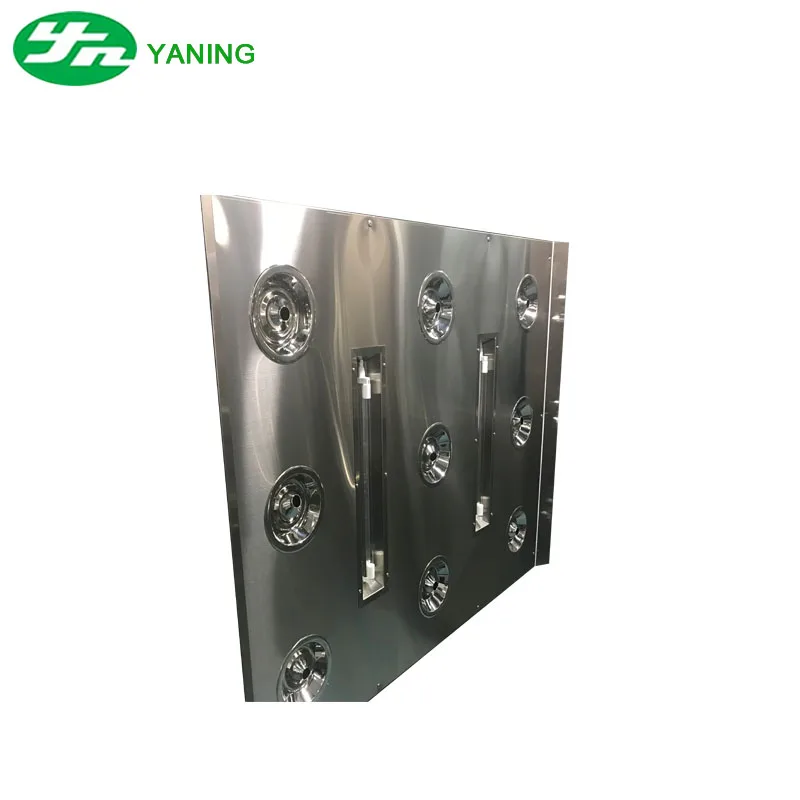

• Air nozzles can be adjusted to redirect streams of air
• Energy-efficient LED lighting includes motion-activation
• Self-contained, turnkey chambers are preassembled at the factory and shipped in two sections (top and bottom) for fast
installation
• HEPA-filtered air (rated 99.99% efficient at 0.3 microns) washes over personnel to dislodge loose particles that accumulate on garments
• Electromagnetic interlock system prevents the doors from opening before the air shower cycle is completed, protecting the cleanroom from cross-contamination
• Door locks automatically release in the event of a power outage or if one of the Emergency Exit buttons are depressed
• Shower time and door interlock duration can be programmed using the touchscreen control panel
• Air nozzles can be adjusted to redirect streams of air
• Energy-efficient LED lighting includes motion-activation

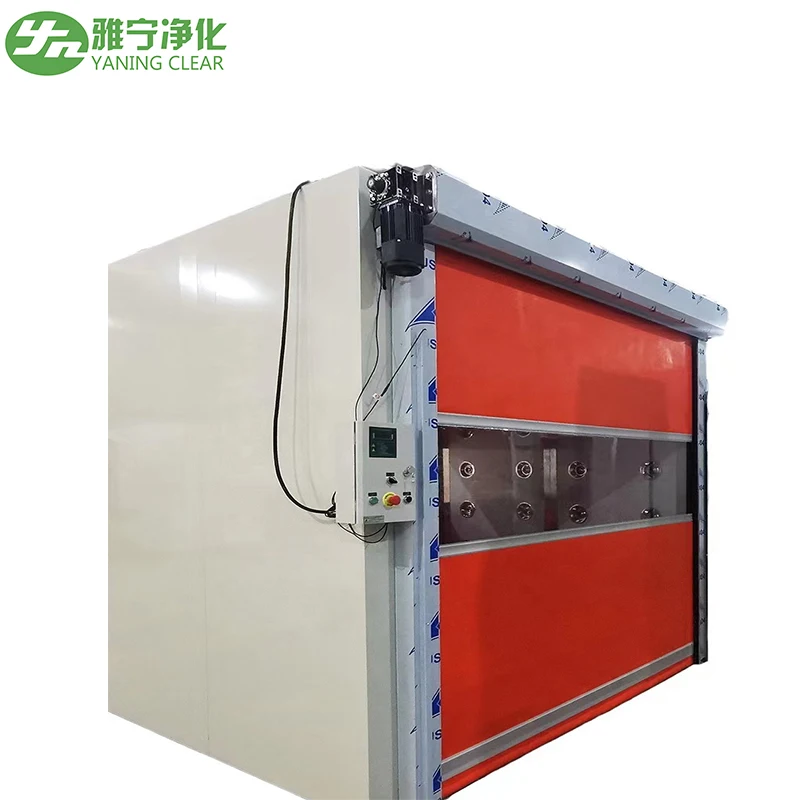

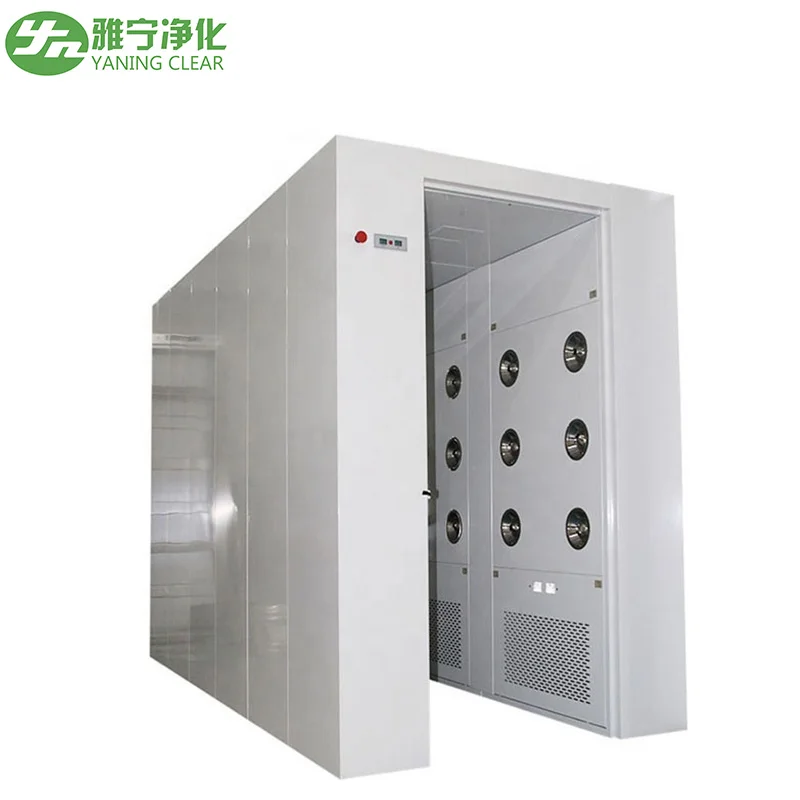

Model | YN-1000 | YN-1500 | YN-2000 | Air Shower Tunnel | ||
External Dimension | 1290×1000×2130 | 1290×1000×2130 | 1290×2000×2130 | 2000×2000×2130 | ||
Internal Work Zone | 790×860×1910 | 790×860×1910 | 790×1860×1910 | 790×4860×1910 | ||
Suitable Number | 1-2 person | 1-2 person | 2-4 person | Tunnel type | ||
Noise Level(dB) | ＜62 | ＜62 | ＜62 | ＜62 | ||
Stainless Steel Nozzle | 6pcs | 12pcs | 24pcs | 72pcs | ||
Wind Speed | ≥25m/s | ≥25m/s | ≥25m/s | ≥25m/s | ||
Prefilter | Size | 775×380×17×1pc | 775×380×17×2pcs | 775×380×17×4pcs | 775×380×17×8pcs | |
Efficiency | G4 | G4 | G4 | G4 | ||

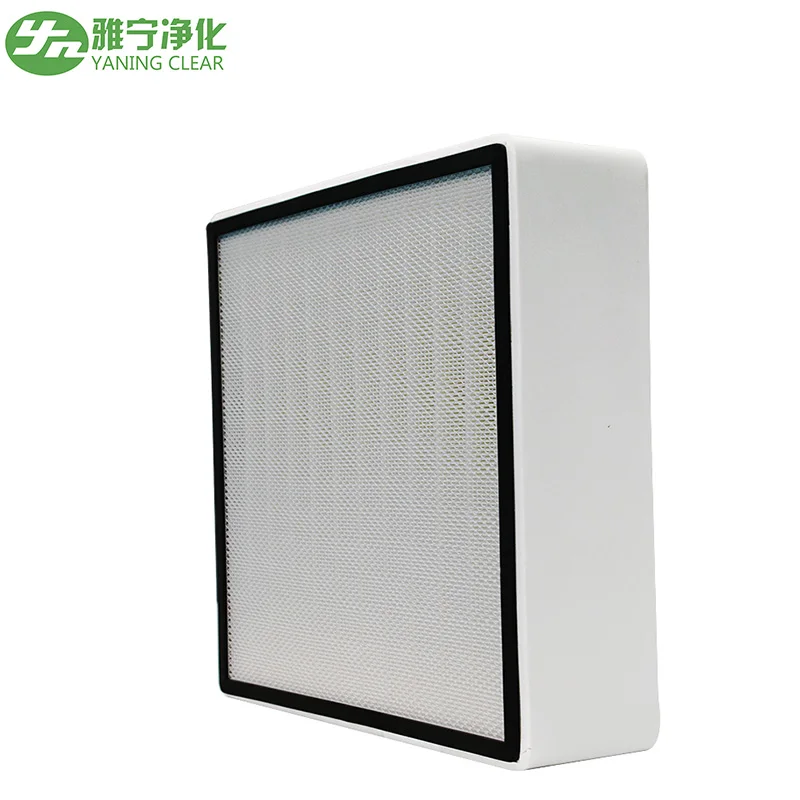

HEPA Filter | Size | 610×610×120×1pc | 610×610×120×2pcs | 610×610×120×4pcs | 610×610×120×8pcs | |
Efficiency | 99.99%@0.3µm | 99.99%@0.3µm | 99.99%@0.3µm | 99.99%@0.3µm | ||
Fluorescent Lamp | 20W×1 | 20W×2 | 20W×4 | 40W×4 | ||
Power Supply | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | ||
Total Power | 780W | 780W | 780W | 780W | ||
Related products
Company Profile
Certifications
Exhibition
Product packaging
Packaging
Stretch film strapped whole cabinet,
Foam inside protected,
Plywood case solid fixed
Foam inside protected,
Plywood case solid fixed
shipping
Samples be shipped by DHL/FedEx/USP and so on
Mass production be shippinh by Air or Sea
Mass production be shippinh by Air or Sea
