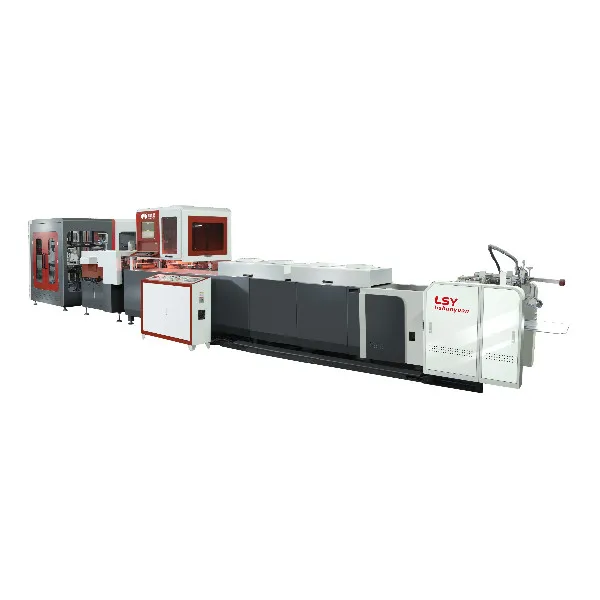

LY-HB1600CT Intelligent High-speed wine box production line.

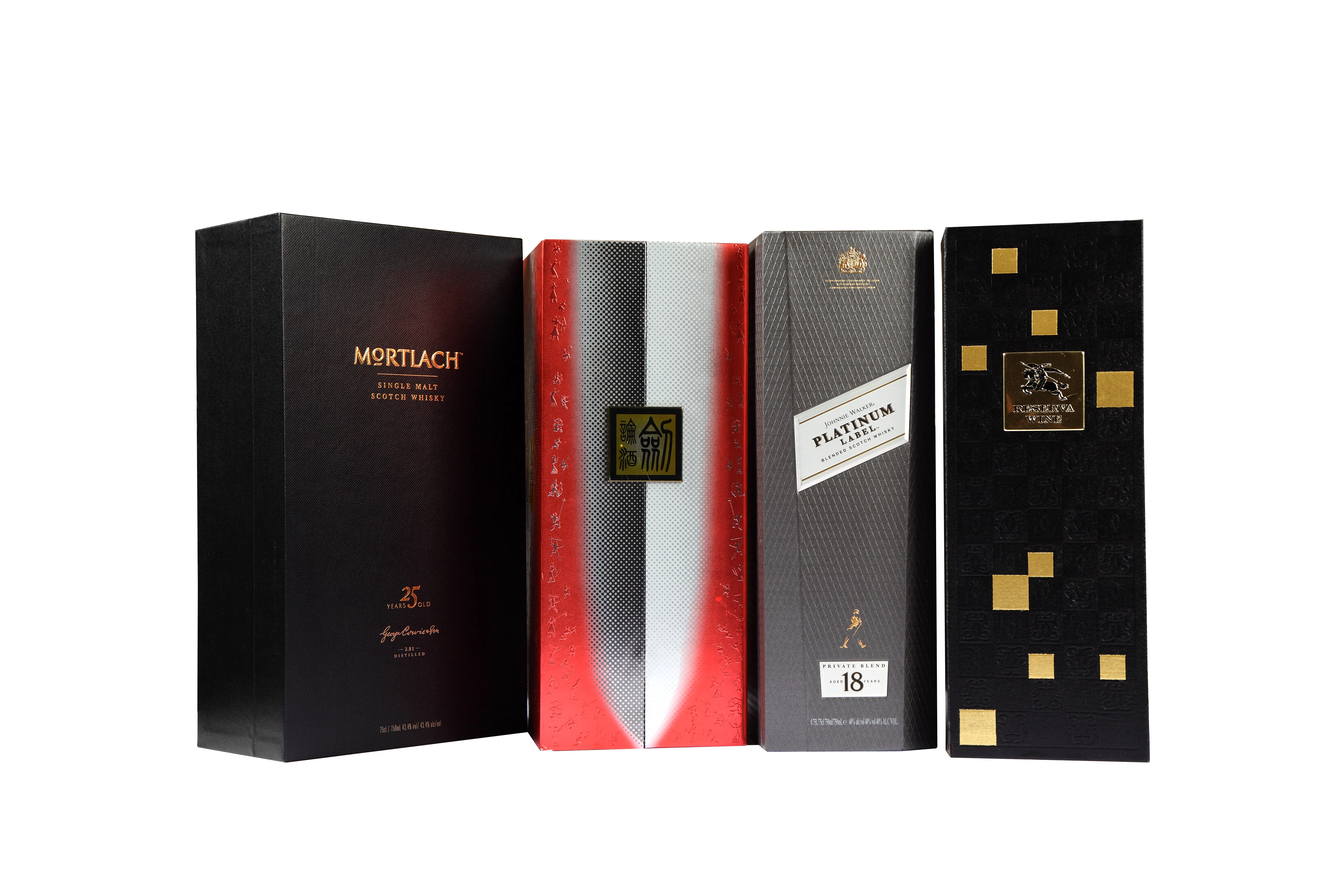

Features: Automation, informationization & IOT functions (Real-time monitoring of facility’s running state, parameters and the consupmtion of gas and power). Suitable for production of wine boxes & drawer boxes and so on.






Specification



Paper size
W: 95-600mm
L: 180-800mm
Paper thickness
180-300g/m2
Grey board thickness
1.5-3mm


Cardboard size
W:200-320mm
L:360-640mm
W:90-160mm
Edge-wrapping size
15-30mm
Aligning accuracy
±0.05mm
Production speed
20-25sheets/min
Max Power
26kw
Paper Stacking Height
800mm
Air pressure
0.6-0.8mpa
Voltage
380V
Machine Dimension
L10000*W2800*H2100mm
Machine Weight
7000kg


Product Featurs:
1、Production Speed：20-26pcs/min.
2、Adjustable mold and no more mold needed for the job changeover.
3、Fast for job changeover with memory function.
4、Easy operation, fast and convenience.
5、Stable forming with high yield.
6、Informtionization, intelligentization & ergonomics.
7、Visual positioning with accuracy of ±0.05mm.


Company Profile




LiShunyuan was founded in 2002, located in Dongguan city, Guangdong Province, and has a modern standard workshops of 20000 square meters, after 18 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.
Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.
Lishunyuan adheres to the development concept of “customer first, service to the world” and adheres to the development strategy of “keep improving and bring forth the old and new”. Lishunyuan devotes itself to the development of new products with high performance and high efficiency in the industry and leads the rapid development of intelligent automation in the industry.

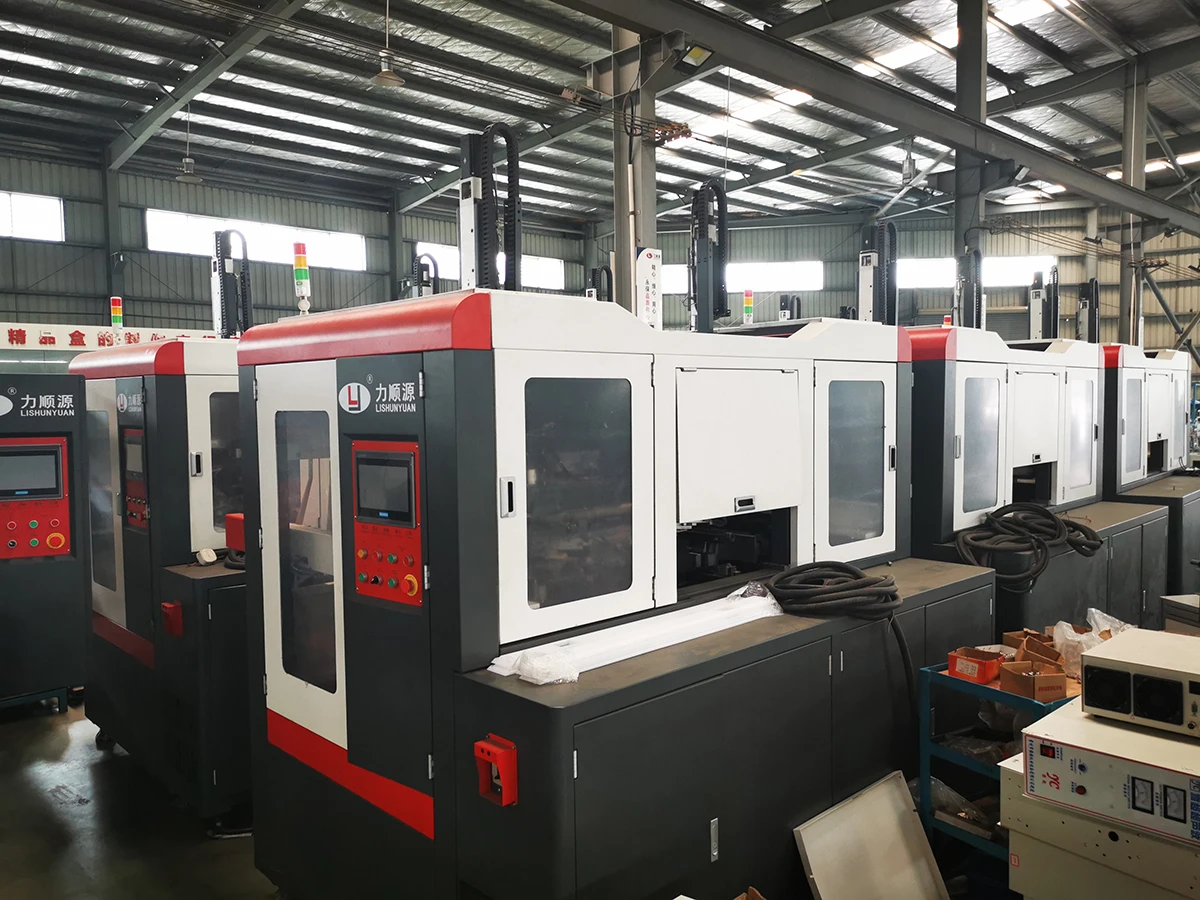

Workshop






Packing & Delivery


Film and plywood crate.
