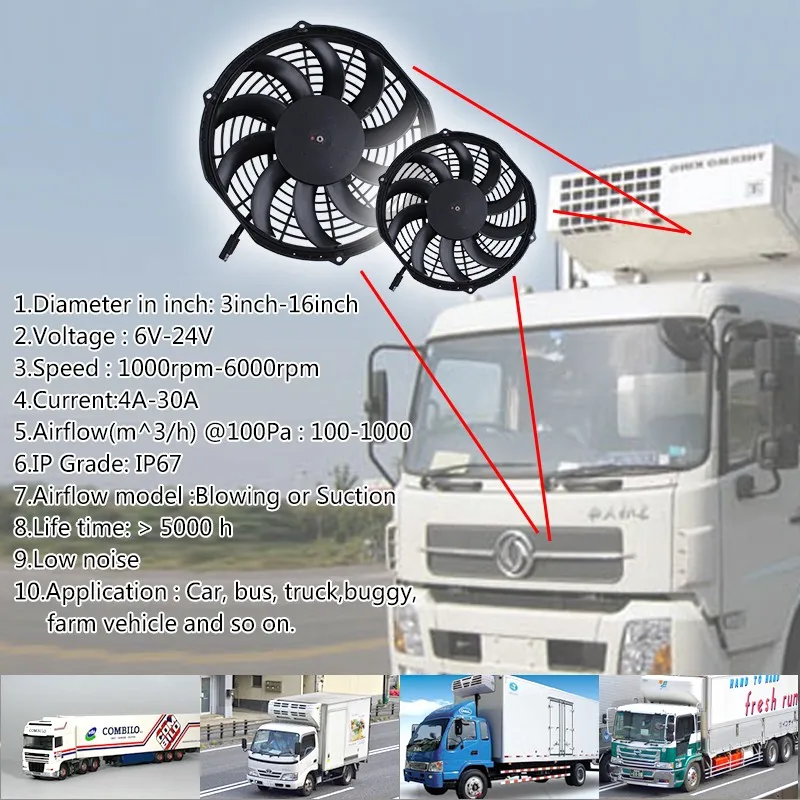

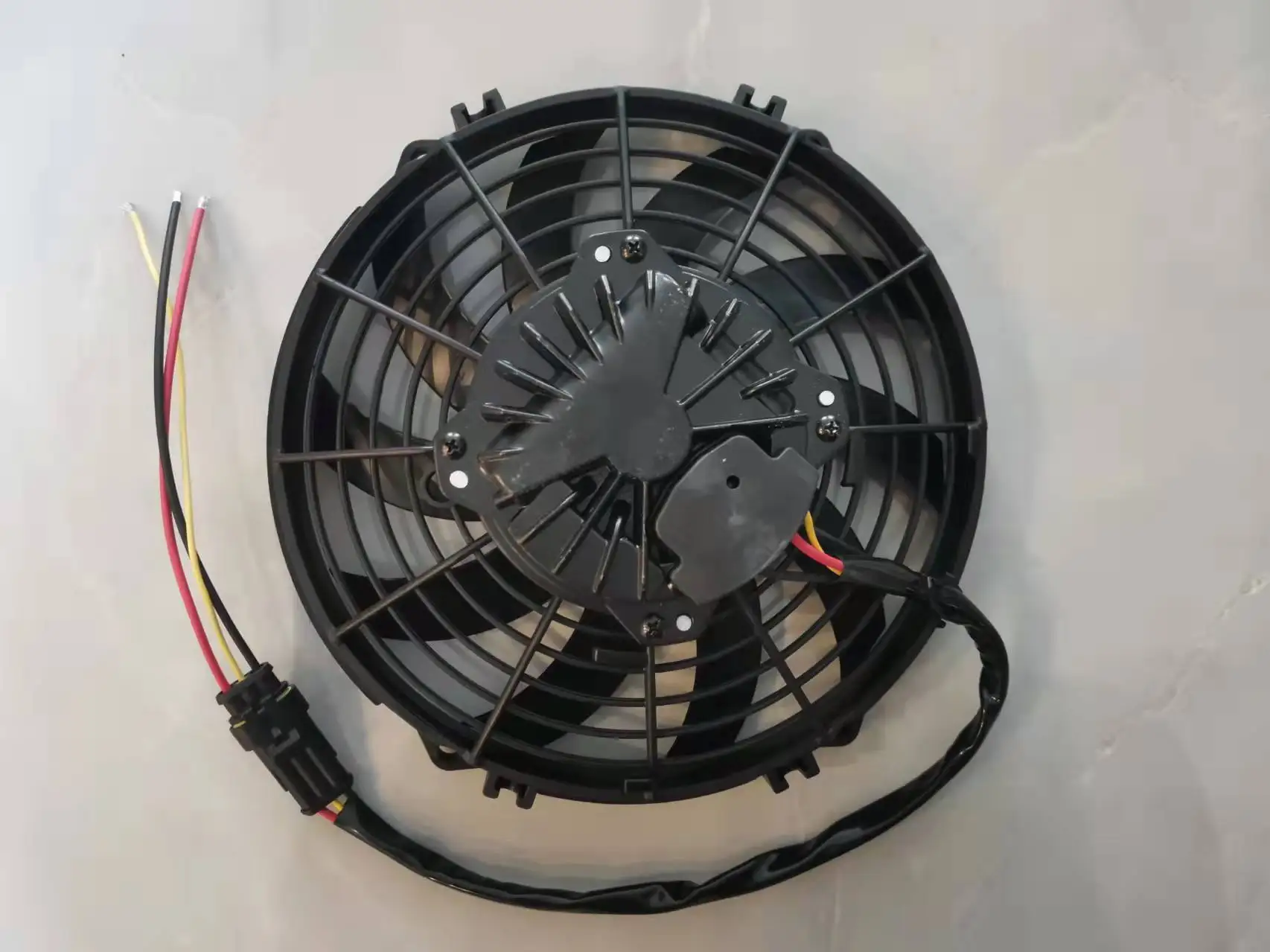

9 inch suction radiator cooling axial motor fan 12v 24v

Product Description/ Specification

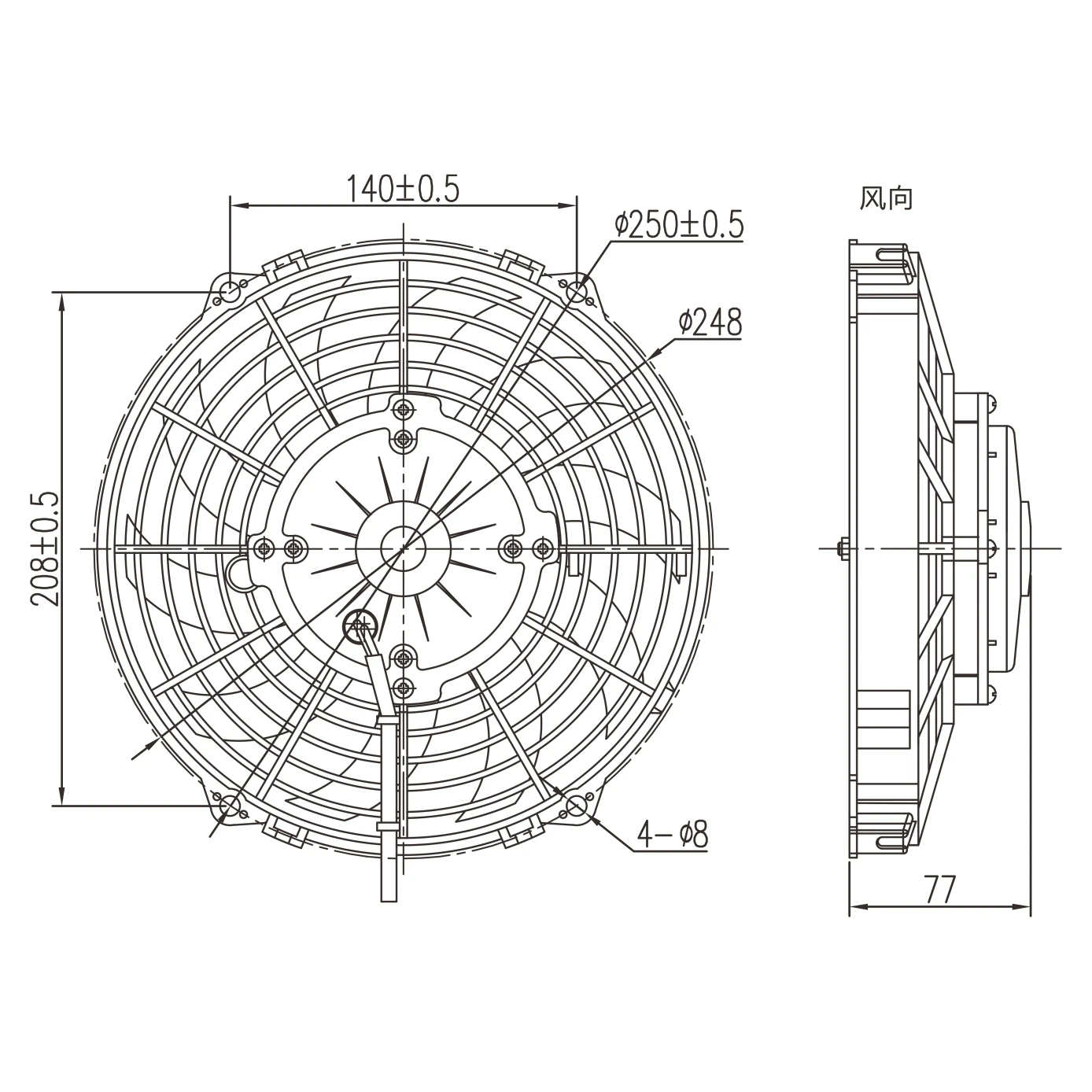

DC axial fan 9inch 12v pull air

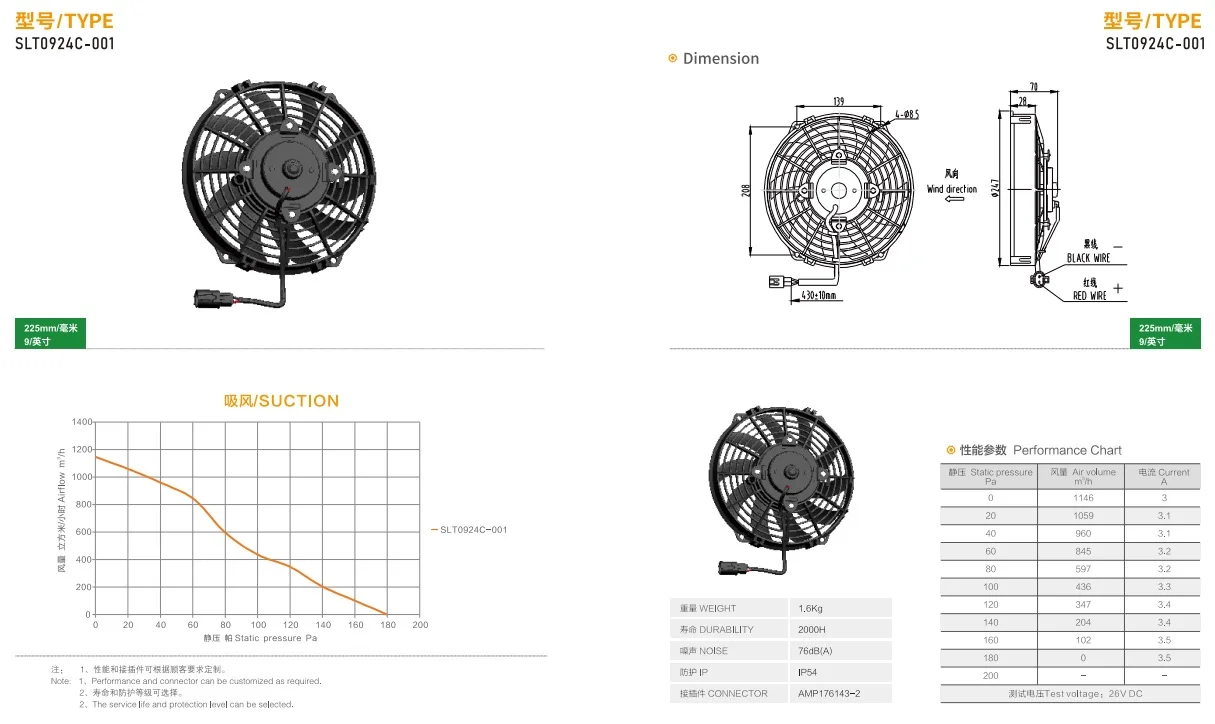

Specification:
1. Test Voltage: 27V
2.  Load Current: ≤ 4.5A
3. Load Speed: 3400 rpm
4. Static Pressure: 0Pa
5. Air Volume: ≥ 800m³/h
6. Life: 20000H min
7. Noise: ≤ 78db(A)
8. Vibration: ≤ 3.5m/S2
9. Diameter: 9 inch

Our Services

We have perfect service team, including Research&Develop Department, Manufacturer Centre, Quality Control, Sales Service, Aftersales Service,  Customer Service, etc.. We can provide solution to practical problems for all type customers.

RFQ

Q1: Can I have a sample for testing?
A1: Of course, we can provide some samples with a fee for you to test before you place an order.

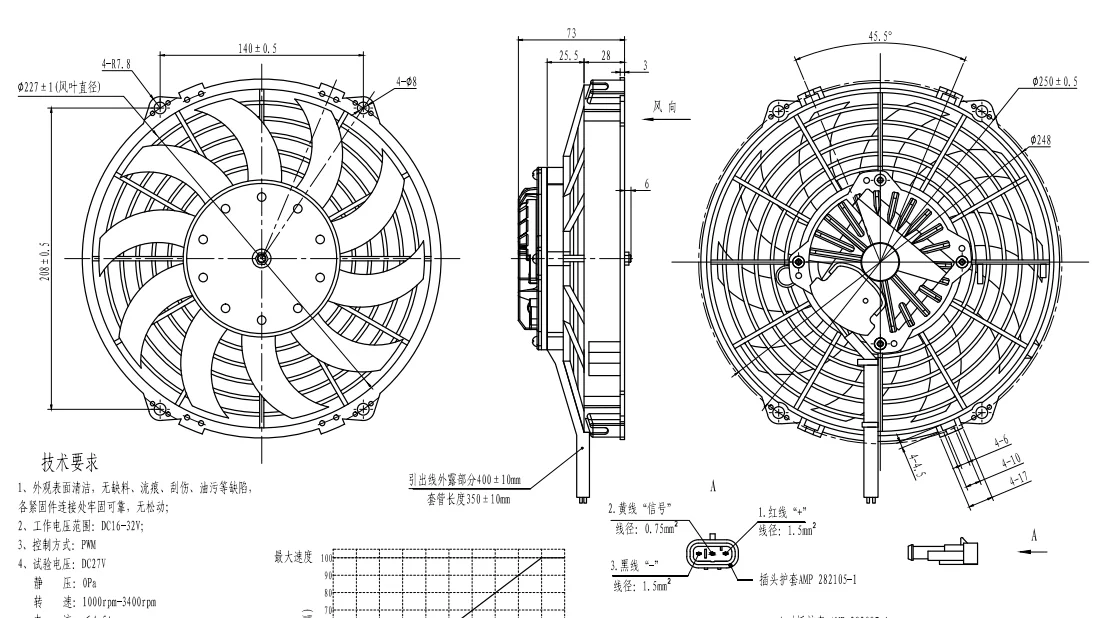

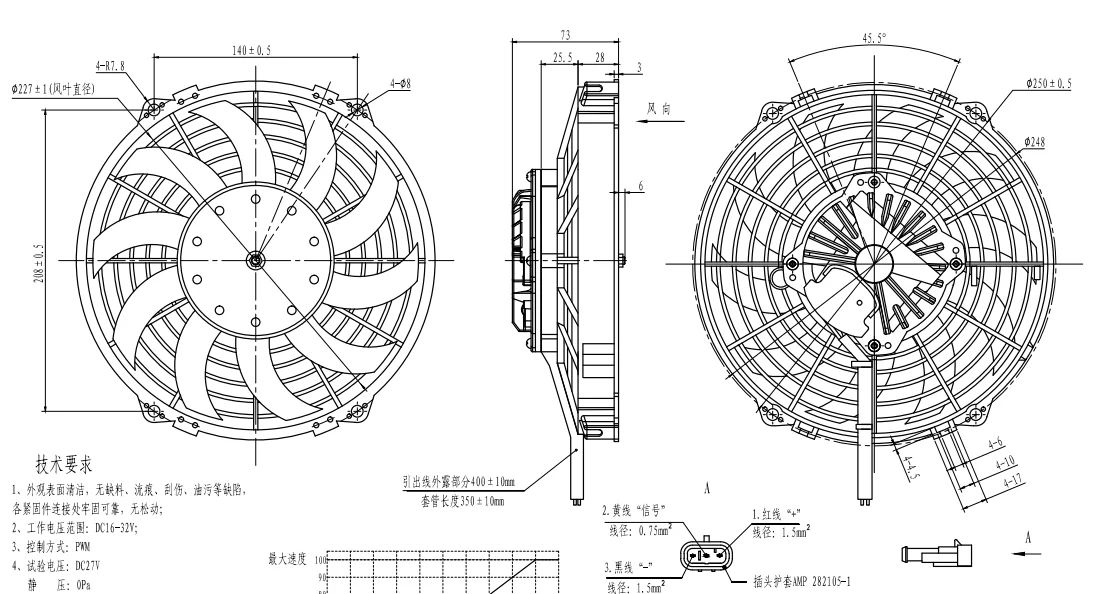

Q2: Can you provide detailed technical data and drawing?
A2: Yes, we can. Please tell us which product you need, so that we can send the detailed technical data and drawing to you for checking.

Q3: Can I visit your factory before we place an order?
A3: welcome to visit our factory, we are very pleased if we have the chance to know each other more.

Q4: What kind of certificates can you provide?
A4: Our factory have TS16949 and ISO9001, at the same time We can provide the 3C, ROHS, CE certificates based on customers’ requests.

Q5: Can you provide OEM or ODM service?
A5: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.

Q6: How to control the products' quality in your company?
A6: We have many advanced testing machines and strict testing procedures. All the products have passed 100% qualified testing before the products leave our factory.
