Product Overview

Description


Product Description

Telecom Power Systems Features:

1: High density, high efficiency( >95%), excellent high temperature performance(full load @ 60℃);
2: Wide operation temperature: -40℃ to 65℃;
3: Hot-swappable rectifiers:1200W,2000W,3000W;

4:1250VA,3000VA 48v dc 220v ac inverter,1000VA 48v 220v pure sine wave inverter;
5:Ground installation,Pole mounted installation,Wall mounted installtaion;
6:Compact design(only 1U in height), 3U,5U,7U telcom power system available;
7:Intelligent battery management and protection,help to prolong battery lifespan;
8:Support environmental signal monitoring and remote management through dry contact, serial interface or Ethernet interface(options)
9:Controller support SNMP,Telecom power supply with SNMP function optional.

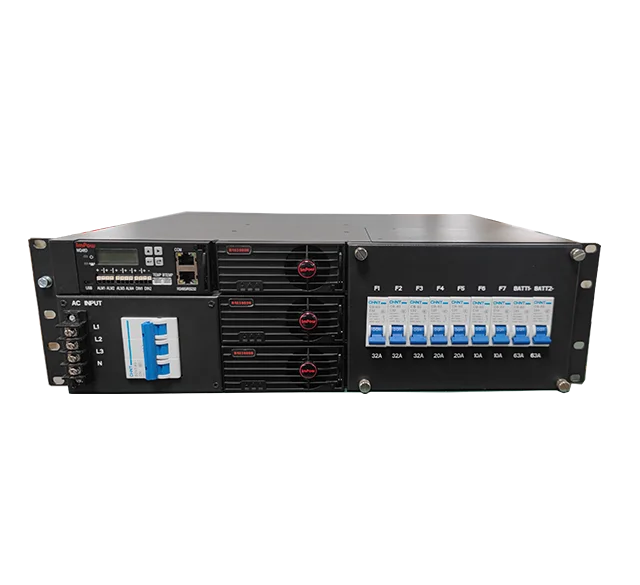

The 48V telecom power system is mainly composed by 4 parts: 19"Rack,Controller,Rectifier and Inverter.

Telecom power system list

\t
No.
\t
Model
\t
System capacity
\t
Rectifier(E:92%, H:95%)
\t
Rectifier Qty
\t
Controller
\t
Height
\t
1
\t
E4840
\t
-48V/40A
\t
R481200E/R481200H
\t
2
\t
MQ48D
\t
1U
\t

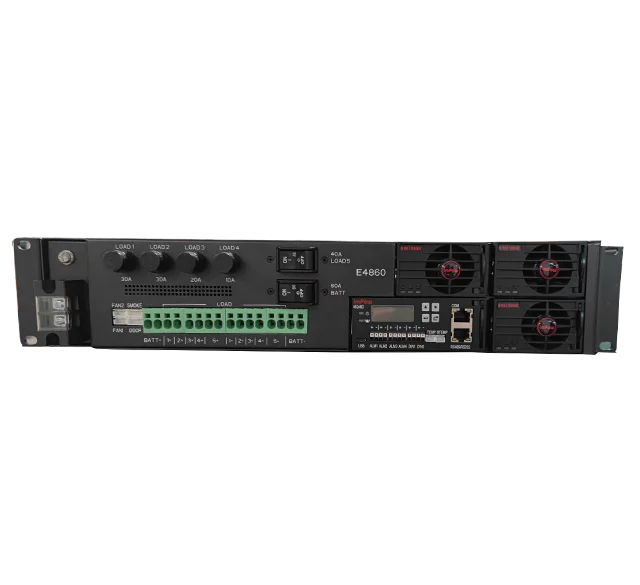

2
\t
E4860
\t
-48V/60A
\t
R482000E/R482000H
\t
2
\t
MQ48D
\t
2U
\t

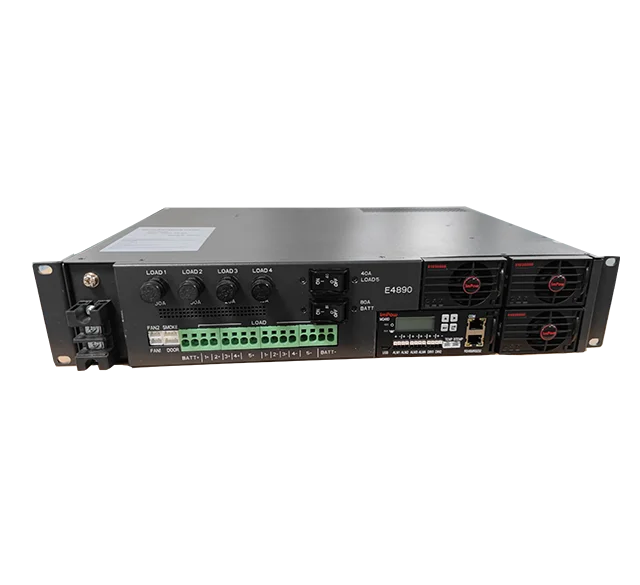

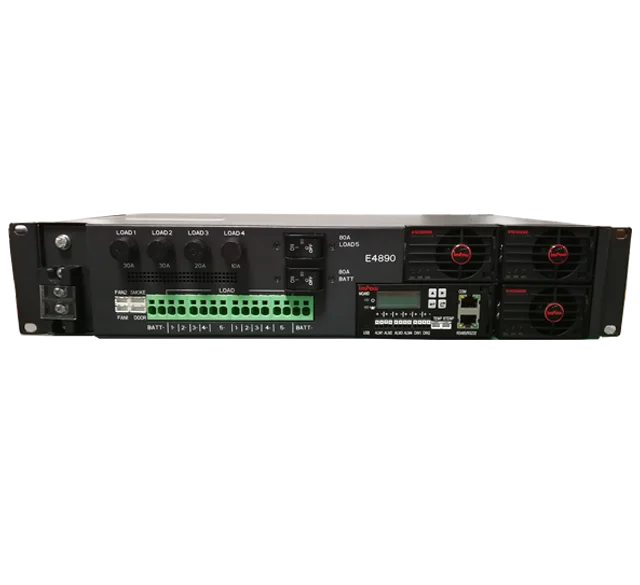

3
\t
E4890
\t
-48V/90A
\t
R482000E/R482000H
\t
3
\t
MQ48D
\t
2U/3U
\t

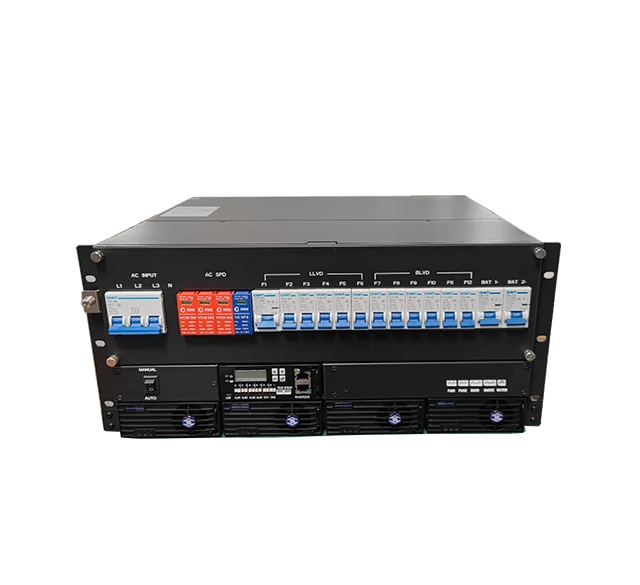

4
\t
E48150
\t
-48V/150A
\t
R482000E/R482000H
\t
5
\t
MQ48D
\t
3U/5U
\t
5
\t
E48200
\t
-48V/200A
\t
R483000E/R483000H
\t
4
\t
MQ48D
\t
5U/7U
\t
\t
Type
\t
E48150
\t





Systems
\t
Dimension
\t
440mm(W)×344mm(D)×132(H)
\t
Weight
\t
≤10.1kg (without rectifiers)
\t
Cooling mode
\t
Natural cooling
\t
Installation mode
\t
Installed on 19-inch rack or inside the cabinet
\t
Cabling mode
\t
Top inlet and top outlet
\t
Maintenance mode
\t
Front maintenance, support module grade change
\t
Protection level
\t
IP20
\t



             AC
 Distribution
\t
Input mode
\t
220/380VAC three-phase or 220VAC single phase
\t
Input capacity
\t
1×63A/2P or terminal
\t
Output capacity
\t
NA
\t
Input frequency
\t
45~66Hz, rated value: 50Hz/60Hz
\t
SPD
\t
20kA/40kA, 8/20μs
\t



             DC
  Distribution

\t
Output voltage
\t
-42~-58VDC, rated value: -53.5VDC
\t
Maximum capacity
\t
9000W
\t
Battery breakers
\t
1×100A/1P
\t
Load breakers
\t
2×12A/1P, 2×20A/1P, 4×40A/1P
\t
SPD
\t
10kA/20kA, 8/20μs
\t






     Rectifier




\t
Input voltage
\t
85VAC～300VAC, rated 220VAC
\t
Efficiency
\t
＞95%
\t
Rated power
\t
1800W(176~300VAC)
\t
Working temperature
\t
-40℃~+80℃(full load @ 60℃)
\t
Dimension
\t
70.3mm(W)×278mm(D)×42.5mm(H)
\t
Weight
\t
≤1.2kg
\t
Cooling mode
\t
Forced cooling
\t
Power factor
\t
≥0.99
\t
THD
\t
≤5%
\t


       MQ48D
   Controller
\t
Signal input
\t
1 Battery temp., ambient temp., ambient humidity, temp1, temp2
\t
Alarm output
\t
1 Water,1 smoke, 1 gate, 4 common DI
\t
Communication port
\t
4 dry contact
\t
Display mode
\t
RS232/485, Fast Ethernet
\t


Environment
\t
Operating temperature
\t
LCD
\t
Storage temperature
\t
-40℃~+70℃
\t
Operating humidity
\t
5%~95%(non-condensing)
\t
Altitude
\t
0~2000m
Specification

SNMP Function Demonstration.

Controller support SNMP,telecom power supply SNMP function optional
MQ48D controller has built-in web and SNMP management capabilities.
You can view the telecom power system status and set system configuration data either with internet explorer or MIB browser.

Features:
1:Monitor telecom power system data and configure system remotely by network
2:Web management with built-in authentication. User name and passwords can be changed by user
3:Support SNMP V1, V2C, V3
4:10M/100M based Ethernet interface
5:Flexible network deployment

Production and shippments.

Certifications
Company Information
Telecom exhibitions

Application Scenarios:

Wireless base station
Transmission network
Transmission equipment
Communication network of enterprises
Corporation datebase.
exchanges service
Access network
Mobile/Microwave communication
Satellite communication ground station

 Visit: www.impowercorp.com for more information

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Contact person: James Liu
QQ ID: 672344184
Mobile/Wechat/Whatsapp: +86-13590412029
