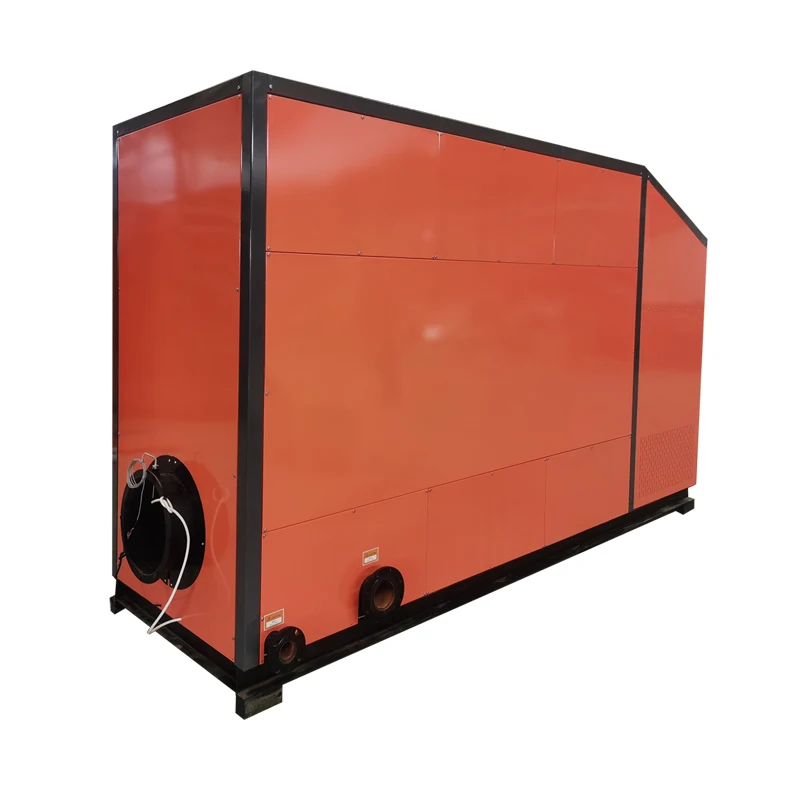

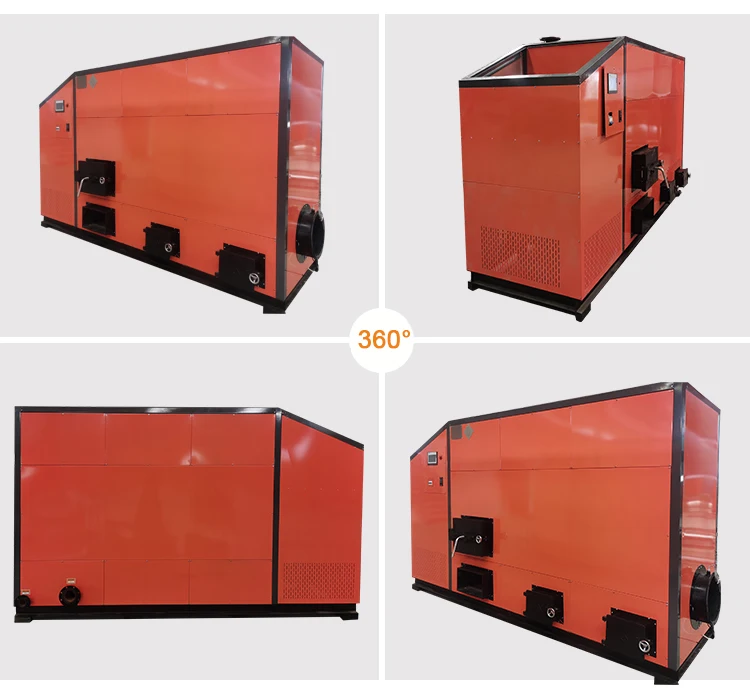

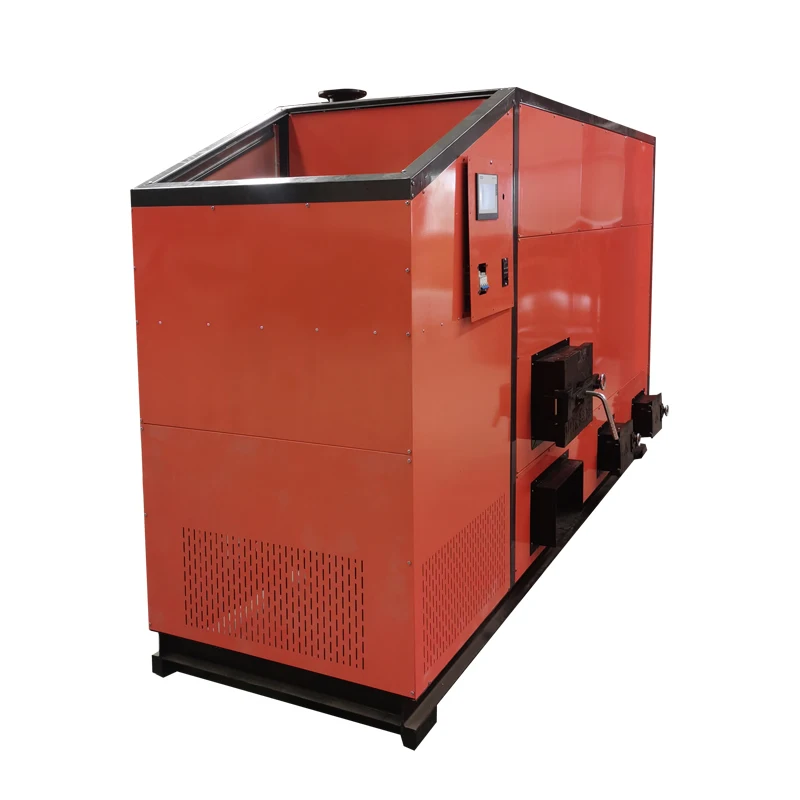

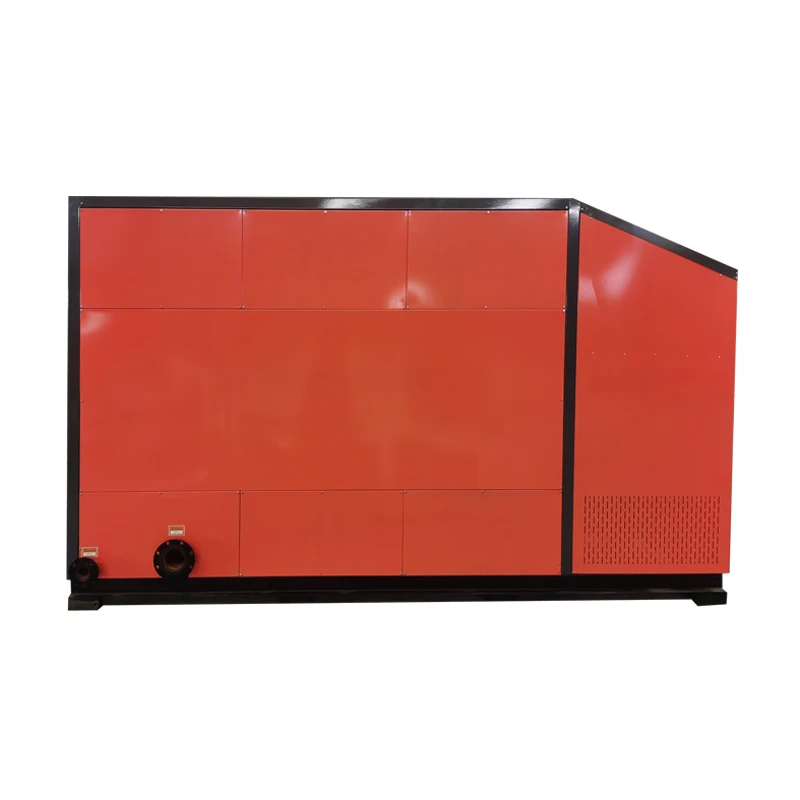

80KW Wood Fire Wood Log Fired Small Industrial Horizontal Boiler Machine Wood Pellet Fast Heating Equipment Automatic Biomass Pe
- Category: >>>
- Supplier: Shandong Xiangneng Temperature Control Equipment Co. Ltd.
Share on (1600434978443):
Product Overview
Description
Products
Product Description
Low Price And Superb Quality Wood Stove/Industrial Biomass Hot Water Pellet Boiler With Biomass Fuel
1. Intelligent screen control, integrated module for electric control. Controllable: automatic ignition, material shortage alarm, boiler outlet temperature, return water temperature, flue gas temperature, water shortage alarm, over temperature alarm.
2. Combustion chamber adopts horizontal non-grate technology, 360° oxygen supply, 360° cyclone combustion.
3. Equipped with S-shaped special internal spoiler, multi-return design, higher boiler efficiency.
4. The boiler furnace structure design evolved from the combination of fuel gas and biomass molding fuel, and customers do not need to worry about local environmental protection.
2. Combustion chamber adopts horizontal non-grate technology, 360° oxygen supply, 360° cyclone combustion.
3. Equipped with S-shaped special internal spoiler, multi-return design, higher boiler efficiency.
4. The boiler furnace structure design evolved from the combination of fuel gas and biomass molding fuel, and customers do not need to worry about local environmental protection.
Model&Heat | MW/10w kcal | 0.24/20 | 0.35/30 | 0.48/40 | 0.7/60 | 1.05/90 | 1.4/120 | 2.1/180 | ||
Power consumption | Induced draft fan | W | 1500 | 1500 | 2200 | 3000 | 5500 | 5500 | 5500*2 | |
Blower | W | 370 | 550 | 750 | 1100 | 2200 | 2200 | 2200*2 | ||
Feeding motor | W | 250 | 250 | 250 | 400 | 400 | 400 | 400*2 | ||
Igniter | W | 1000*2 | 1000*2 | 1000*2 | 1000*2 | 2000*2 | 2000*2 | 2000*4 | ||
Exhaust caliber | mm | 165 | 165 | 220 | 220 | 273 | 320 | 273*2 | ||
Inlet/Outlet caliber | DN | 50 | 50 | 65 | 80 | 100 | 100 | 150 | ||
Sewage outlet/Air outlet | DN | 50 | 50 | 65 | 80 | 80 | 80 | 100 | ||
Fuel consumption | Kg/h | 46 | 70 | 93 | 140 | 210 | 280 | 400 | ||
Length | mm | 2400 | 2500 | 2500 | 3100 | 3100 | 3100 | 3100 | ||
Width | mm | 720 | 800 | 900 | 1100 | 1260 | 1350 | 2370 | ||
Height | mm | 1660 | 1930 | 1930 | 2030 | 2550 | 2550 | 2550 | ||
Weight | kg | 1200 | 1560 | 2260 | 2500 | 3800 | 4000 | 7200 | ||
Company strength
Exhibition real shot
Packing & Shipping

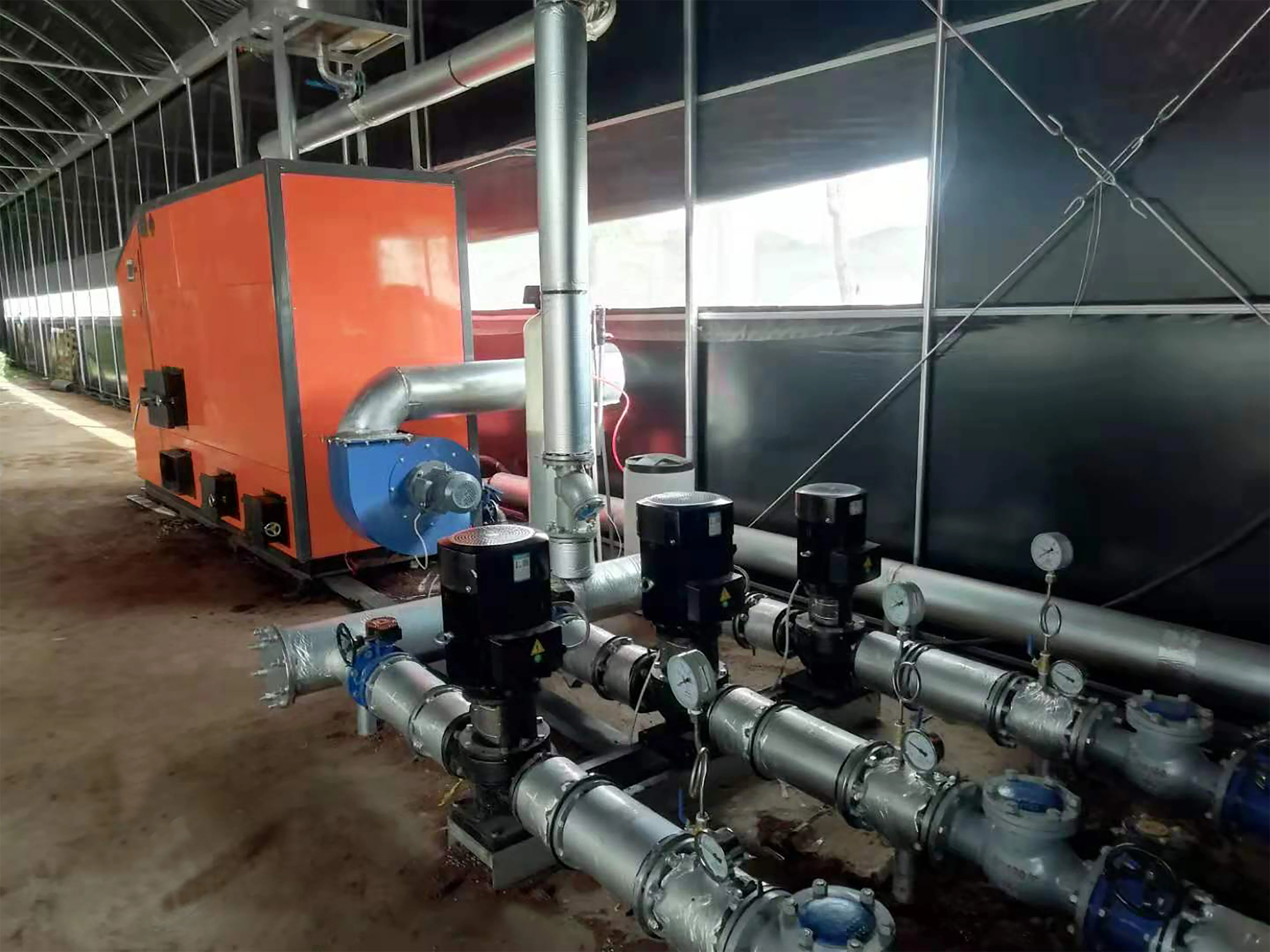

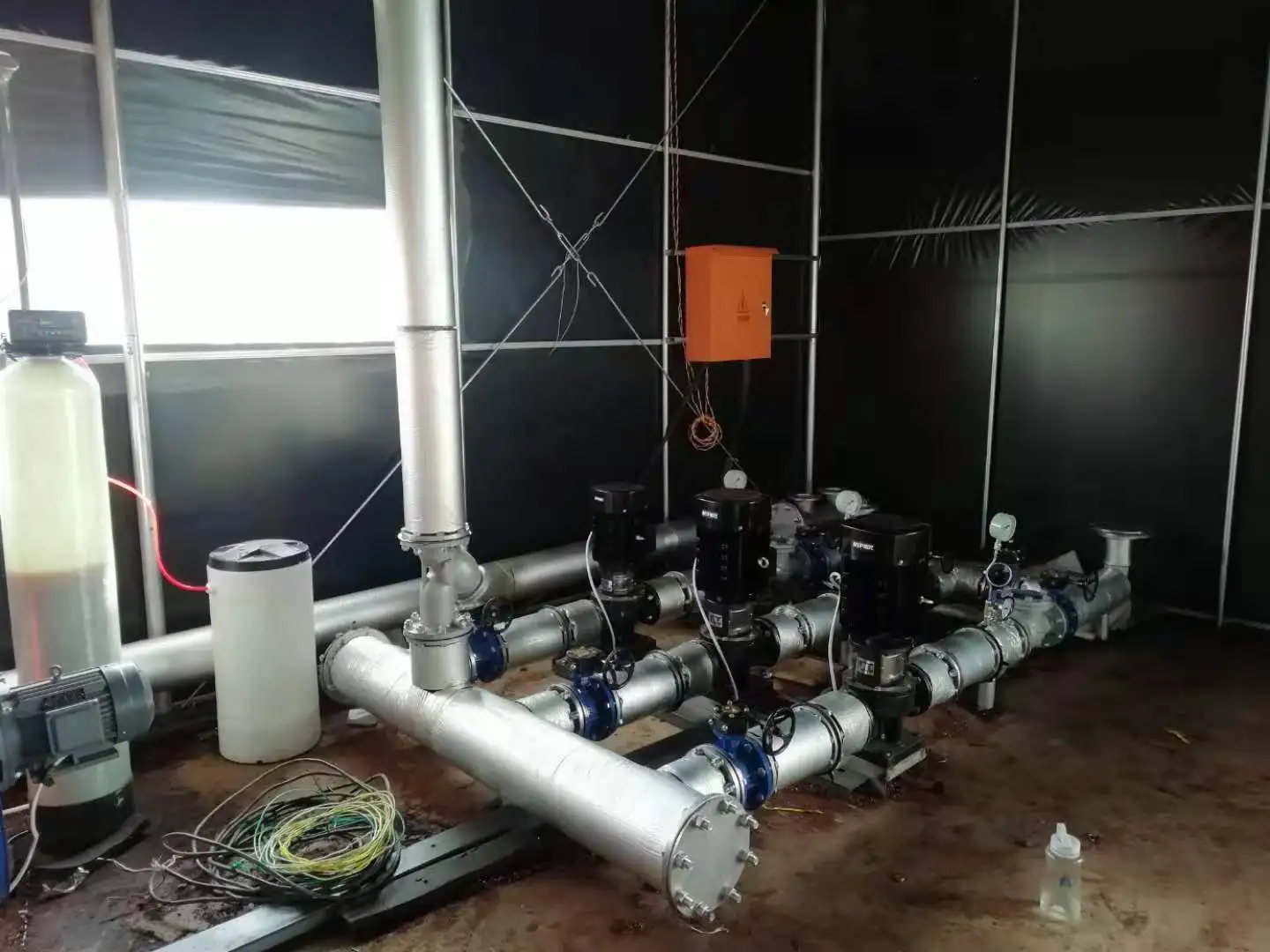

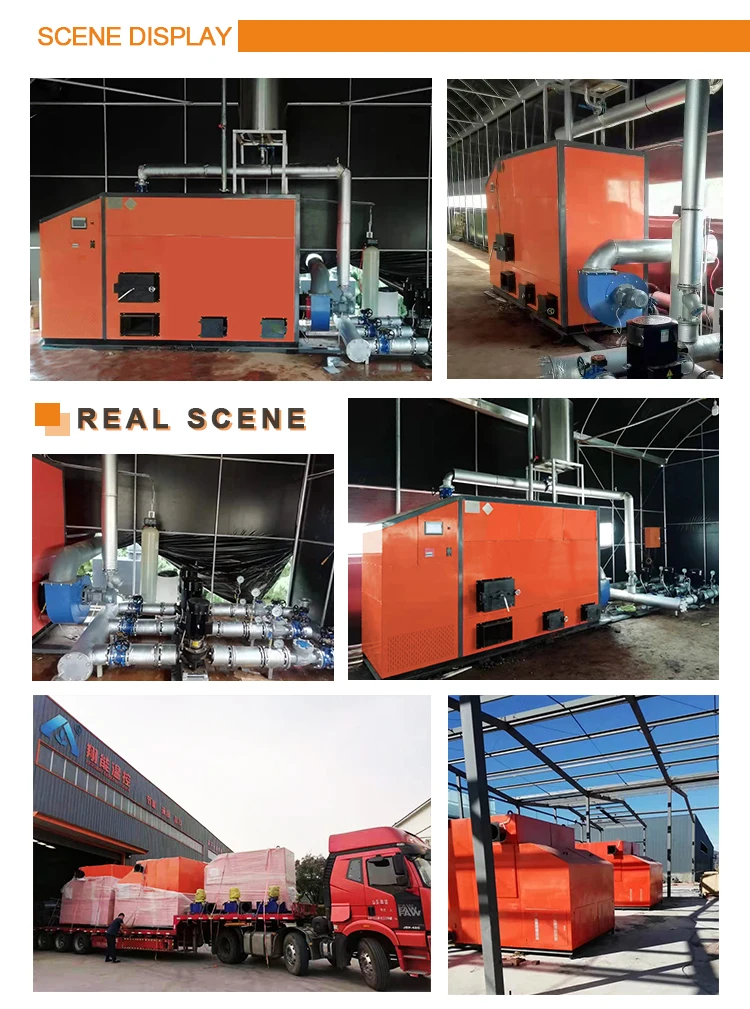

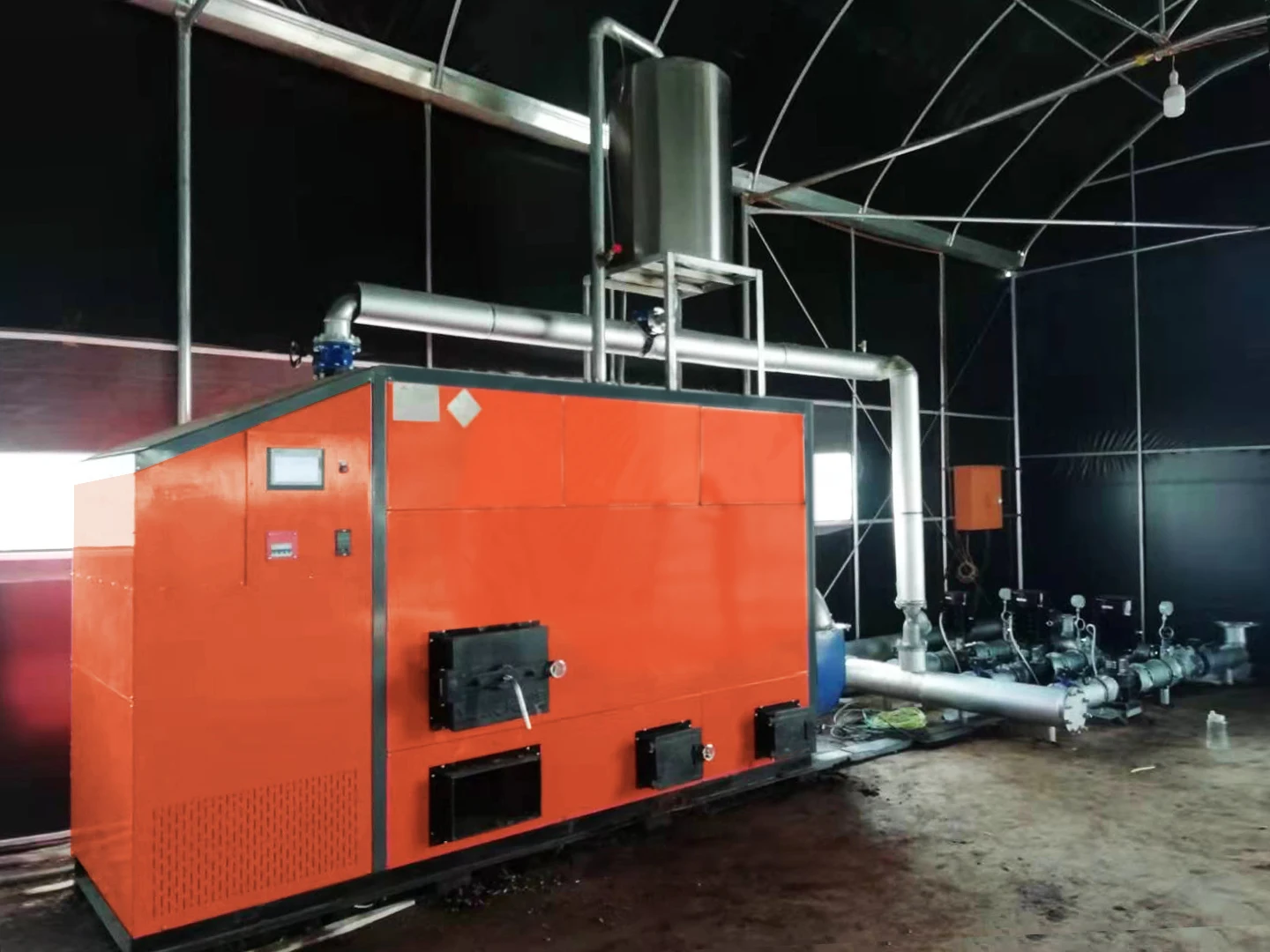

Case project
Main advantage
1. Fully automatic: adopt 7-inch LCD color screen intelligent control, automatic ignition, material shortage alarm.
2. Energy-saving: Multiple return design, equipped with S-shaped special internal spoiler tube, higher unit efficiency.
3. High thermal efficiency: the combustion chamber adopts horizontal grate-free technology, 360° oxygen supply and 360° cyclone combustion.

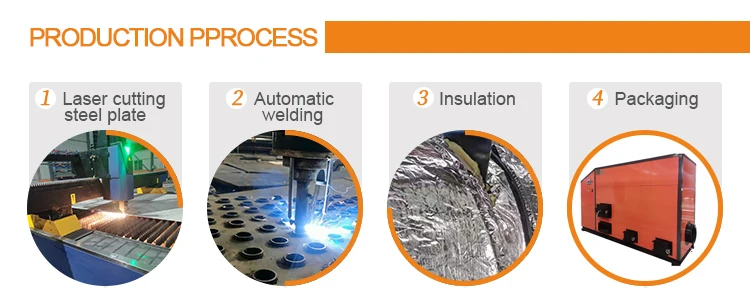

4. Best quality: national standard steel, automatic welding, quality is more guaranteed .
5. Environment friendly: Its applicable fuel is 8-10 mm biomass fuel pellets.
Related Products
FAQ
Q: What is the Warranty for the boilers?
A: Our biomass hot air boiler warranty is one year, During the warranty period, any parts damaged, you can get a new
A: Our biomass hot air boiler warranty is one year, During the warranty period, any parts damaged, you can get a new
Q.What can you get from us before quotation?
A:After confirming all the details about your requirement, we will provide you with several sets of related project pictures we have done before. Once you are satisfied with our strength and our products, lets continue.
A:After confirming all the details about your requirement, we will provide you with several sets of related project pictures we have done before. Once you are satisfied with our strength and our products, lets continue.
Q.What are the available fuel for the biomass fired boiler?
A: 8-10 mm biomass fuel pellets.
A: 8-10 mm biomass fuel pellets.
