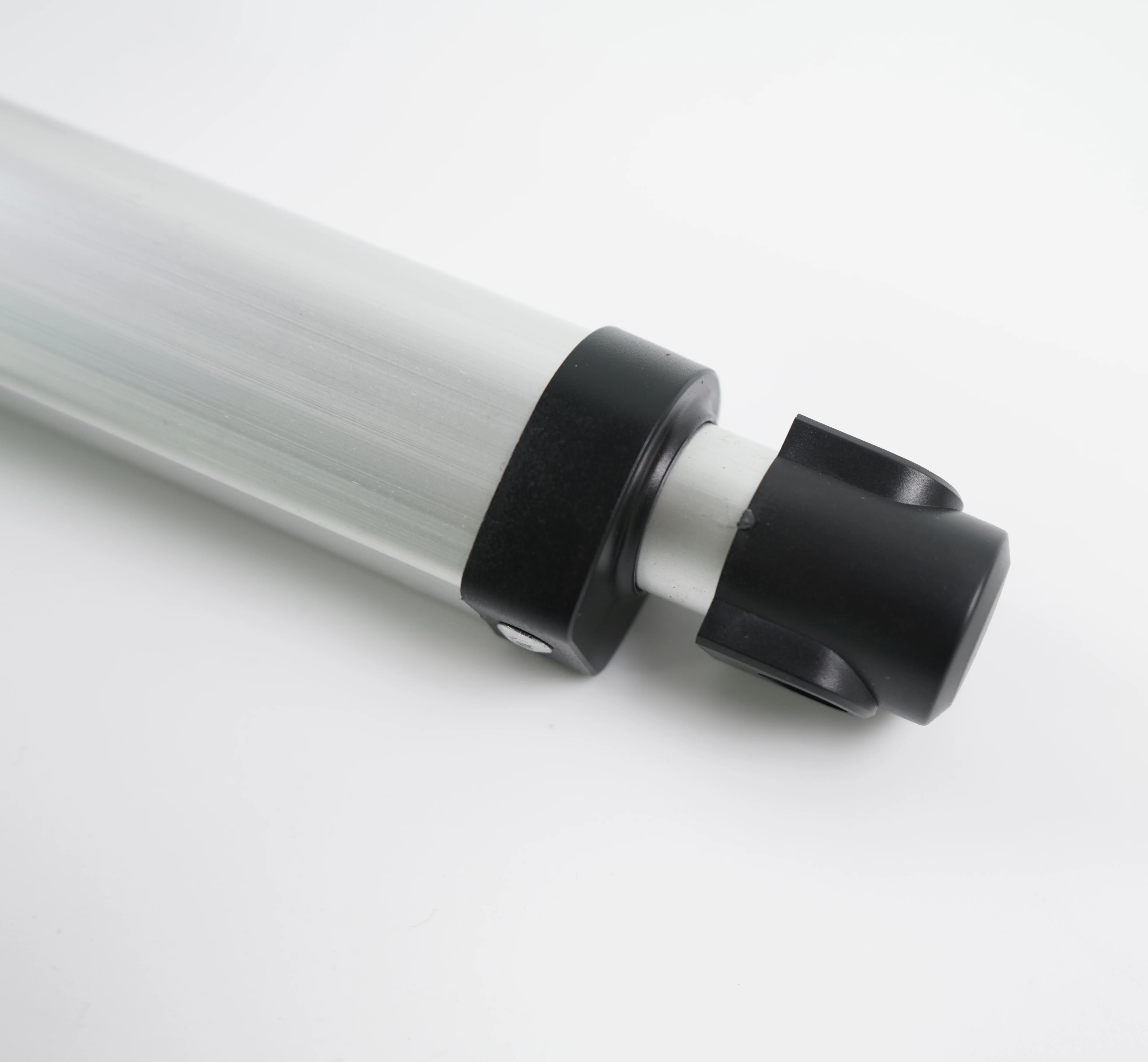

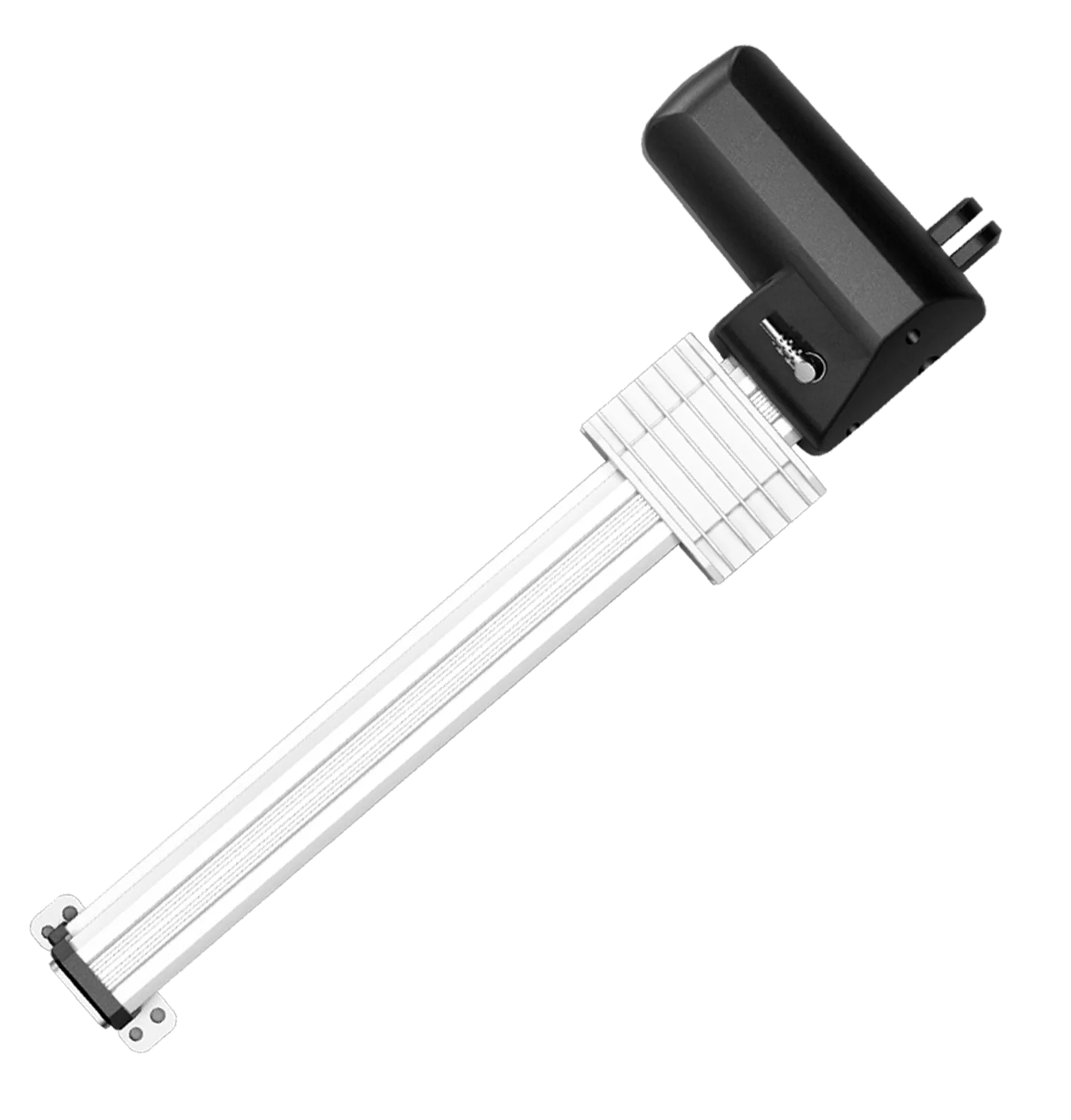

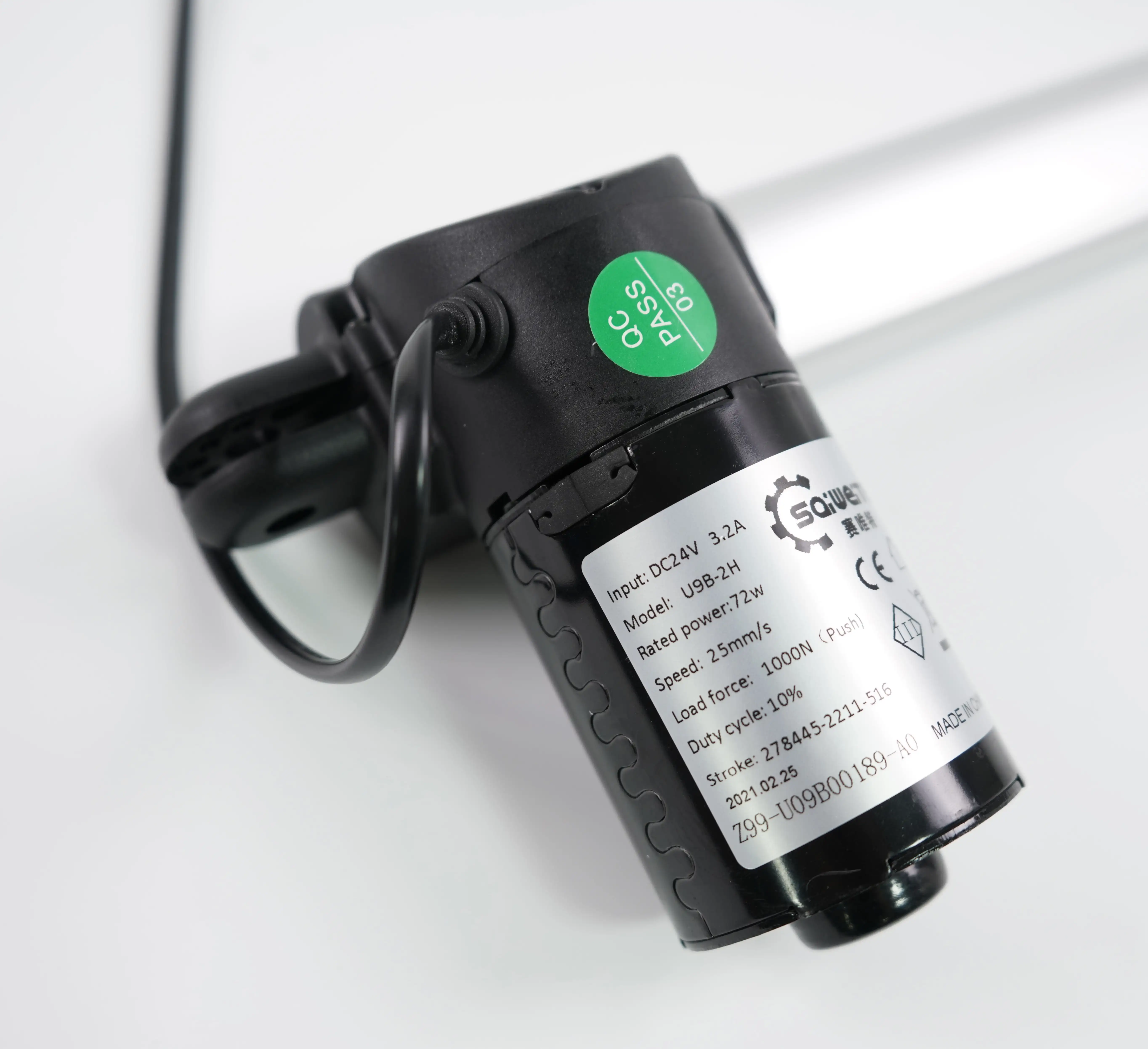

Linear Actuator 4000N 6000N 24V Massage Chair Mechanism Air Bags Massage Chair Massage Chair Parts
- Category: Chair Mechanisms >>>
- Supplier: Dongguan TOMUU Actuator Technology Co. Ltd.
Share on (1600434987099):
Product Overview
Description
Product Paramenters
Voltage | 24 VDC | Limit Switch | Built-in |
Stroke | 20-400mm | Duty Cycle | 10% |
Load Capacity | 6,000N | Protection Class | IP55 |
No-load speed | 35mm/s | Material | Aluminium Alloy |
Full-load speed | 15mm/s | Ambient Temp | -20+60℃ |
Noise | ≤52db | Installation Distance | 155mm+stroke |
Voltage | 24 VDC | Stroke | 20-400mm |
Load Capacity | 4,000N | No-load speed | 21mm/s |
Min. Installation Dimension | 135mm+Stroke | Full-load speed | 8.5mm/s |
Product Superiority

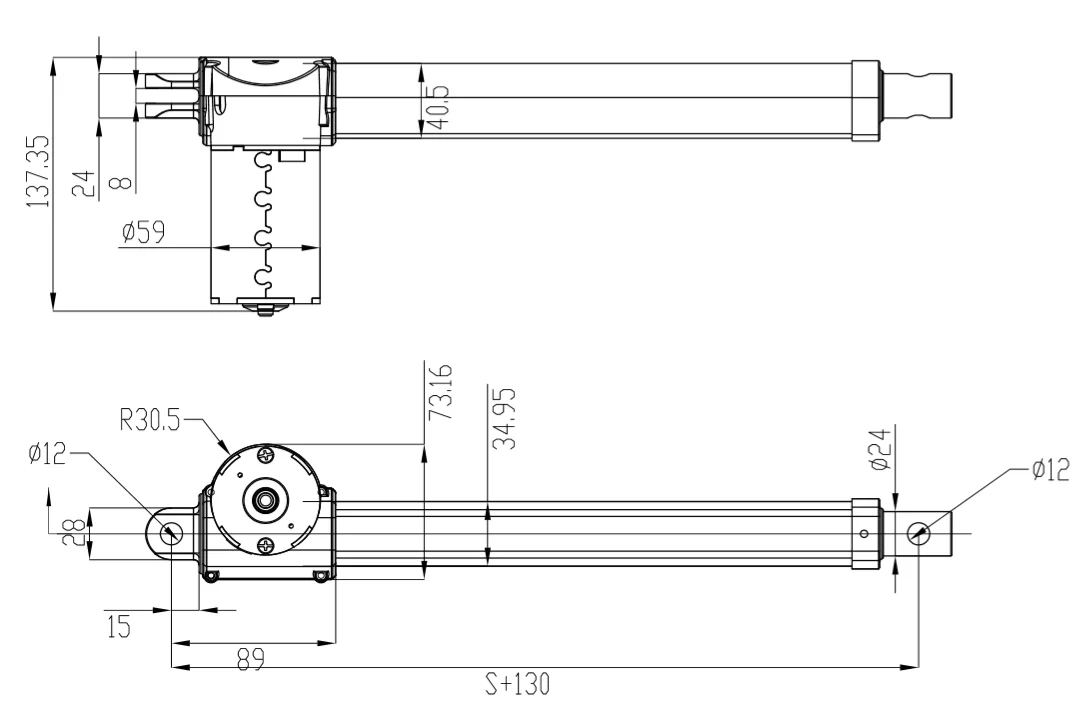

Installation Diagram
Company Profile
TOMUU is a solution provider of linear actuators, a high-tech manufacturing enterprise. Our electric linear actuators are widely used in Solar Tracking, Furniture (Electric Sofa/ Bed, Massage Chair, Electric Recliner Chair), Medical Care Bed, Industrial Automation, Livestock Farming Automation Equipment, etc.
To get quick response and cost advantage, we built a complete manufacturing chain-- 70% parts built-in-house. Our management systems and product solutions are certified in accordance with ISO 9001:2015, ISO14001, OHSAS18000 and the safety test report. (CE, UL, KCC, etc.)
To get quick response and cost advantage, we built a complete manufacturing chain-- 70% parts built-in-house. Our management systems and product solutions are certified in accordance with ISO 9001:2015, ISO14001, OHSAS18000 and the safety test report. (CE, UL, KCC, etc.)
Certifications
Testing Lab
