Misuxin Original Raspberry Pi Zero 2W 2 W, 1GHz Quad Core CPU, 512MB RAM, WiFi, BLE4.2 ,RP3A0

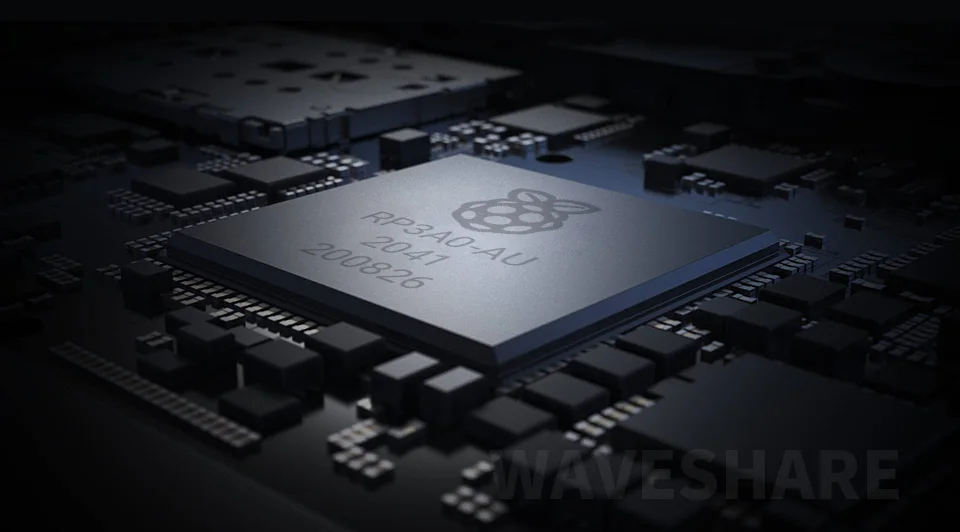

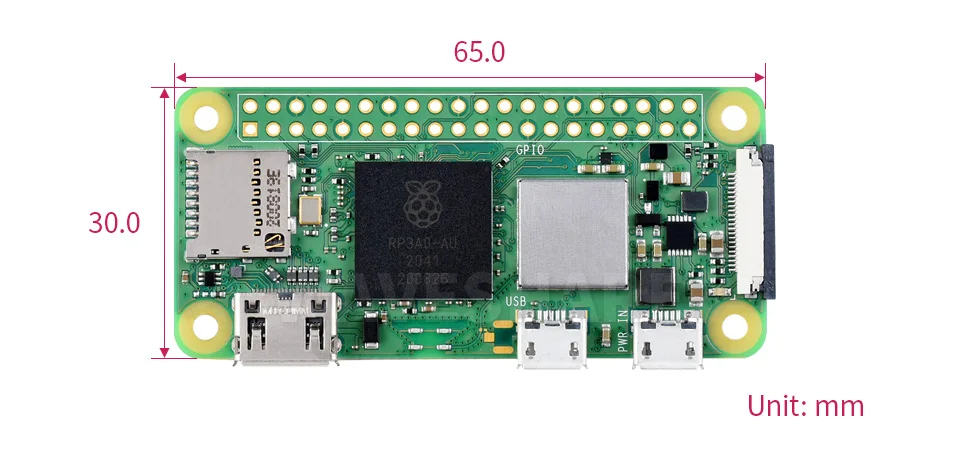

At the heart of Raspberry Pi Zero 2 W is RP3A0, a custom-built system-in-package designed by Raspberry Pi in the UK. With a quad-core 64-bit ARM Cortex-A53 processor clocked at 1GHz and 512MB of SDRAM, Zero 2 is up to five times as fast as the original Raspberry Pi Zero. As for heat dissipation concern, Zero 2 W uses thick internal copper layers to conduct heat away from the processor, sustaining higher performance without higher temperature.

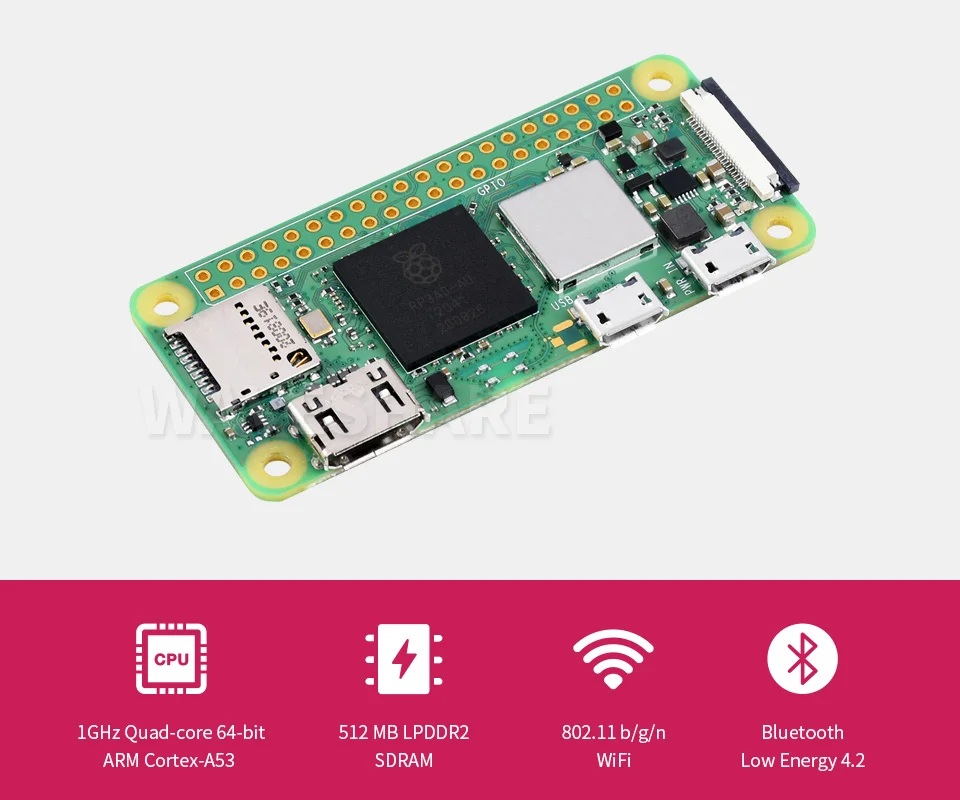

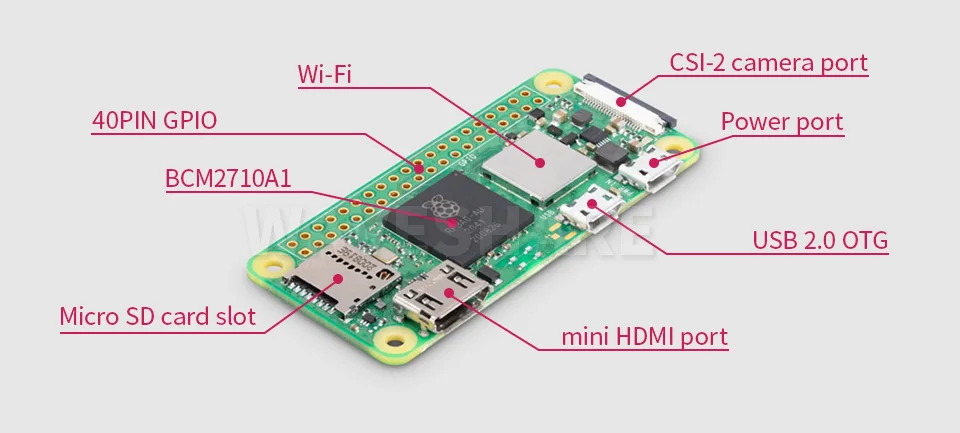

Key features include:

• Broadcom BCM2710A1, 1GHz quad-core 64-bit Arm Cortex-A53 CPU


• 512MB LPDDR2 SDRAM

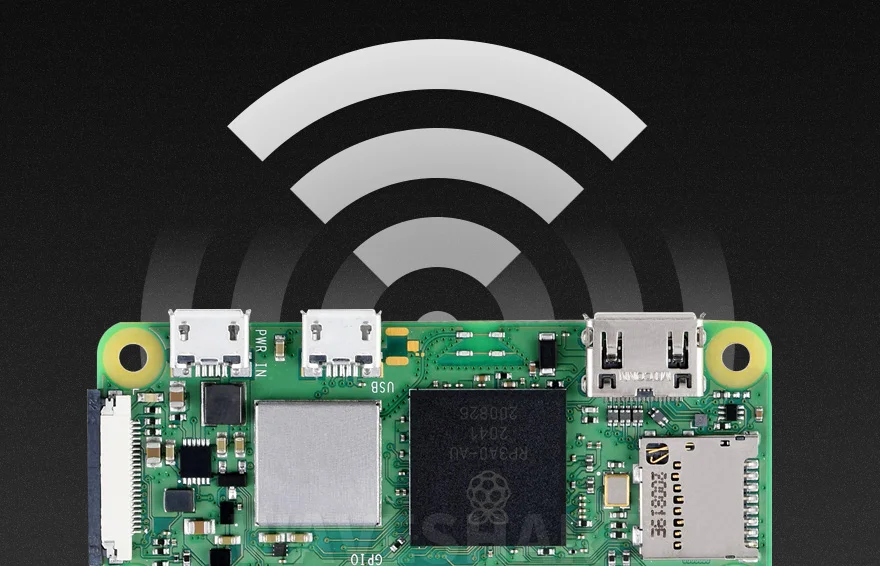

• 2.4GHz 802.11 b/g/n wireless LAN


• BLE 4.2, BLE Low Energy (BLE), onboard antenna


• Mini HDMI port and micro USB On-The-Go (OTG) port


• microSD card slot


• CSI-2 camera connector


• HAT-compatible 40-pin header footprint (unpopulated)


• Micro USB power


• Composite video and reset pins via solder test points


• H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30)


• OpenGL ES 1.1, 2.0 graphics
