2 or 3 Layers Customized Sand High Frequency Vibrating Screen
- Category: >>>
- Supplier: Ganzhou Gelin Mining Machinery Co. Ltd.
Share on (1600435019720):
Product Overview
Description
Products Description

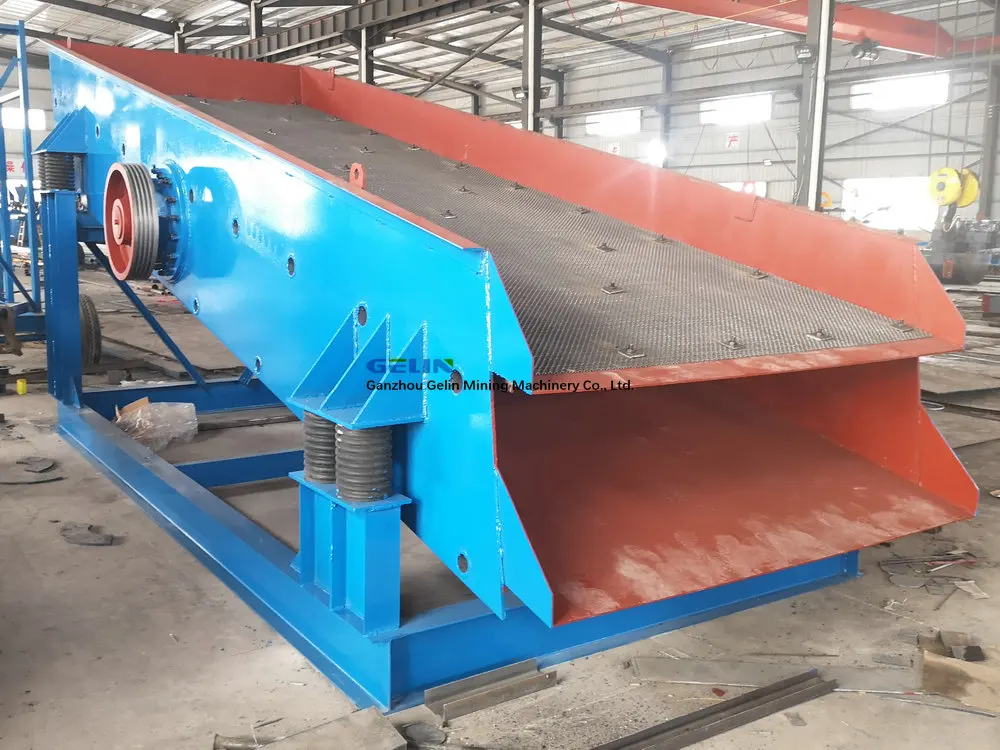

2 or 3 Layers Customized Sand High Frequency Vibrating Screen
Gelin's vibrating screens are used for screening of granular bulk material and are robust in design and build. The screen frame consists of both side panels and cross beams being bolted and glued to the panels carrying the screen deck substructure. The excitation is made with in-house manufactured unbalanced shaft or with a single unbalanced motor. The vibrating screens can be equipped with all different kinds of screen mats available on the market and it 's best suitable for long-living and economical operation.
(Note: our company can provide vibration screens of different specification and various vibration types according to the requirements of the consumers.)
Features
1.High screening efficiency and high precision;
2.Adjustable screen surface angle;
3.Fully enclosed construction and auto discharging;
4.Rolled steel plate welded screen body,whole body stiffness is suitable, solid and reliable;
Working Principle
The motor makes the exciter rotaring speedily through the V-blet.The powerful centrifugal force produced by rotating eccentric block makes the sieve box do a circular motion of some amplitude.the materials on the screen surface will be continuously tossed forward by the impulse transmitted through sieve box on the slope surface.Thus the classification is achieved during the process of thrown-up as the smaller size materials are falling through mesh.

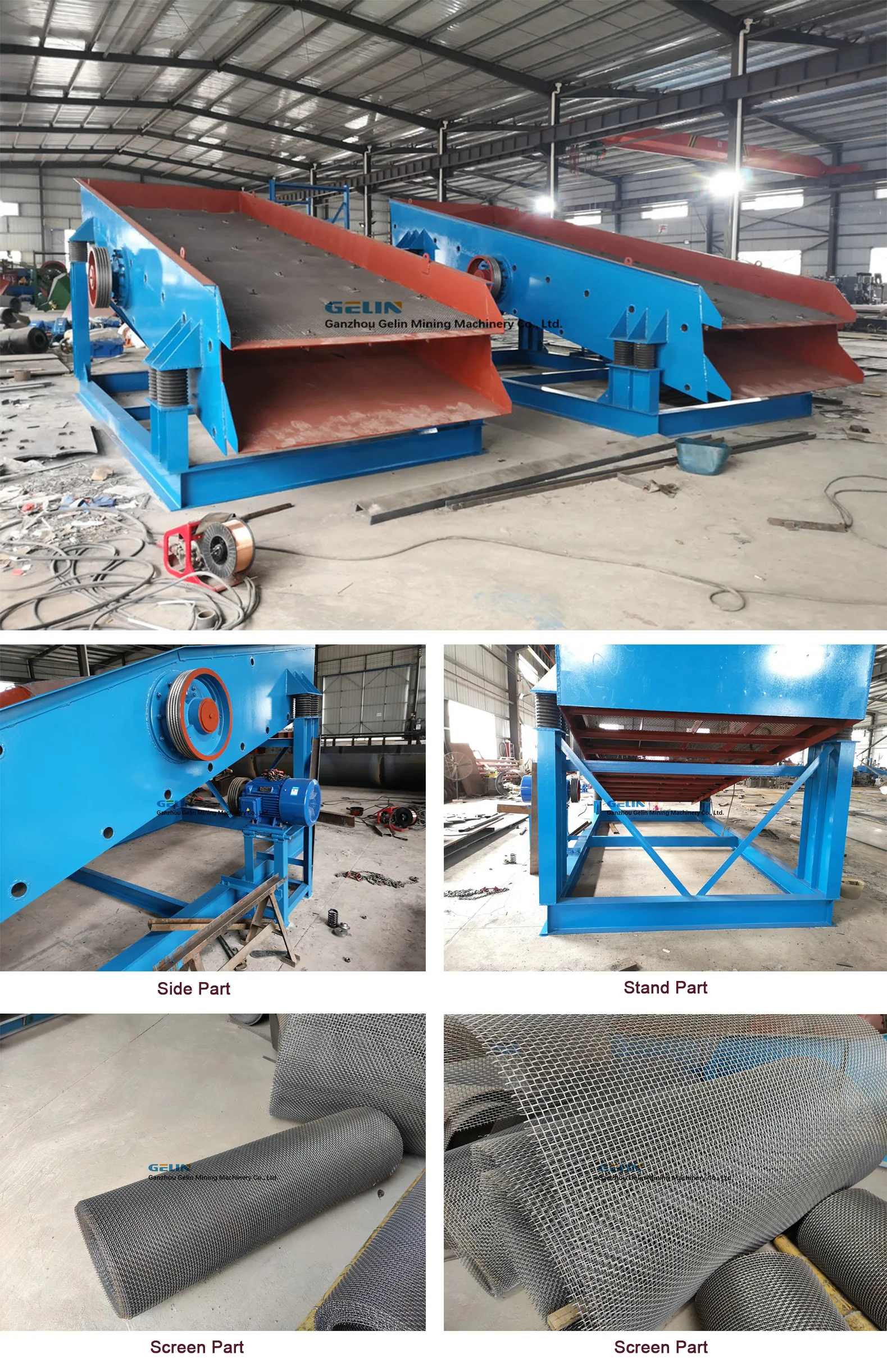

The machine is mainly composed of a sieve box, a screen mesh, a vibrator, a vibration-damping spring device, and a chassis. |
1.Sieve Screen |
2.Front Support |
3.Pressure Plate |
4.Side Board |
5.Screen Frame |
6.Sieve |
7.Support Leg |
8.Spring |
9.Motor |
10.Eccentric Wheel |
11.Foundation |
Product Parameter
Model | Layer | Max. Feeding size (mm) | Sieve Size (mm) | Capacity(t/h) | Vibration Frequency(r/min) | Angel(°) | Power(kw) | Boundary Size L*W*H(mm) | Weight(kg) |
SZZ600×1200 | 1 | 40 | 2-25 | 10-20 | 1000 | 15-25 | 2.2 | 1370x890×330 | 340 |
SZZ2600×1200 | 2 | 40 | 2-25 | 10-20 | 1000 | 15-25 | 2.2 | 1370x890×430 | 360 |
SZZ900×1800 | 1 | 40 | 2-25 | 20-25 | 1000 | 15-25 | 2.2 | 2150×1358x575 | 550 |
SZZ2900×1800 | 2 | 40 | 2-25 | 20-30 | 1000 | 15-25 | 3 | 2489×1358×770 | 620 |
SZZ1250×2500 | 1 | 100 | 2-40 | 50-150 | 850 | 15-20 | 5.5 | 2762×1714×680 | 1100 |
SZZ21250×2500 | 2 | 150 | 2-40 | 50-150 | 850 | 15-20 | 5.5 | 2702×1714×740 | 1300 |
SZZ1500×3000 | 1 | 100 | 2-40 | 70-220 | 800 | 15-25 | 7.5 | 3320×1449×787 | 2100 |
Application&Successful Case
Application range:Mainly used in sand and gravel yard, mining, coal mining, concrete mixing plant, dry mortar, power plant desulfurization, quartz sand, etc.
Applicable material:Quartz stone, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, diabase etc..
Applicable material:Quartz stone, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, diabase etc..
Packing & Delivery
Packing
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1. Nude packing.
2. Bundle packing.
3. Grass rope packing.
4. Water proof packing.
5. Wooden pallets packing.
6.Wooden box or carton box packing.
Delivery

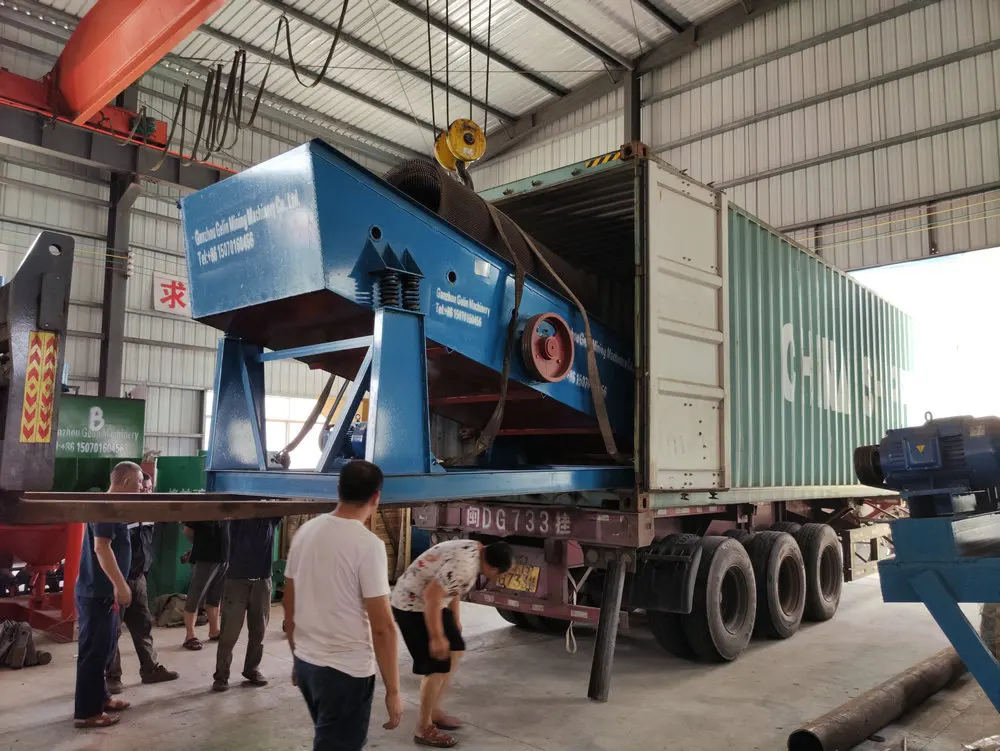

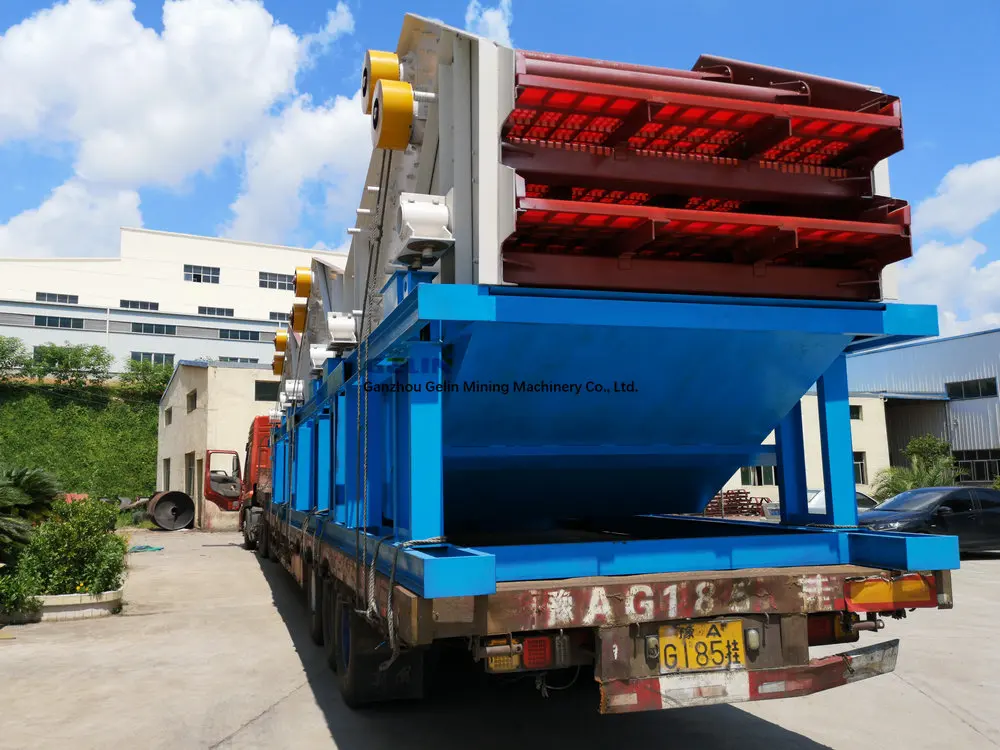

Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.40HQ container: used for goods without overlength, overheight and overweight;
2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1. Nude packing.
2. Bundle packing.
3. Grass rope packing.
4. Water proof packing.
5. Wooden pallets packing.
6.Wooden box or carton box packing.
Delivery
Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.40HQ container: used for goods without overlength, overheight and overweight;
2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.
About Company
Ganzhou Gelin Mining Machinery Co., Ltd is an over 30 years professional manufacturer and exporter of mining machinery for crushing, screening, grinding, flotation, separation etc. in China. Gelin have a complete service system which can provide customer full service in mining field and after sales service.By now, Gelin’s equipments and services are exported to over 60 countries,include America, Russia, India, Africa, Brazil, Chile,South Africa,Zambia etc.
Sincerely welcome customers to visit our factory.
Our Services
One Stop solution for beneficiation plant service:
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
4.Manufacturing the necessary equipments and arrange the shipment.
5.Complete services for Installation and commissioning and technical training(operating training,common problem solving training).
After-sale Service
Regularly visit customers to provide after- sale technical supports and to solve problems of beneficiation plant. For equipments supplied,we could provide one-year warranty and provide spare parts with preferential price in the long term and be responsible for any problems with the them.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory at Shicheng county with 110 workers,6 workshops covered 17,000㎡ and office covered 2,500㎡. Welcome to visit our factory at anytime.\t
A: We are a factory at Shicheng county with 110 workers,6 workshops covered 17,000㎡ and office covered 2,500㎡. Welcome to visit our factory at anytime.\t
Q: What is your payment terms?
A: By TT(Telegraphic Transfer), 100% or 40% Deposit before production and 60% balance payment will be paid off after sending product pictures and before loading from factory.
A: By TT(Telegraphic Transfer), 100% or 40% Deposit before production and 60% balance payment will be paid off after sending product pictures and before loading from factory.
Q: How long is the guarantee period of your products?
A: The guarantee period is 1-2 years, pls ask staff for more details. And we will supply lifelong technical support service and the spare parts at lowest cost.
Q: Is it possible to produce customized products ?
A: Yes, most of our products are produced as required.
A: Yes, most of our products are produced as required.
Q: Is it possible to provide sample for your factory to do ore-dressing experiment?
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
