G121XTN01.0 Brand New A grade 12.1inch lcd panel 1024*768 lcd controller board

Model Name

Screen Size

12.1

Pixel Number

1024×768 , XGA

Active Area(mm)

245.76×184.32 mm (H×V)

Outline(mm)

279×209×9 mm (H×V×D)

Bezel Area(mm)

245.76×184.32 mm

Treatment

Hard coating

Luminance

500 cd/m² (Typ.)

Contrast Ratio

700 : 1 (Typ.) (TM)

Viewing Angle

80/80/80/80(CR≥10)

Left/Right/UP/Down

Response

25 (Typ.)(Tr+Td) ms

Work Mode

MVA, Normally black, Transmissive

Color Depth

262K , 72% NTSC

Backlight

50K hours,without LED Driver

Net Weight

495g (Typ.)

Touchscreen

without

Signal Type/interface Type

LVDS (1 ch, 6/8-bit) , 40 pins

Voltage Supply

3.3V (Typ./Max.)

Max. Ratings

Storage Temp.: -30 ~85 °C

Operating Temp.: -30 ~85 °C

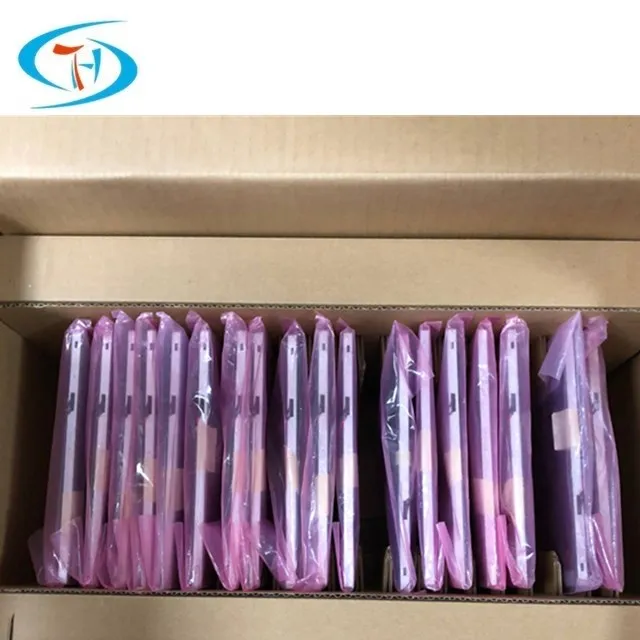

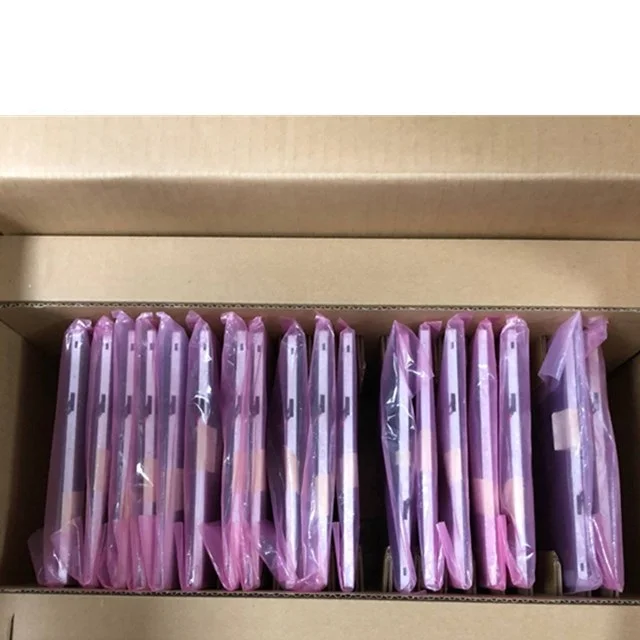

Package

20 pcs/ carton
