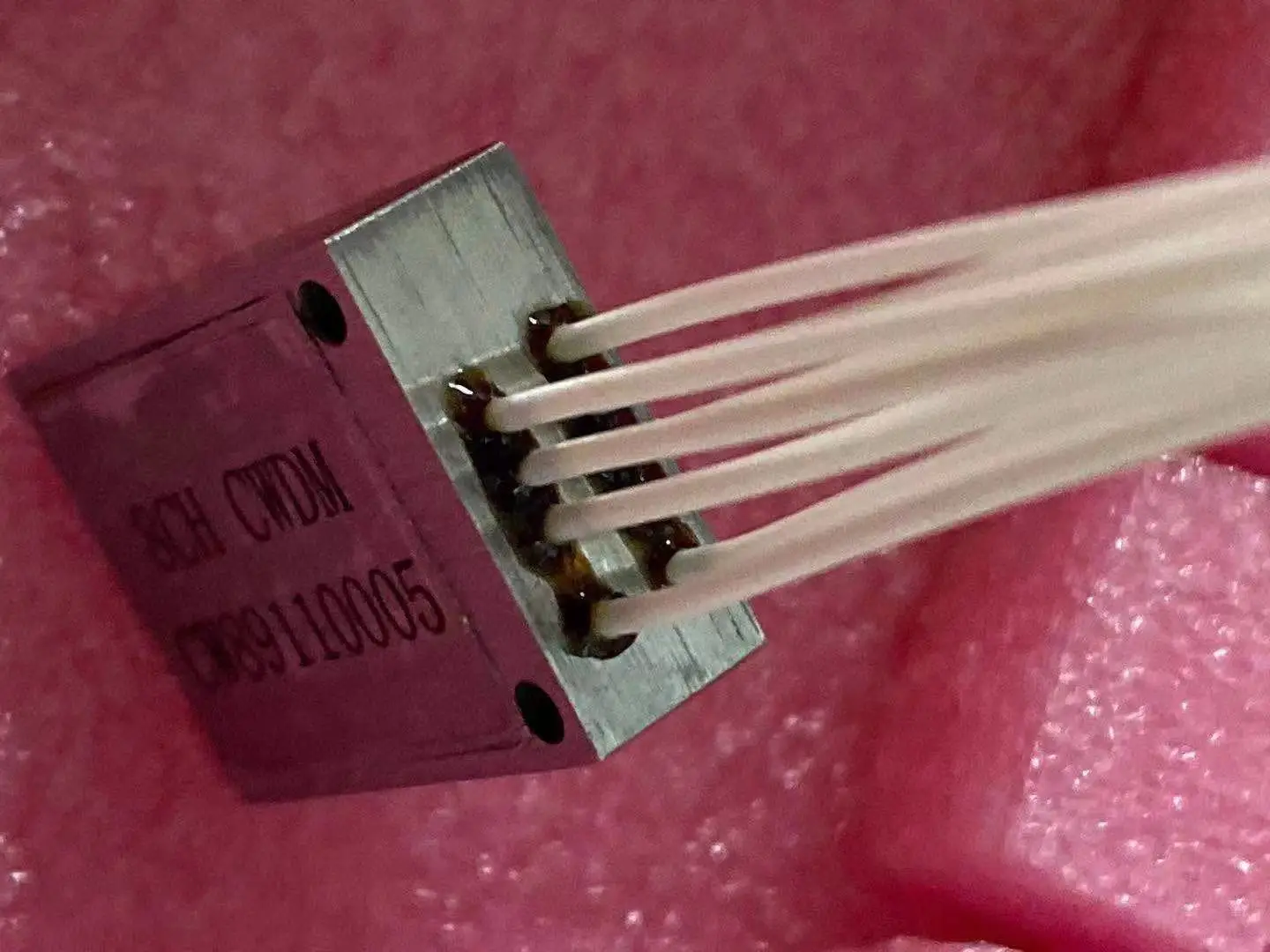

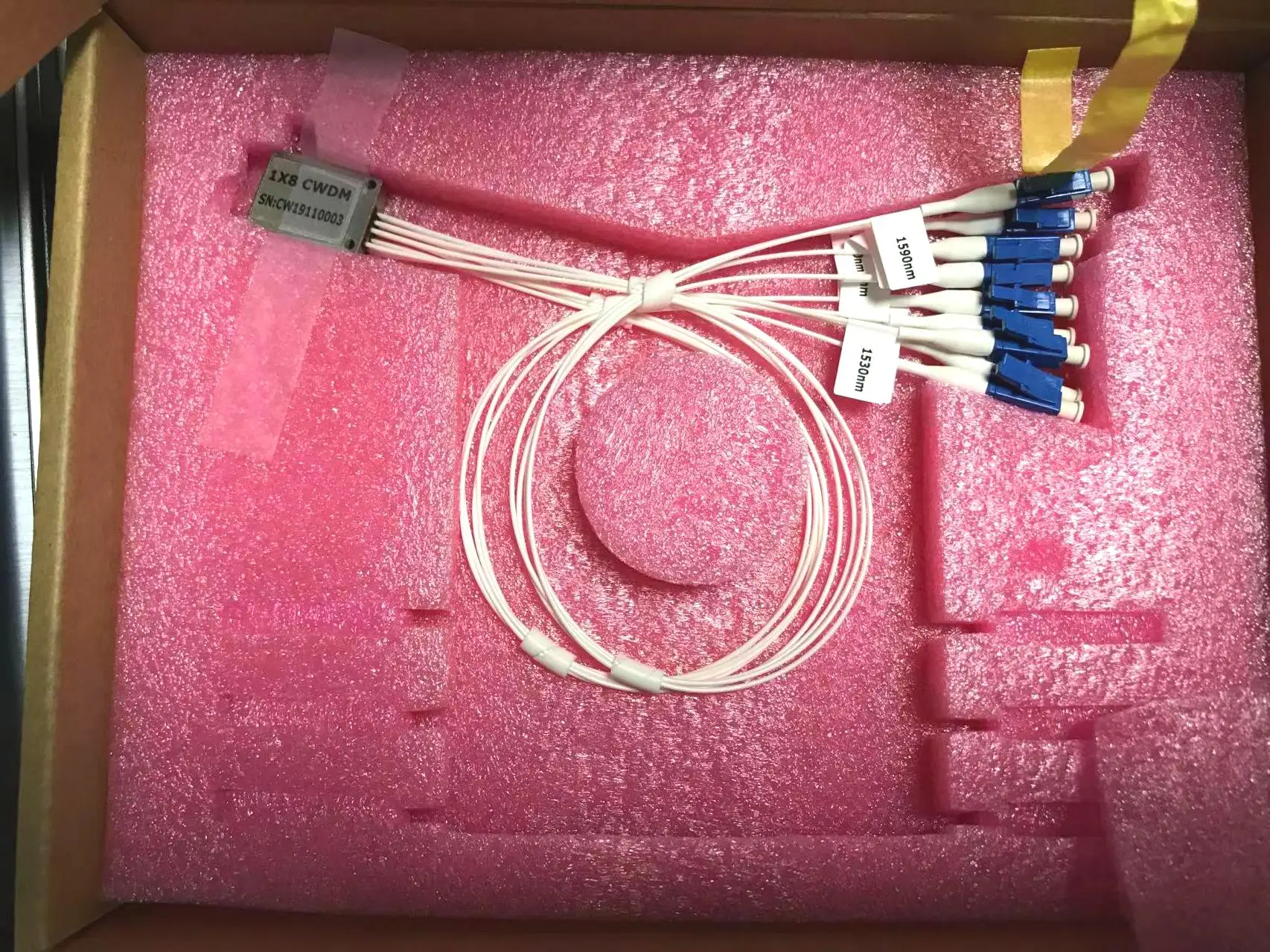

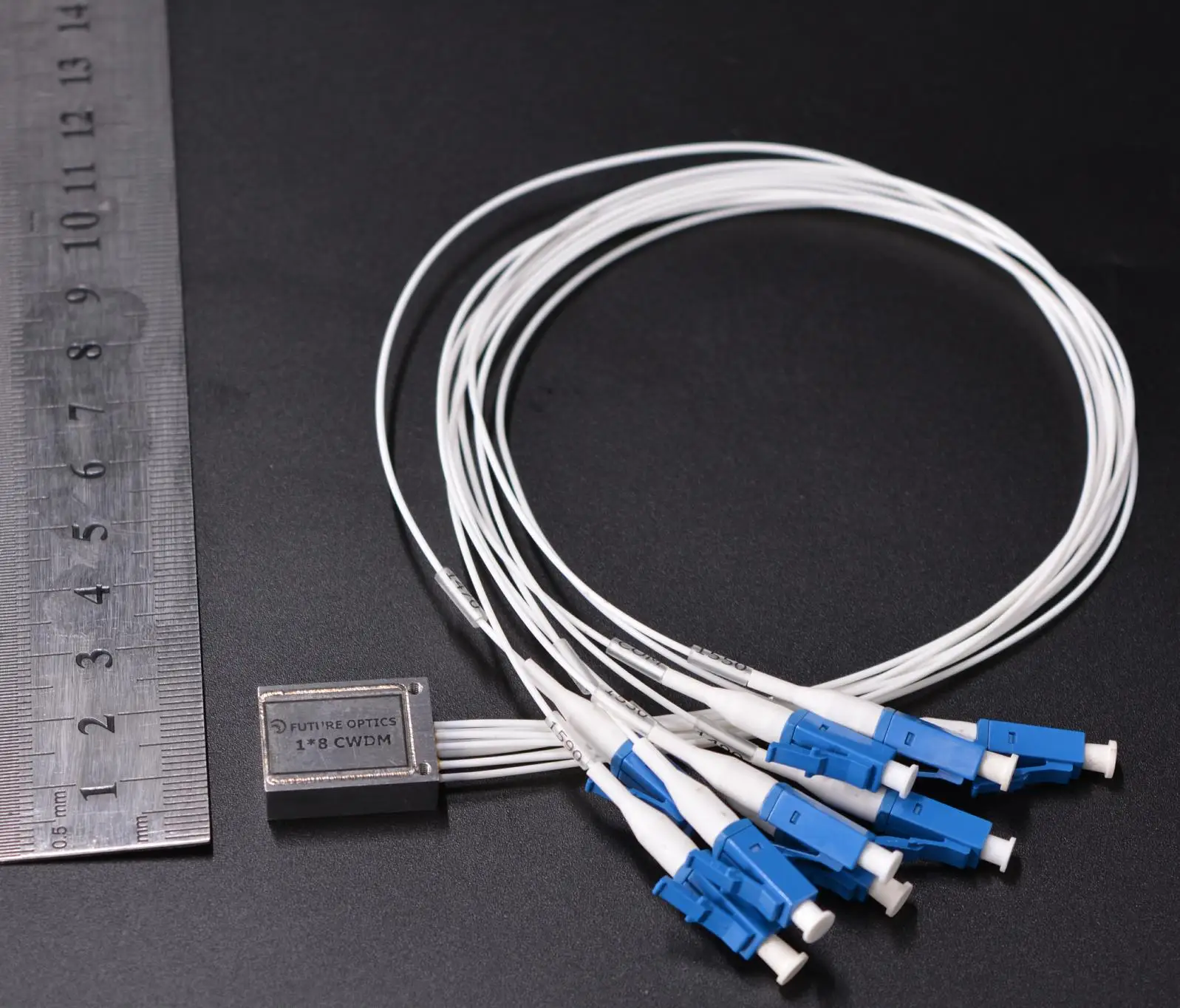

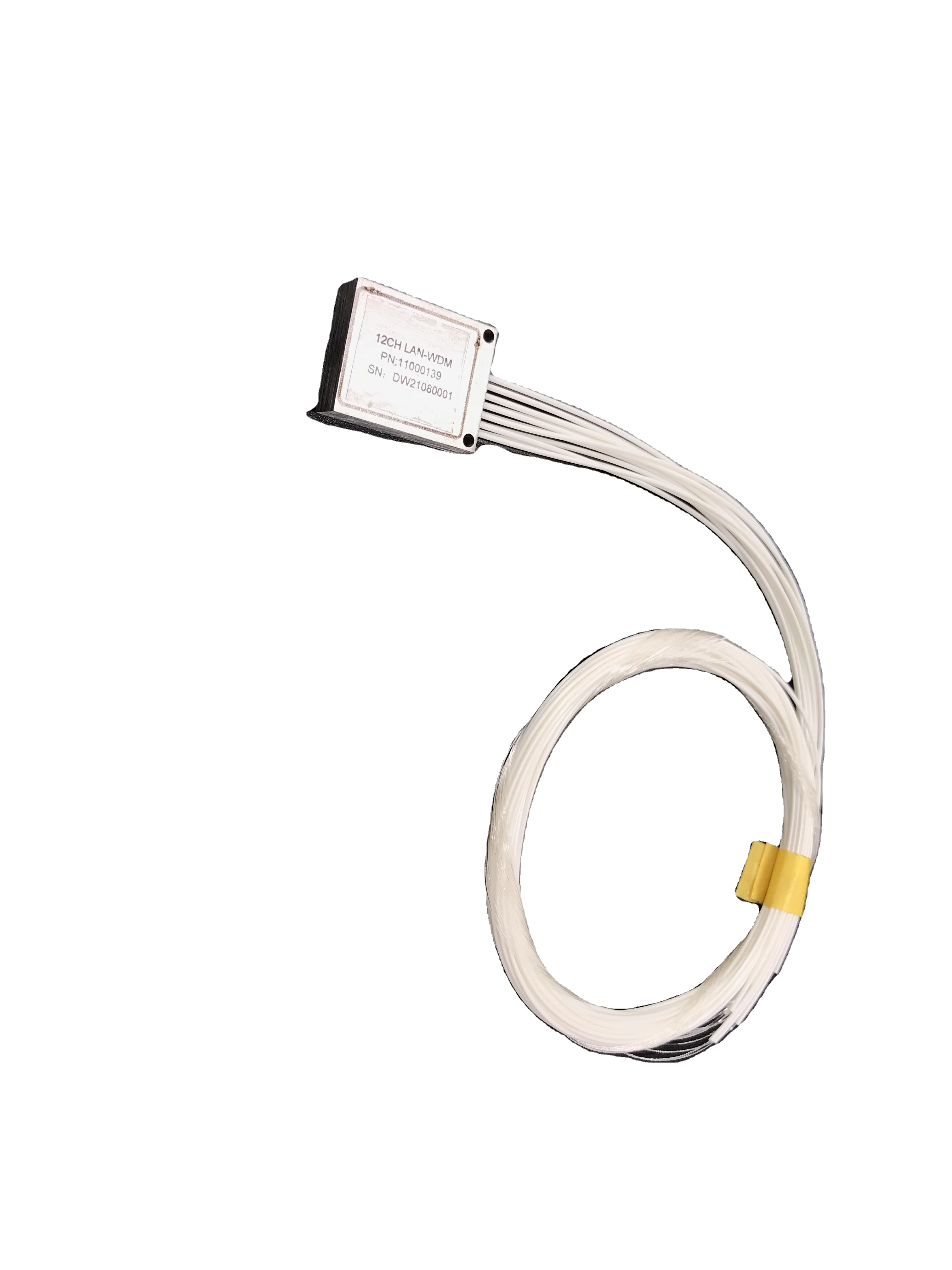

8 channels 1270 1610nm 1.6 dB IL ultra compact CWDM mux demux device

Overview

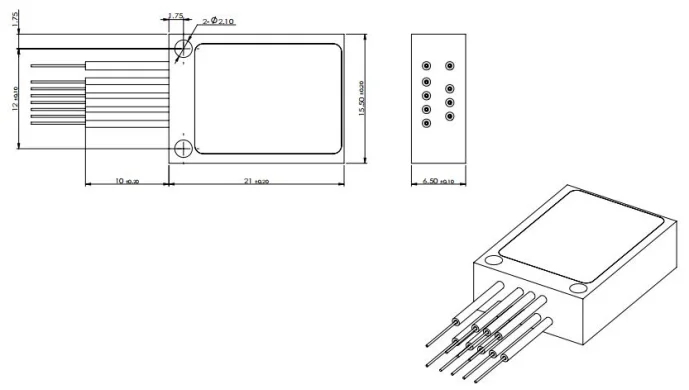

Future Optics’ 8 CH UC-CWDM is one model of new generation CWDM mux demux serie devices with 21x15.5x6.5mm footprint and 1.6dB insert loss.

Based on TFF and Free-space technology, taking patent advantage of optical path Zig-Zag design of multi-layers and all glass structure, Future Optics’ UC-CWDM devices are of ultra-small size, extreme low insert loss, high reliability and excellent performance in comparing with traditional Three-port cascaded CWDM modules, they’re truly idea WDM gadgets which totally meet demand of new generation communication trend: smaller footprint, higher performance and energy efficient.

Free-space optical path Zig-Zag design VS Three port fiber routing:

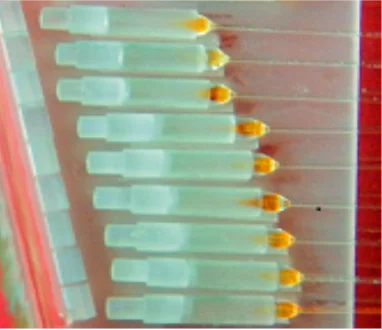

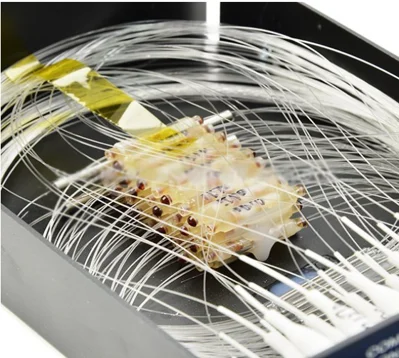

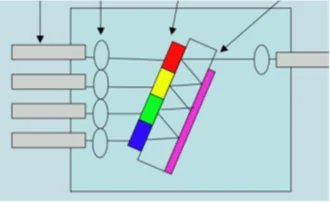

  Traditional Three-port WDM:  Fiber routing inside                              Future Optics Free-space WDM: Optical path management inside

Specifications:

 Features

Extreme small footprint and fiber in and out on the same side, easily to manage.

Extreme low insertion loss, to improve quality and to extend transmission distance.

Excellent thermal stability to work at wide operating temperature range.

Each channel can be adjusted individually, to get high wavelength accuracy.

Extremely compressed optical path, avoiding dispersion problems caused by optical path compensation between channels, excellent channel-to-channel uniformity.

Stainless steel house, laser welding package,  metal tube to protect fiber, suitable for harsh environment.

Application

Future Optics' UC-CWDM Mux Demux is usually used for extending maximum distance of CWDM links, and flexible mix of 1G/10G/25G/40G/100G/200G Ethernet, SAN, OTN, SDH/SONET and native video services. Because of  its small footprint,  UC -CWDM is also used to be integrated inside CWDM transceiver to save space for laser and PD devices.

Technologies:

• Optical Path Zig-Zag inside:  Fiber in the same side and same direction, easy for management


• Two Layer structure, extremely compact. Typical Footprint: 1x4:6x8x20mm, 1x18:6.5x21x24mm


• TFF and Free Space. low IL:1x4, IL<1.0 dB, 1x18 IL<2.0 dB (typical)


• All Glass Structure, Stable and Reliable (-40 to 85C)


• Epoxy Free in Optical Path


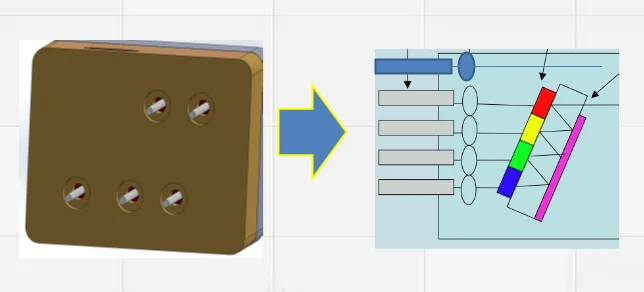

• Kovar Housing

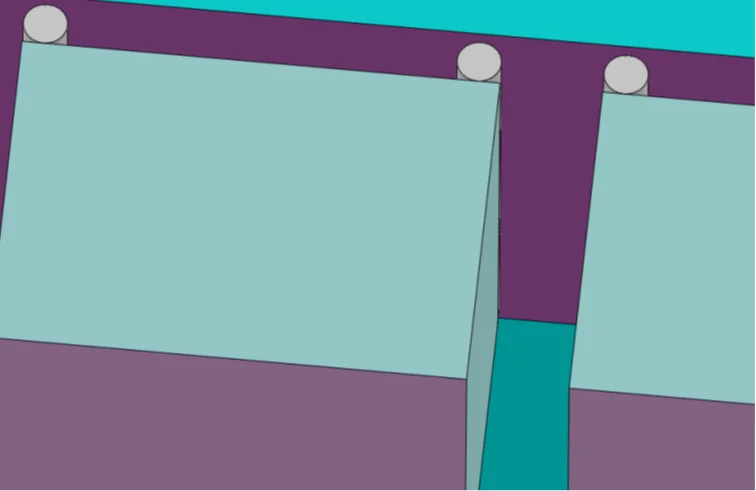

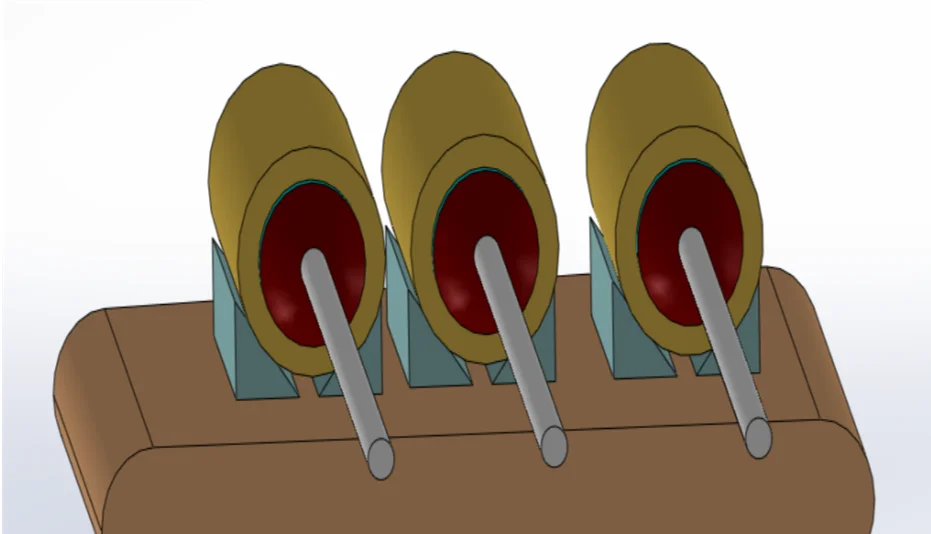

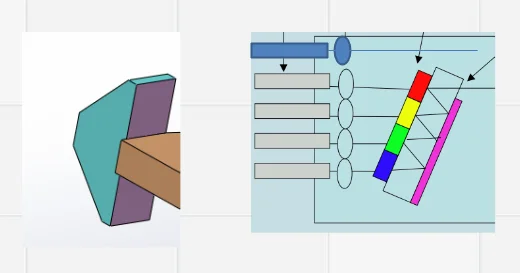

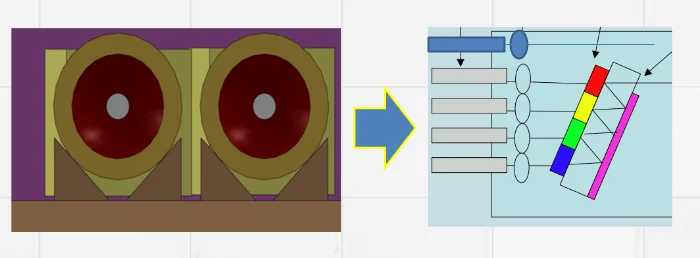

 The same glass material: collimators, triangle blocks and base              Glass frame as spacer to bond filters without epoxy in optical path



                                                 Triangle glass block to assure contact in any cases                       Kovar Housing ----the same CTE as glass BK7

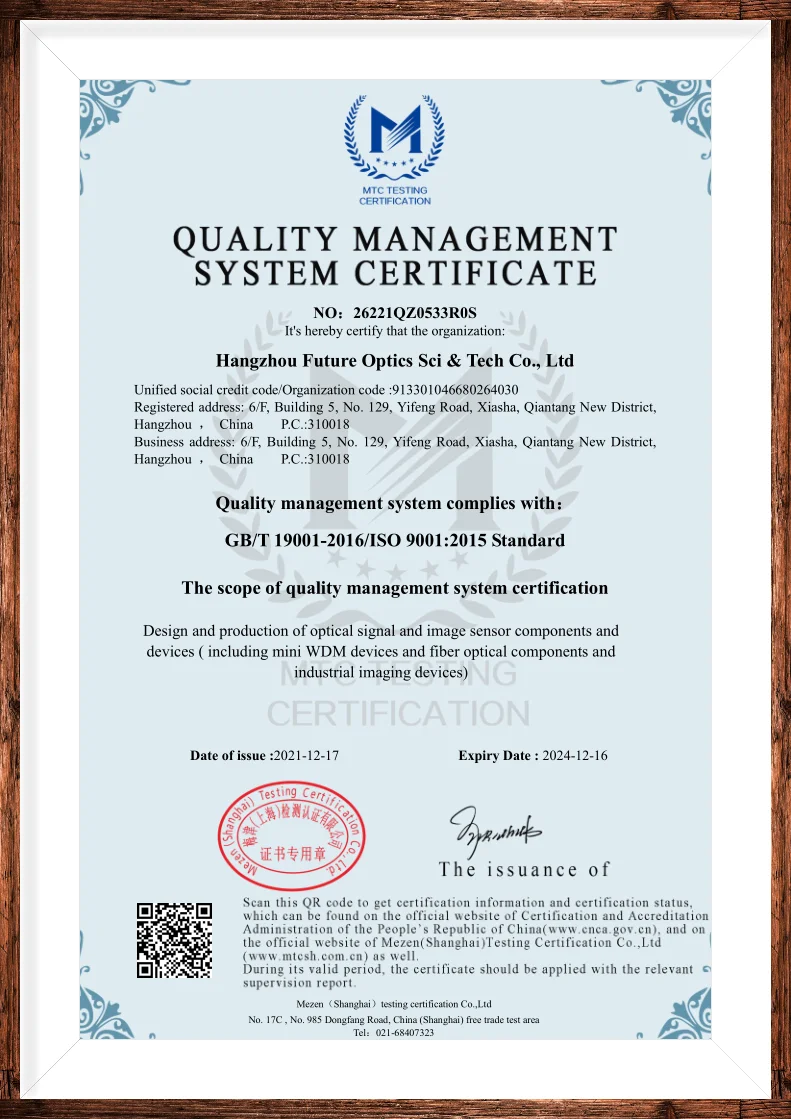

 ISO 9001 2015

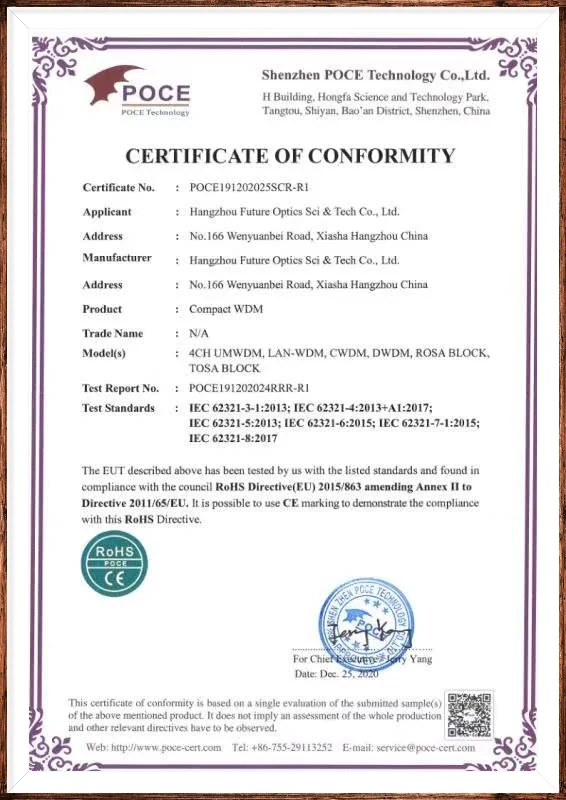

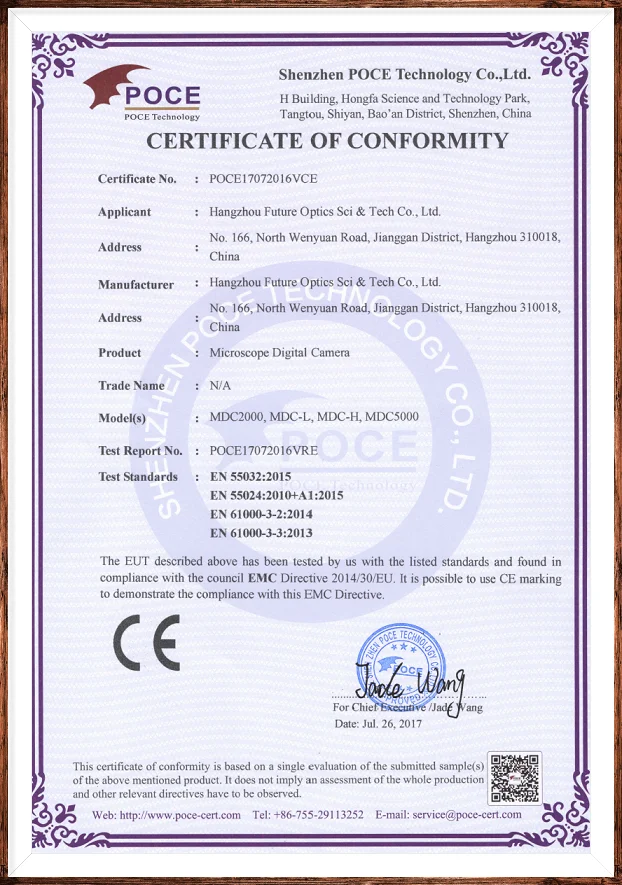

CE, RoHS

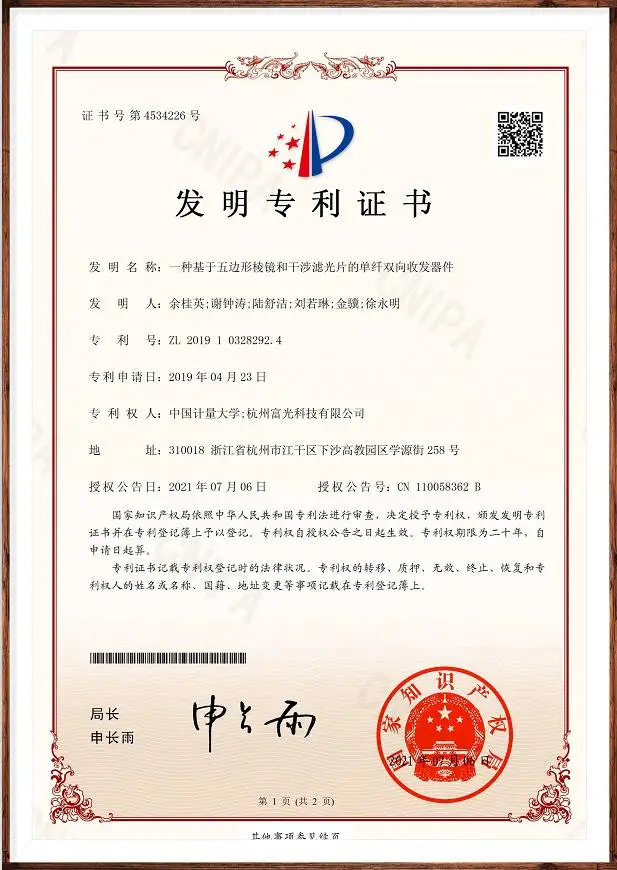

   Resently authorized invention patent:

            Welcome to Future Optics

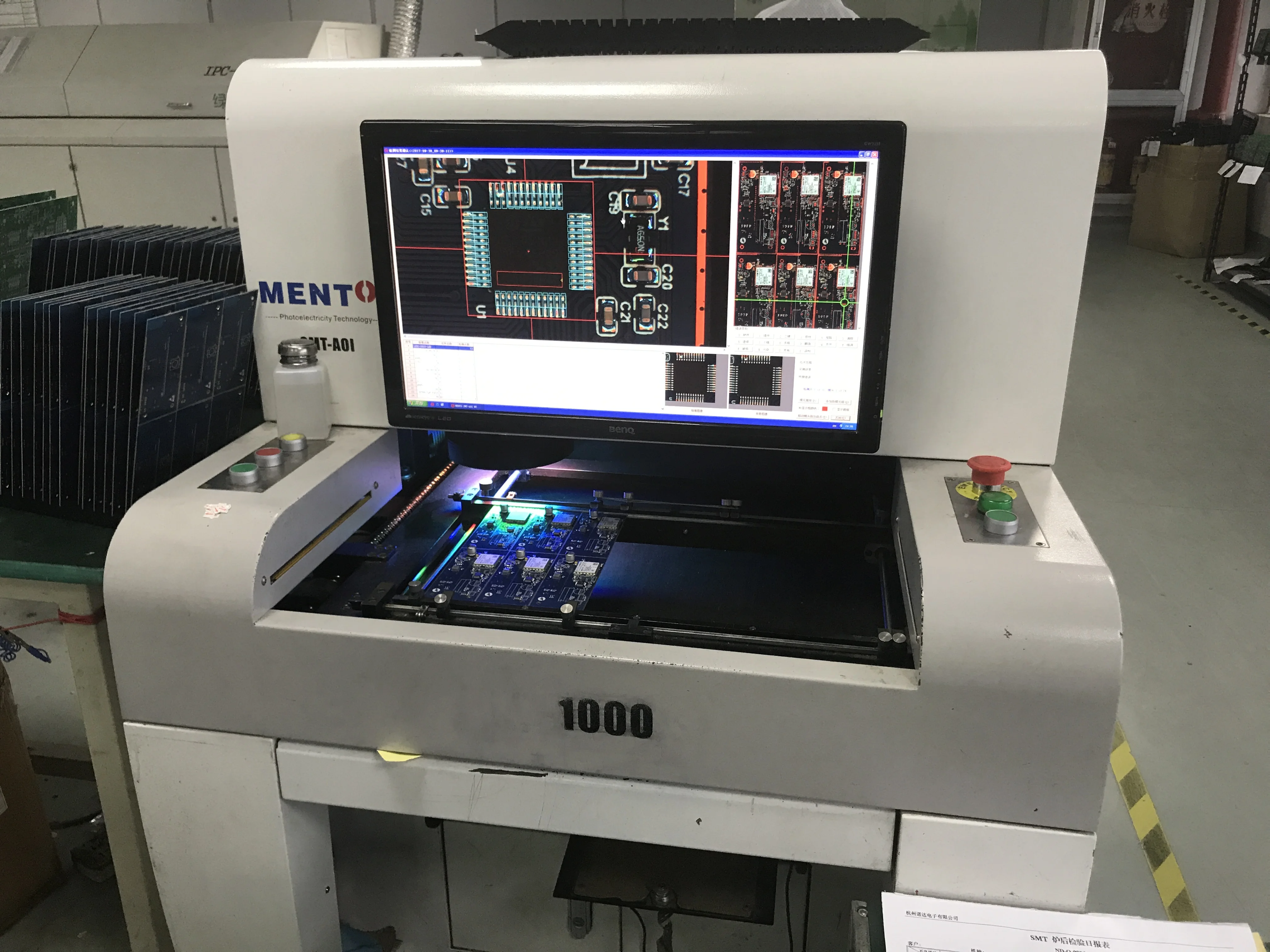

Future Optics was established in 2007, its headquarters and production base located in Hangzhou Economic Development Zone, a research and development center in China Jiliang University, a sales and technical service center in Fremont CA.

Future Optics is a qualified member of the supply chain of global communications giants and a certified supplier of global head instrument corporations, focusing on design and production of miniaturized and easily integrated optical products, and having authorized core invention patents in the fields concerned.

With established design and manufacturing platforms for transceiver optical assembly, passive devices, industrial cameras, optical coherence tomography (OCT) engines and 3D illumination devices, Future Optics provides customers with one-stop solutions

Equipped with the capacity of optical structure design, optical performance simulation, thermal & mechanical stress analyze based on Zemax, Tracepro, Matlab, Ansys, and combining with fine manufacture, Future Optics are building the future of optics.

Future Optics are seeking cooperation partners home and abroad in design, marketing and service for win to win.

Progress

• 2007 Founded in the national university science park Hangzhou China


•  2008 Set up production line of industry digital camera for ocular instruments


• 2009 Won the bronze award for industrial design of compact digital microscope


• 2011 Qualified as National High-tech Enterprises, updated in 2014/ 2017/2020


• 2012 Certificated ISO9001-2008 and updated to ISO9001-2015 in 2018/2021


• 2013 Studied compact WDM for 40G/ 100G Transceivers with Broadray, Inc


• 2014 Set up production line of ultra-compact WDM (CWDM\\LAN-WDM\\DWDM)


• 2015 Ultra-compact WDM production line qualified by Accelink


• 2016 Developed LAN-WDM optical sub-assemblies for transceiver (Z-BLOCK)


• 2017 Worked with OptiWorks, Inc. to set up second line of free-space WDM


• 2018 Developed 3D illumination device for robot guiding system


• 2019  Developed mini diffraction gratings for OCT used in micro probe

Questions & Answers

Q1: Are you a manufacturer or a trader company?

A1: We are a manufacturer focusing on production of optical transmission products and machine vision instrument products. We accept on-site audit of production line by customer or the third party

Q2: What are your main products?

A2: Micro WDM products with full intellectual property rights: Z-block for TOSA\\ ROSA of transceivers, UC-CWDM\\UC-DWDM\\UC-LWDM  based on free space technology; Digital microscope\\telescope\\spottingscope; Laser distance finder, OCT engine, Open field laser transmitting and receiving instruments.

Q3: What is your warranty policy?

A3:  We offer a 2-year free warranty covering all of our products, and it starts from the delivery date of the original order, by providing free repair or replacement.

Q4: What is your OEM terms?

A4: We are providing not only labeling and packaging  service, but also customized services, including free design of optical structure, mechanical structure, PCB and software functions.

Q5:  How about your support and service?

Q5: We provide online free & tailored support and services for your businesses pre-sales and after-sales, providing intermediate test data if necessary.
