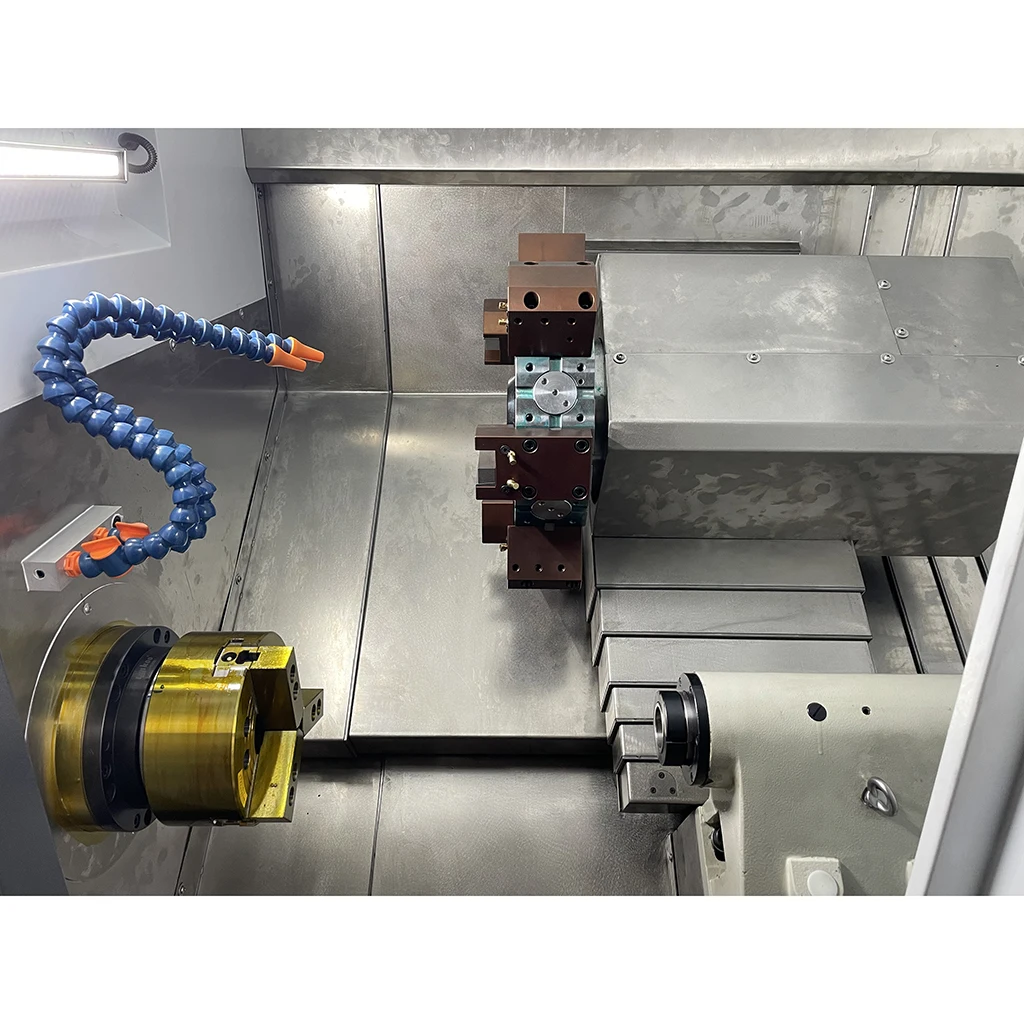

Slant Bed with hydraulic turret Economical JP52D CNC Lathe High Precision Efficient Metal Lathe Machine
- Category: >>>
- Supplier: Fancy machinery Co. Ltd.
Share on (1600435293250):
Product Overview
Description
Products Description
No. | Item | Unit | Parameter |
1 | Max turning Dia. over bed | mm | 580 |
2 | Max turning Dia. over slide | mm | 280 |
3 | Spindle hole | mm | 52 |
4 | Spindle nose | A2-6 | |
5 | Spindle max speed | r/min | 5000 |
6 | X/Z axis max travel | mm | 260/500 |
7 | X/Z axis max rapid speed | mm/min | 24000/24000 |
8 | X/Z axis max torque | N.m | 11.5/11.5 |
9 | X/Z axis guide specifications | mm | 35/45 Roller |
10 | X/Z axis screw specification | mm | 32*10/32*10（Double nut） |
11 | X/Z axis repeatability | mm | ±0.002mm |
12 | X/Z axis positioning accuracy | mm | ±0.005mm |
13 | X/Z axis min setting unit | mm | 0.001 |
14 | Tailstock form | mm | Roller Linear Way Hydraulic transmission |
15 | Tailstock sleeve model | Mohs | 5# |
16 | Tool holder form | mm | 12-station servo turret 12-station power turret 15-station power turret + Y-axis |
17 | Main spindle power | kw | 11 |
18 | Machine size (L x W x H) | mm | 2600*2000*2050 |
19 | Gross weight of complete machine | kg | About 4200 |

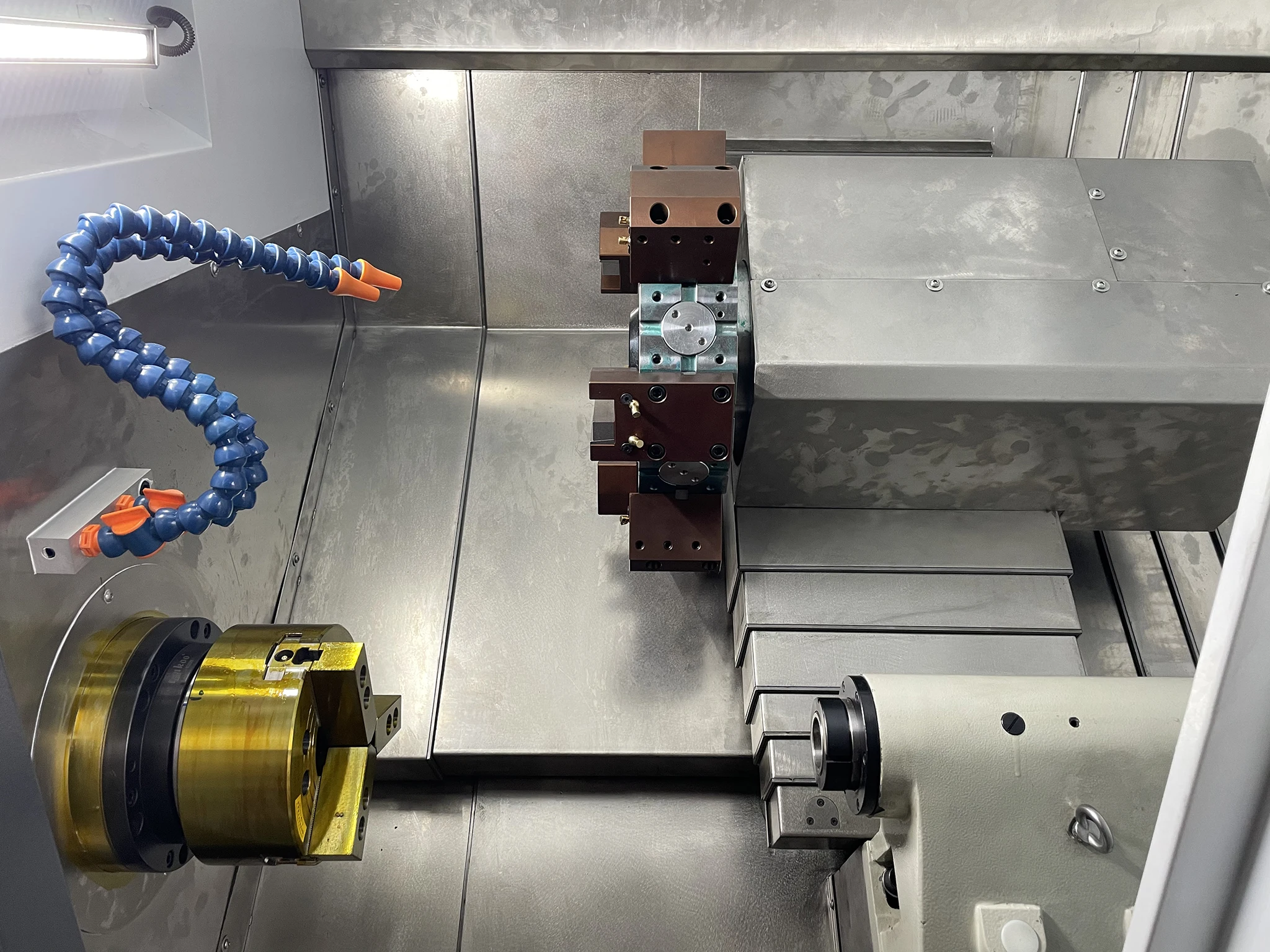

Machine Highlights
1. One-piece casting of HT300 grade;
2. Heavy preloaded roller guide rail;
3. High rigidity double nut screw;
4. High-precision hydraulic tailstock.
1. One-piece casting of HT300 grade;
2. Heavy preloaded roller guide rail;
3. High rigidity double nut screw;
4. High-precision hydraulic tailstock.
WELIKE JP46D High Precision Inclined CNC Lathe
• Process shaft and disc parts
• Turning the inner and outer surfaces of threads, arcs,
cones and slewing bodies
• Suitable for high-efficiency, large-volume, high-precision
processing

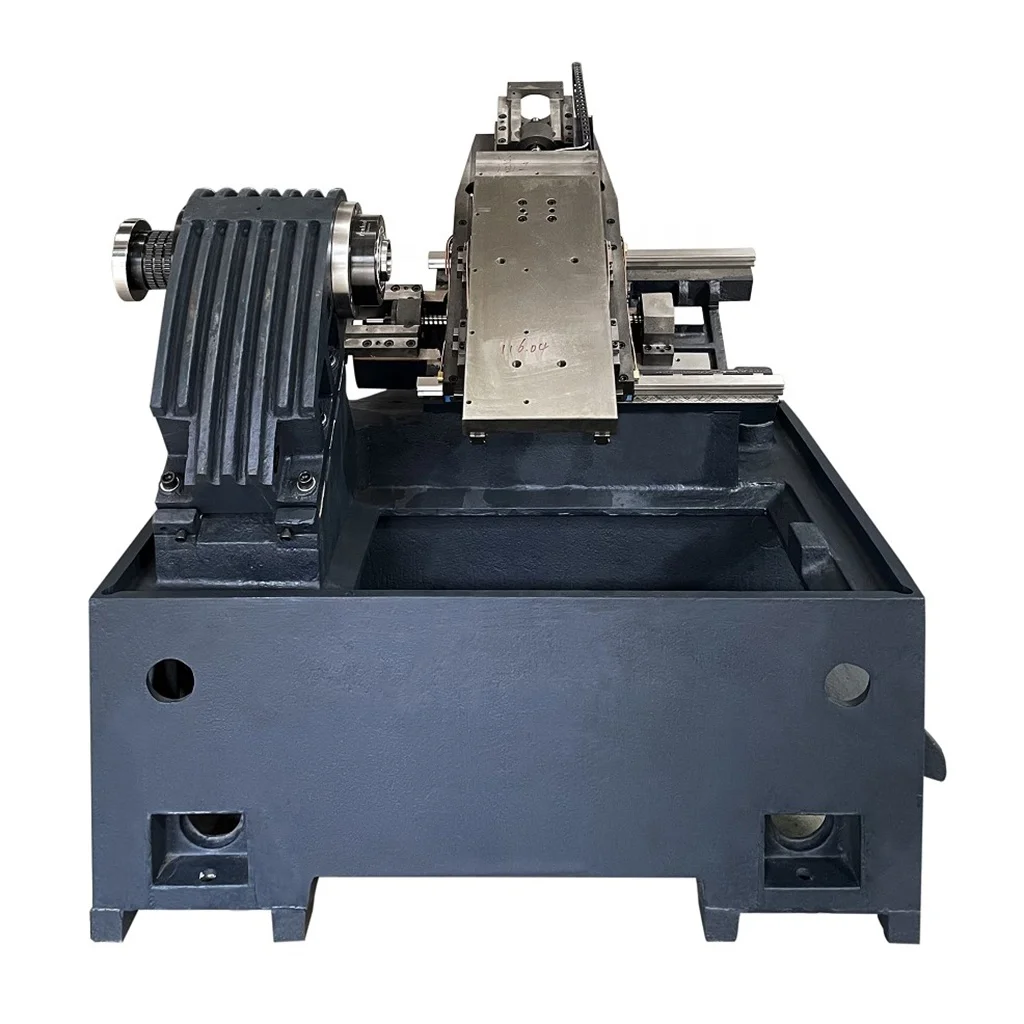

Casting
• High-density cast iron
• 45 degree inclined bed
• Built-in main motor
• Double chip outlet
Standard core components | ||||
Item | Brand | Remark | ||
Cntroller | SYNTEC | *Servo turret: 3-axis bus Power Turret: 4-axis bus Power turret + Y: 5-axis bus | ||
X/Z/D/Y axis servo | NMH, Germany | *European standard 5-Pair motor | ||
Spindle Unit | TK, Taiwan | *Front four rear two bearing mechanical spindle unit (Optional double row roller) | ||
Spindle Servo Motor | V&T, Shenzhen | complete set | ||
Power chuck | TK, Taiwan | *8 inch hollow chuck | ||
Rotary cylinder | TK, Taiwan | *TK-852 | ||
Turret | Sanhe , Taizhou Baowei, Dongguan | Sanhe Servo Turret (4 Fixed Tool Holders) Baowei Power Turret (7 Fixed Tool Holders) | ||
Screw | HIWIN/PIM/TBI | * X32*10/Z32*10 C3 class | ||
Linear Guides | HIWIN/PIM/HTPM | * X35/Z45 P class Extended slider | ||
Screw bearing | FAG,Germany | * P2 class | ||
Water pump | Deyang, Dongguan | *Silent high pressure pump | ||
Lubrication pump | Deyang, Dongguan | *Aluminum casing gear pump | ||
Electrical appliances | Schneider / Tianzheng | |||
Hydraulic station | Core components - original from Taiwan | |||
Bed | * HT300 integral casting, 48 hours electric furnace annealing | |||
Remarks: Our standard configuration with * is 10-30% higher than the general product cost. | ||||
Optional configuration | ||
Draw tube through hole | 75/90mm | |
Tailstock | optional removal | |
CNC Controller | GSK | |
