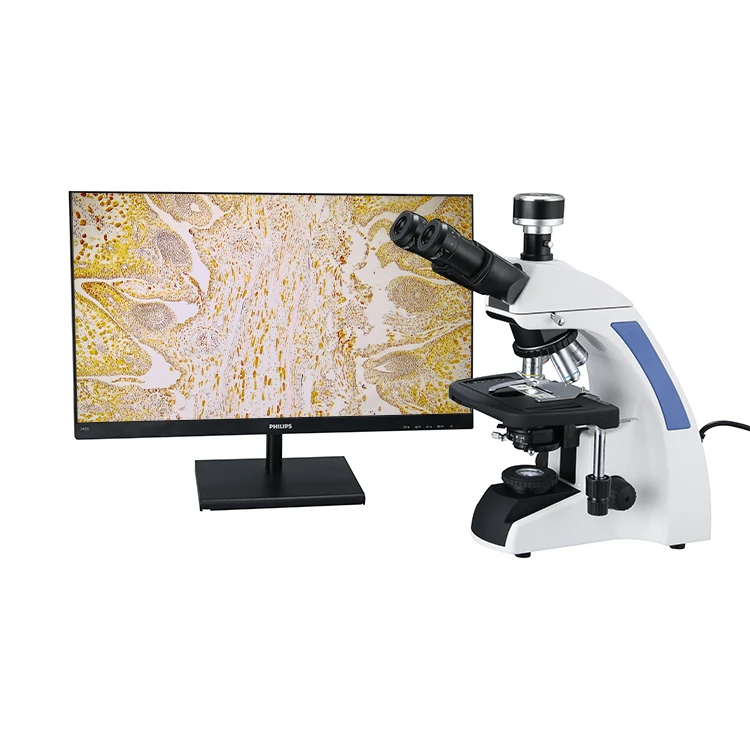

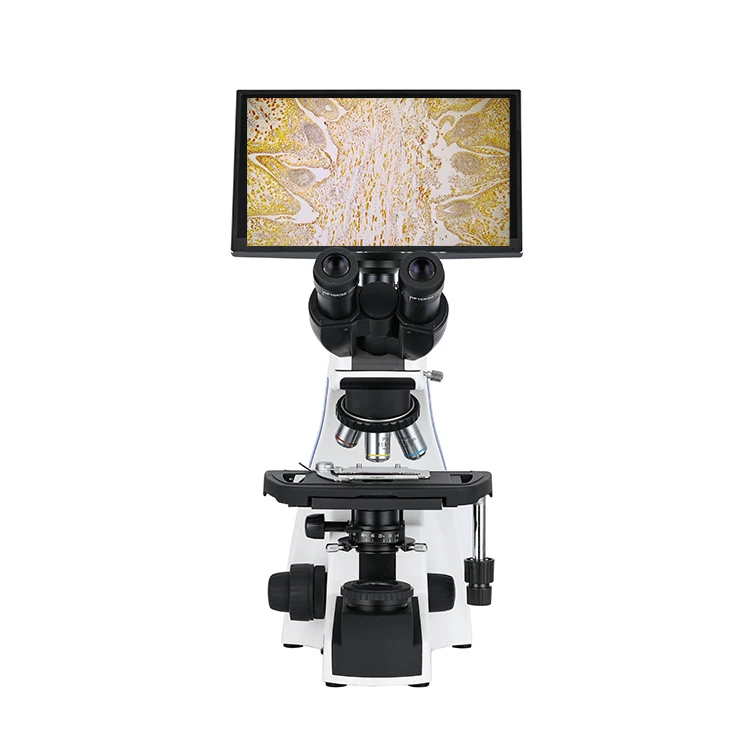

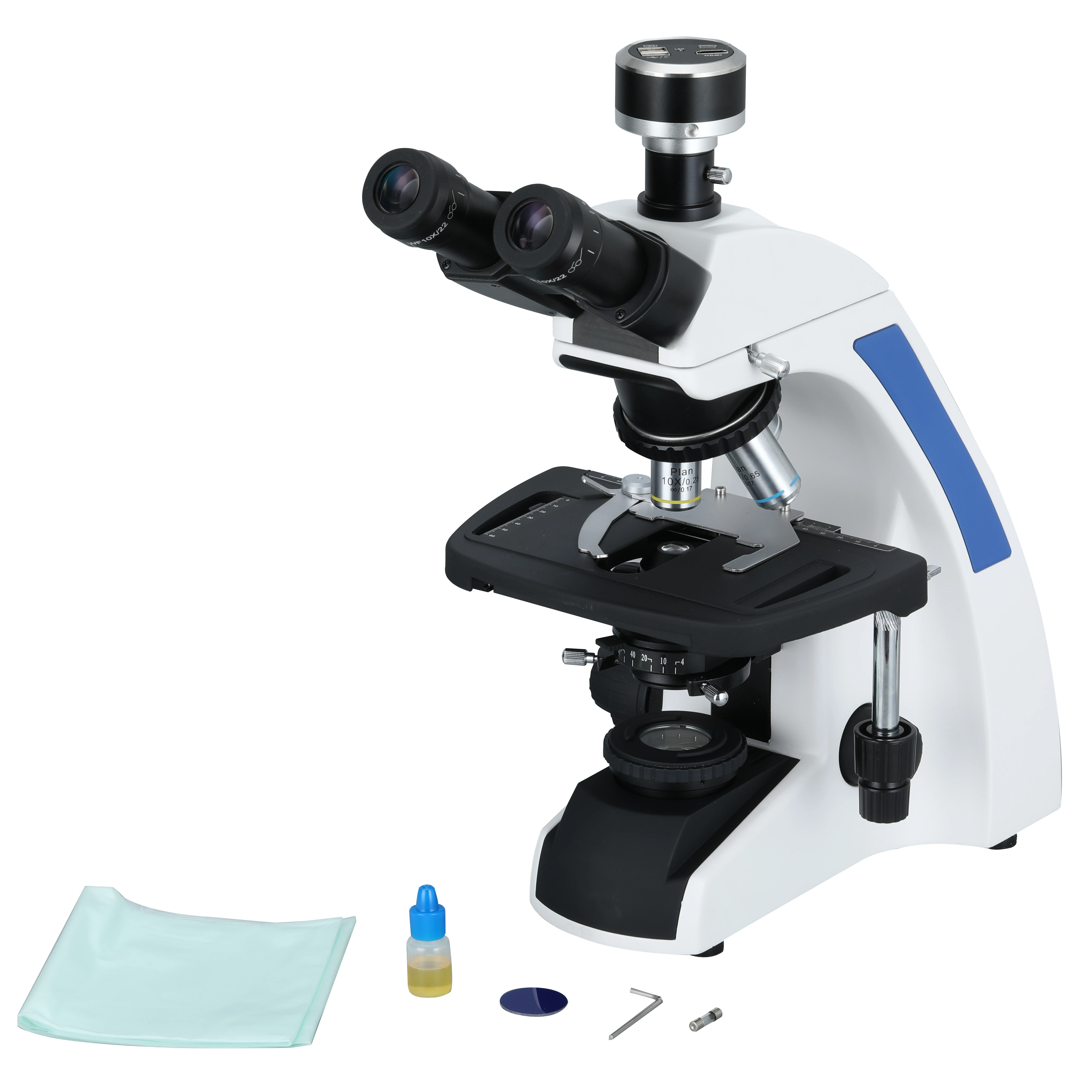

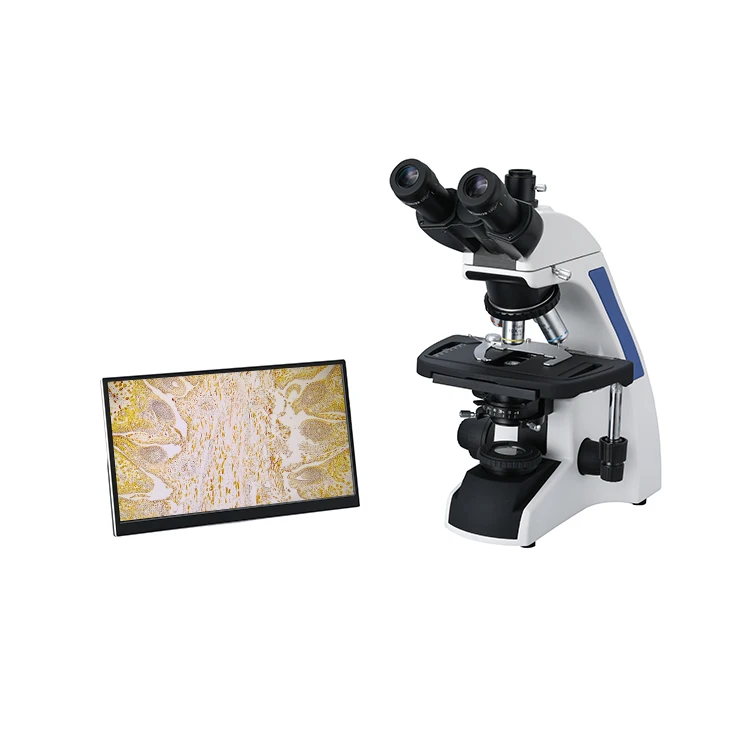

Wholesale XSZ 207T WF10X/20mm seidentopf trinocular head biological video medical laboratory microscope
- Category: >>>
- Supplier: Ningbo Huaguang Precision Instrument Co. Ltd.
Share on (1600435342831):
Product Overview
Description
XSZ-207T | ||||
Optical System | Finite Optical System | ● | ||
Viewing Head | Seidentopf Trinocular Head，Inclined at 45º ，360ºRotatable | ● | ||
Eyepiece | Wide Field Eyepiece WF10X/20mm | ● | ||
Wide Field Eyepiece WF16X/15mm | ○ | |||
Wide Field Eyepiece WF20X/12mm | ○ | |||
Objective | Finite 195 Series Achromatic Objectives 4X 10X 40Xs 100Xs(oil) | ● | ||
Finite Plan Achromatic Objectives CF 4X 10X 40Xs 100Xs(oil) | ○ | |||
Nosepiece | Quadruple Nosepiece | ● | ||
Quintuple Nosepiece | ○ | |||
Condenser | Abbe Condenser NA1.25 with Diaphragm，Filter | ● | ||
Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke37.7mm/Rotation, Fine Stroke 0.1mm/Rotation, Moving range 24mm | ● | ||
Stage | Double Layer Mechanical Stage 142x132mm , , Moving Range75mmx50mm | ● | ||
Illumination | Illumination,3W/LEDAdjustment | ● | ||
Note: ● Standard， ○ Optional | ||||
Packaging & Delivery | ||
Selling Units | Single item | |
Single package size: | 52*31.5*38.5 cm | |
Single gross weight: | 9.5 kg | |
Package Type: | Well packed in plastic bag and foam, then sealed in strong carton for long distance transportation. | |
Lead Time | Quantity(Sets): 1-10 >10 Est. Time(days): 15 To be negotiated | |
Est. Time(days): 15 To be negotiated | ||
Eyepiece
Articulated trinocular head with interpupillary distance 48mm-75mm,45 ° inclined and 360 ° rotatable. Eyepiece WF10X/20 (Optional: WF16X/15mm and WF20X/12mm).C-mount included for various cameras or LCD
Finity plan achromatic objective CF 4X 10X 40Xs 100Xs(oil)
Optional: 195 achromatic objective)
Optional: 195 achromatic objective)
NA1.25 Abbe Condenser
NA1.25 Abbe Condenser with iris diaphragm and filter holder
Double layer mechanical stage 142x132mm with moving range 75x50mm
LED light
3W LED with sector grating,brightness is adjustable
Lockable coaxial coarse & fine focusing
Lockable coaxial coarse and fine focusing with precision 0.002mm.
Coarse focusing: 37.7mm/r,fine focusing: 0.1mm. Focusing range: 24mm
