H265 H264 HD VGA to IP Encoder Support 1080P60Hz/Video/Audio loop VGA IPTV Video Encoder
- Category: >>>
- Supplier: Nantong Zydz Electronic Co. Ltd.
Share on (1600435359748):
Product Overview
Description
Product Description
H.265 HEVC VGA Video Encoder for IPTV Live Streaming
The VGA video encoder can deliver H.264/H.265 encoding VGA video streams of independent IP output to various servers for live application, such as Wowza media server, windows media server, social media platform, and some other servers based on SRT/RTSP/RTMP/RMPTS/ HLS/ TS/ Onvif protocols. orivision video encoder is widely applied in hotel TV systems, school teaching, live broadcasting.
Not only single channel, we also produce multichannel HDMI video encoder which is packed with 1U /3U box. For 3U rack, support max 16pcs encoder cards to be installed.
Related Products
Specification
Model | ZY-EV901 | |
Video | ||
Input interface | 1×VGA | |
Support resolution | 1080P\\1080i\\720P 、1600x1200\\1400x1050\\1440x900\\1280x1024\\ 1280x960\\1280x800\\1024x768\\800x600 etc. | |
Frame rate | 30/60 frame | |

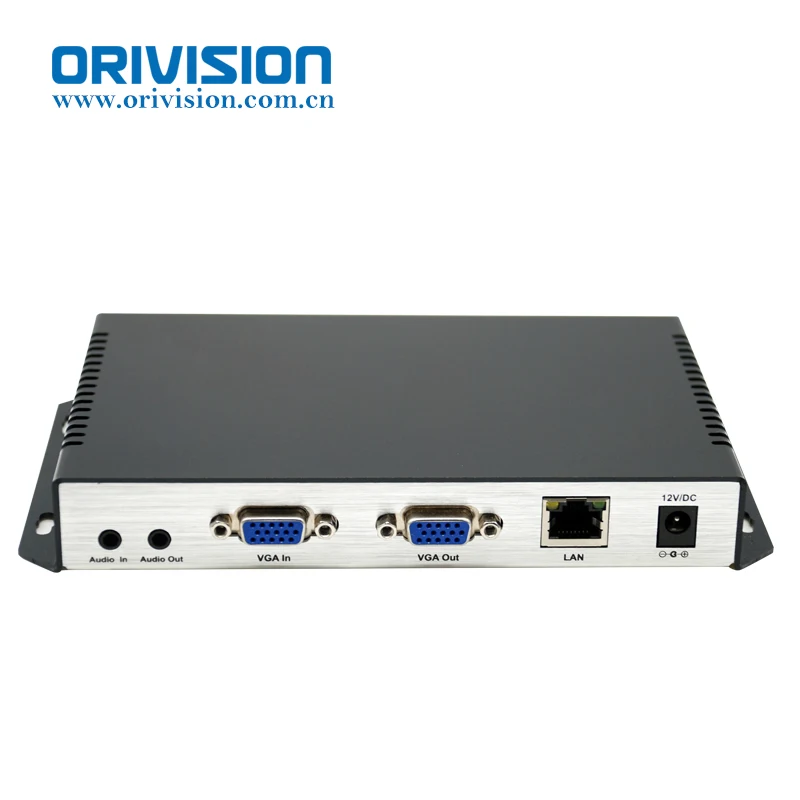

Output interface | 1×Ethernet port (RJ45), 1×VGA | |
Video encoding | H.265/H.264 | |
Code Rate control | 16kbps- 12Mbps | |
Code Rate | CBR/VBR | |
Audio | ||
Input interface | 1×External audio, VGA built-in Audio | |
Output interface | 1×External audio | |
Audio encoding | ACC, G711, MP3 | |
Sampling rate | Auto | |
Bit-rate Option | 32k,44.1K,48K,64K,96K,128K,160K,192K,384K | |
Sampling Accuracy | 24 Bit | |
Audio Data-rate | 64Kb/s to 384Kb/s | |
Network | ||
RJ45 | 1000M Ethernet port | |
Program streaming | HTTP, RTSP, RTMP, RTMPS, SRT, HLS, FLV, ONVIF(UDP/RTP) | |
Control Panel | Web panel (Language is English), remote upgrade | |
Firmware Update | Enable by uploading files to the dashboard | |
General | ||
Dimension(W*L*H) | 166*110*25mm | |
Gross Weight | 0.3kg | |
Temperature | 0 ~ 45℃（for working）,-20~60℃（for storing) | |
Humidity | <90%, non-condensing | |
Input Voltage | DC 12V/1A | |
Power Consumption | 5W | |
Application Diagram

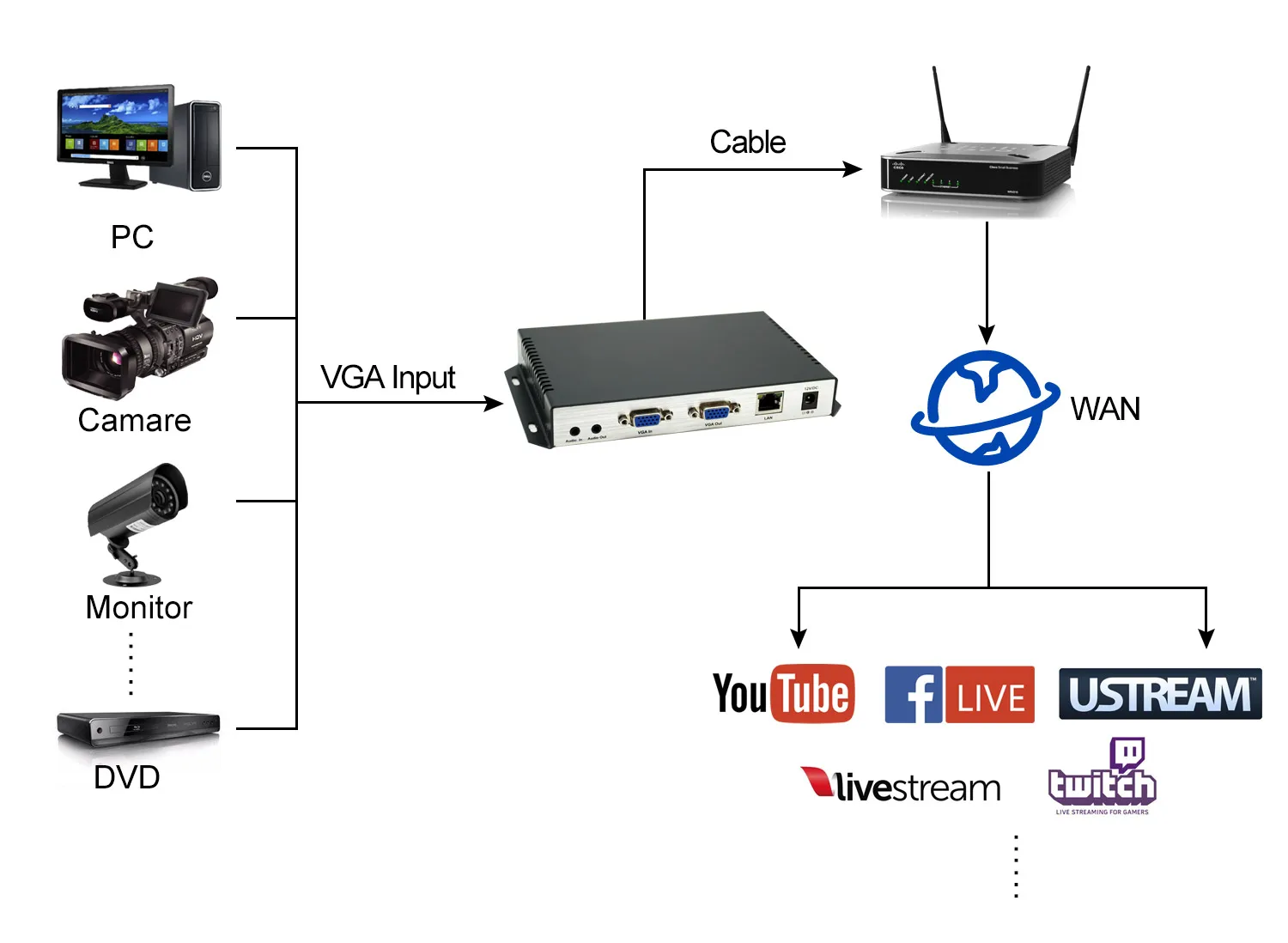

(1) For Live Streaming Online Connection

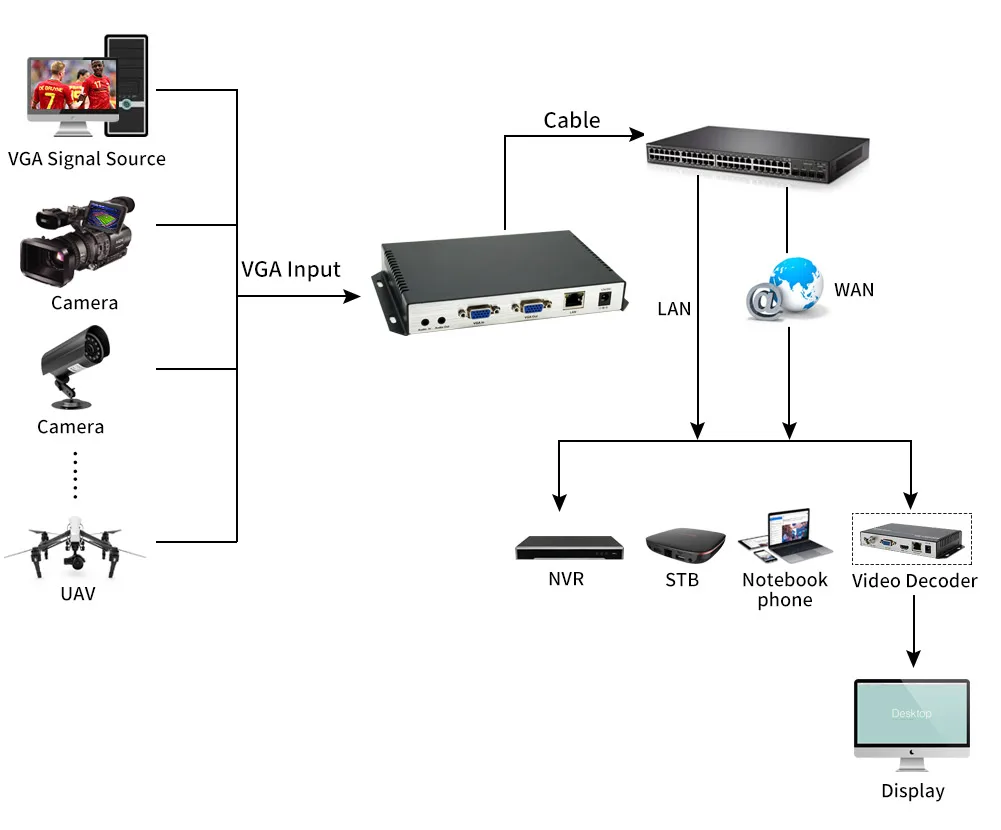

(2) For Multi-purpose Connection

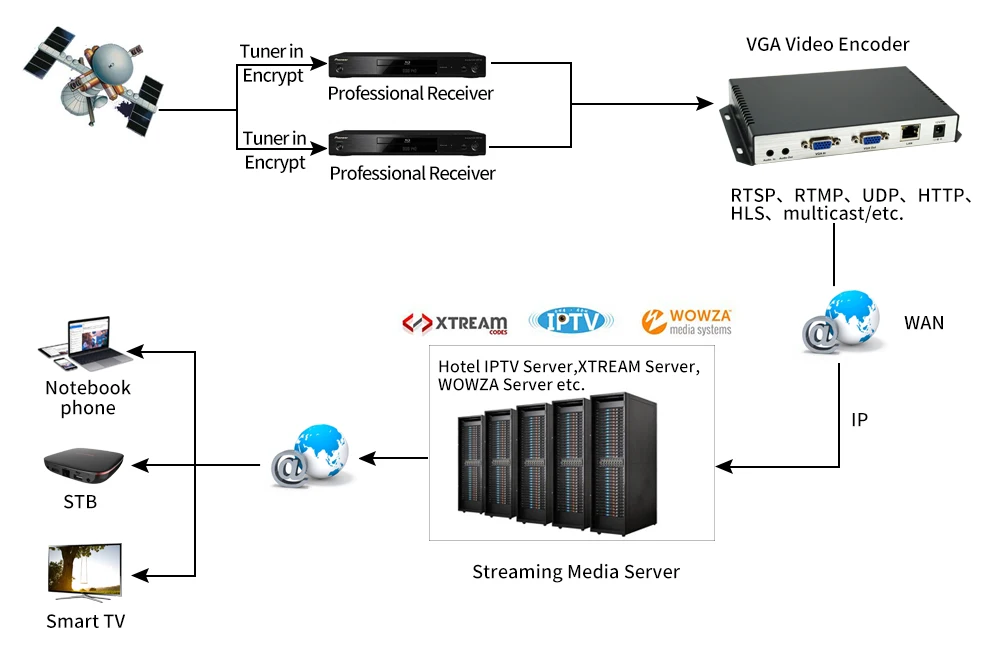

(3) For IPTV Project Connection
