Asenware clean agent HFC227 FM200 Fire fighting system
- Category: >>>
- Supplier: Shenzhen Asenware Test & Control Technology Co. Ltd.
Share on (1600435424398):
Product Overview
Description
Product Description
Asenware FM-200 Fire extinguishing system are designed for total flooding to protect high value assets Colorless and non-toxic gas, suitable for normally occupied area, where there is any chance of presence of human present FM200 fire suppression is also known as HFC227ea. FM200 is a waterless fire protection system, it is discharged into the risk within 10 seconds and suppresses the fire immediately.
FM200 benefits
Use less space, save cost
(Compare CO2 system,FM200 system need only small amount of agent to put out fire, so use less cylinder)
More quick to put out fire
(Within 10 seconds achieved, put out fire before they cause much damage)Clean agent, better protection room equipment
Life safety
(The FM200 agent put out fire on a molecular level, low pressure, no harm to human)
FM-200 - types

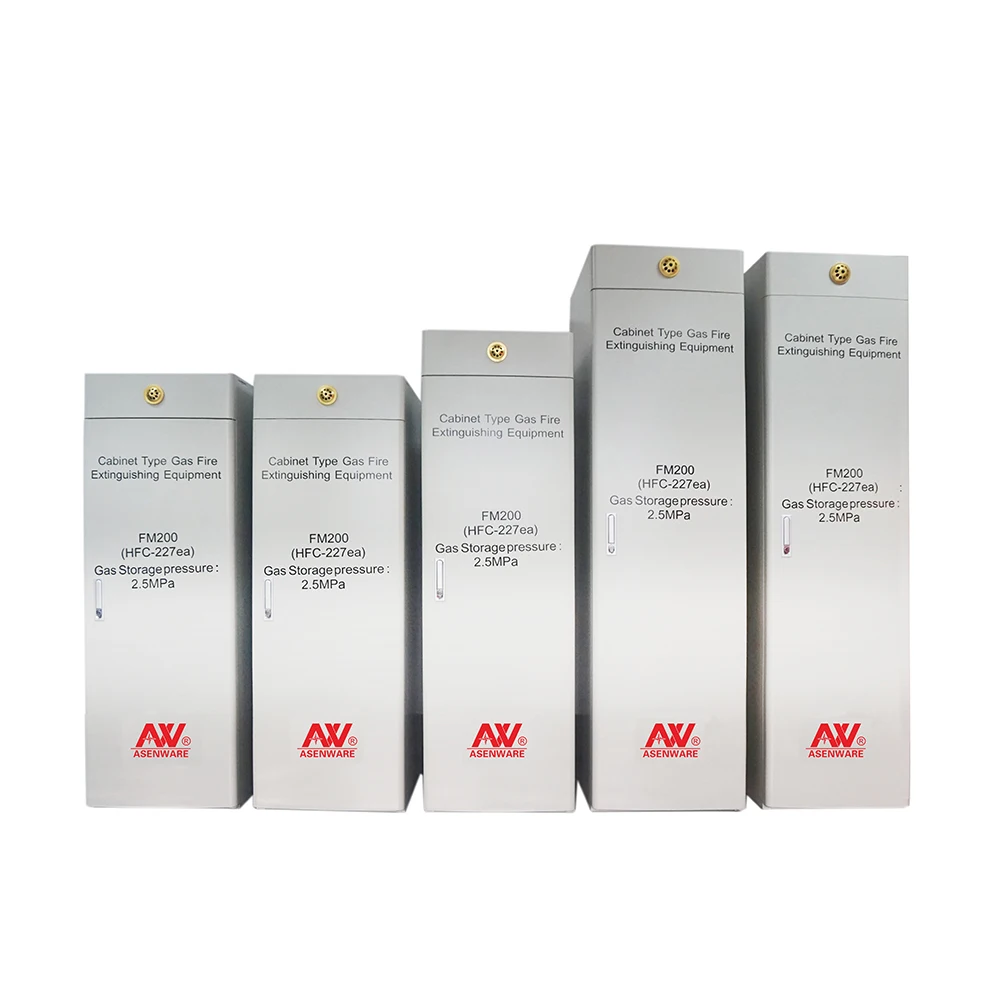

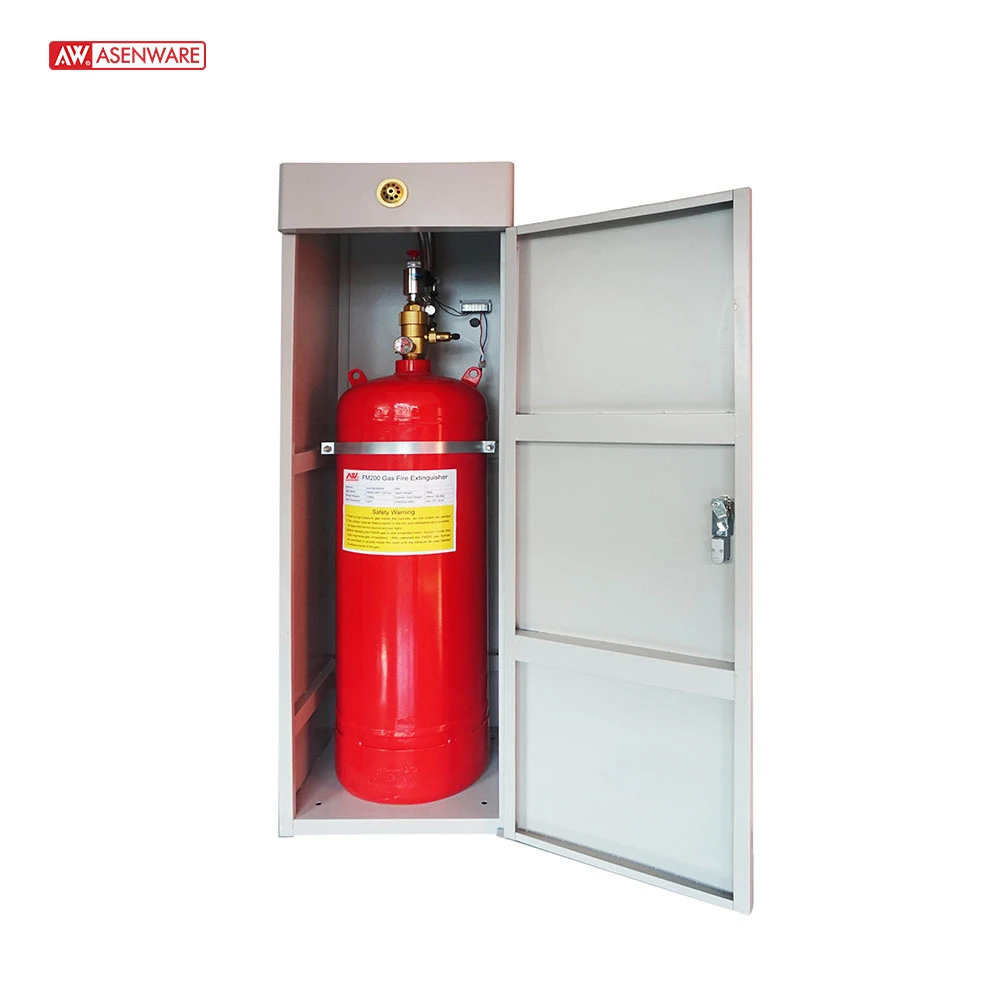

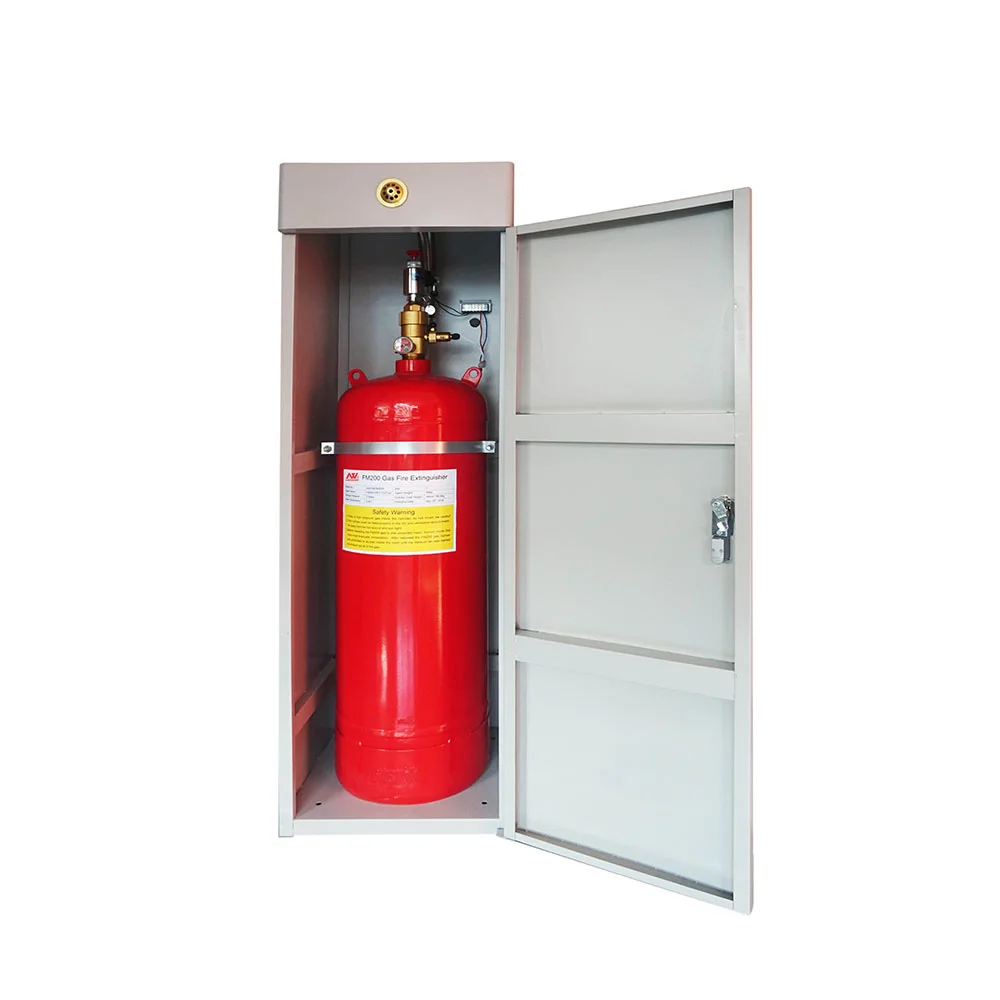

* Cabinet type
* 40L,70L, 90L, 120L, 150L
* 2.5MPa

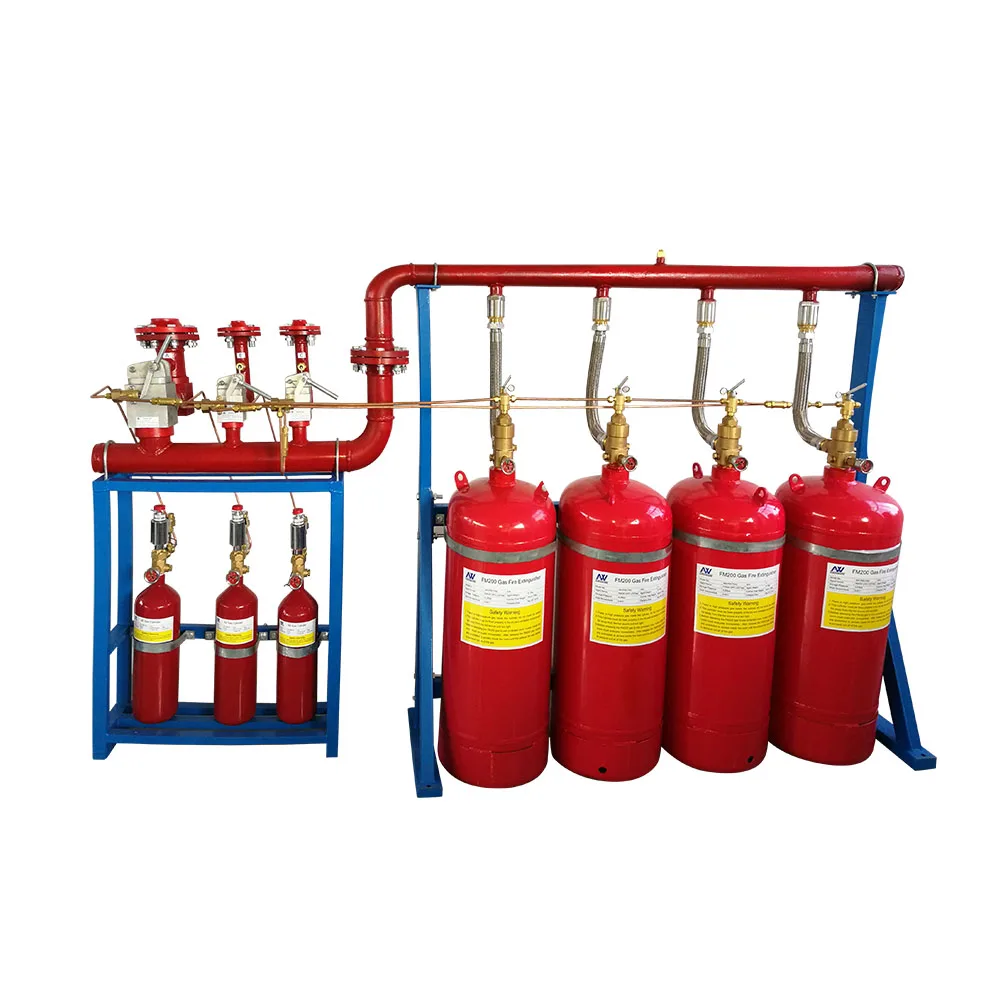

* N2 network pipe type
* 40L,70L, 90L, 120L, 150L
* 4.2MPa, N2 cylinder :6.0MPa
FM200 Fire Suppression System components and accessories
1. FM-200 Storage Components – Storage components consist of the cylinder assembly(s), which contains the FM-200 chemical agent, and the cylinder bracket(s), which holds the cylinder assembly securely in place.
2. FM-200 Distribution Components – Distribution components consist of the discharge nozzles used to introduce the FM-200 into a protected hazard along with the associated piping system used to connect the nozzles to the cylinder assembly.
3. Trim Components – Trim components complete the installation of the FM-200 system and consist of connection fittings, pressure gauge, low-pressure supervisory switch, electric valve actuator, and manual valve actuator.

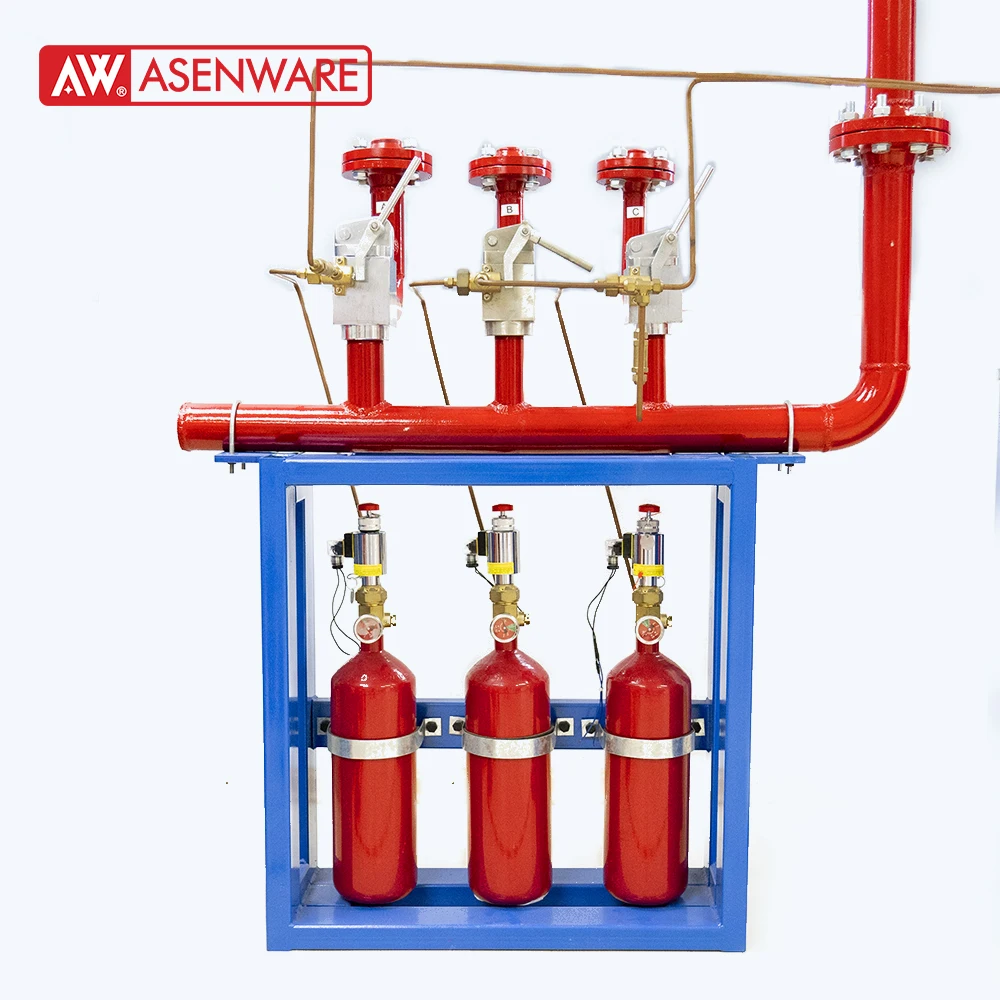

4. Slave Arrangement Components – Slave arrangement components consist of the pneumatic valve actuator(s), actuation check valve,vent check, actuation hose, and fittings required for a multiple cylinder (slave) arrangement.
5. Supplemental Components – Supplemental components include the discharge pressure switch and manifold check valve. They supplement the core equipment or complete a specific multi-cylinder configuration.
6. Control Panel – This device monitors the condition of the electric actuator, detectors, warning devices, cylinder pressure, and any manual release and abort stations. All electric or electronic devices must connect to the control panel in order to function.
7. Early Warning Detection and Alarm Devices – Early warning detection devices coupled with manual release and abort stations maximize system efficiency while audible and visual alarm devices alert staff of alarm conditions.
FM200 benefits
Use less space, save cost
(Compare CO2 system,FM200 system need only small amount of agent to put out fire, so use less cylinder)
More quick to put out fire
(Within 10 seconds achieved, put out fire before they cause much damage)Clean agent, better protection room equipment
Life safety
(The FM200 agent put out fire on a molecular level, low pressure, no harm to human)
FM-200 - types
* Cabinet type
* 40L,70L, 90L, 120L, 150L
* 2.5MPa
* N2 network pipe type
* 40L,70L, 90L, 120L, 150L
* 4.2MPa, N2 cylinder :6.0MPa
FM200 Fire Suppression System components and accessories
1. FM-200 Storage Components – Storage components consist of the cylinder assembly(s), which contains the FM-200 chemical agent, and the cylinder bracket(s), which holds the cylinder assembly securely in place.
2. FM-200 Distribution Components – Distribution components consist of the discharge nozzles used to introduce the FM-200 into a protected hazard along with the associated piping system used to connect the nozzles to the cylinder assembly.
3. Trim Components – Trim components complete the installation of the FM-200 system and consist of connection fittings, pressure gauge, low-pressure supervisory switch, electric valve actuator, and manual valve actuator.
4. Slave Arrangement Components – Slave arrangement components consist of the pneumatic valve actuator(s), actuation check valve,vent check, actuation hose, and fittings required for a multiple cylinder (slave) arrangement.
5. Supplemental Components – Supplemental components include the discharge pressure switch and manifold check valve. They supplement the core equipment or complete a specific multi-cylinder configuration.
6. Control Panel – This device monitors the condition of the electric actuator, detectors, warning devices, cylinder pressure, and any manual release and abort stations. All electric or electronic devices must connect to the control panel in order to function.
7. Early Warning Detection and Alarm Devices – Early warning detection devices coupled with manual release and abort stations maximize system efficiency while audible and visual alarm devices alert staff of alarm conditions.
Specification
Place of Origin | China |
Brand Name | Asenware |
Model Number | AW-FMC4042 |
Filling pressure: | 4.2 MPa |
Extinguishing agent filling density: | ≤950kg/m3 |
System Power Supply: | AC220V/DC24V/1A |
Extinguishing agent release time: | ≤10s |
System working environment temperature: | -10℃~55℃ |
Storage bottle volume: | 40L, 70L, 90L, 120L,150L |
Output current | DC 24V |
System start-up mode: | automatic and manual type |
Color | Red |
