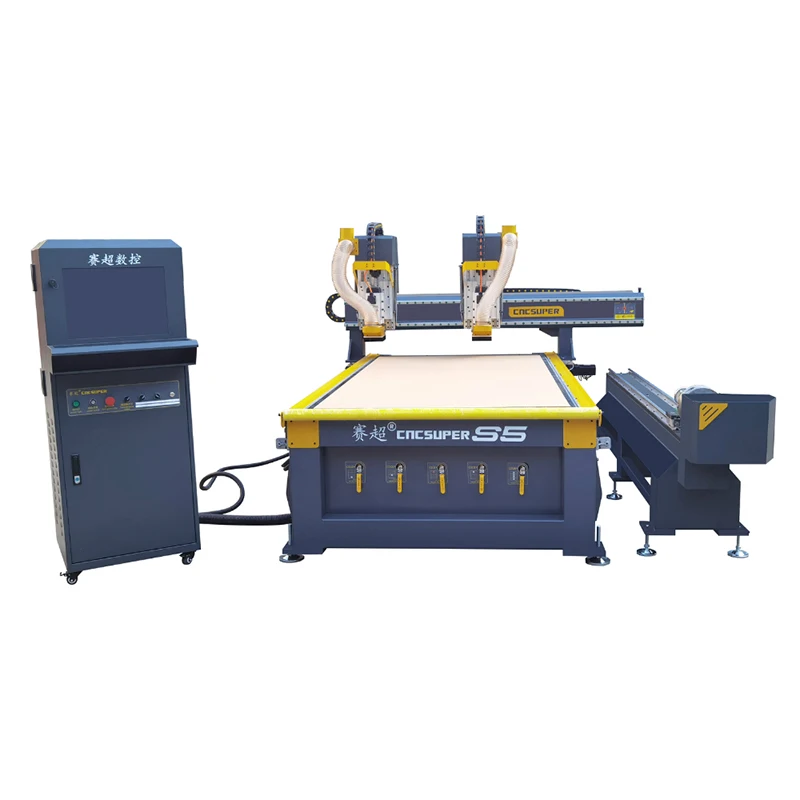

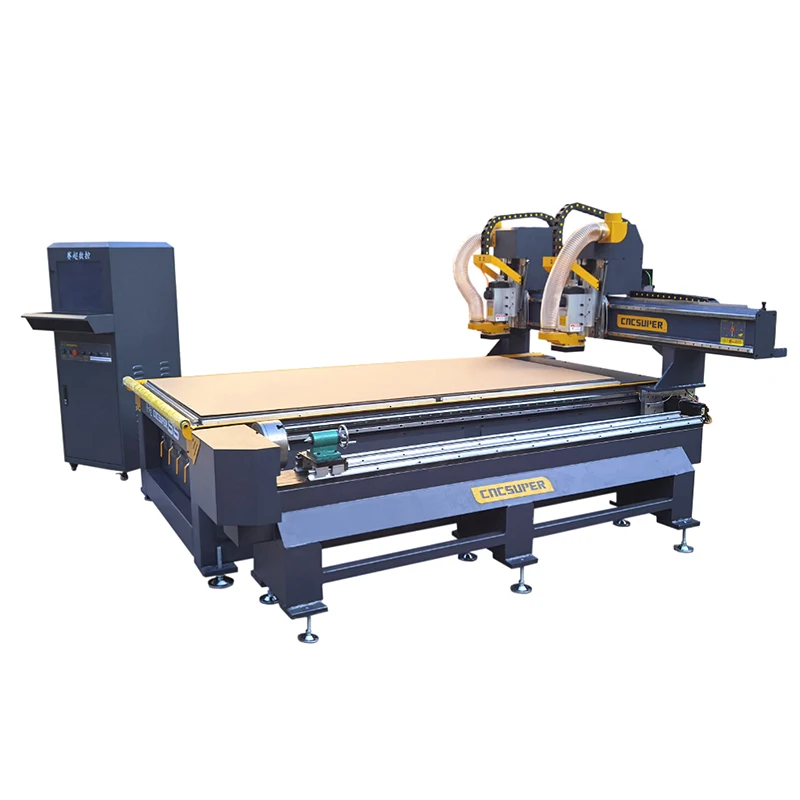

Hot Selling High Precision Wood Engraver 4 Axis Carving Machine Wood Cnc Router 1325
- Category: >>>
- Supplier: Guangdong Super Intelligent Equipment Co. Ltd.
Share on (1600435449611):
Product Overview
Description
Related Products
Products Description

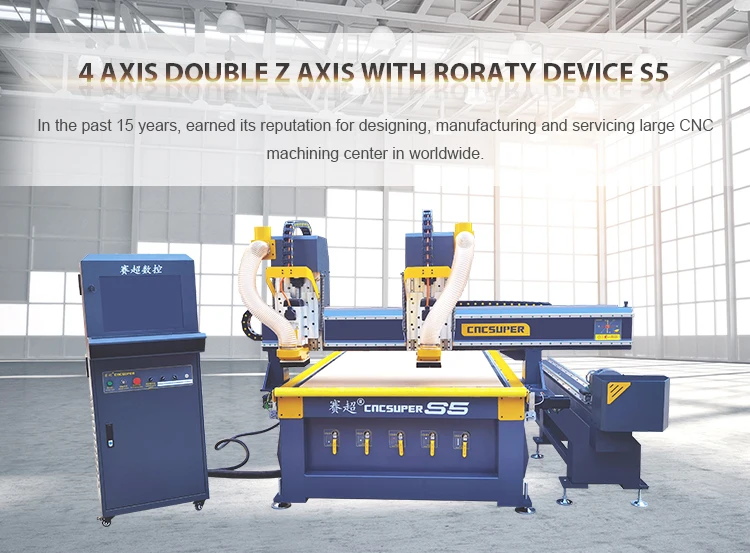

Vacuum Table Taiwan Hiwin Servo Motor Engraver 4x8 1325 Wood Cnc Router Rotary Axis
PRODUCT FEATURES
2. Gantry moving design, Y-axis dual motors with precision grinding helical gear transmission to ensure the accuracy of the machine.
3.Equipped with two pieces high power 6KW air cooling spindle, speed 18000rmp / min, can make machine working with high efficiency, long service time and stable movement.

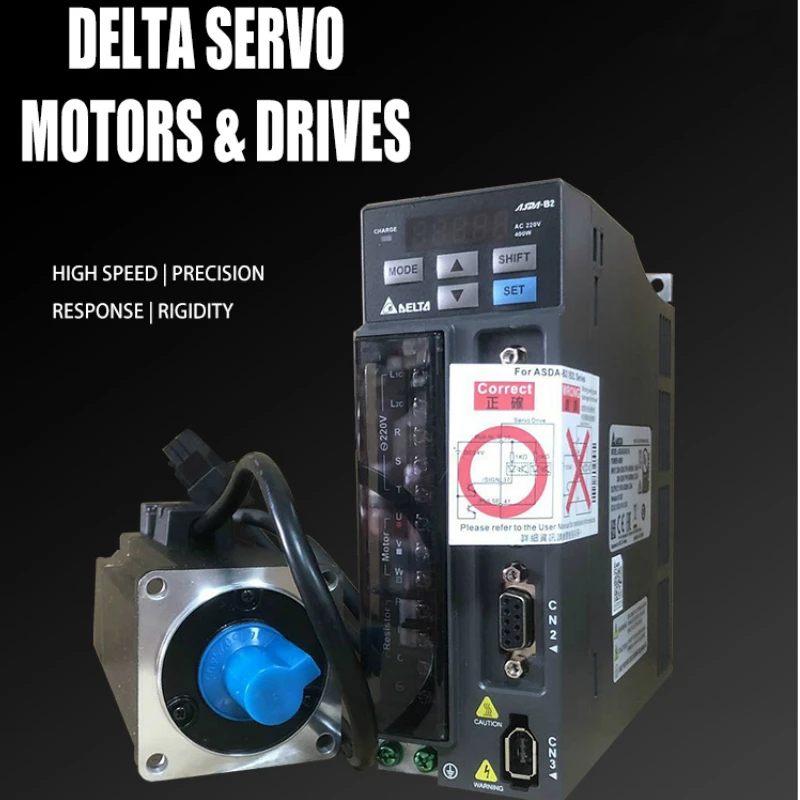

4. Configuration with original TAIWAN DELTA servo system, powerful transmission, more faster.
6. Removable rotary axis, to ensure the real flat working area up to 1300x2500mm, and easier to load and unload to container. It can not only meet the processing of flat workpieces, but also the processing of cylindrical workpieces.
7. Standard configuration with matrix vacuum table, great bearing capacity, strong adsorption.
8. Independent controlling cabinet, isolate heavy-current and weak-current, simple maintenance.
Product Parameters
NO. | DESCRIPTION | |||||
1 | Working area (XY) | 1300x2500mm | ||||
2 | Z travel height | 200mm, double Z axis with coupling | ||||
3 | Rotary axis | Rotary dia-200mm, length 2500mm | ||||
4 | Spindle power | 2PCS 6KW air cooling spindle | ||||
5 | NO. of revolution | 18000rpm/min | ||||
6 | Guide | Original Taiwan HIWIN guiding rail | ||||
7 | Motor | Taiwan DELTA servo motors and drives | ||||
8 | Positioning accuracy | ±0.03/300mm | ||||
9 | Repositioning accuracy | 0.03mm | ||||
10 | Controller | CNCSUPER 4 axis control system | ||||
11 | Reducer | Japan SHIMPO reducer | ||||
12 | Software compatibility | TYPE 3 or ARTCAM | ||||
13 | Table | 5 zones vacuum table | ||||
14 | Vacuum pump | 5.5KW air vacuum pump | ||||
15 | Lubrication | Self-lubrication system | ||||
16 | Max. speed | 35000mm/min | ||||
17 | Max. working speed | 20000mm/min | ||||
18 | Command | G Code, *u00, *mmg, *plt | ||||
19 | Diameter of cutter | 3.175-12.7mm | ||||
20 | Working voltage | AC380V, 3PH/50HZ | ||||
21 | Lathe structure | Seamless welded steel structure | ||||
22 | Weight | 2200KG | ||||
Product Details

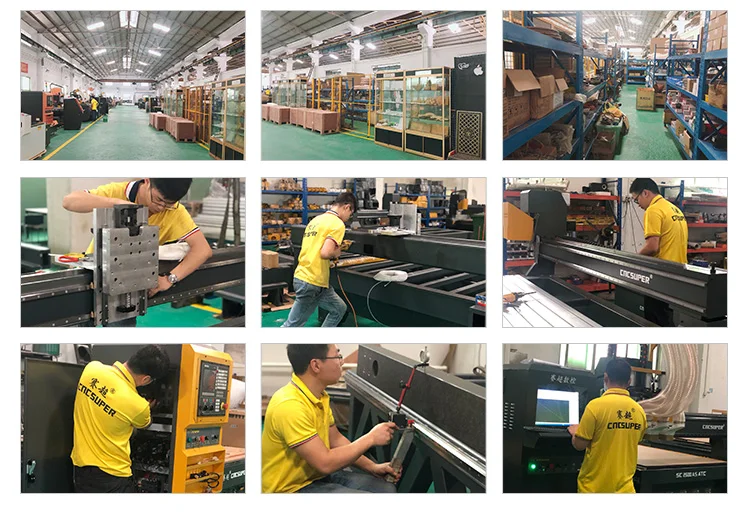

Company Introduction
Packing&Shipping

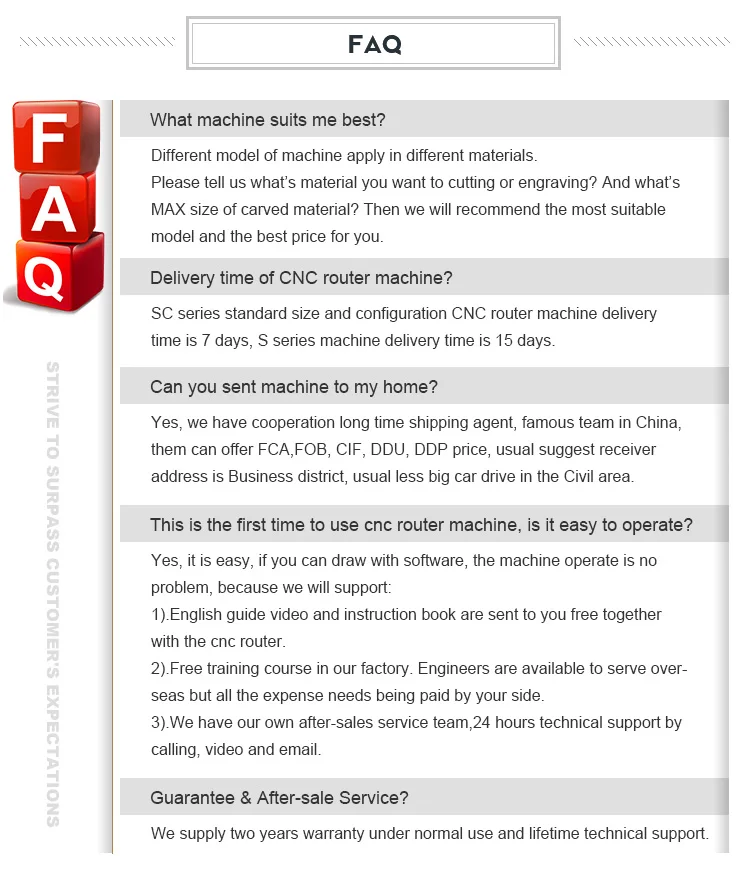

FAQ
