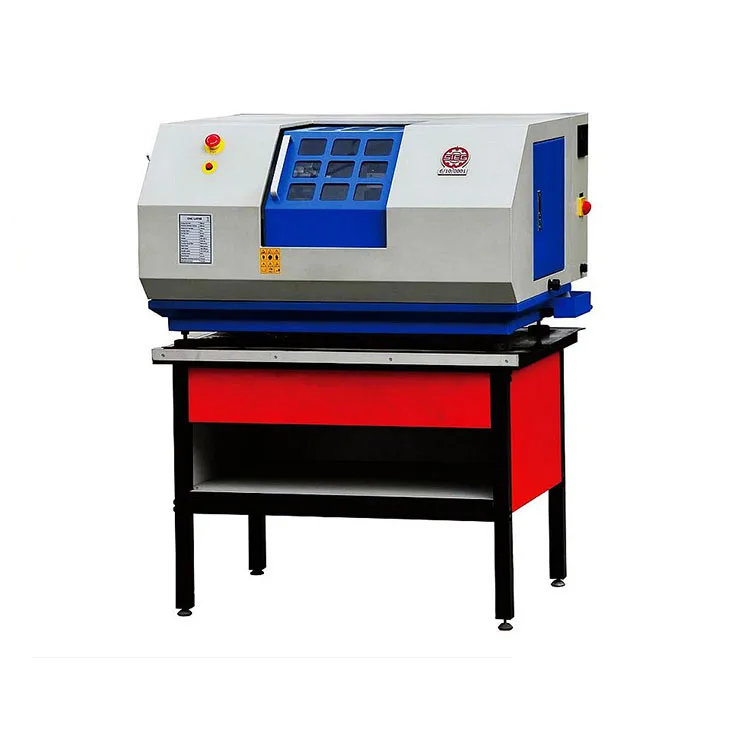

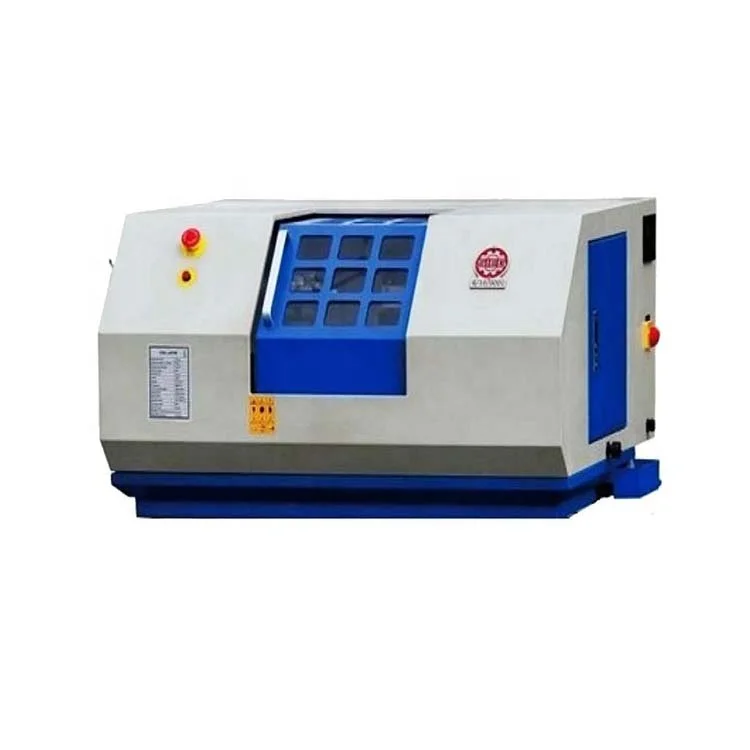

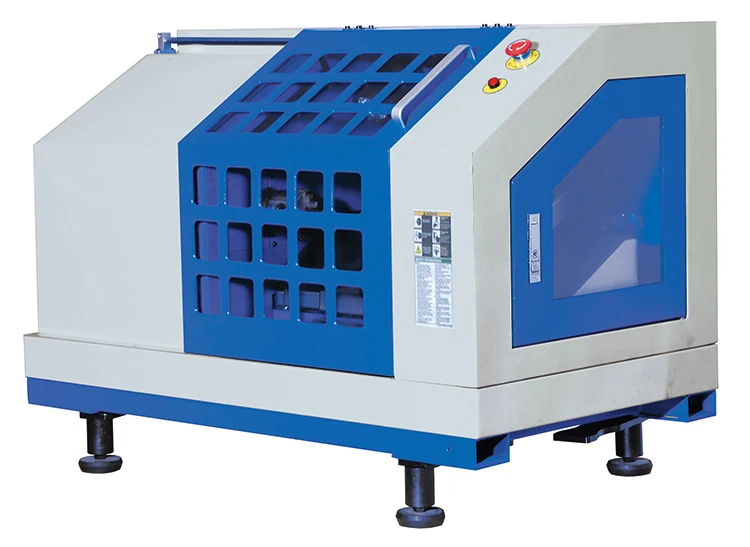

SIEG KC4S China manufacturer slant bed horizontal bench with tailstock for hobby or DIY horizontal cnc lathe machine
- Category: >>>
- Supplier: Liuzhou Gluck Imp& Exp Co. Ltd.
Share on (1600435452096):
Product Overview
Description
Product Overview
For rod-shaped workpieces of different materials;
4-station tool magazine;
500W brushless motor;
Powerful, high torque;
Max.3000 rpm spindle speed provided;
KC4S BENCH CNC LATHE | ||||
WORKING AREA | Turning diameter over bed(max) | 200mm | ||
Travel across slide | 100mm | |||
Center width | 380mm | |||
SPINDLE | Chuck diameter | 100mm | ||
Spindle speed | 100-3000r/min | |||
Spindle through-hole | 20mm | |||
Spindle mount | MT3 | |||
Spindle motor power | 500W | |||
FEED (stepper) | X travel | 150mm | ||
Z travel | 280mm | |||
The max moving speed | 2000mm/min | |||
The max feeding speed | 500mm/min | |||
Motor | 2.2N/m | |||
TOOL REST | Tool position | 4 | ||
Tool dimension | 8×8mm | |||

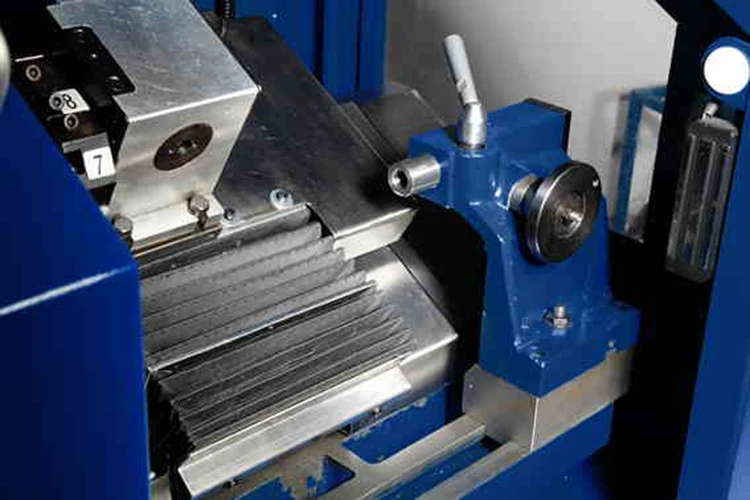

TAILSTOCK | Tailstock taper | MT2 | ||
Tailstock sleeve diameter | 17mm | |||
Travel of tailstock | 50mm | |||
ACCURACY | Positioning accuracy | 0.015mm | ||
Repeatability accuracy | 0.01mm | |||
OTHERS | Power | 230V or 120V | ||
Weight（NW/GW） | 210/250Kg | |||
Overall dimension | 1000×780×565mm | |||
Packing Size | 1200×940×770mm | |||
4 position auto control tool post
One key type lubrication system
Lifting ban makes easier moving
Optional accessory Hand wheel
PRODUCT CONFIGURATION

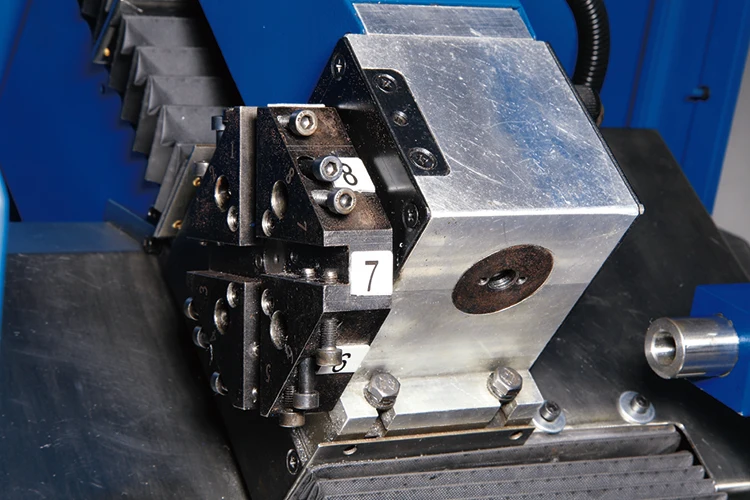

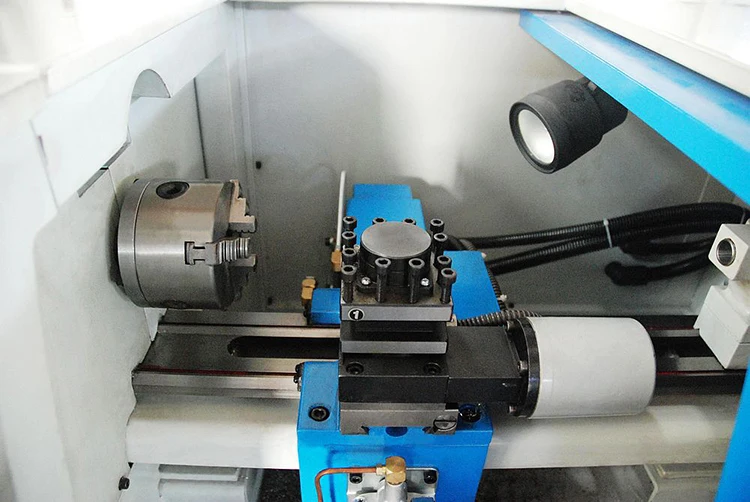

4 position auto control tool post
Make finished products
LED light
SIEG system

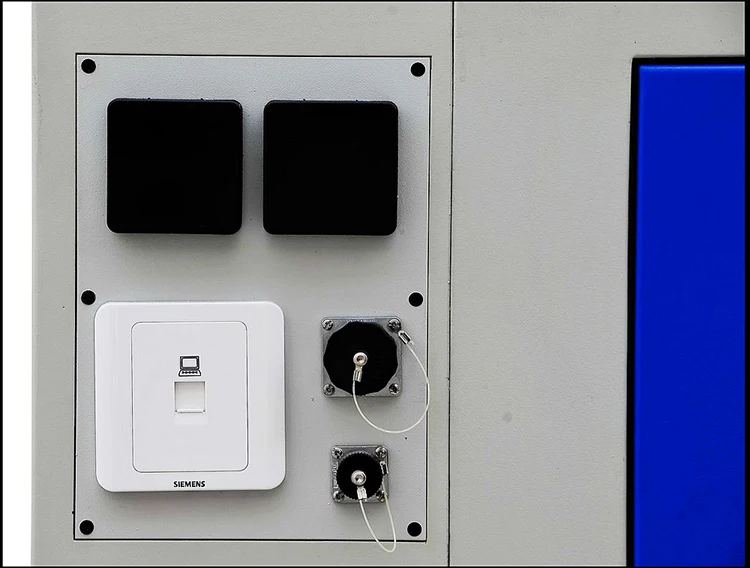

A PC-based control system. A software (in CD) was supplied with machine, loaded into your computer, connecting PC to machine via LAN.
MACH system
MACH is a PC-based control system,very popular in Hobby market,software is supplied by NEWfangled Solutions LLC,more information please visit www.machsupport.com,PC, connects machine by USB port or parallel port
Related Products

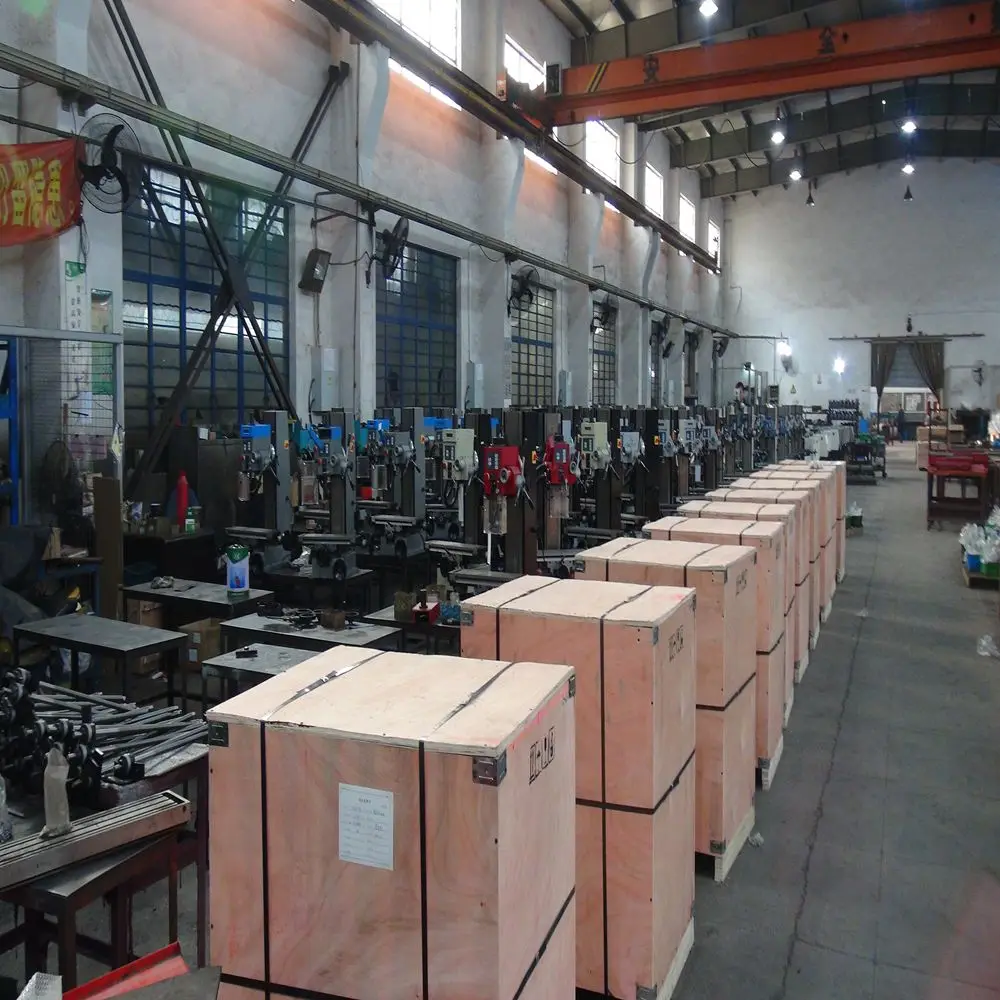

Packing&Shipping
Port of loading: Shanghai China.
Port of destination: as arranged.
By Express, by Sea,by Air Cargo,depend on your choice.
Company Introduction
Our Exhibition
China Import and Export Fair (Canton Fair)
Exhibition in India
Exhibition in Switzerland
Exhibition in Vietnam
Exhibition in Australia
Main Market
Exhibition in Japan
Light Industry Market
Hobby Market
Education Market
ISO 9001
CE for milling machine
CE for lache machine
FAQ
Q1: Is your company a factory or a trading company?
A1: We are a factory with more than 12 years of production experience. It alsohas an office in Liuzhou City, Guangxi Province, China.
Q2: Where is the factory and how can I get there?
A2: Our factory is located in Shanghai, China. We warmly welcome you.
Q3: What are your main products?
A3: We focus on various CNC machine tools,such as CNC lathes, CNC milling machines and CNC vertical machining centers.
Q4: What is the control of your lathe? Can I change it to another brand?
A4: The standard control of our lathe is GlaxoSmithKline. You can also change other controls, such as FANUC, Siemens, etc
Q5: How to select the most suitable machine?
A5: Please tell us your requirements for the machine, or you can send us product drawings, and our engineers can help you choose Best model.
Q6: What are your terms of payment?
A6: Our terms of payment are 30% t / T in advance and 70% t / T before delivery.
Q7: When is your delivery time?
A7: After receiving the deposit, the machine order takes 30-45 days. If some special models will be longer, we will give you the corresponding answer.
Q8: What is the minimum order quantity and product warranty period?
A8: One year, one set (except for special models)
Q9: What is a delivery package?
A9: Carton packing, wooden case
Q10: How does your company conduct quality control?
A10: ISO9001 and CE quality control
After Sales Service
Professional Servce from Professional Team
One year guarantee for whole machine.
7*24 hours before and after sales service.
Providing training, technical consulting service.
A team with well qualified technicians and service personnel。
