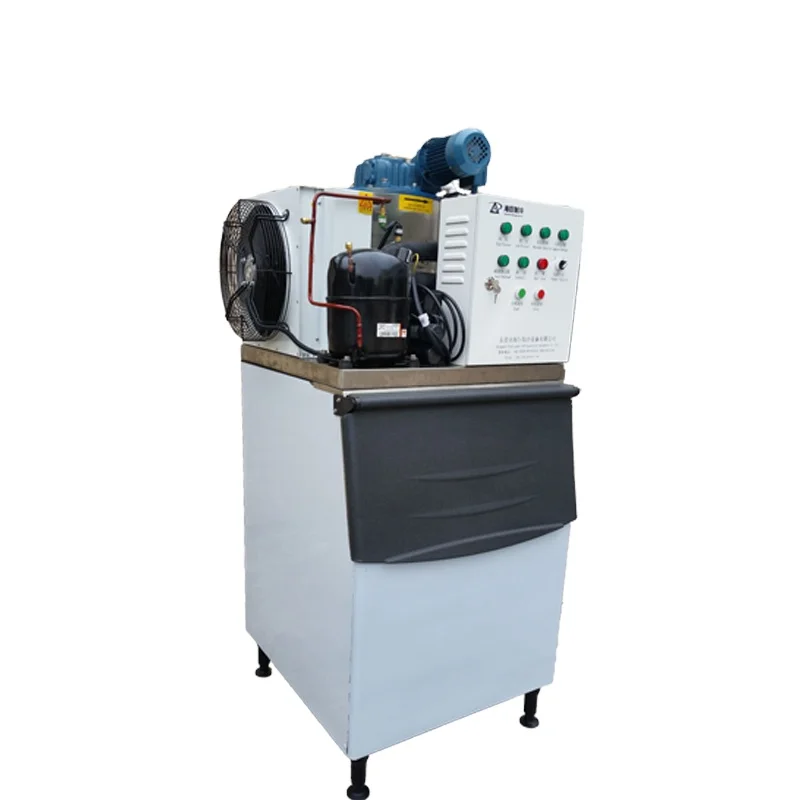

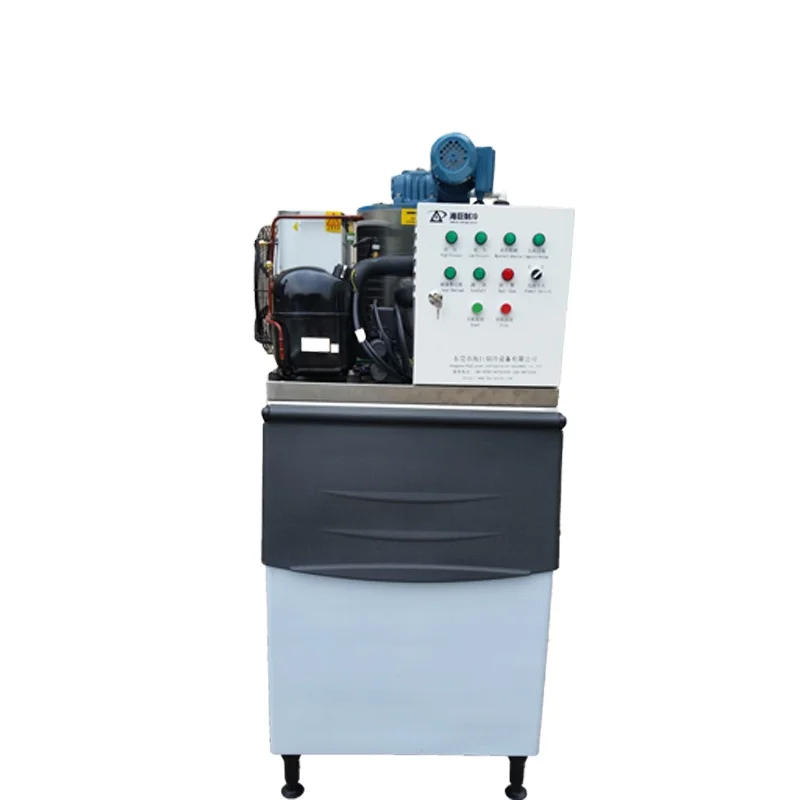

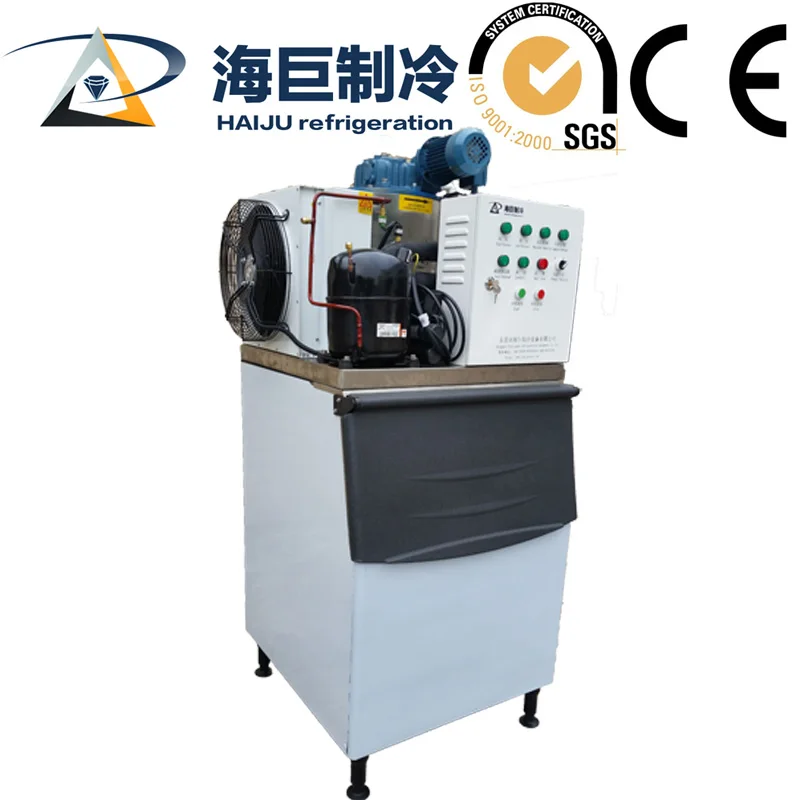

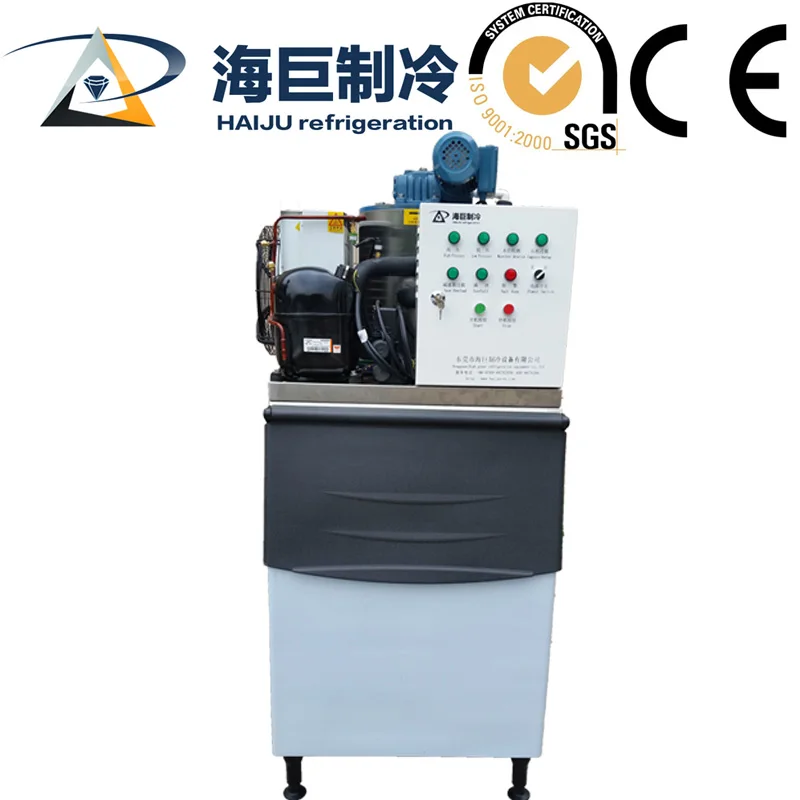

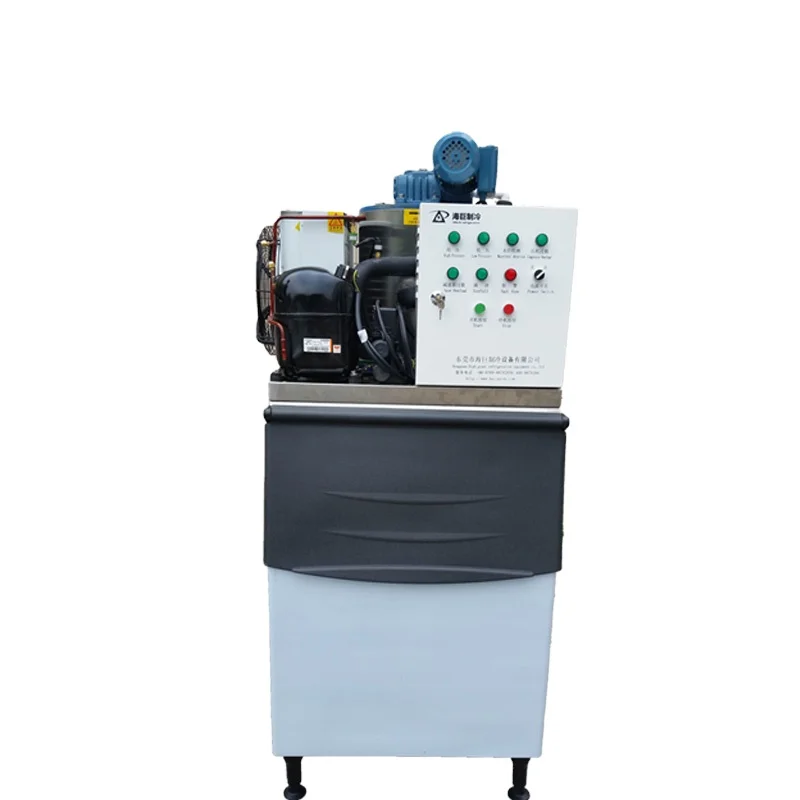

Flake Ice Machine Stainless Steel Evaporator 1 Ton Ice Flake Maker Machine

Product Overview

Description

Product Specifications
Customer-centric innovation-oriented with top quality creat High-Giant' future.
Flake ice machine,block,cube ice machine...



Ice plant machinery copeland compressor for seafood
Configuration: (Industrial flake ice machine)
A.Compressor: ,Copeland,Donfoss,Maneurop,Hanbell
B.Evaporator: Self-designed,produced,processing efficient ice-maker
C.Condenser: copper with AI fins for air cooling/shell and tube water cooling condenser
D.Expansion: Danfoss, Emerson
E.Refrigerant: Environmental refrigerant (R404A/R22)
F.Controller: PLC(Touch screen operation interface for option)
G.Power: 3N/380V/50Hz (it can be made according to the customers demand)



Product Description
 High-giants smaller flake ice machine is widely used in supermarket and shopping malls to keep vegetable,fruit and seafood product fresh.flake ice is not only can keep the referigeration products from dehydration, but also maintain the color, taste and quality, ensure keeping fresh in a long time.

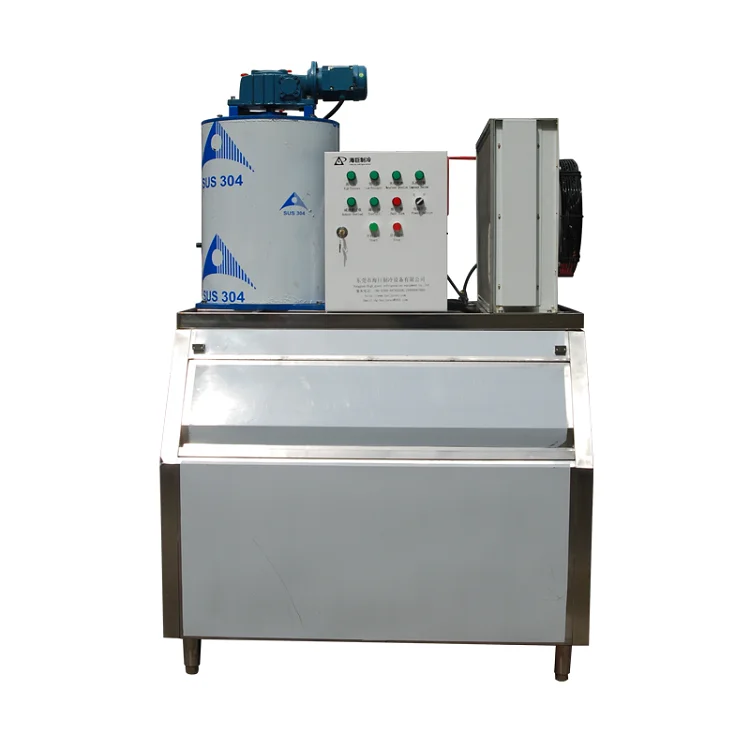

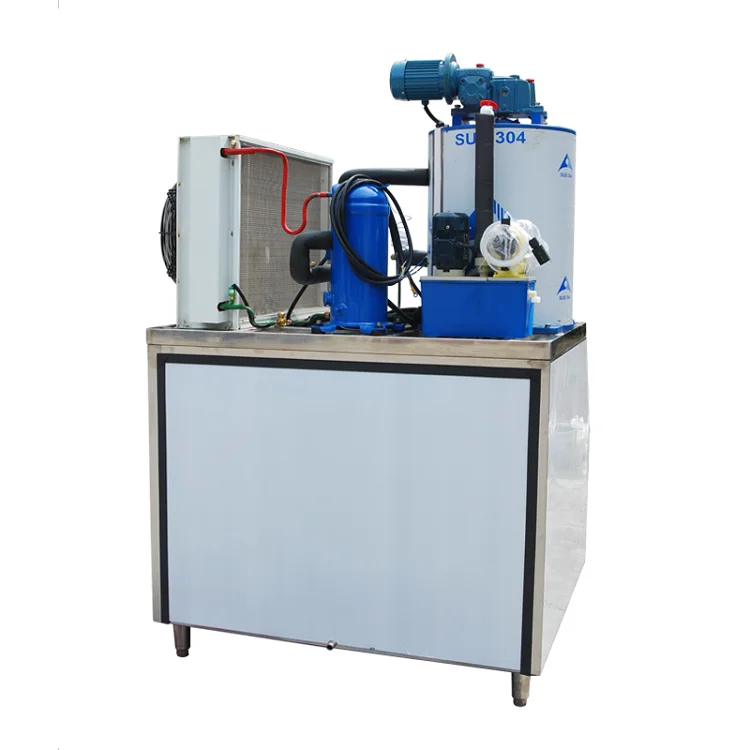

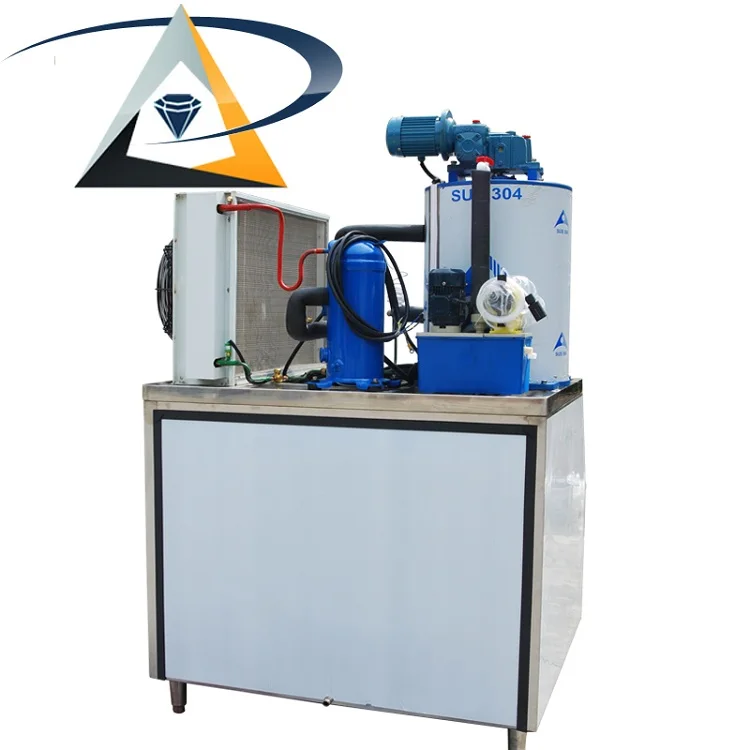

Small Sized Commercial Flake Ice Machine detailed parameters(0.5T-2.5T):

No.1  Fresh water flake ice machine model

Model	Daily Output	Bin Capacity	Ref.Capacity	Total Power	Cooling Mode	Unt Demension	Bin Size	Weight(Exclude Bin)
	(kg/24h)	(kg)	(kcal/h)	(kw)		L*W*H(mm)	L*W*H(mm)	(kg)
HSW-0.5T	500	300	2700	2.7	Air Cooling	1180*685*660	1220*980*1000	220
HSW-1T	1000	300	5120	4.5	Air Cooling	1210*920*820	1270*1220*1150	253
HSW-1.5T	1500	400	7583	8.3	Air Cooling	1210*920*820	1270*1230*1150	275
HSW-2T	2000	500	10400	9.7	Air Cooling	1400*1050*1090	1460*1350*1250	397

The Same parameters
   Evaporating Temp:-23ºC
   PowerSupply:3N/380V/50HZ
   Refrigerant:R22/R404

No.2  Sea water flake ice machine model

Model	Daily Output	Compressor	Total Power	Cooling Mode	Weight
	(kg/24h)		(kw)		(kg)
HSW-1T	1000	Danfoss	4.5	Air Cooling	370
HSW-1.5T	1500		9.5	Air Cooling	480
HSW-2T	2000		11	Air Cooling	560
HSW-2.5T	2500		11.8	Air Cooling	610

The Same parameters
   Evaporating Temp:-25ºC
   PowerSupply:3N/380V/50HZ
   Refrigerant:R22/R404



Case Photo:



The seawater flake ice machine adopts the production way of using the sea water directly to make ice on the fishing boat. But the real situation restrict the normal operation of the seawater flake ice machine such as seawater corrosion,ship shaking,long-time sailing and the unpredictable weather.Through studying the world markets conditions,the climate and the sea area's differences and after repeated experiments and researches, High-Giant company developed its own flake ice machine producing technology which applicable to the large marines.The seawater flake ice machine produced by High-Giant can be applied to a variety of different models of ocean fishing vessel.



Seawater flake ice machine characteristics
1. The material of the flake ice machine is 316 stainless steel with the stainless steel spiral ice blade,which ensures itoperating steady even under hostile environment.
2. Using the ship's own power and adopts special compressor makes the seawater flake ice machine safety,energy saving and efficiency. Its life period can reach to approximately 15years.
3. The ice maker applies PLC automatic control and all-automatic monitor,no need of personal operating,greatly saved labor cost.

-------------------------------------------------------------
Standard operating condition:
1.Ambient temperature 23°C; Water temperature:15°C. The production capacities will be increase 10% when the ambient temperature and water temperature falls about 5°C.
2  Voltage: 380V/3PH/50Hz (Special voltage by confirm before quote)
3.  water supply pressure: 0.1Mpa-0.3Mpa.
4. Cooling equipment working condition: evaporator temperature -23°Condenser temperature 40°C
5. Flake ice thickness::1.5-2.6mm, ice of temperature is -8°C

Packaging & Shipping
Plywood Case packing
