Product Overview
Description

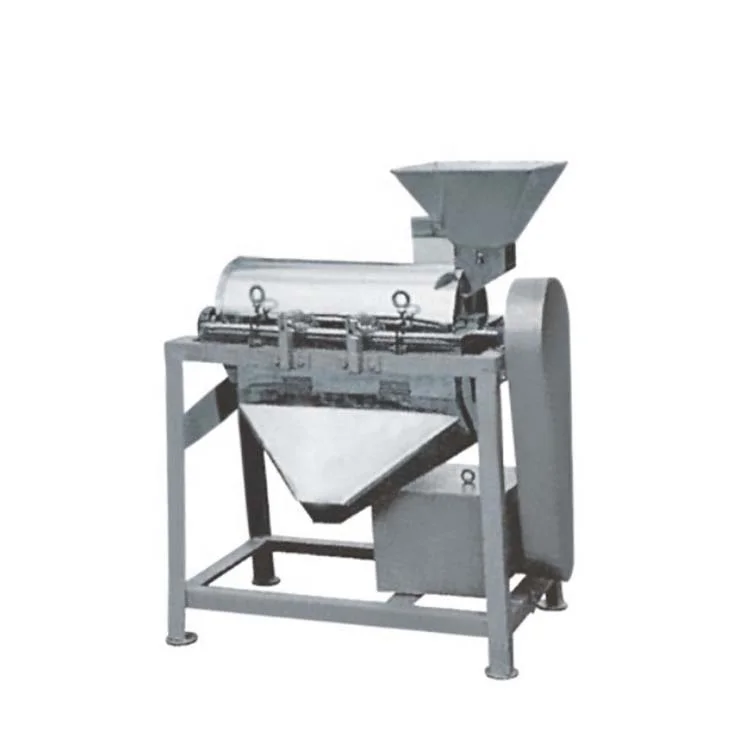

Best Price Industrial Fruit Juicer Machine Juice Making Machine for Mini Juice Plant

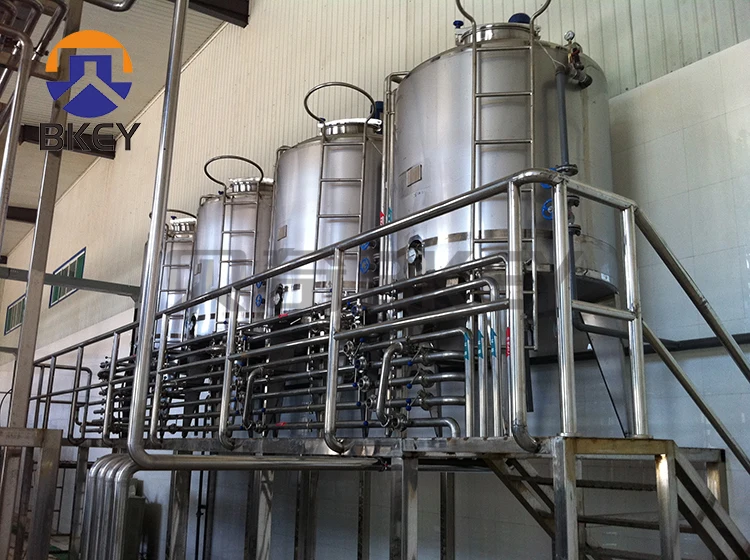

We can provide good quality of juice processing line, from 500L/H-5,000L/H.
Given the huge variety of different applications and customer requirements, most of the equipment is customized to meet individual customer needs.

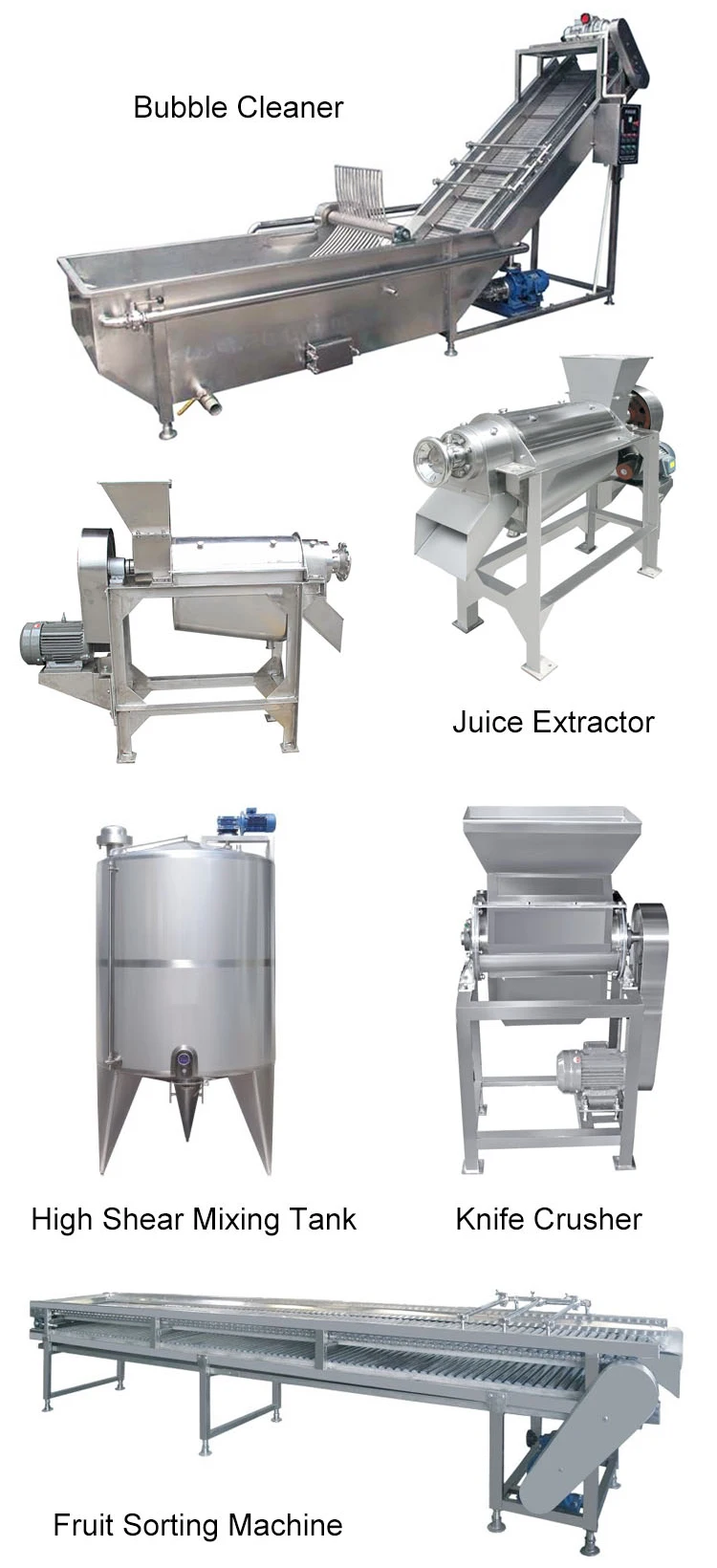

| No. | Machine | Description |

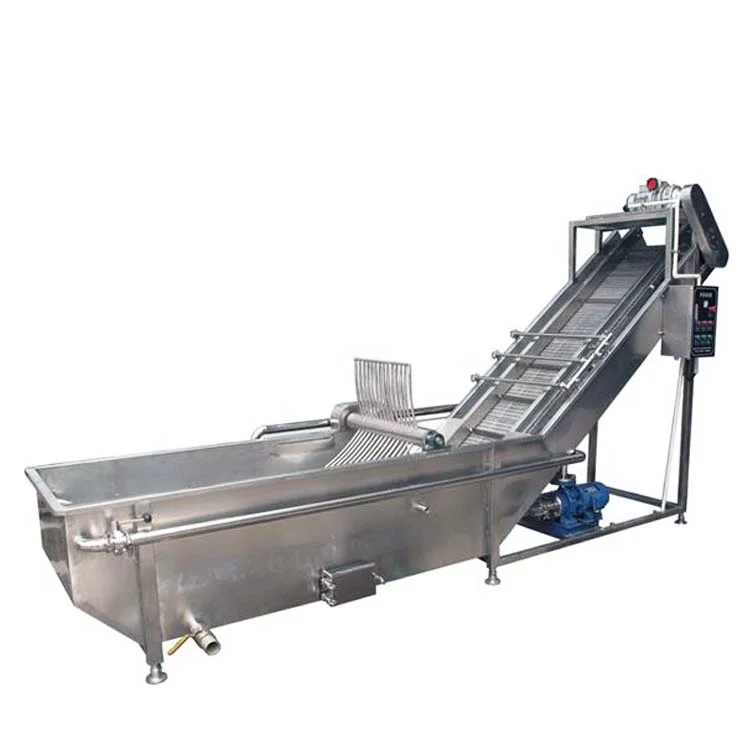

| 1 | Bubble cleaner | ØMaterial: stainless steel SUS 304 ØBubbling structure ØParallel multiple rows high pressure nozzle ØHigh pressure bubbling fan |

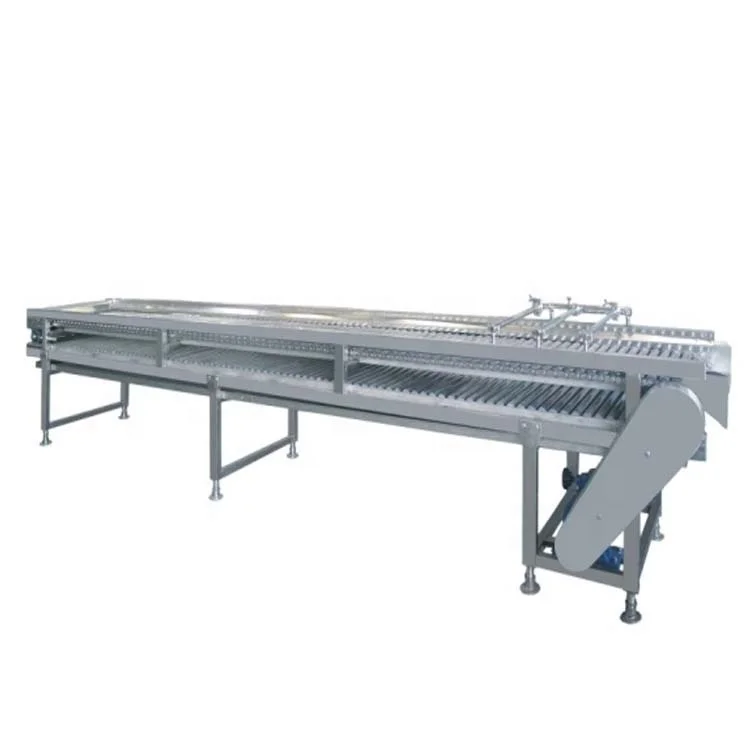

| 2 | Manual picking and conveyor | ØSmooth convey belt ØSUS304 square tube frame 75x45x3 ØChain drive mechanism ØControl:Manual ØMotor power:0.37KW mechanical speed regulator |
| 3 | Elevator | ØSmooth conveyor belt with baffle ØMaterial: stainless steel SUS 304 ØSUS304 square tube frame:75x45x3 ØChain drive mechanism ØControl:Manual
|

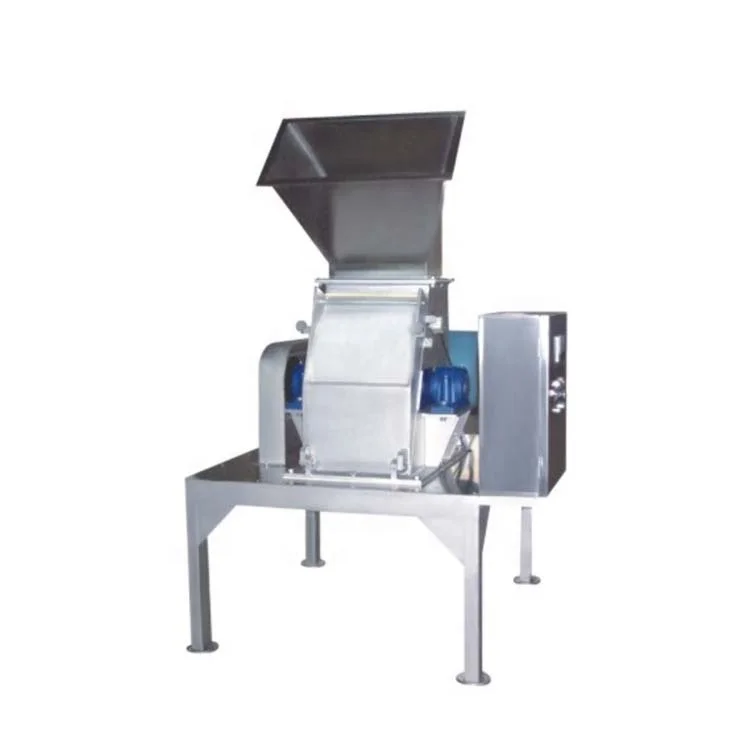

| 4 | Crushe | ØMachine parts that contact with material is made of stainless steel SUS304 ØMultiple cross blade structure can effectively improve the extraction rate of original sauce |
| 5 | Juice Extractor | ØMachine parts that contact with material is made of stainless steel SUS304 ØScrew extrusion structure Øcold pressing process was designed at room temperature to reduce the loss of nutrients |
| 6 | Screw pump | ØAdopt forced transportation mode ØMaterial: stainless steel SUS 304 ØControl:Manual |
| 7 | High shear Mixing Tank | ØMaterial: stainless steel SUS 304 ØThree layer construction ØGlass tube level gauge Øtop and bottom conical shape,manhole,respirator,cleaning ball,inlet and outlet,thermometer |
| 8 | Blending Tank | ØMaterial: stainless steel SUS 304 ØThree layer construction with conical top and bottom ØGlass tube level gauge Øtop and bottom conical shape,manhole,respirator,cleaning ball,inlet and outlet,thermometer |
| 9 | Double filter | ØLarge filtration capacity, small volume and large contamination capacity ØEasy replacement of filter ØFilter screen can be used repeatedly after cleaning |
| 10 | Buffer Tank | ØMaterial: stainless steel SUS 304 ØThree layer construction with conical top and bottom ØGlass tube level gauge Øtop and bottom conical shape,manhole,respirator,cleaning ball,inlet and outlet,thermometer |
| 11 | Homogenizer | ØTwo-pole mechanical voltage regulation, easy to adjust, safe and reliable ØPiston is made of wear resistant material Øfirst-order transmission mode, with smooth operation, low power loss and low noise ØMajor parts are made of stainless steel and corrosion resistant alloy,which meets the requirements of food hygiene |

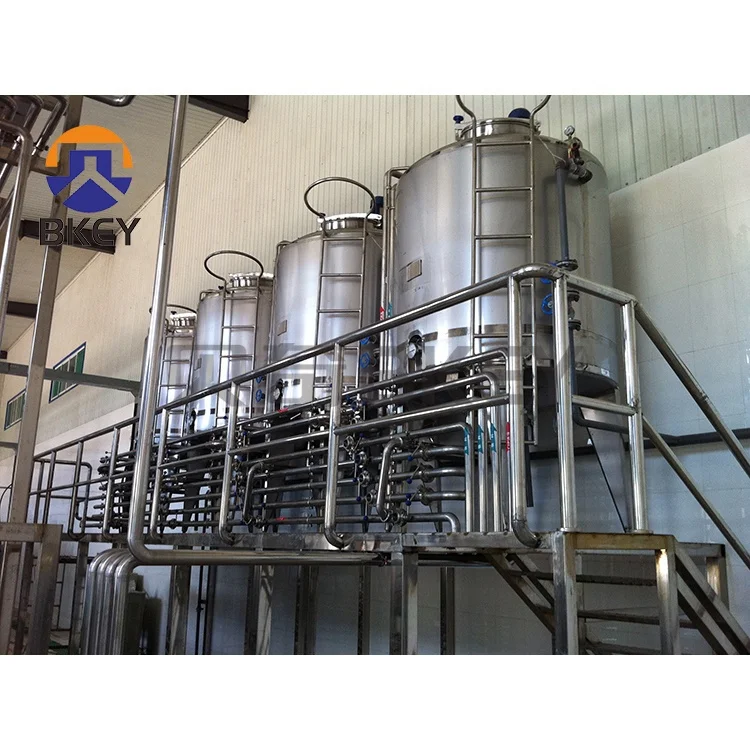

| 12 | High position tank | ØMaterial: stainless steel SUS 304 ØThree layer construction with conical top and bottom ØGlass tube level gauge Øtop and bottom conical shape,manhole,respirator,cleaning ball,inlet and outlet,thermometer ØStainless steel ladder |
| 13 | Centrifugal Pump | ØStainless steel SUS 304 |
| 14 | Installation Fittings |
1.Capacity: 500 L/H -5000 L/H
2.Raw Material: apple/cherry/strawberry/tomato,etc
3.Required working environment: cleaning,flat gound without violent vibration and striking
4.Temperature: 10-40℃
5.Electricity:Voltage:AC380V±10%
6.Frequency:50hHz±2%
Features:
1.Good quality SS 304/316L material
2.Whole processing line from fruit washing to juice processing
