ISUZU 700P 4X2 5ton Flat Bed wrecker tow truck with sleeper
- Category: >>>
- Supplier: Shanghai Fullwon Industrial Co. Ltd.
Share on (1600435542579):
Product Overview
Description

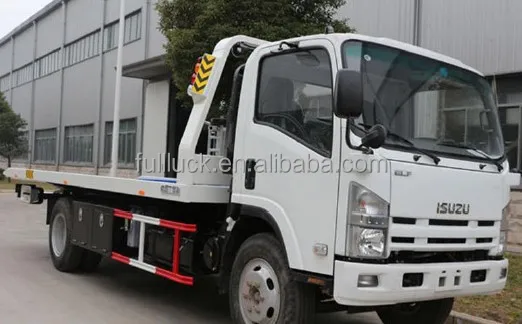

ISUZU 700P 4x2 5ton wrecker truck
| Chassis Specification | |||||
| Chassis model | ISUZU 700P,QL5100XXYA8MHJ | ||||
| Cab | One and half row cabin with A/C | ||||
| Driving Type | 4x2 Left hand drive | ||||
| Color | White | ||||
| Max Speed (km/h) | 110 | ||||
| Overall dimension (mm) | 8500×2350×2450 | ||||
| Mass in working order (kg) | 5670 | ||||
| GVW (kg) | 11000 | ||||
| Wheelbase (mm) | 4475 | ||||
| F/R track base (mm) | 1680/1650 | ||||
| F/R overhang (mm) | 1110/2905 | ||||
| Approach/Departure Angel | 21/9 | ||||
| Tire | 235/75R17.5 standard tires are 8.25R20 steel wire tires | ||||
| Clutch | Single-plate dry diaphragm spring clutch | ||||
| Steering | Hydraulic steering with power assistance | ||||
| Gear box | MLD 6-speed | ||||
| Bridge | Front axle | 4T | |||
| Rear axle | 7T | ||||
| Engine | Model | 4HK1-TC51, 190 horsepower, National V emission | |||
| Fuel Type | Diesel fuel | ||||
| Type | Water-cooled four-stroke, direct injection, turbocharged | ||||
| Exhaust (ml) | 5193 | ||||
| Max output power/rotate speed (hp/rpm) | 190/2600 | ||||
| Max torque/rotate speed (N.m/rpm) | 510/1600 | ||||
| Braking system | Service Brake | Air brake | |||
| Park Brake | Spring energy | ||||
| Electric system | 24v | ||||
| Superstructure specification | |||||
| Hoisting Organ | |||||
| Max. under-pulling capacity (kg) | 11000 | ||||
| Max. under-hoisting capacity (kg) | 2450 | ||||
| Fully extended hoisting capacity (kg) | 1800 | ||||
| Max effective length of boom (mm) | 1700 | ||||
| Extension traveling of boom (mm) | 1340 | ||||
| Up slope angles (°) | 8 | ||||
| Down slope angles (°) | -8.5 | ||||
| Platform | |||||
| Length(mm) | 6300 | ||||
| Width(mm) | 2300 | ||||
| Min. inclination angle (°) | 8 | ||||
| Max. Loading capacity(kg) | 5000 | ||||
| Winch | 5tons | ||||
| Quantity | 1 | ||||
| Rated traction Force of each winch (kN) | 40 | ||||
| Diameter of wire rope (mm) | 11 | ||||
| Length of wire rope (m) | 25 | ||||
| Min Wire Feed Speed (m/min) | 3.23 | ||||
| Power take off | |||||
| Type | PTO drive from transmission | ||||
TRUCK The company was founded in 1999. Leading truck dealer and exporter in Shanghai. Cooperates with leading truck manufactures and supply all kinds of heavy duty trucks, 3 wheels truck and semi-trailers. |
CONSTRUCTION EQUIPMENT Full Luck Enterprises Limited is reliable China's proceurement center of trucks, construction equipment and spare parts in Asia, cooperates with world leading construction equipment manufactures to supply all kinds of equipments to our customers around the world. |
SPARE PARTS Supply full ranges of spare parts for trucks and construction equipment. Professional and High effiency after market spare parts supply chain mangement for overseas customers. |
| * Heavy Duty truck | * Wheel loader | * Truck parts |
| * Light cargo truck | * Excavator | * Construction machinery parts |
| * Truck mounted crane | * Road roller | * Best value parts |
| * Customized truck | * Bulldozer | * Truckparts.com.ph |
| * 3 wheels truck | * Motor grader | * Fiamm horn |
| * Tank truck | * Mobile crane | * Workshop tools |
| * Semi-trailer | * Forklift truck | |
Q: How can we trust your company?
A: We are the officially authorized 4S dealer and distributor of some famous brands such as SINOTRUK, LONKING and
VOLVO. And we are registered in the Commercial Department of China, with the whole qualification for exporting.
Certificates including ISO9001 can also be provided.
Q: How about your warranty item?
A: We can support you with original spare parts, and email or telephone assistance in the following days. If necessary, our
experienced engineer can go abroad to your place for technical support.
Q: How about your product quality?
A: All our products are from the original manufacturers and the quality is 100% guaranteed.
Q:Can I be your agent in my country ?
Q:Can I be your agent in my country ?
A: It's OK if the order quantity is appropriate. We looks forward to long-term cooperation.
