Electric Thermal Actuator for HVAC System and underfloor heating devices
- Category: >>>
- Supplier: Jiaxing Forward Trade Co. Ltd.
Share on (1600435574924):
Product Overview
Description
Product Description

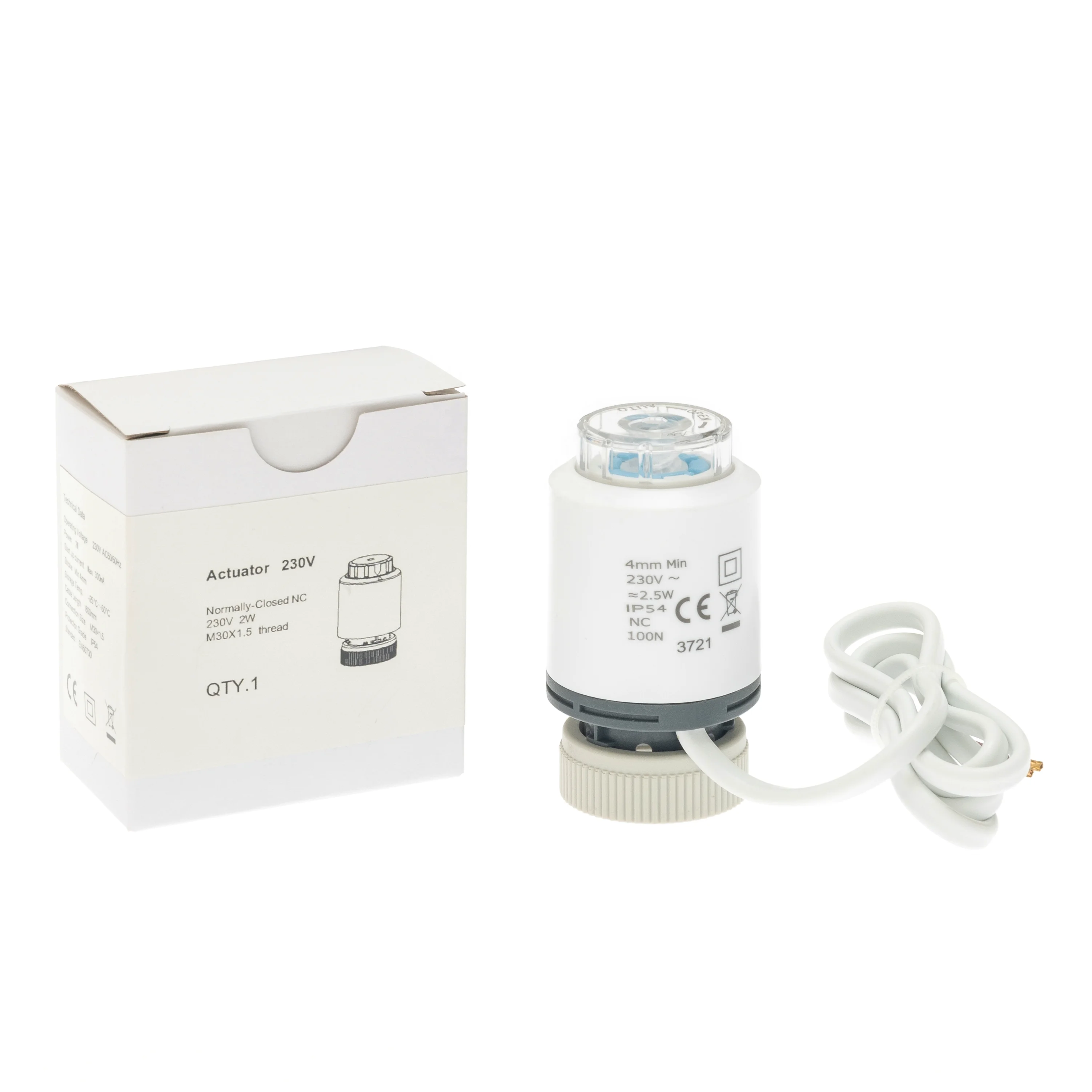

920062PL Thermal actuator
Thermal actuators are mainly used in floor heating systems to control closing and opening of the valves.It is specifically applied to electric drive part of the branch manifold valve, small valve and dynamic balance valve.No noise,low power consumption,3 years warranty,fast installation and easy disassembly.
920062PL actuator is equipped with a control knob for manual opening,valve opening/closing indicator and a device for returning to automatic operation from the manual position when the electric supply is restored.
Feature:
* Preventing water hammer
* Preventing water hammer
* Super shut-off ability
* Super fast switching speed
* Opening the valve by the manual when the power-off
* Preventing the valve core of manifold.
No | Item | Data |
1 | Type | Normally closed |
2 | Voltage | 230V(AC)-24V(AC)-24V(DC) |
3 | Power Consumption | 2.5W |
4 | Working Temperature | 0-50℃ |
5 | Force | 100N |
7 | Running Time | 3-5min or 60s |
8 | Connection Size | M30×1.5mm |
9 | Cable Length | 800mm |
10 | Protection Grade | IP54 |

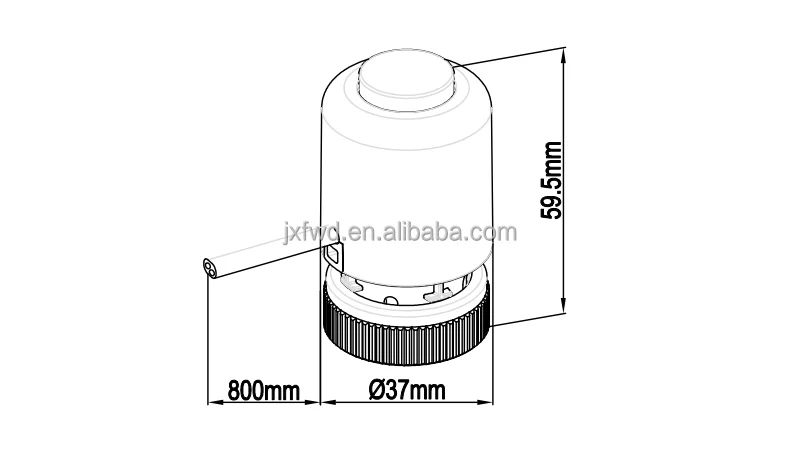

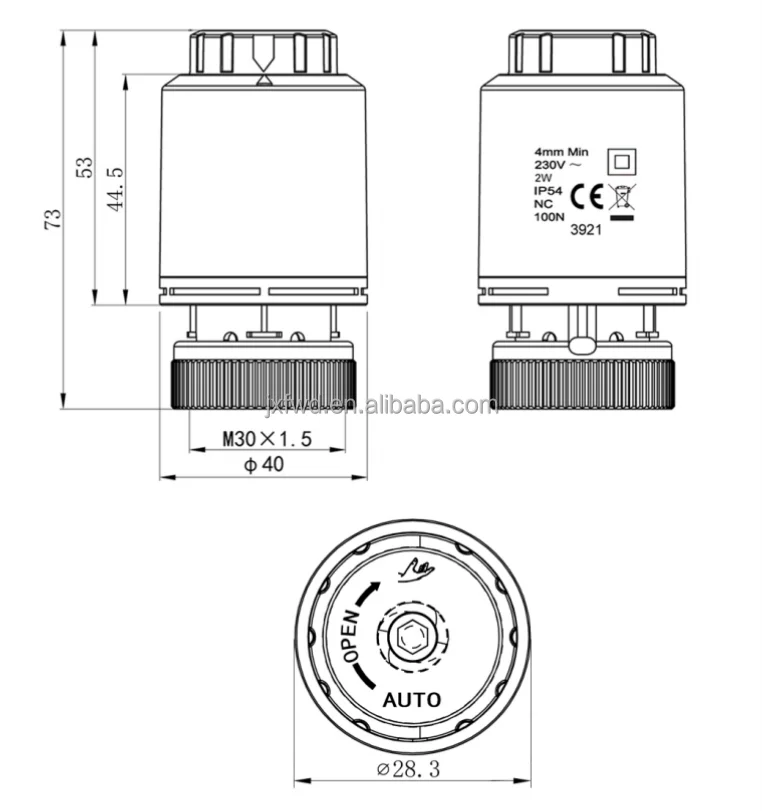

Dimensions
Using Thermal Actuator

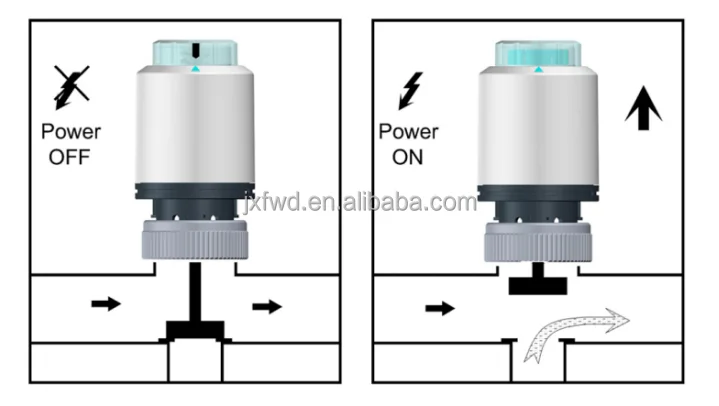

1.the actuator in automatic mode.
In automatic mode,when the actuator is electrically powered,it opens the valve.The blue circular of the knob will rise up.

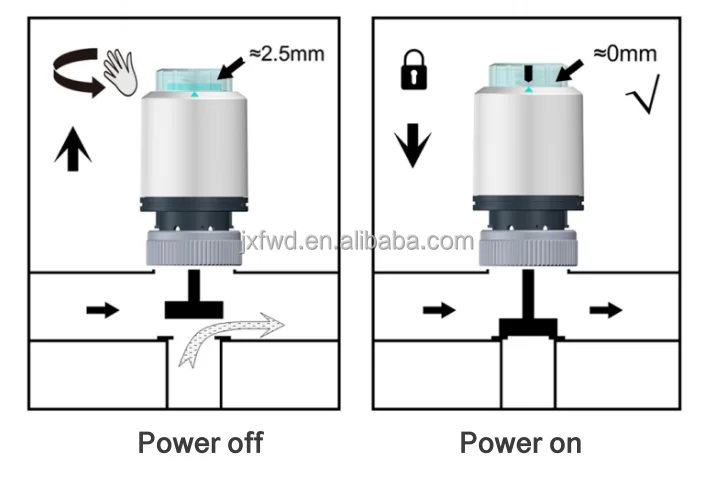

2.the actuator in manual mode.
Turn the knob on the top of the actuator clockwise until its limit stop trips and the arrow symbols and overlap，
To close the valve manually and restore automatic operation of the device,turn the knob anticlockwise onto“AUTO”.
To close the valve manually and restore automatic operation of the device,turn the knob anticlockwise onto“AUTO”.

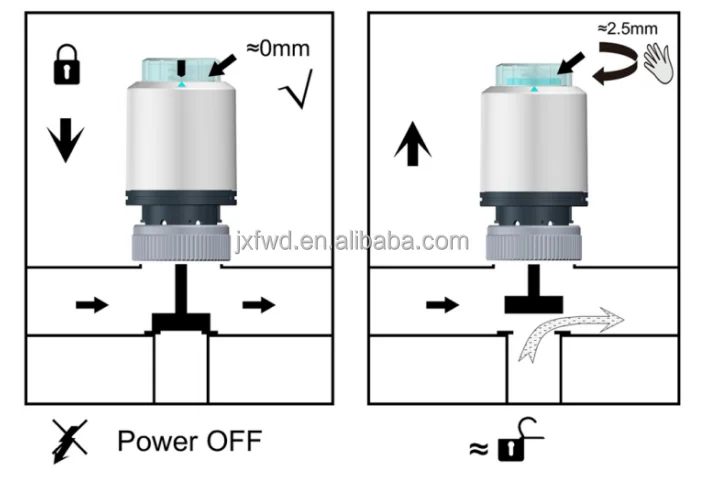

3. Manual to Automatic Mode:
Rotate anticlockwise the knob back to Auto when power is on.
Actuator works back in its automatic mode after few seconds.
Actuator works back in its automatic mode after few seconds.
Installation and Disassembly
Press the actuator down to the valve,and clockwise
rotation the adapter
rotation the adapter
Lift the actuator up to the valve,and anticlockwise
rotation the adapter
rotation the adapter
