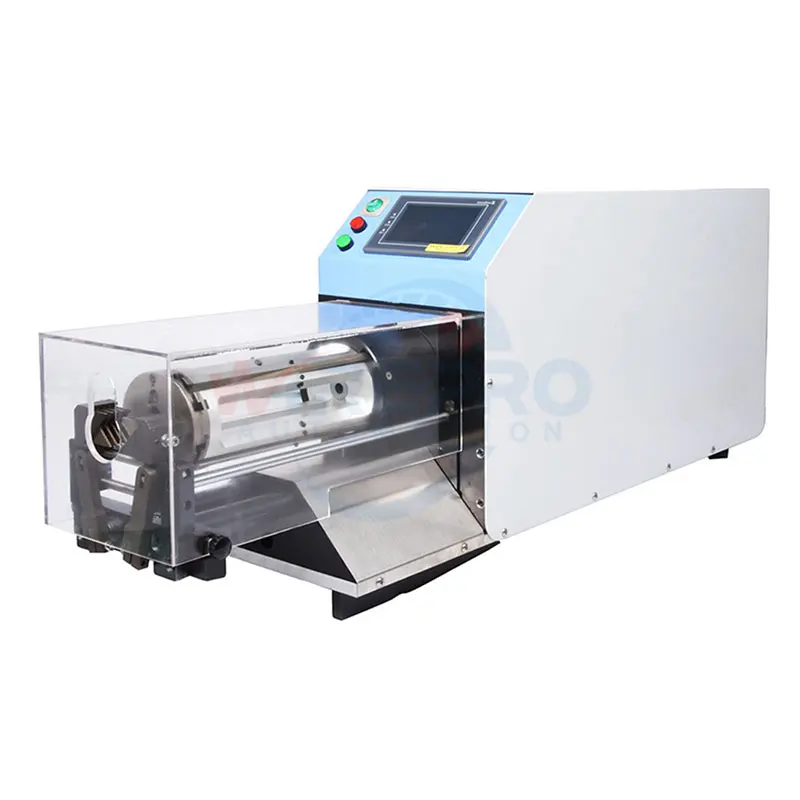

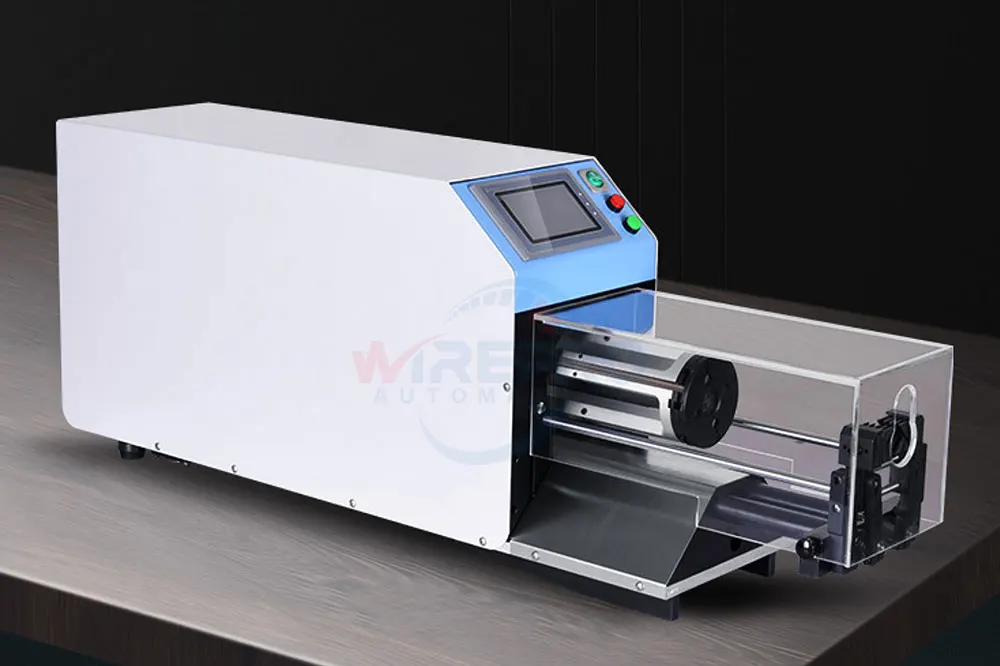

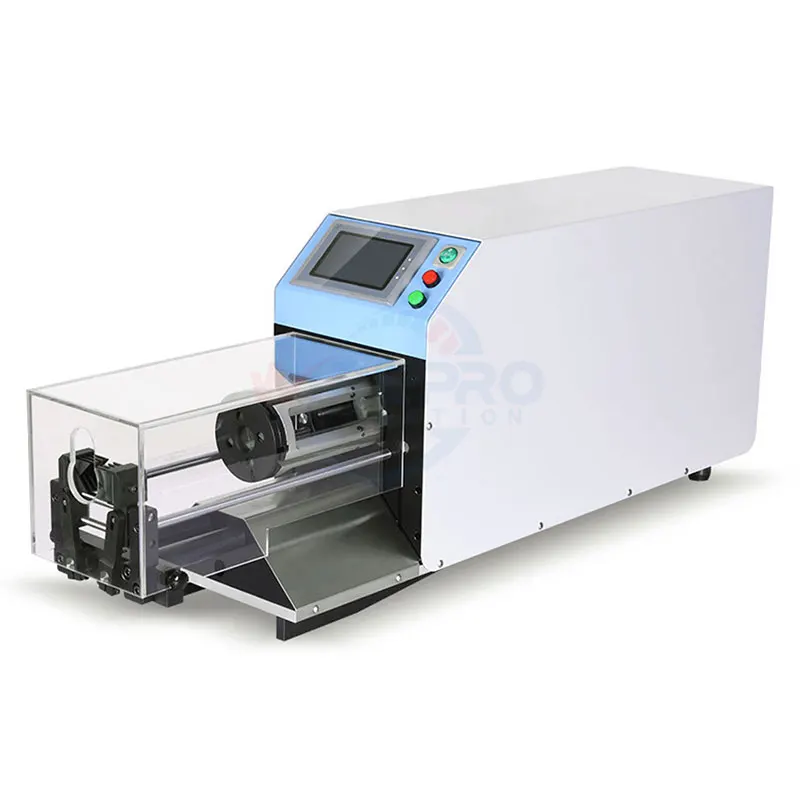

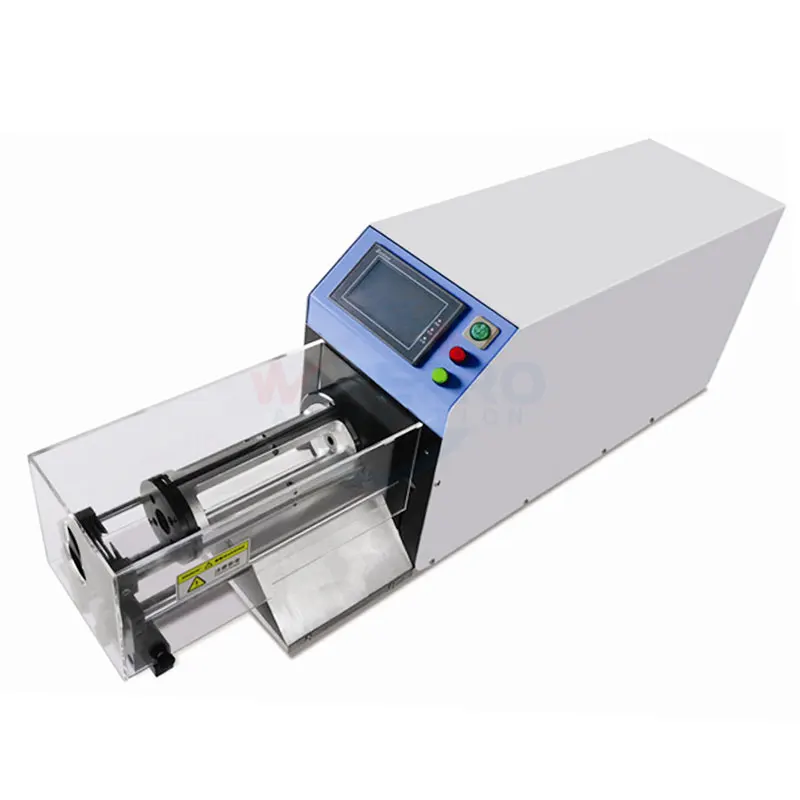

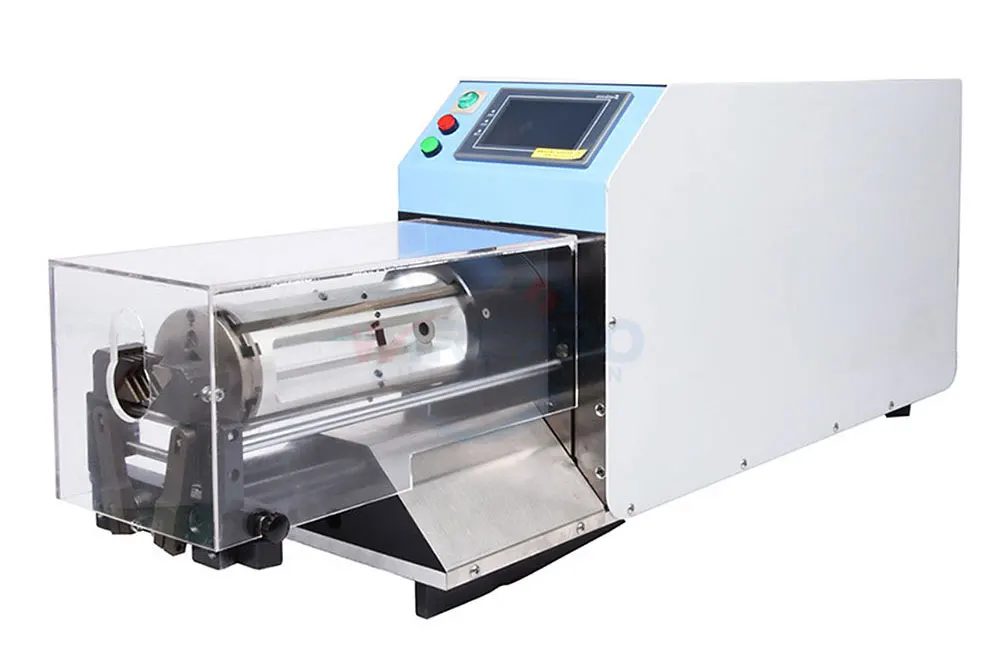

SC D18 Semi automatic rotary coaxial wire cable stripping machine coax cable stripper
- Category: >>>
- Supplier: Wirepro Automation Technology Co. Ltd.
Share on (1600435585541):
Product Overview
Description
WIREPRO Automation Focus on Machines & Solutions for Wire Processing & Harness Assembly, welcome you to check more equipment on our website. If you need any support, welcome contact us anytime ^_^ |
Product Description
Semi-automatic multilayer multi layer electrical coax wire stripper large coaxial cable stripping machine
| Full stripping | This series of machines are designed for coax cable semi-automatic stripping. |
| Coaxial cable processing | ||
| Microcoaxial cable processing | ||
| Conformable cable processing | ||

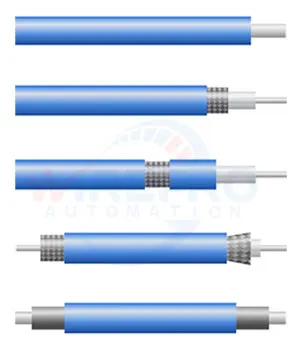

| Multilayer stripping |
Features:
This series of machines are designed for stripping coaxial cable. Applicable to all kinds of flexible and semi-flexible coaxial cable in the communication industry and medical automotive industry etc.

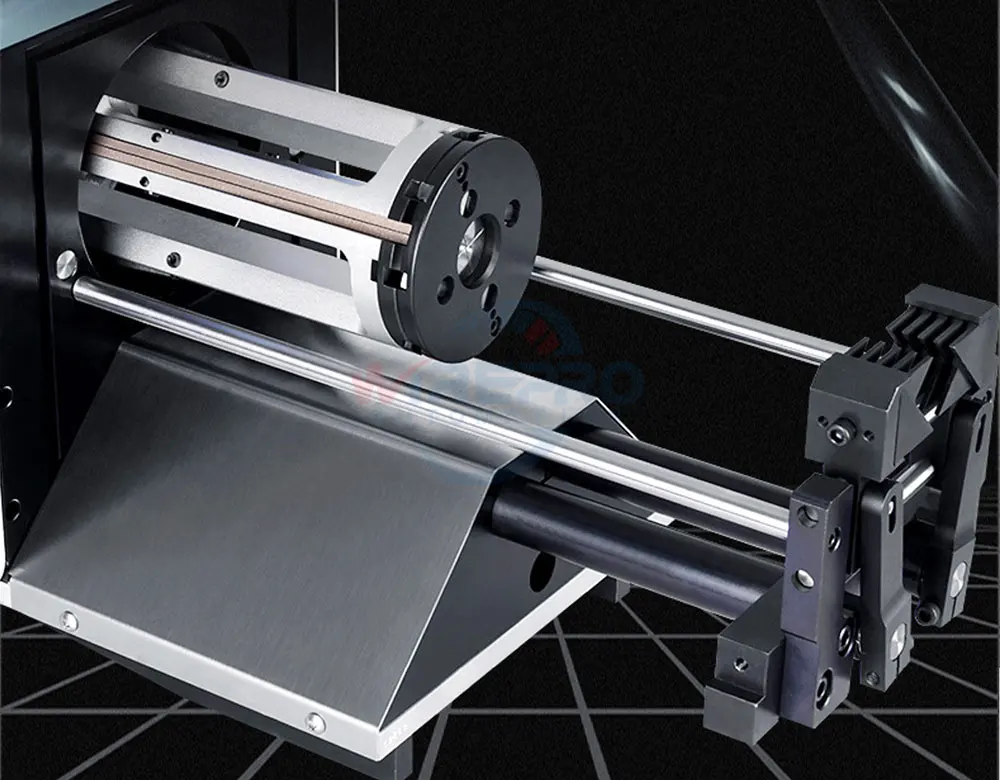

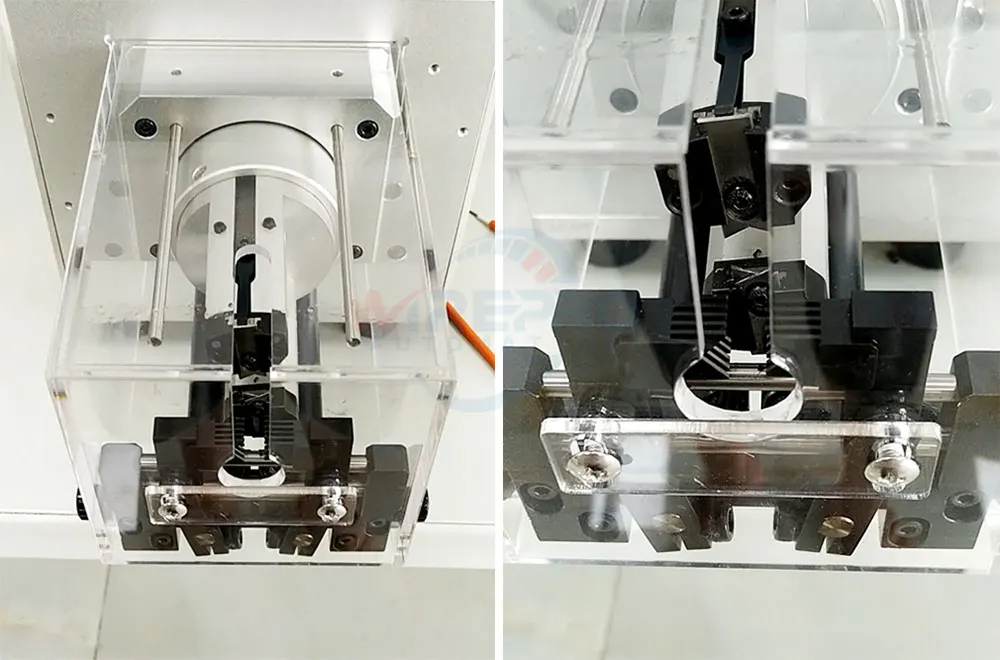

1. Rotary stripping head, exquisite structure improve the stripping stability and working life
2. Max stripping 9 layers
3. Support multi-layer peeling, multi-stage peeling
4. Servo motor, precision ball screw, and multi-point motion control system, work stable and high efficient

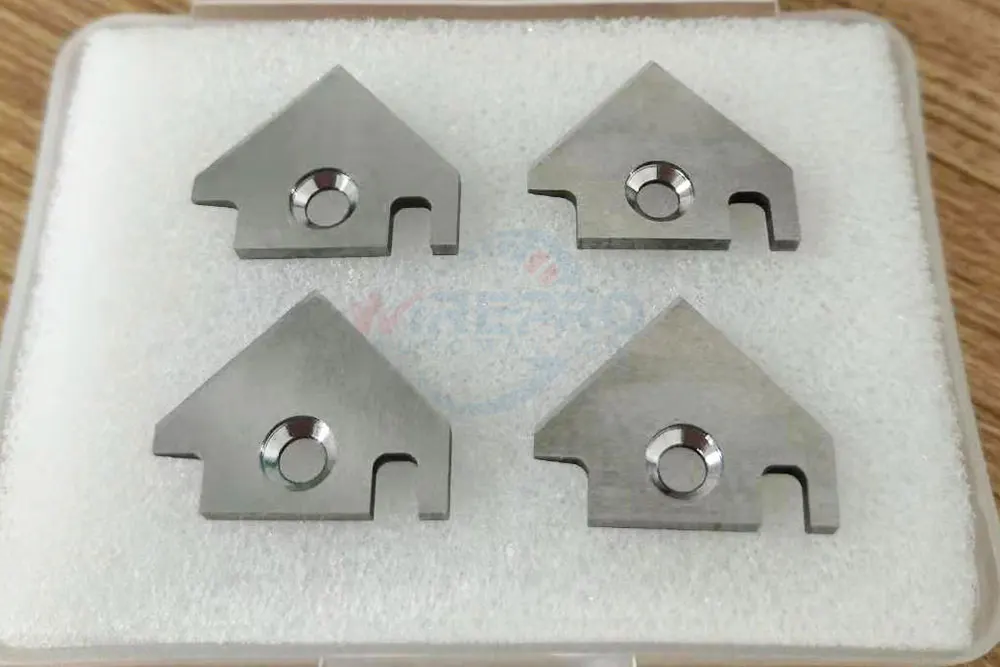

5. The stripping tool is made of high-quality steel and optionally coated with titanium alloy, sharp and durable
| Model | SC-D25 | SC-D35 | SC-D45 |
| Features | Rotary knife cutter stripping | ||
| Available Wire Dia | 3-25mm | 12-35mm | 12-35mm |
| Stripping Length * | ≤150mm | ≤200mm | ≤200mm |
| Production Rate | 300-500pcs/h | 200-400pcs/h | 150-400pcs/h |
| Blade Quantity | 4 pieces | ||
| Stripping Layers | Max 9 layers | ||

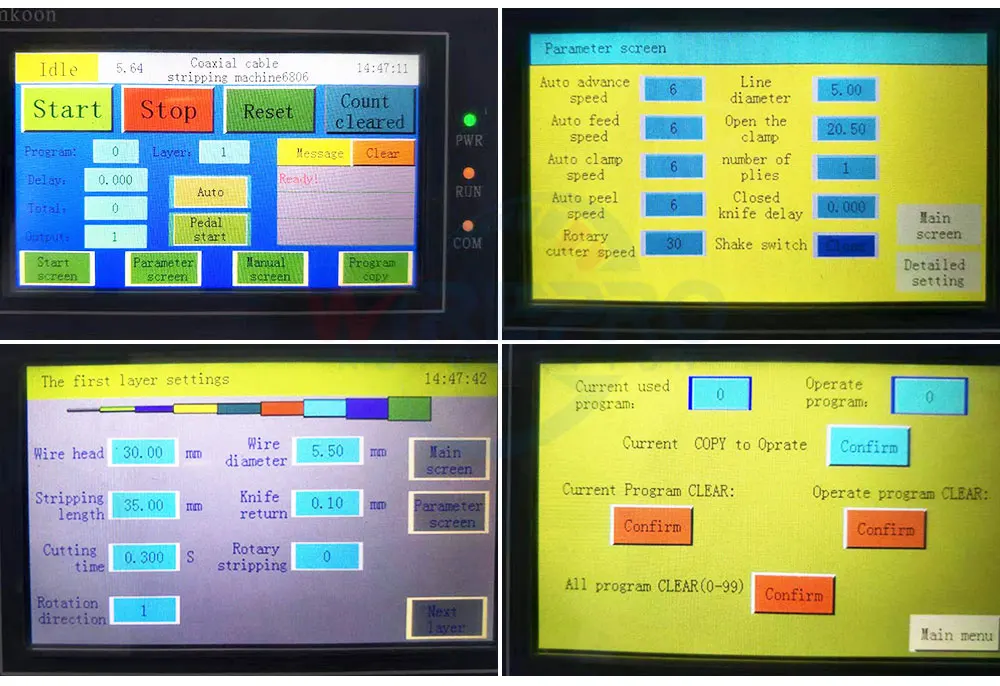

| Display Screen | Chinese / English touch screen | ||
| Power Supply | 220V/110V | ||
| Power | 630W | 1000W | 1000W |
| Dimensions | 92*22*40cm | 106*28*55cm | 106*28*55cm |
| Weight | 45kg | 70kg | 70kg |
| Note: * mark parameters custom available. If you are in doubt, we are happy to process your sample. | |||

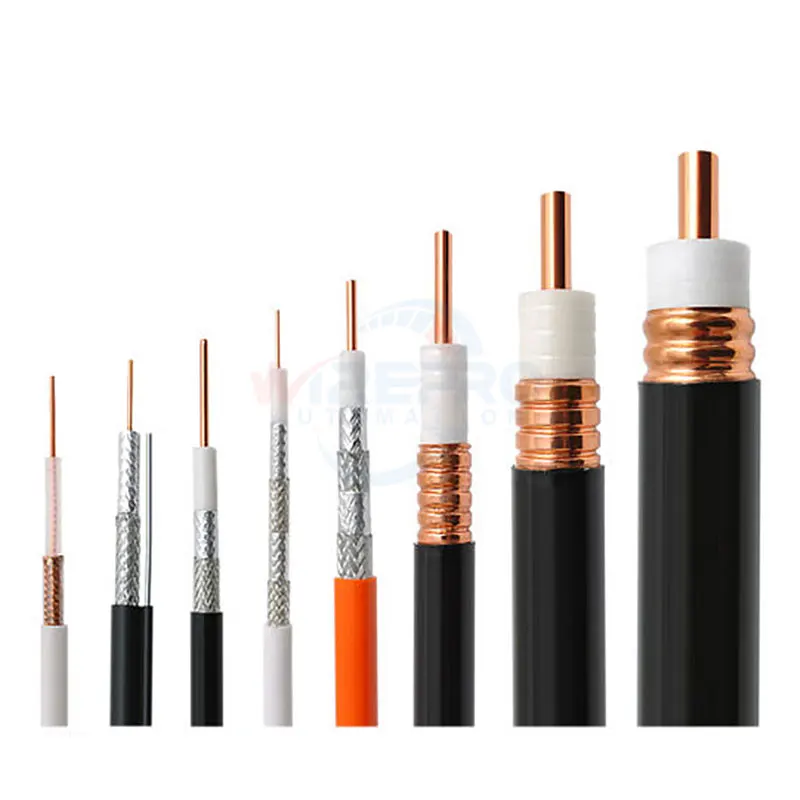

Stripping wire samples:
A. Coax Cable Cutting and Stripping Machine
Related Products
A. Small Wire Gauge Wire Cutting and Stripping Machines
B. Multi-cores Cable Cutting and Stripping Machine
Packaging & Shipping
Samll size machines: Standard carton
Medium size machines: Thickened cartons and wooden pallets
Big size machine: Plywood wooden cases
Company Information
FAQ
| 1. What are the optional accessories and wearing parts? Optional accessories: Wire spool pre feeder, Wire collector, wire coiler or wire stacker. Wearing parts: Generally blade and belt. For More info, please contact WIREPRO. |
| 2. Operation panel and user manual language? English and Chinese are optional. |
3. How long is the lead time? Ready time: Generally the standard machine will be ready in 2-3 workdays, the customized machine please check with us again when placing an order.
Packaging: The machine is packed in a carton or wooden box according to the size. Sufficient cushioning material will protect the machine intact during long-distance transportation.
Transportation: Support shipping via air, sea, and railway many transportation modes. |
4. How do we install and operate the machine?
Small Machine: The user can install and adjust the machine according to the Manual and video of how to install and set the machine. If you have any questions, please contact our technical support (Email: support at wireproauto.com) to provide online, video and other support. If customers really need we can make exceptions on-site service (expense will be borne by customers).
Large full automatic machine: We will arrange engineers on-site installation, testing and adjustment of equipment. Please check with us about the details.
We also welcome you to come to our factory for more training. |
| 5. What after-sales service is provided? WIREPRO has an experienced technical support team to be responsible for troubleshooting for customers via phone calls, emails, videos etc. If need spare parts, DHL generally could deliver them in about 3-5 days. |
