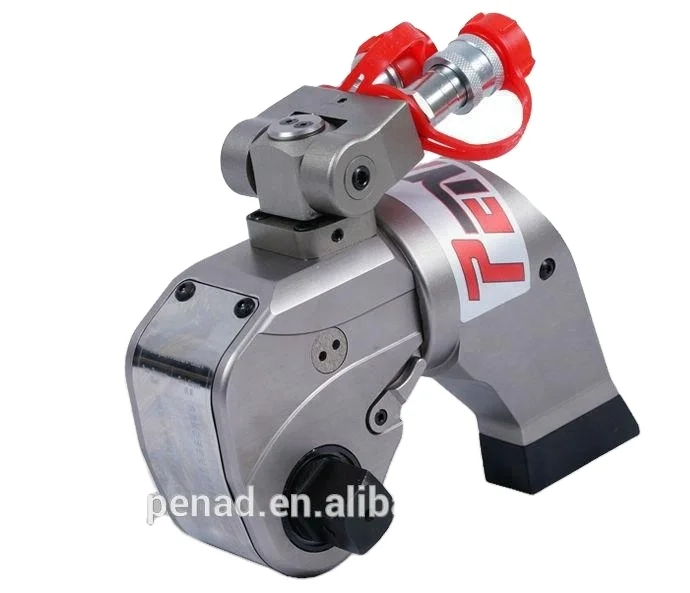

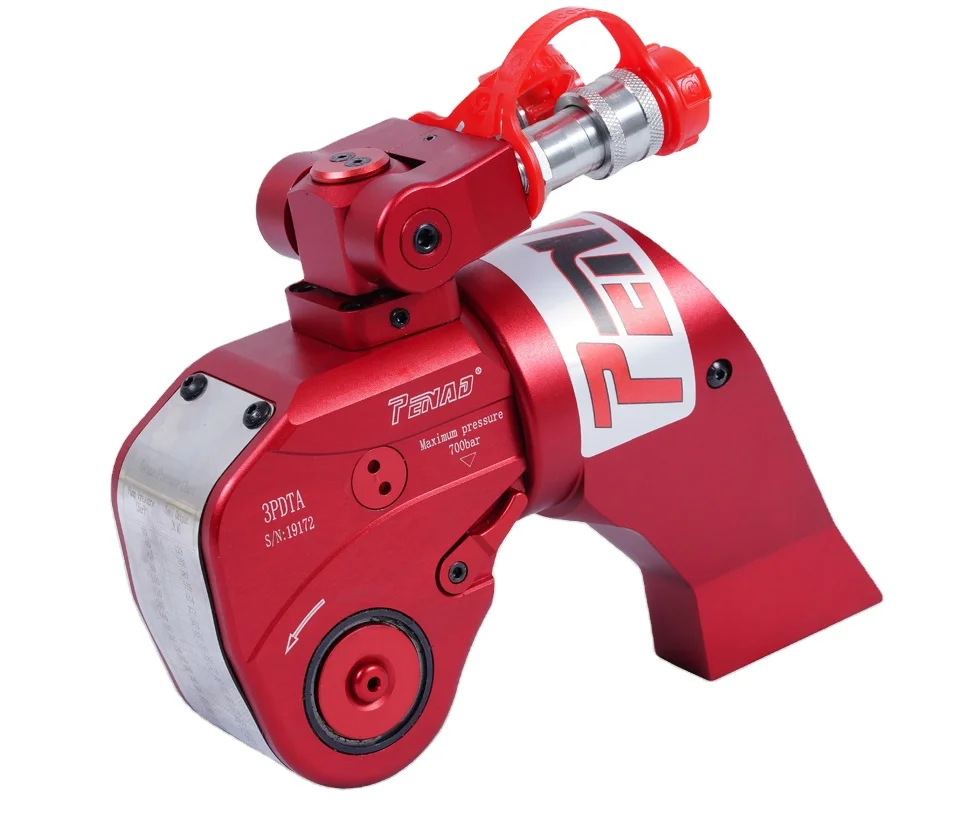

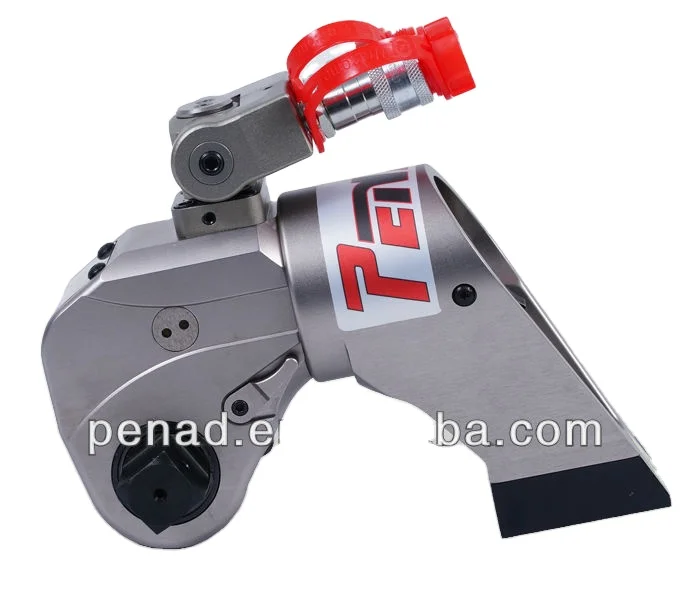

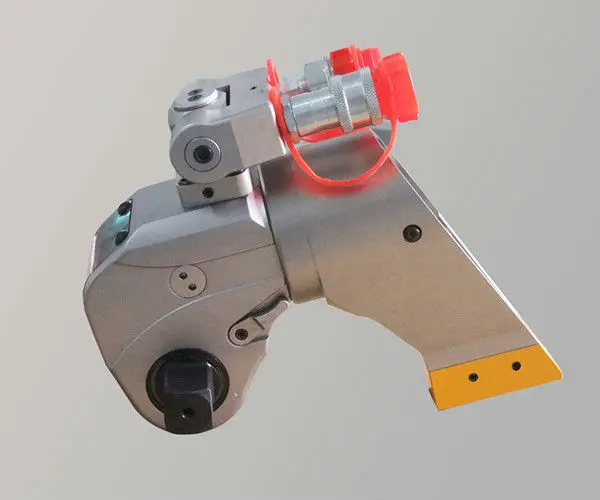

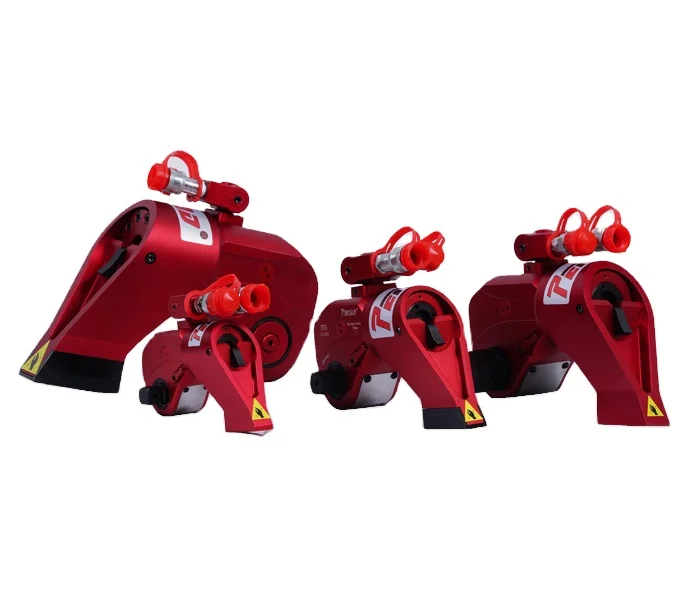

China Alloy Steel Manufacturing Adjustable Hydraulic Torque Wrench Tools Square Drive Hydraulic Torque Wrench
- Category: >>>
- Supplier: Hangzhou Penad Machinery Co. Ltd.
Share on (1600435589736):
Product Overview
Description
Product Description
Hydraulic torque wrench is one kind of power tool designed to exert torque on a faster to achieve proper tightening or loosening of a connection through the use of hydraulics. Hydraulic torque wrench is applied to the nut either directly or in conjunction with an impact socket. Hydraulic torque wrenches apply a predetermined, controlled amount of torque to a properly lubricated fastener.

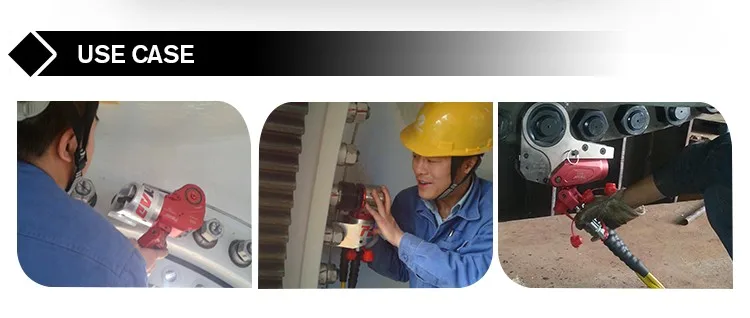

Application field:
Hydraulic wrenches are widely used. Hydraulic torque wrench is an important tool for the installation and disassembly of
large-sized bolts in the construction, maintenance and repair of shipbuilding, petrochemical, wind power, hydropower,
thermoelectric, mining, machinery, steel mills, rubber, pipelines and other industries. There is no substitute for other tools,
which is not only convenient to use, but also provides very accurate torque, and the torque repetition accuracy reaches about ±3%.
Hydraulic wrenches are widely used. Hydraulic torque wrench is an important tool for the installation and disassembly of
large-sized bolts in the construction, maintenance and repair of shipbuilding, petrochemical, wind power, hydropower,
thermoelectric, mining, machinery, steel mills, rubber, pipelines and other industries. There is no substitute for other tools,
which is not only convenient to use, but also provides very accurate torque, and the torque repetition accuracy reaches about ±3%.
Characters:
1.Square hydraulic torque wrench,high quality with good performance.
2.Precision Machined - Increases accuracy, durability and repeatability.
3.360° Swivel Fittings (Patented) - Allow hose movement without hose binding. Stainless steel with fewer moving parts - a great
improvement over competitors’ delicate design. (Dual plane swivel fittings shown on wrench above.)
4.Coated - All exposed parts to resist corrosion
5.Calibrated - Every tool is function tested and calibrated to ±0 .03 accuracy
1.Square hydraulic torque wrench,high quality with good performance.
2.Precision Machined - Increases accuracy, durability and repeatability.
3.360° Swivel Fittings (Patented) - Allow hose movement without hose binding. Stainless steel with fewer moving parts - a great
improvement over competitors’ delicate design. (Dual plane swivel fittings shown on wrench above.)
4.Coated - All exposed parts to resist corrosion
5.Calibrated - Every tool is function tested and calibrated to ±0 .03 accuracy
Specification
Selection Chart:
MODEL | 07PDTA | 1PDTA | 3PDTA | 5PDTA | 8PDTA | 10PDTA | 15PDTA | 20PDTA | 25PDTA |
TORQUE(N.m) | 112-1120 | 183-1837 | 451-4512 | 752-7528 | 1078-10780 | 1551-15516 | 2062-20627 | 2666-26664 | 3572-34725 |
BOLT SIZE(M) | 14-30 | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 39-80 | 42-90 | 48-100 |
WEIGH(KGS) | 1.8 | 2 | 4 | 7 | 9.1 | 13.1 | 18 | 25 | 31 |
L1(mm) | 110.8 | 130 | 166 | 198 | 213 | 231 | 270 | 295 | 314 |
L2(mm) | 139.3 | 182 | 241 | 281 | 308 | 336 | 400 | 443 | 464 |
H1(mm) | 42 | 50 | 68 | 80 | 90 | 100 | 110 | 120 | 137 |
H2(mm) | 65.8 | 72 | 95 | 123 | 130 | 141 | 179 | 182 | 200 |
H3(mm) | 76.2 | 99 | 130 | 155 | 171 | 187 | 201 | 228 | 255 |
H4(mm) | 108.1 | 144 | 176 | 198 | 216 | 230 | 244 | 268 | 295 |
R1(mm) | 20.5 | 26 | 34 | 39 | 47 | 51 | 55 | 59 | 67 |
R2(mm) | 68.3 | 99 | 134 | 152 | 171 | 174 | 195 | 250 | 251 |
Recommend Products
Company Profile

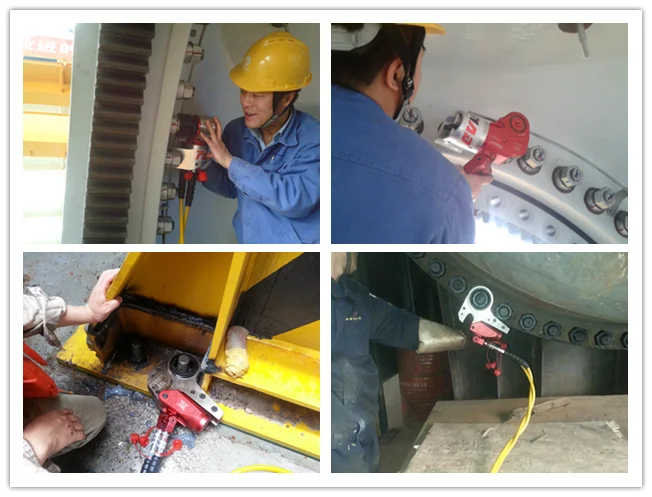

Working site:
Certifications
FAQ
FAQ:
Q: Can you do OEM?
A: Yes, we can.
Q: How about the MOQ?
A: 1PCS.
Q: How about the delivery time?
A: Normally, 2-3 days. But it depends on your order quantity.
Q: How about the warranty?
A: 1 year.
Q: What certificate do your product have?
A: We have CE, ISO 9001:2000
Q: Where is your loading port?
A: Ningbo or Shanghai China port.
Q: Are you a manufactuer or trading company?
A: We are a manufacturer specialize in hydraulic tools for more than 10 years.
Q: Can you do OEM?
A: Yes, we can.
Q: How about the MOQ?
A: 1PCS.
Q: How about the delivery time?
A: Normally, 2-3 days. But it depends on your order quantity.
Q: How about the warranty?
A: 1 year.
Q: What certificate do your product have?
A: We have CE, ISO 9001:2000
Q: Where is your loading port?
A: Ningbo or Shanghai China port.
Q: Are you a manufactuer or trading company?
A: We are a manufacturer specialize in hydraulic tools for more than 10 years.
