growatt MIN 10000TL X Singles phase grid tie inverter with limiter
- Category: >>>
- Supplier: Sunlink (xiamen) New Energy Technology Co. Ltd.
Share on (1600435640568):
Product Overview
Description
Growatt Inverter 3Kw Single Phase Solar Inverter 3000 Watt On Grid Solar Inverter 12V
Products Description

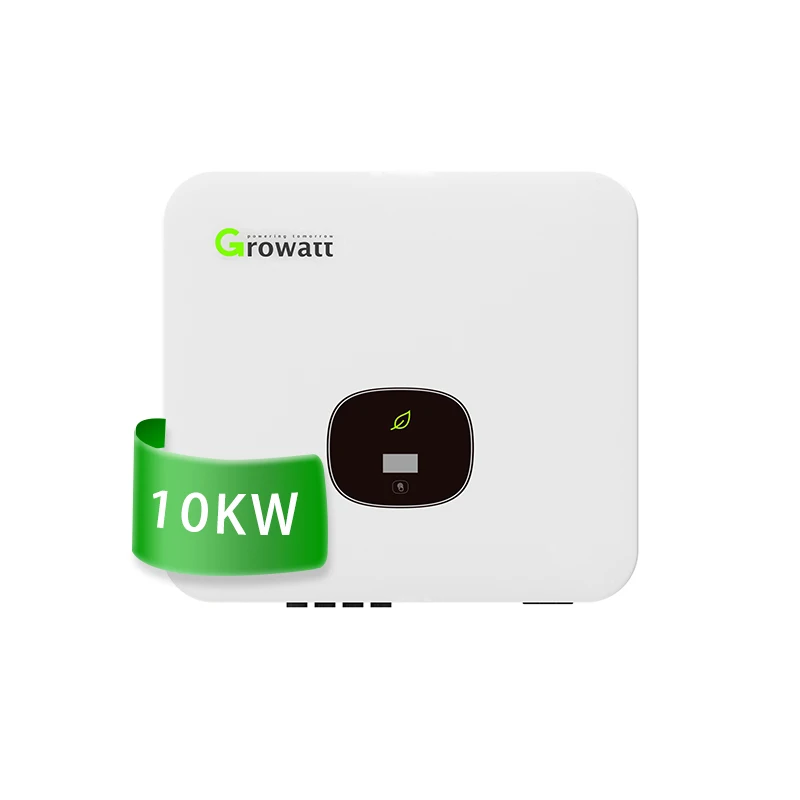

Growatt MIN 10000TL-X 10kw On Grid Solar Inverter
This is the latest model from Growatt’s Smart Inverter Solutions for your rooftop solar PV at home. The MIN series is a beautiful, compact design that unlike some other inverters, has an easy to use touch button. This is so you can find out what your system hasbeen doing, quickly. While it is a pleasure to use, it has a great efficiency level of 98.4% too.
Growatt MIN 10000TL-X
· 3 MPP trackers
· Type II SPD on DC side
· Supports export control
· Touch key and OLED display

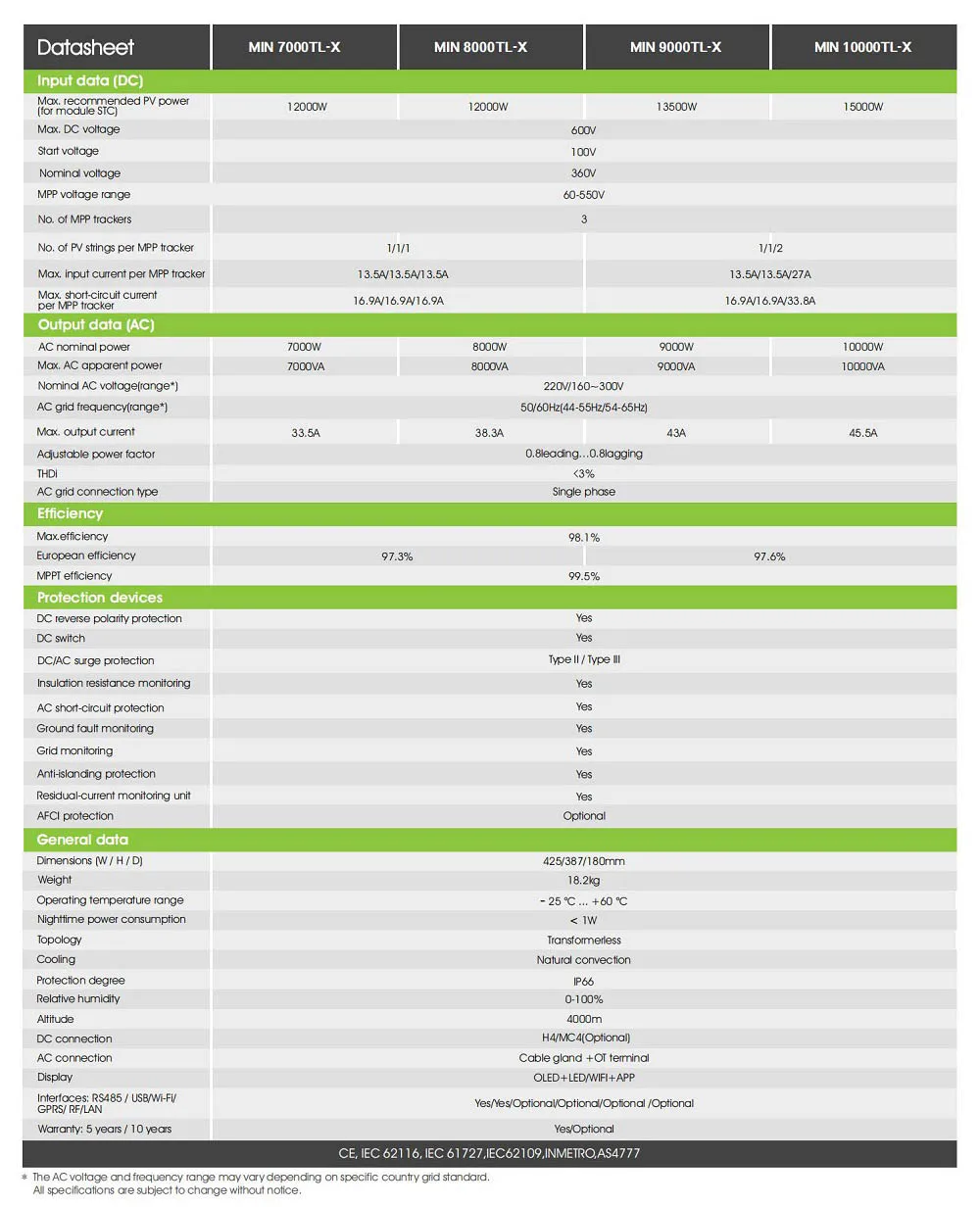

Product Paramenters
Model | 10000TL-X |
Input data(DC) | |
Max. recommended PV power(for module STC) | 15k |
Max. DC voltage | 600V |
Start voltage | 100V |
Min. operating voltage | 60V |
Nominal voltage | 360V |
MPP voltage range | 60-550 |
No. of MPP trackers | 3 |
No. of PV strings per MPP trackers | 1/1/2 |
Max. input current per MPP trackers | 13.5/13.5/27A |
Max. short-circuit current per MPP trackers | 16.9/16.9/33.8A |
Output data(AC) | |
Rated output power | 10000W |
Rated apparent power | 10000VA |
Max. apparent power | 10000VA |
Nominal AC voltage/range** | 220/160~300V |
AC grid frequency/range** | 50 60Hz/44-55Hz;54-65Hz |
Rated output current | 43.5A |
Max. output current | 45.5A |
Max output overload protection | 63A |
Max. inrush current (Peak value/duration time) | <10A/5ms |
Max. output fault current (Peak value/duration time) | <108A/10us |
Max. inverter backfeed current to PV array | 0A |
Power factor(@nominal power) | >0.99 |
Adjustable power factor | 0.8leading…0.8lagging |
THDi | <3% |
AC grid connection type | Single phase |
Overvoltage category | PV:II AC:III Others:I |
Efficiency | |
Max. efficiency | 98.10% |
Euro-eta | 97.60% |
Application
MIN 10000TL-X

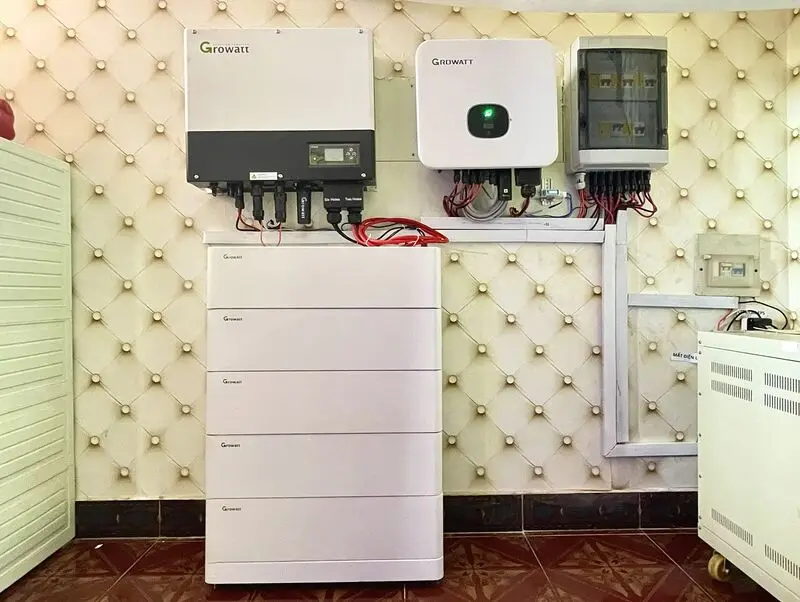

Another solar storage system was installed in Ba Ria-Vung Tau. Growatt's SPH5000 hybrid inverter and 05 ARK LV lithium battery modules have been selected for installation at home. The system is developed on the existing grid system, using MIN 10000TL-X, 1-phase inverter. The combined solution of grid frequency modulator and storage inverter can easily expand the system, increase the utilization rate of solar load, and be independent of the grid in the event of a power outage.

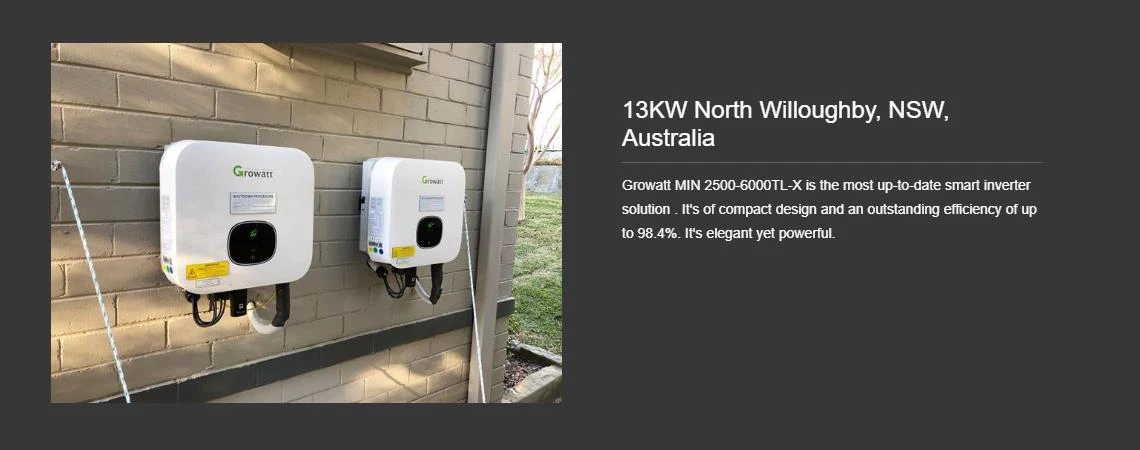

Two MIN 2500-6000TL-X inverters were chosen by a household in North Willoughby for their PV system. Growatt MIN 2500-6000TL-X is the most up-to-date PV inverter ideal for residential solar plants.

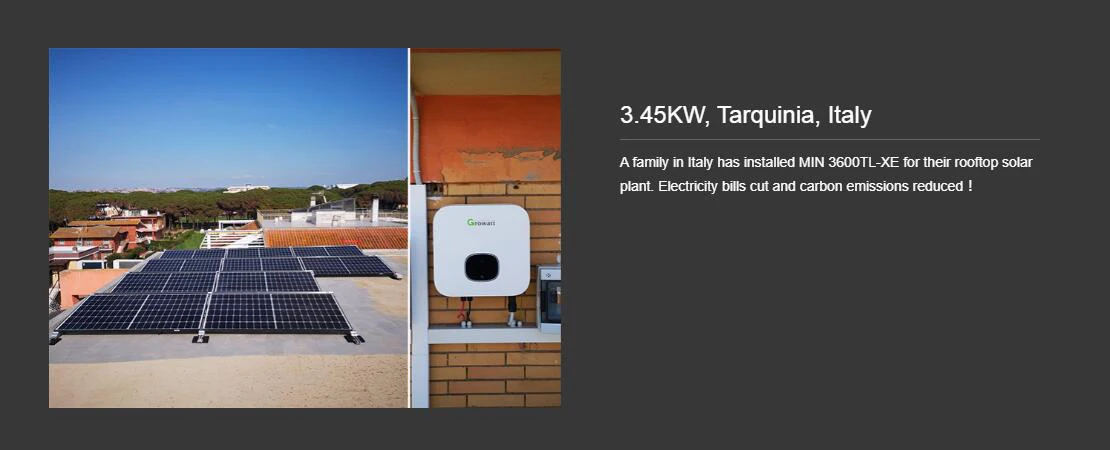

A family has installed MIN 3600TL-XE for their rooftop solar plant. Electricity bills cut and carbon emissions reduced！

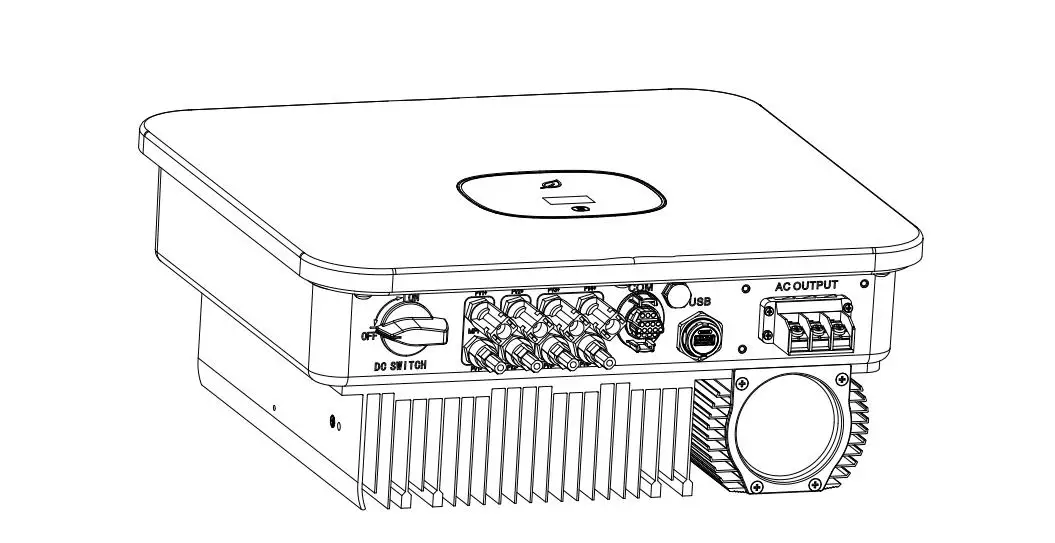

Details Images

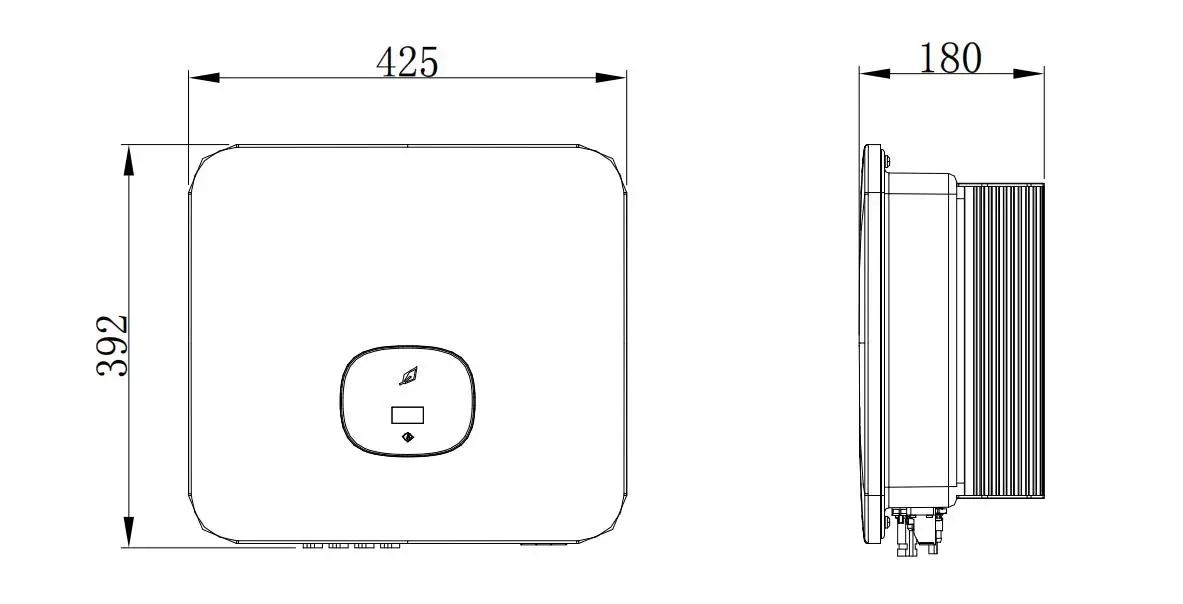

Model | Height (H) | Width (W) | Depth (D) | Weight |
7000- 10000TL-X | 425mm 16.7inch | 392mm 15.4inch | 180mm 7.1inch | 18.2kg |

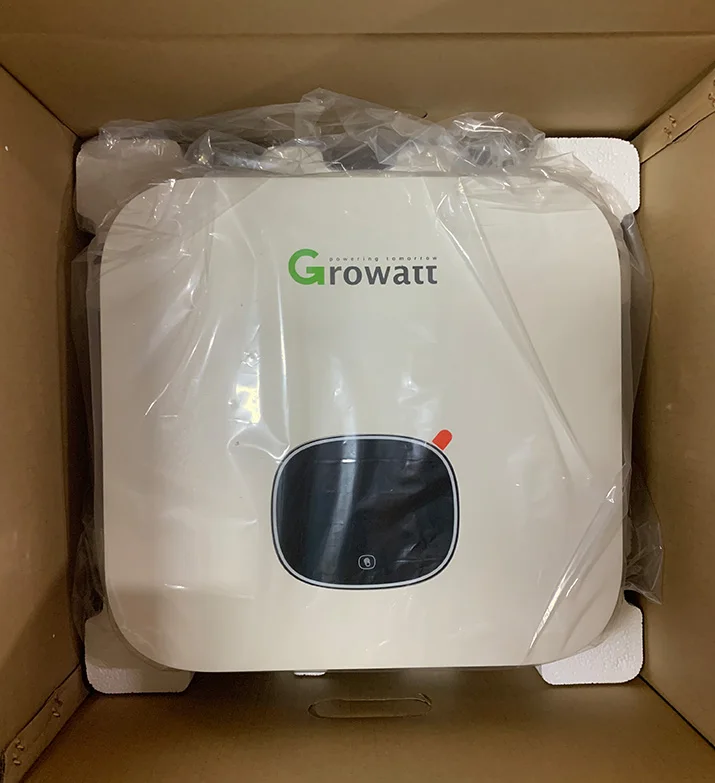

Product packaging
Why Choose Us
Growatt was founded in 2010 and is a worldwide leader of smart energy solutions. Growatt is the No.1 residential solar inverter supplier and is also one of the top 3 PV inverter suppliers for distributed generation solar energy since 2018 and ranks among global top 10 PV inverter suppliers. The World's Manufacturer provides of residential, commercial and utility photovoltaic inverters, energy storage, microgrid systems and smart energy management solutions.
