0.3dB sc apc sc upc fiber optic equipment sx fast connector for drop cable sc lc fc st ftth quick connector assembly connector
- Category: >>>
- Supplier: Wuhan Fujioptics Technologies Co. Ltd.
Share on (1600435644993):
Product Overview
Description
Product Description

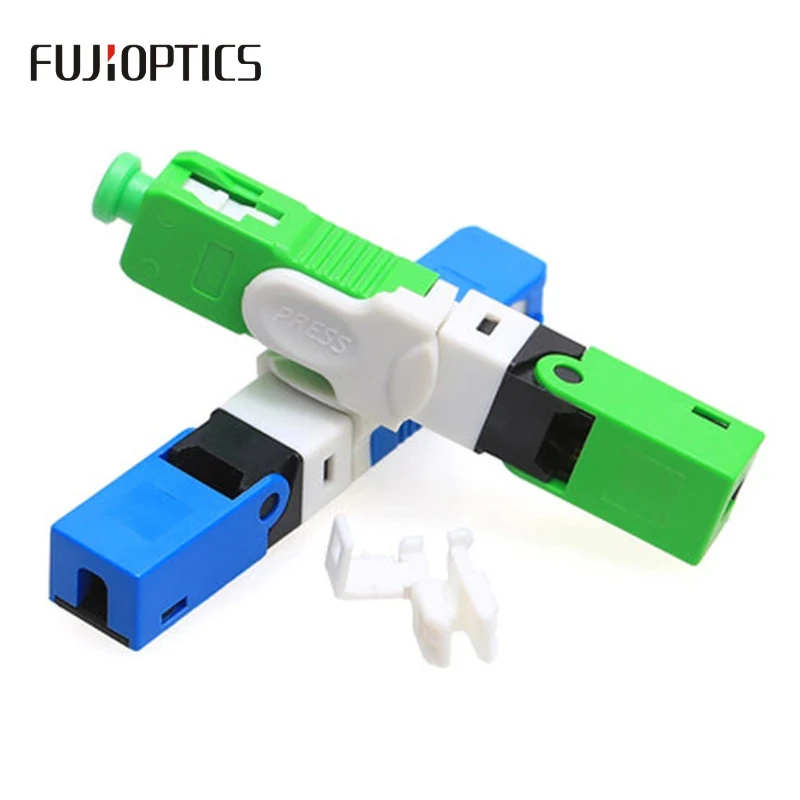

fiber connector tool fc optic fiber fast connector assembly
Fast connector are factory pre-polished field-installable connectors that completely eliminate the need for hand polishing in the
field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and proprietary
index matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fiber. Fast
connectors are compatible with 250um and 900um optical fiber as well as 900um, 2mm, 3mm and drop cable cordage. All primary fiber
types are supported. and each connector is color per industry standard requirments to aid in identification during and afger
installation. Incorporated in device is an innovation. Translucent wedge enabling the use of a common VFI to provide a "pass/fail"
signal once physical contact is achieved.
field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and proprietary
index matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fiber. Fast
connectors are compatible with 250um and 900um optical fiber as well as 900um, 2mm, 3mm and drop cable cordage. All primary fiber
types are supported. and each connector is color per industry standard requirments to aid in identification during and afger
installation. Incorporated in device is an innovation. Translucent wedge enabling the use of a common VFI to provide a "pass/fail"
signal once physical contact is achieved.

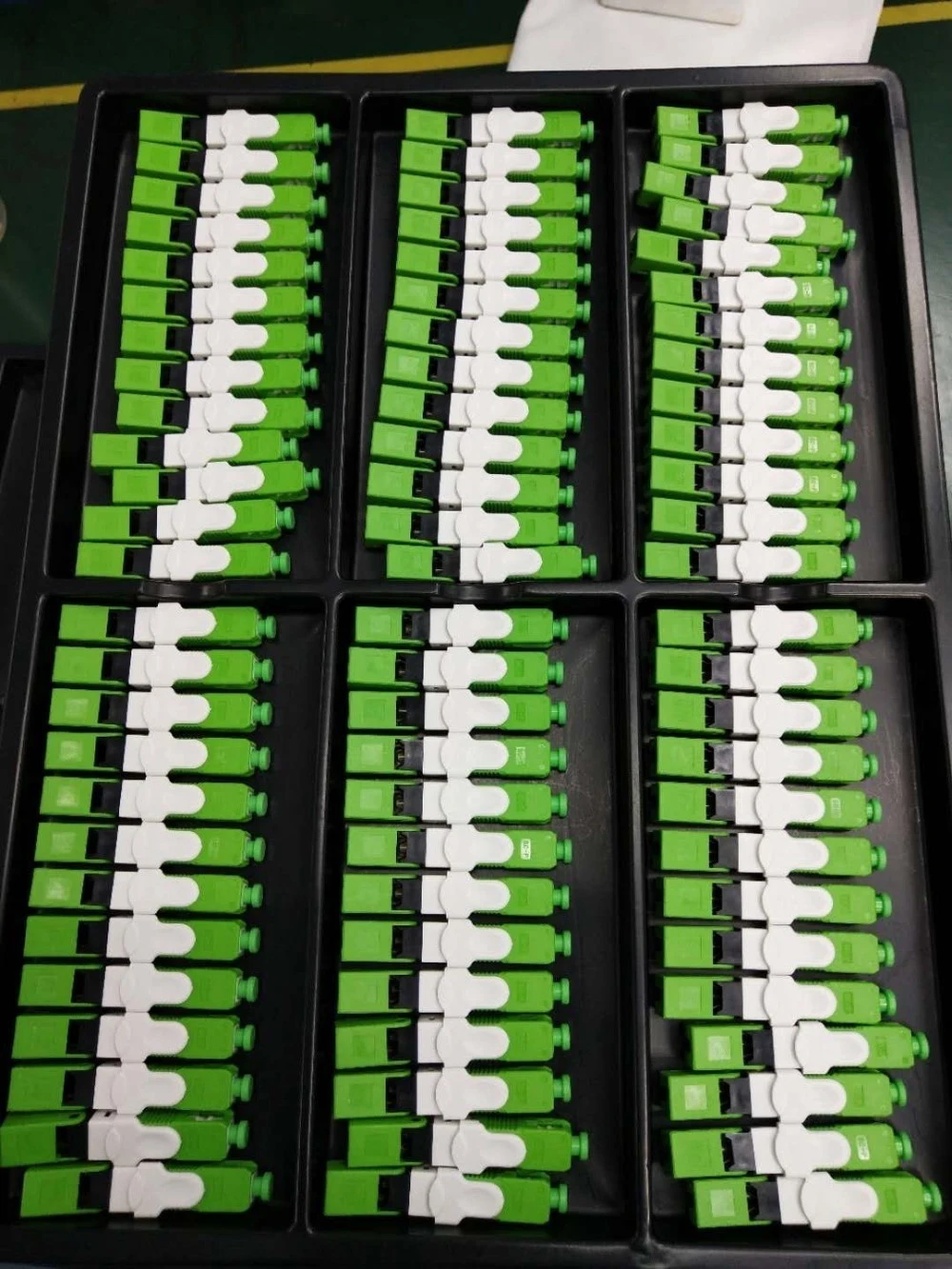

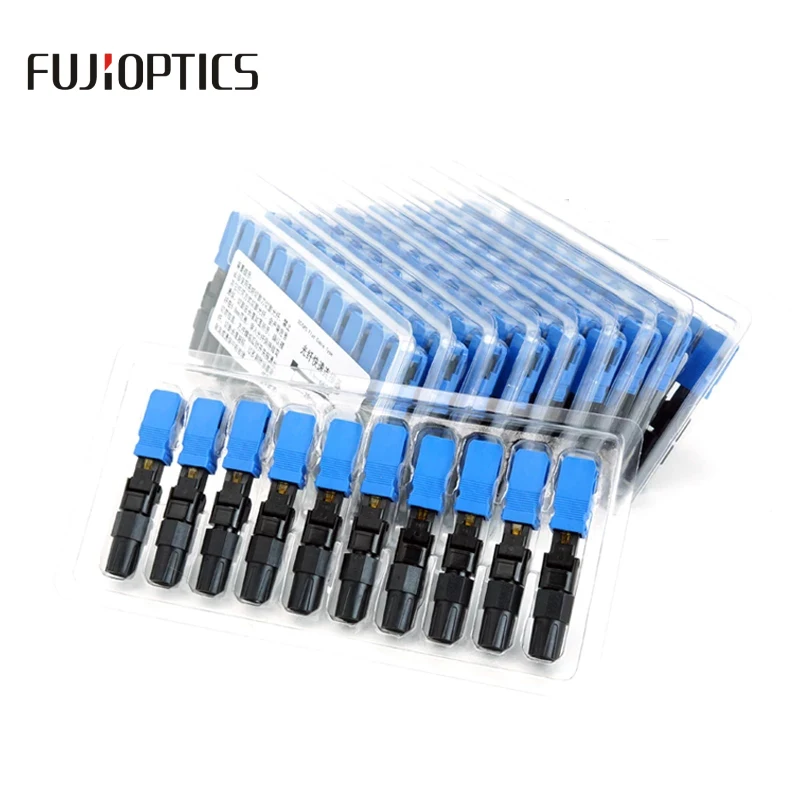

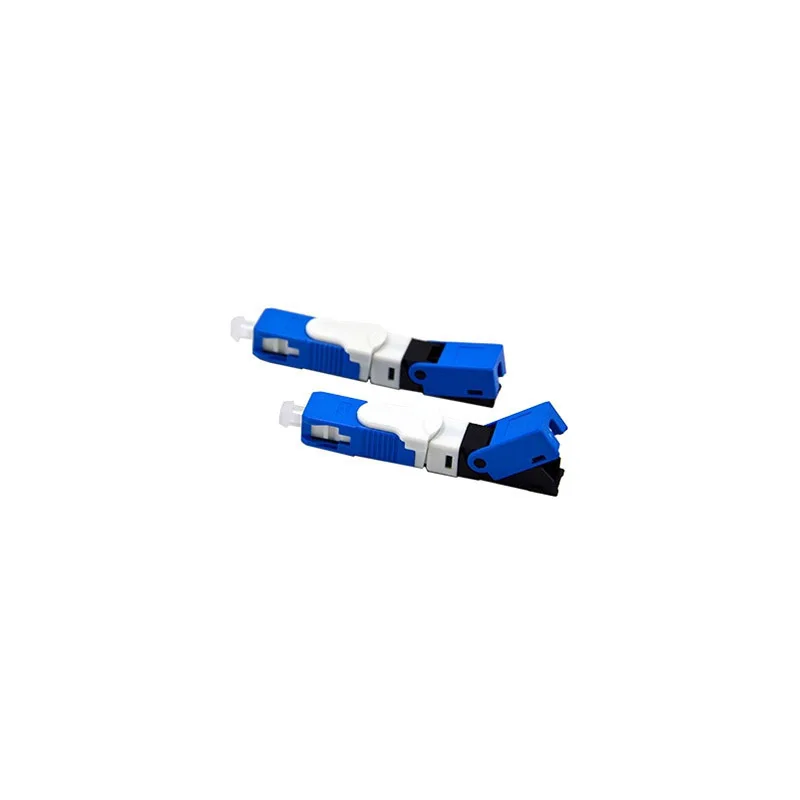

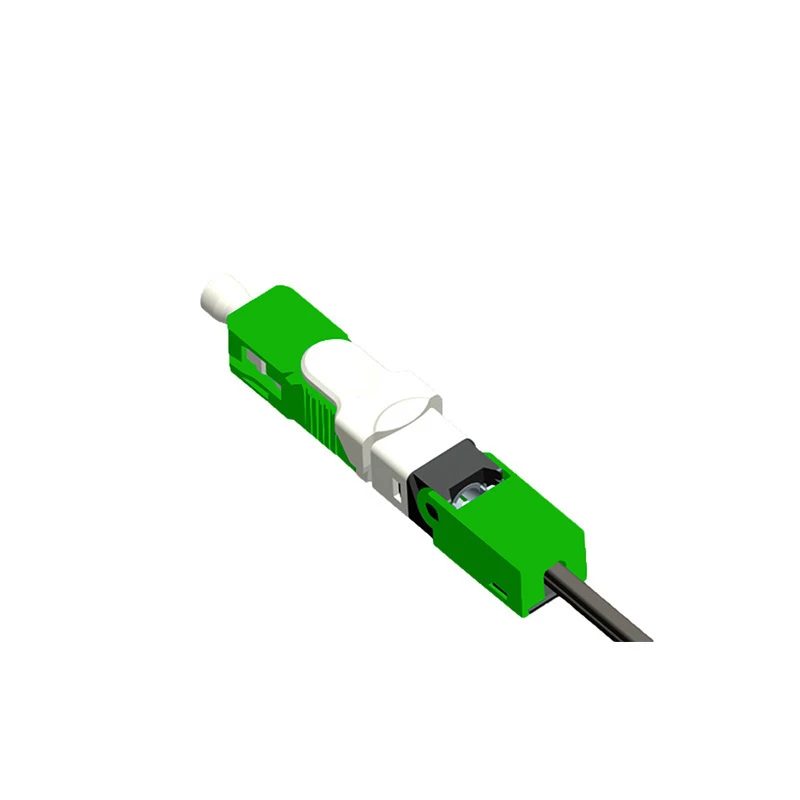

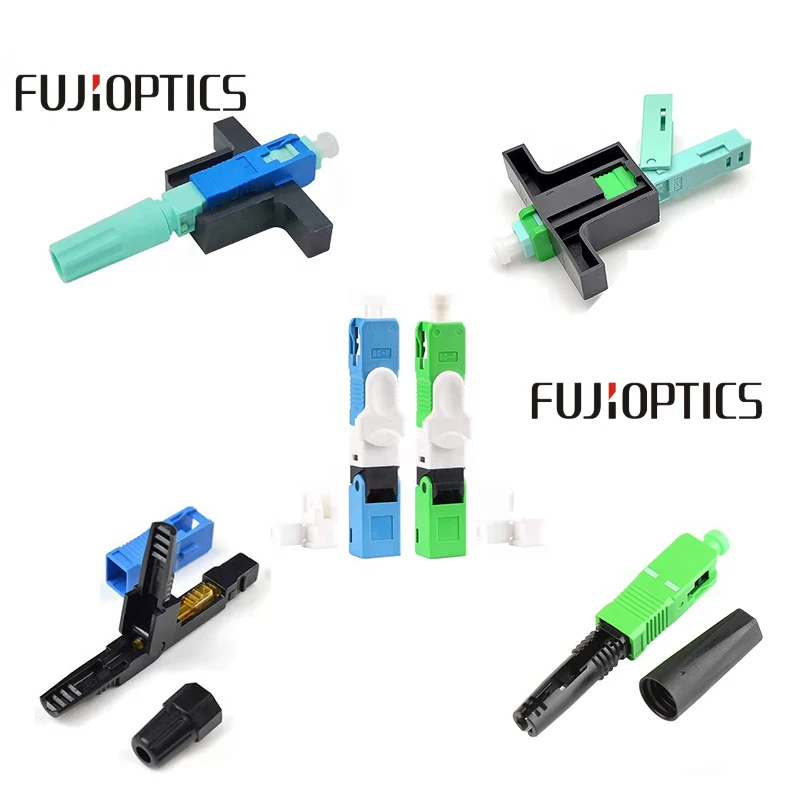

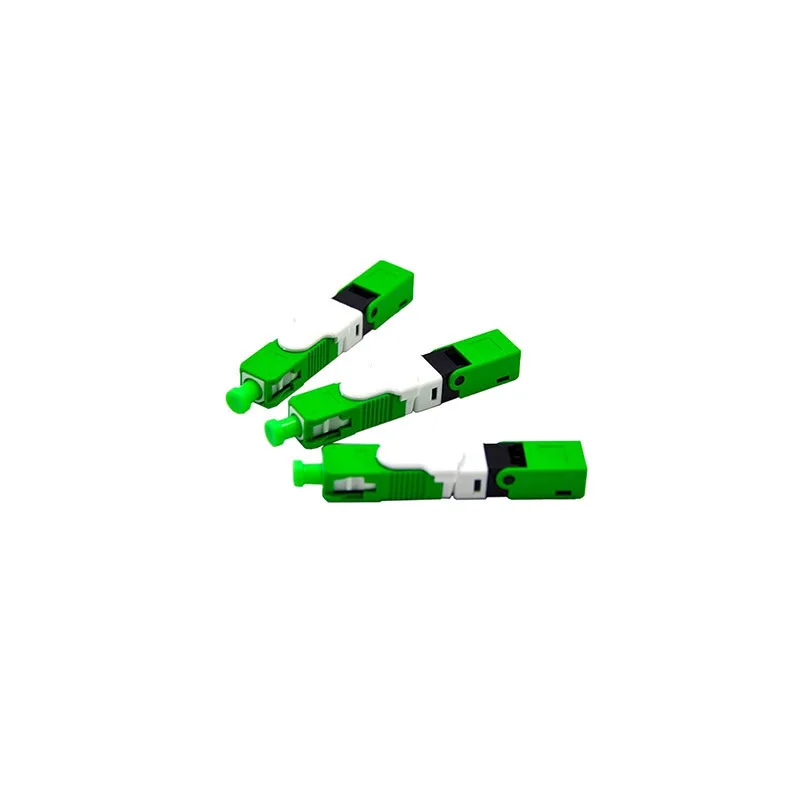

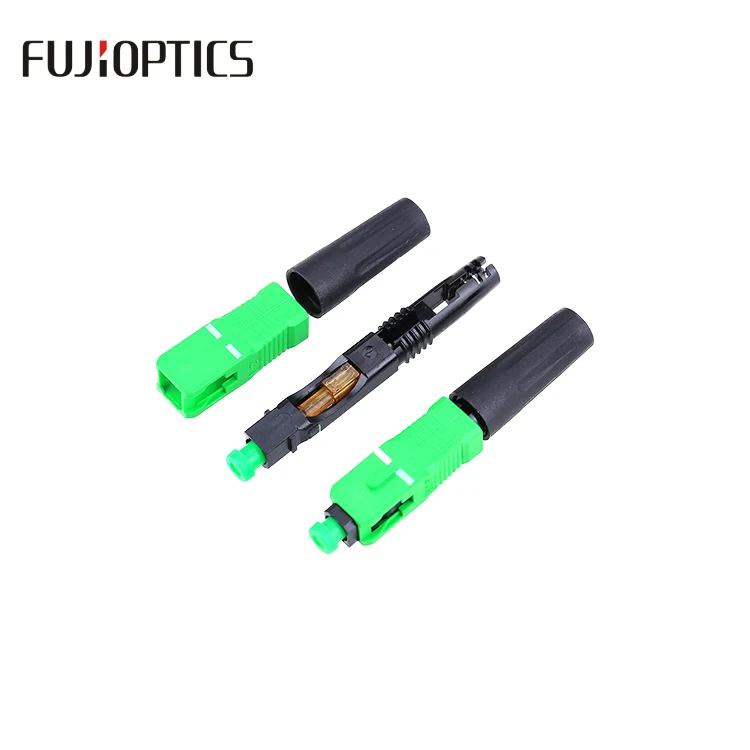

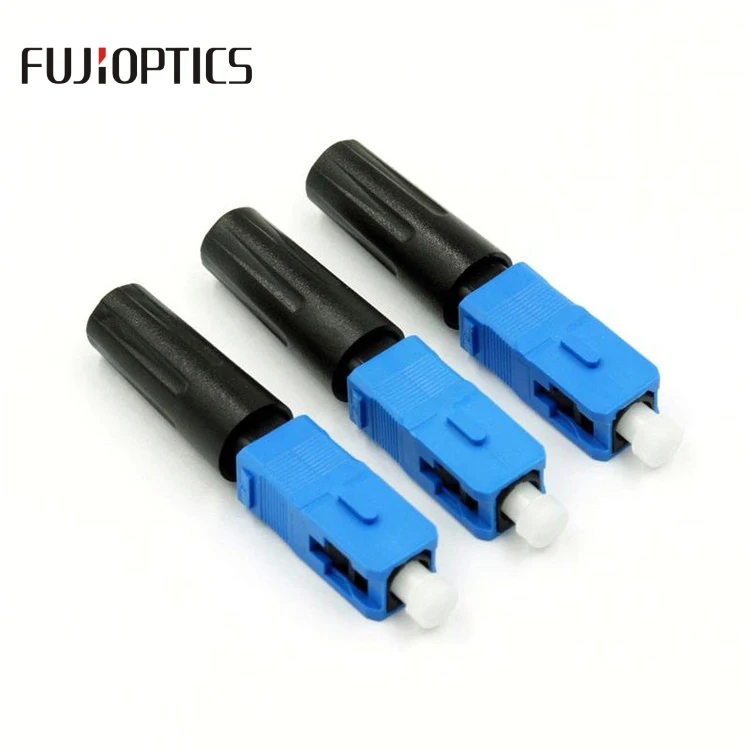

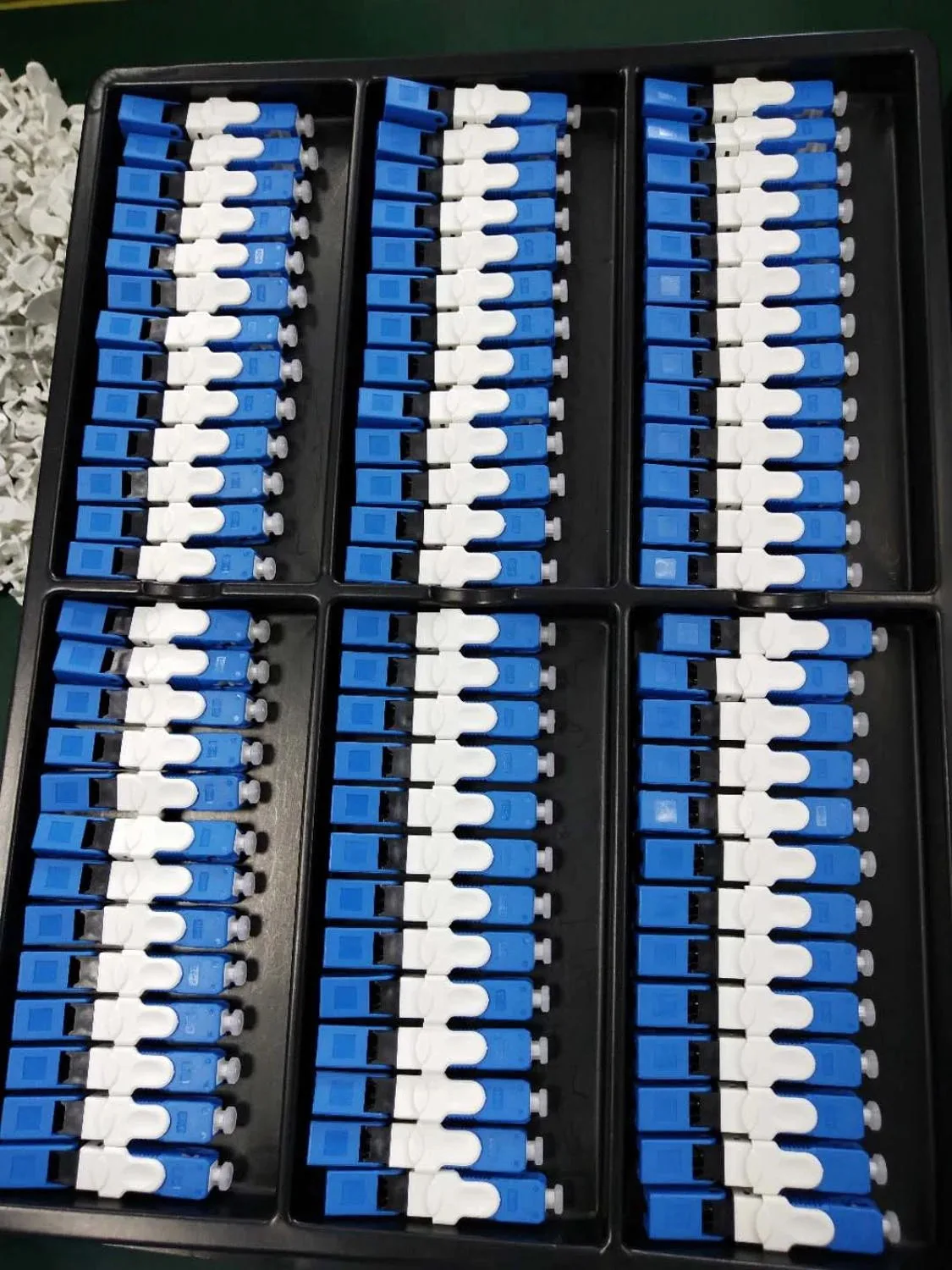

Product Display
Specification
Fast Connector Assembly | ||||||||
Mode | SM | MM | ||||||
Polish | UPC | APC | PC | |||||
Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB | ||||||
Return Loss | ≥50dB | ≥65dB | ≥35dB | |||||
Interchangeability | ≤0.2dB | |||||||
Repeatability | ≤0.1dB | |||||||
Durability | ≤0.2dB (1000 times mating) | |||||||
Tensile Strengh | > 10kg | |||||||
Temperature | ≤0.2dB (-40+85 sustain 100 hours) | |||||||
Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | |||||||
Features & Application
Features:
Installed in order to ensure the quality and efficiency of research and development of the high ratio of the fiber
optic fast in products.
Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material .
With embedded optical fiber type structure .
Installed with high quality and high success rate and fast and other characteristics .
Can be reused, the scene is simple.
Easy to carry
optic fast in products.
Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material .
With embedded optical fiber type structure .
Installed with high quality and high success rate and fast and other characteristics .
Can be reused, the scene is simple.
Easy to carry
Application:
Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.
About our factory
Welcome to our Factory | ||
Wuhan Fujioptics technologies co.,lt has 15 years . | ||
experienced leading manufacturer optical fiber patchcord ;MPO/MTP/MT /AOCjumper;PLC;WDM series.with rich production and sales experience. | ||
To provide customers with FTTX &Data Center product solutions and OEM/ODM services. | ||
Our company pays attention to the Quality and has been recoginized by customers in various industries .products are exported to more than 30 countries around the world . including South America (Brazil ,Argentina,Colombia) Europe (Russica,Turkey ) Asia (India ,Malaysia ,Vietnam ) Looking forward to your cooperation and recogination,Growing up with clients. | ||
Why Choose Us
GOOD QUALITY
We strongly believe that product quality an performance are the key success factors of a company.This mindset has been rooted throughout the whole organization,everybody believes that only high standards are necessary to win the cstomer and market.
INNOVATIVE TECNOLOGY We always learn new technology y investing in production facilities ,engineering process control systems ,and talent development to maintain our status as a leading fiber optic connection soultions.
HIGH STANDARD We believe a high standard of professionalism towards our product and service offeringns combined with our superior engineering solutioins serve to satisfy the unique needs of our customers.
FAQ
Q1:Are you trading company or real factory ?
A1:We are ture factory with more than 15 years fiber series products produce history ,with our own R&D ,sales and after-sales terms.
Q2: Why choose our Fujioptics products?
A2: Use JGR &Sumitomo Test Equipment and imported materials from Senko & Usconec ,Distric QC inspect ,have ISO9001 ,ROHS and so on certicate .
Q3: About the Quality?
A3: After price confirmation ,you can order sample to check quality.
Q4:About the delivery time.
A4: For normal stock items,they will be dispatched within 3 workinng days after payment confirmation.However,for items out of stock ,estimated lead time will be 3-10 working days.
Q5:Can you supply OEM Products?
A5: Yes , we are manufacturer ,we can accept OEM Service with OEM Package . you need to send your detailed requirement.
