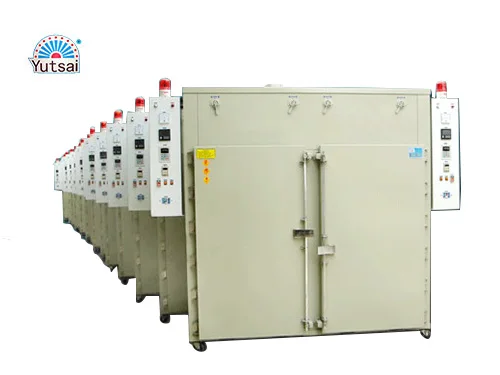

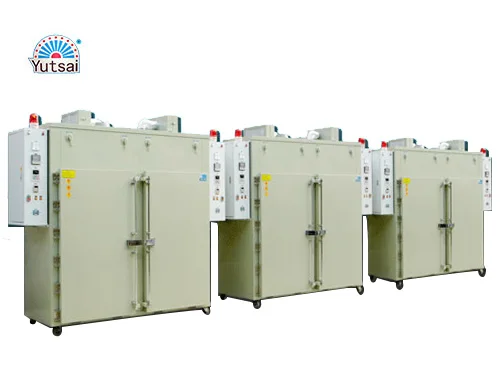

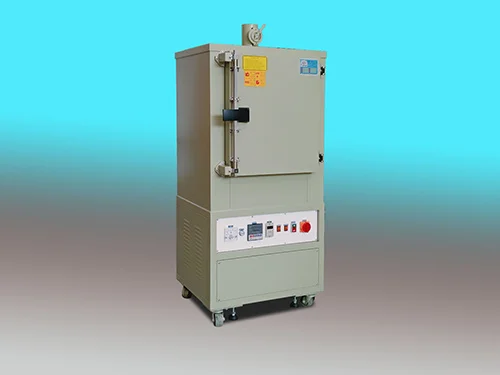

This machine is a hot air circulation oven for industrial use, so in the structure, material, strength, hardness, heat preservation, air circulation and other excellent design, beautiful appearance, easy to operate.

The operating range of the machine is from normal temperature to MAX+200° C. The air circulation system is hot air circulation, the air source is connected by the upper motor to drive the wind wheel through the electric heater, and the hot air is sent out through the air duct to the inside of the oven, and the air is sucked to the air duct for re-circulation and re-heating, so that the temperature can be quickly restored.

Model:

Machine type Material MAX. Temperature

Sa0-1 Precise inner and outer steel plate baking paint 200°C

Warning: Never place pressurized containers or combustible materials in the oven, as they may explode and cause serious injury or death.

Specifications:

1 Power AC 220V 3 § 60HZ 10KVA

W 500 x D 500 x H 600 mm

W 1140 x D 1010 x H 1800 mm

4 Material Inner case :SUS304 Outer case: SS41

5 temperature range room temperature + 10°C to MAX 200°C

Temperature controller YS900 temperature controller, with SCR action

Air supply motor special high temperature resistant oven motor

Wind wheel Multi - wing type strong wind wheel

Special elliptical electric tile black heating electric heater

10 single door type, card type door buckle

Preparations before use:

1. Keep the oven level and avoid water droplets or rain.

2. The operating environment of the oven should be well ventilated and no flammable, explosive or other dangerous objects should be near.

3. The left side of the oven is provided with an inlet air door, and the right side is provided with an exhaust air door. If it is too humid or contains volatile gas for baking, it should be partially or completely exhaust according to the actual situation, so as to maintain safety.

4. For the connection and installation of power cables, please install appropriate wires and circuit breakers according to the regulations to ensure safety.

Technical data

Remark :Two doors and two sides blowing-in with 200mm vascular cylinder

Features

1.digital micro-computer intelligent PID control,with timer,over-temperature alarm

2.zinc-plating chamber/S.S chamber,anti-acid,anti-corrosion.

3.large diameter centrifugal wind wheel,uniform heat circulation.

4.the shell is made of high quality cold-rolled steel with metallic paint spray.

 Application

Application : Industrial oven use: widely used in drying industry, such as transformer, inductance baking, PCB, hardware and plastic parts, the baking of silk and other industries, such as shoes, drying and activation.Cheap and adaptable.
