Product Overview
Description

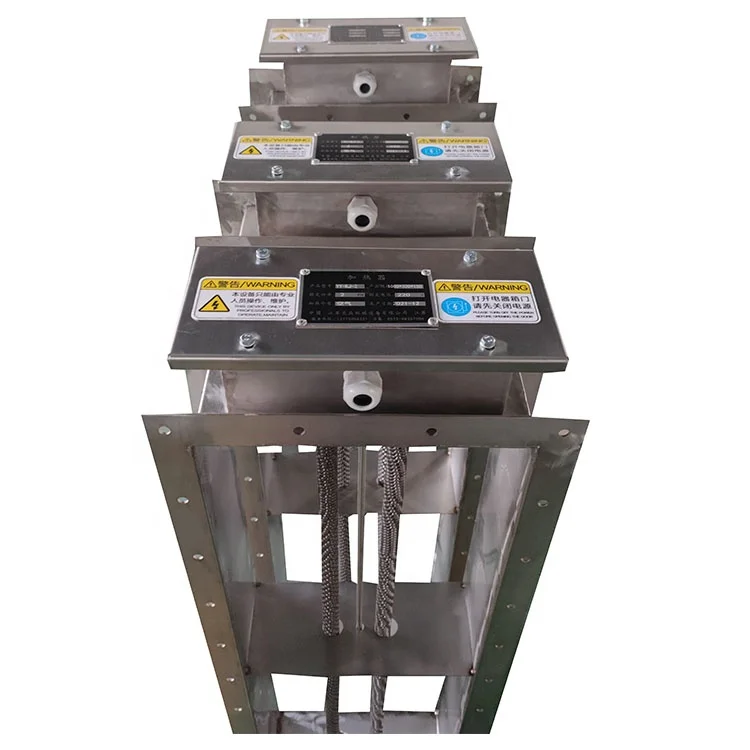

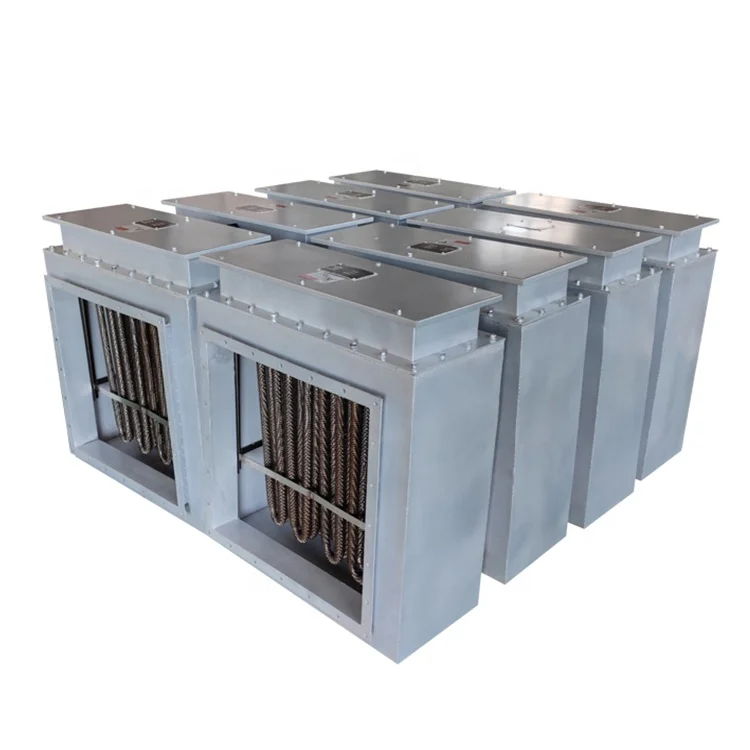

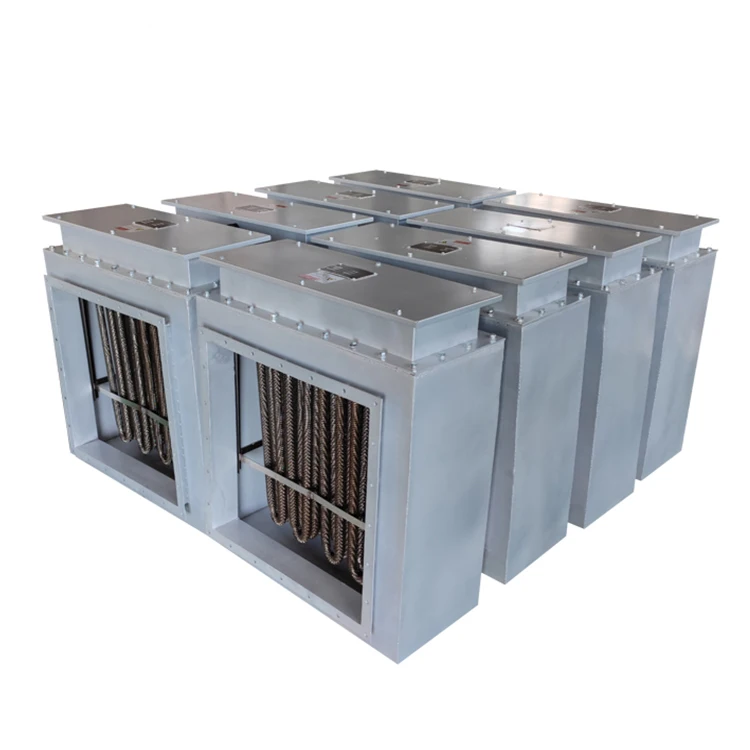

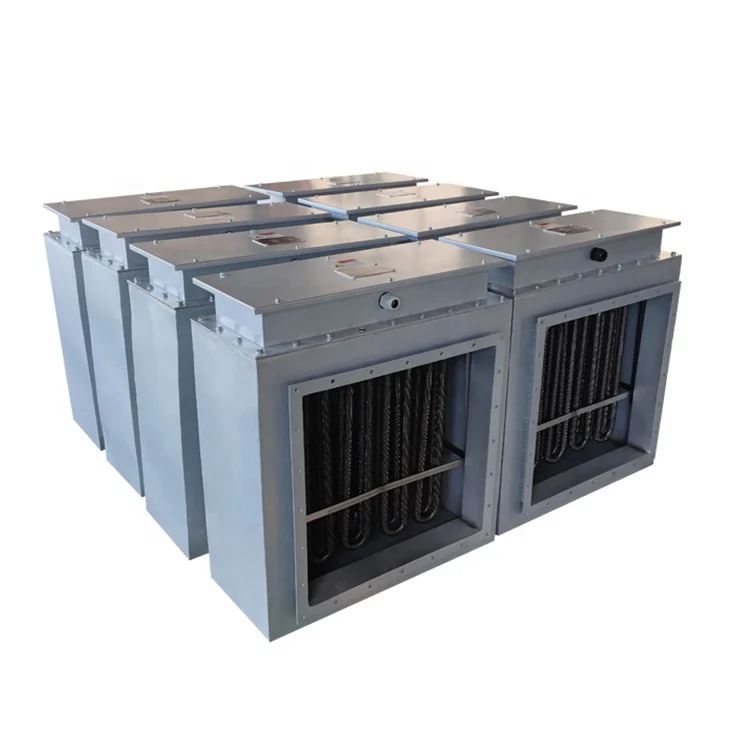

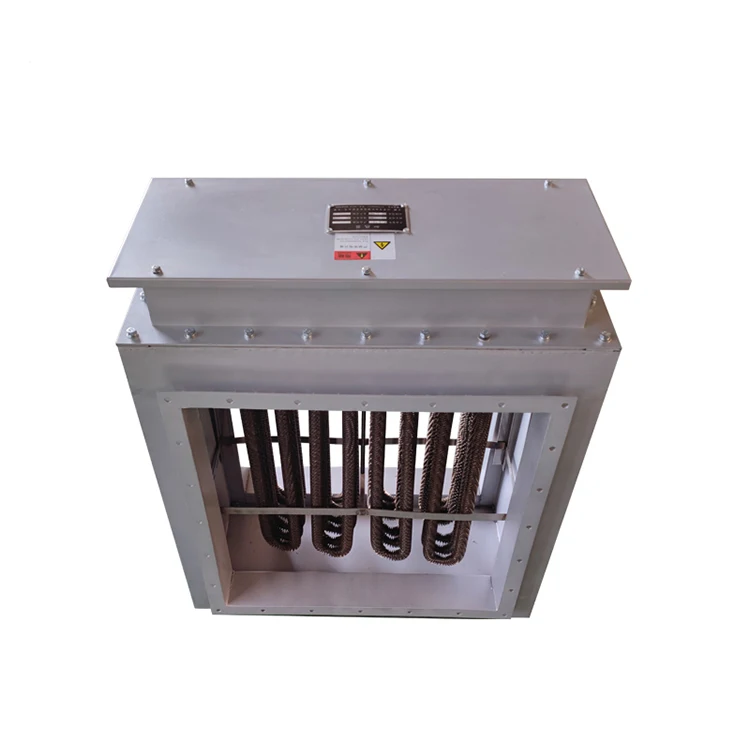

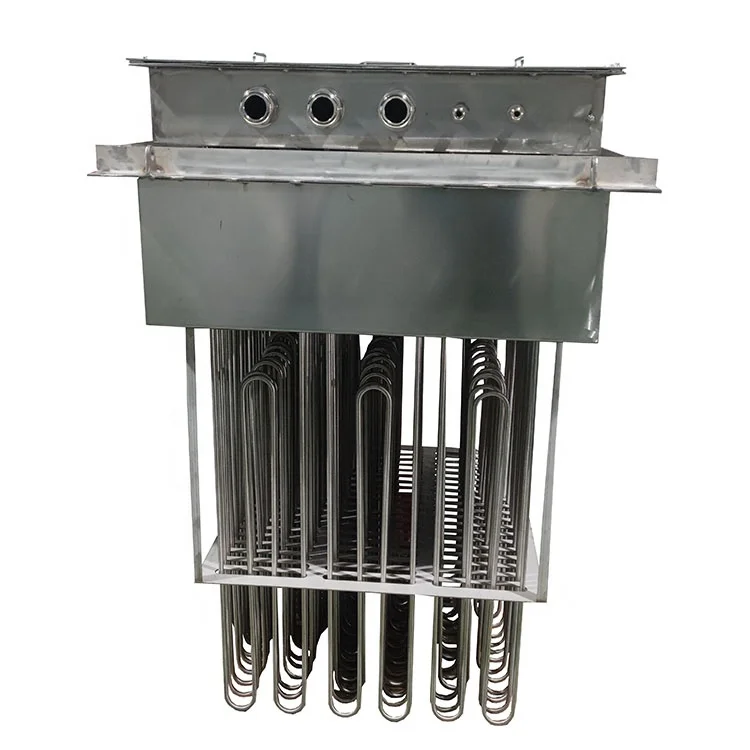

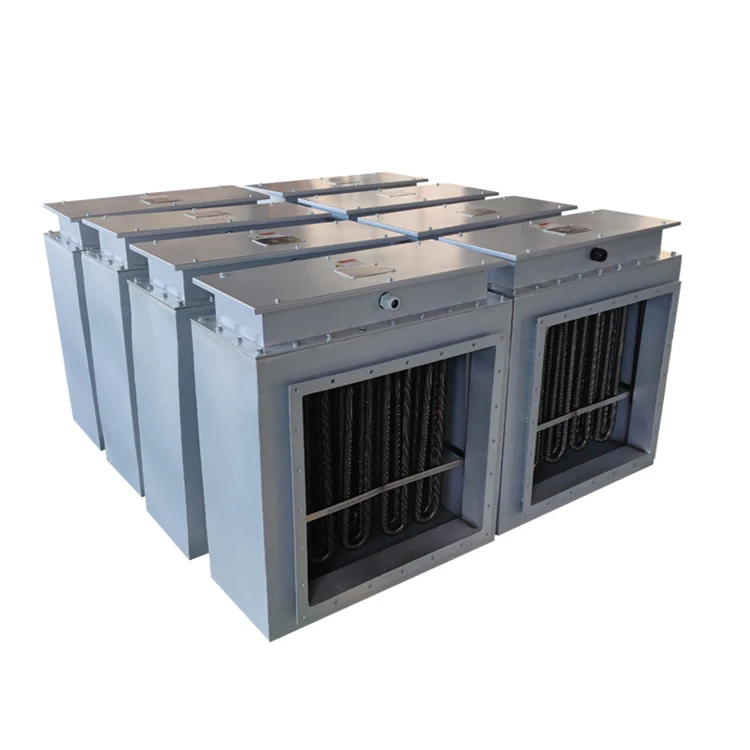

The frame type air duct heater is mainly used for heating the air in the air duct, and it is mostly used for the temperature requirements within 150 degrees. The structure in common with the air duct heater is the use of steel plates to support the electric heating tube to reduce the vibration of the electric heating tube when the fan is stopped, An over-temperature control device is installed in the junction box, and an external temperature control cabinet is required. For low power, a knob can be installed to directly control the temperature. The frame-type air duct heater can be directly inserted and installed on the air duct. According to actual needs, it is determined whether a heat dissipation area is required to reduce the temperature in the wiring cavity.
Technical specifications | ||||||||||||
Model | Power(KW) | Heater ineer bore size(Length * Width * Height, mm) | Outlet connection caliber | Power of Connected fan | Temperature control accuracy | Temperature range | ||||||
SOLID-FD-10 | 10 | 300*300*300 | DN100 | PID±5℃ | 0℃-300℃ | |||||||
SOLID-FD-15 | 15 | 400*300*300 | DN150 | 750W | ||||||||
SOLID-FD-20 | 20 | 400*300*400 | DN150 | |||||||||
SOLID-FD-25 | 25 | 400*400*400 | DN200 | 1.5KW | ||||||||
SOLID-FD-30 | 30 | 400*400*400 | DN200 | |||||||||
SOLID-FD-40 | 40 | 500*400*400 | DN250 | |||||||||
SOLID-FD-50 | 50 | 600*400*400 | DN250 | |||||||||
SOLID-FD-60 | 60 | 700*400*400 | DN250 | |||||||||
SOLID-FD-70 | 70 | 700*400*500 | DN300 | 3KW | ||||||||
SOLID-FD-80 | 80 | 800*500*500 | DN300 | |||||||||
SOLID-FD-90 | 90 | 900*400*500 | DN350 | 5.5KW | ||||||||
SOLID-FD-100 | 100 | 1000*500*500 | DN350 | |||||||||
SOLID-FD-120 | 120 | 1000*500*500 | DN400 | |||||||||
SOLID-FD-140 | 140 | 1000*500*500 | DN400 | |||||||||
SOLID-FD-160 | 160 | 1000*700*500 | DN400 | |||||||||
SOLID-FD-180 | 180 | 1000*700*500 | DN450 | 11KW | PID±5℃ | 0℃-300℃ | ||||||
SOLID-FD-200 | 200 | 1000*700*500 | DN450 | |||||||||
SOLID-FD-250 | 250 | 1000*800*800 | DN500 | 15KW | ||||||||
SOLID-FD-300 | 300 | 1200*1000*1000 | DN500 | |||||||||
SOLID-FD-350 | 350 | 1200*1000*1000 | DN600 | 18.5KW | ||||||||
SOLID-FD-400 | 400 | 1400*1000*1000 | DN600 | |||||||||
SOLID-FD-450 | 450 | 1400*1000*1000 | DN700 | 22KW | ||||||||
SOLID-FD-500 | 500 | 1400*1000*1000 | DN700 | |||||||||
SOLID-FD-600 | 600 | 1600*1000*1000 | DN800 | 37KW | ||||||||
SOLID-FD-700 | 700 | 1800*1000*1000 | DN800 | |||||||||
SOLID-FD-800 | 800 | 1800*1000*1000 | DN800 | |||||||||
SOLID-FD-900 | 900 | 2000*1000*1000 | DN800 | |||||||||
SOLID-FD-1000 | 1000 | 2400*1000*1000 | DN800 | |||||||||
