Navan Full Automatic Plastic Bottle Carbonated Drink Filling Machine Carbonated Drink Production Line
- Category: >>>
- Supplier: Zhangjiagang Navan Industrial Co. Ltd.
Share on (1600435680516):
Product Overview
Description
Product Paramenters
Model | CGFD8-8-8-3/4 | CGFD12-12-5/6 | CGFD18-18-6 | CGFD24-24-8 | CGFD32-32-10 | CGFD40-40-10/12 | CGFD50-50-12/15 | CGFD60-60-15 | ||||||||
Capacity(Bottle /Hour 500ml) | 800-1000 | 2000-2500 | 4000-5000 | 7000-8000 | 9000-10000 | 15000-16000 | 19000-20000 | 22000-24000 | ||||||||
Suitable bottle specification | Volume=100-2000ml Diameter φ=50-100mm Bottle height H=150 ~340mm | Volume=100-2000ml Diameter φ=50-105 Bottle height H=150 ~340mm | Volume=100-2500ml Diameter φ=50-115mm Bottle height H=150 ~350mm | Volume=100-2500ml Diameter φ=50-115 Bottle height H=150 ~350mm | ||||||||||||
Bottle type | Plastic bottle / PET Bottle | |||||||||||||||
Bottle neck/Cap Style | Plastic Screw Cap φ=20-50mm | |||||||||||||||
Machine material | Food stage SS304 OR SS316 | |||||||||||||||
Air source pressure | 0.5~0.6Mpa | |||||||||||||||
Control system | SIMENS PLC+ TOUCH SCREEN | |||||||||||||||
Features | No Bottle No Filling No Bottle No Capping | |||||||||||||||
Main Power | 1.9kw | 3.5kw | 4.0kw | 4.8kw | 5.5kw | 7.5kw | 11.0kw | 15.0kw | ||||||||
Power Supply | Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement | |||||||||||||||
Overall dimensions (mm) | 1900*1420* 2000 | 2050*1800* 2400 | 2580*2100* 2200 | 2780*2200* 2200 | 3800*2800* 2600 | 4600*2800* 2600 | 5450*3300* 2600 | 6500*4500* 2600 | ||||||||
Weight (kg) | 1500 | 2500 | 3500 | 4500 | 6500 | 8500 | 9800 | 12800 | ||||||||
All machines could be customized , we could design design and produce machines according to your request. | ||||||||||||||||
Products Description
NAVAN Bottled Carbonated Soft Drink Automatic Rinsing Filling Machine Capping Machine
This washing filling capping machine is mainly used for Carbon dioxide drink, such as cola, soda water and so on.The machine
design is shorten the time for the drink material contact with outside, Increase the sanitation condition throughout economy
benefit.
design is shorten the time for the drink material contact with outside, Increase the sanitation condition throughout economy
benefit.

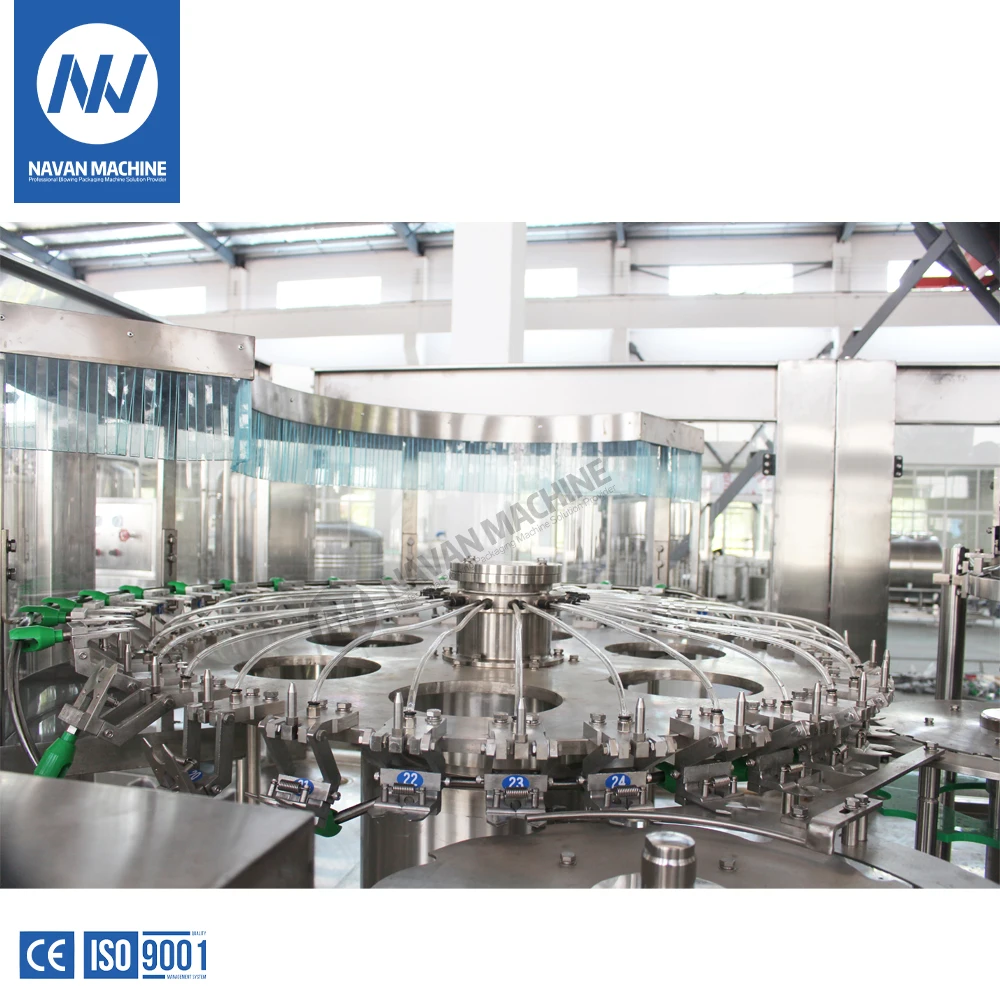

Bottle Rinser
-Rotary rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
-Rotary rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

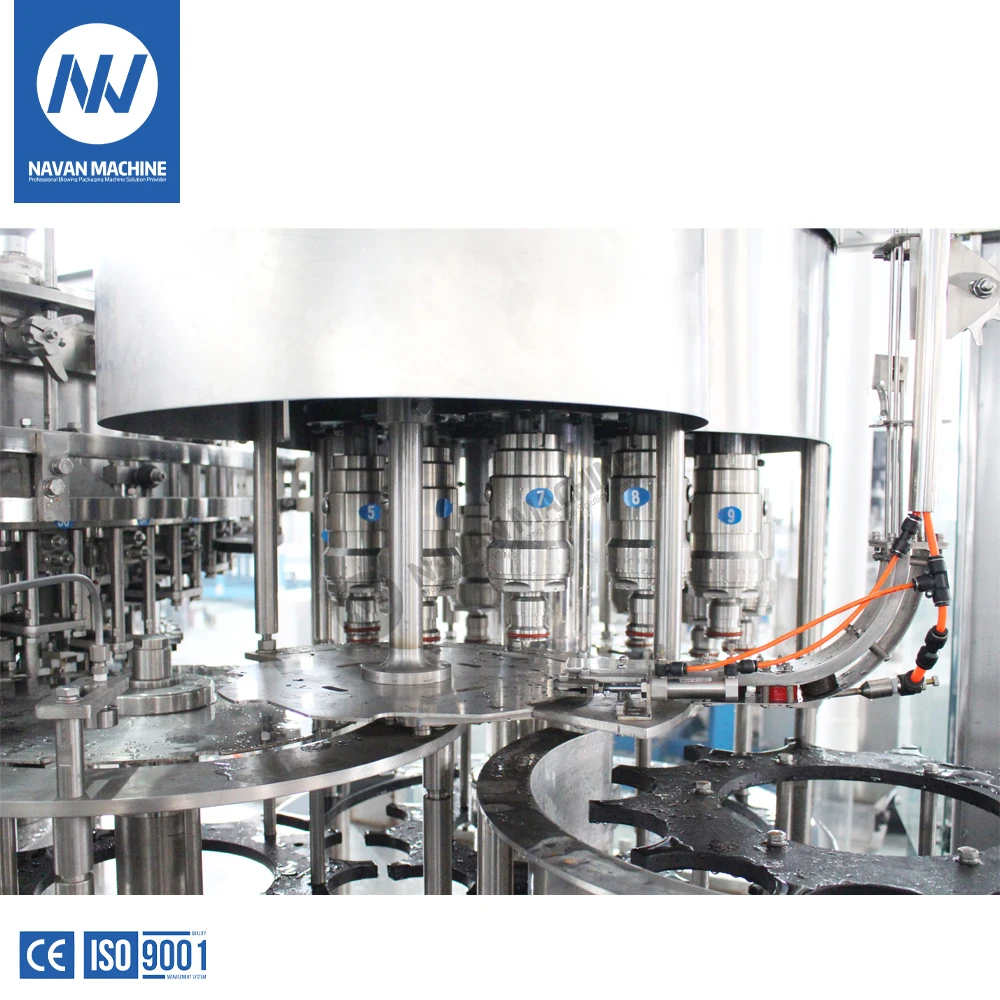

Bottle Filler
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
Bottle Capper
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam
Flow Chart:

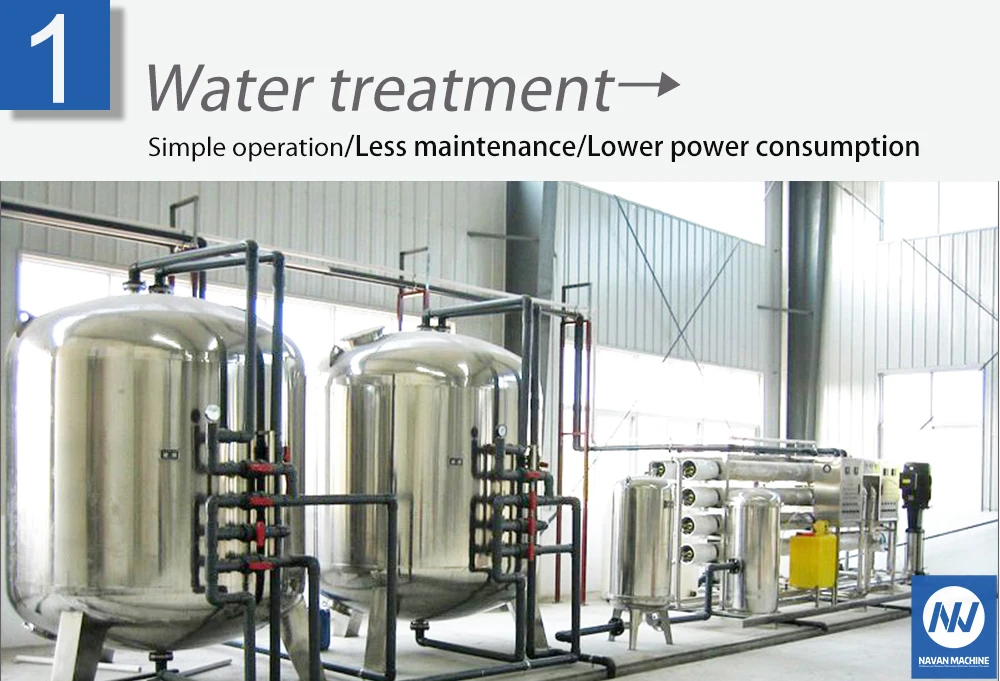

This water treatment system is equipped with a set of N m3/h ultrafiltration device. This device has N sets of 8 inch
ultrafiltration membrane elements combined with a power system. The main element of the hollow fiber ultrafiltration device is a
porous asymmetric ultrafiltration membrane with a pore size of 0.1~0.02um.
ultrafiltration membrane elements combined with a power system. The main element of the hollow fiber ultrafiltration device is a
porous asymmetric ultrafiltration membrane with a pore size of 0.1~0.02um.
Blowing machine for small bottle for reference (one set of blowing machine + one set of preform loader)

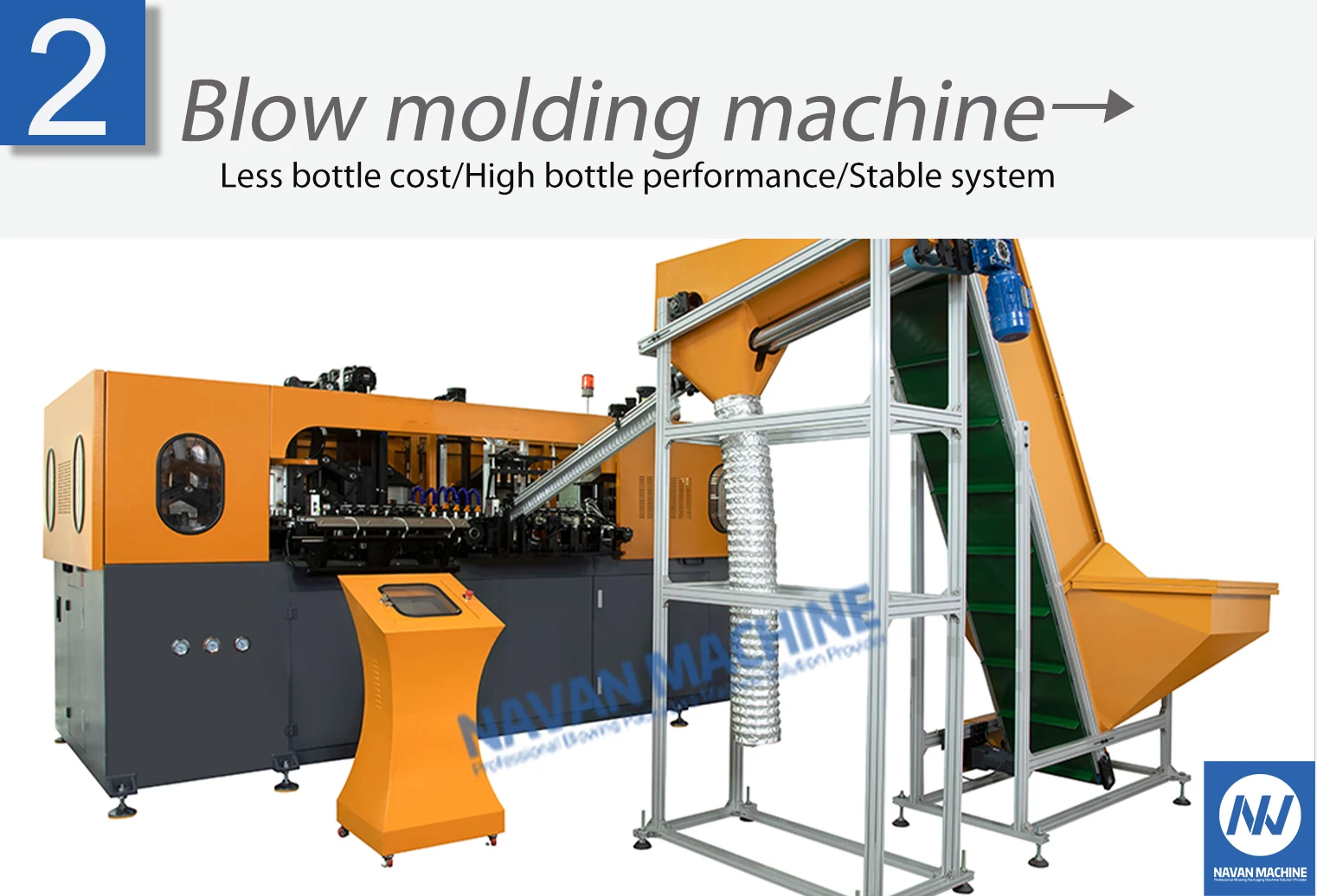

Full automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 100-2000ml. It is
widely used to produce the carbonated bottle, mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics,
wide-mouth bottle etc.
Full automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 100-2000ml. It is
widely used to produce the carbonated bottle, mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics,
wide-mouth bottle etc.

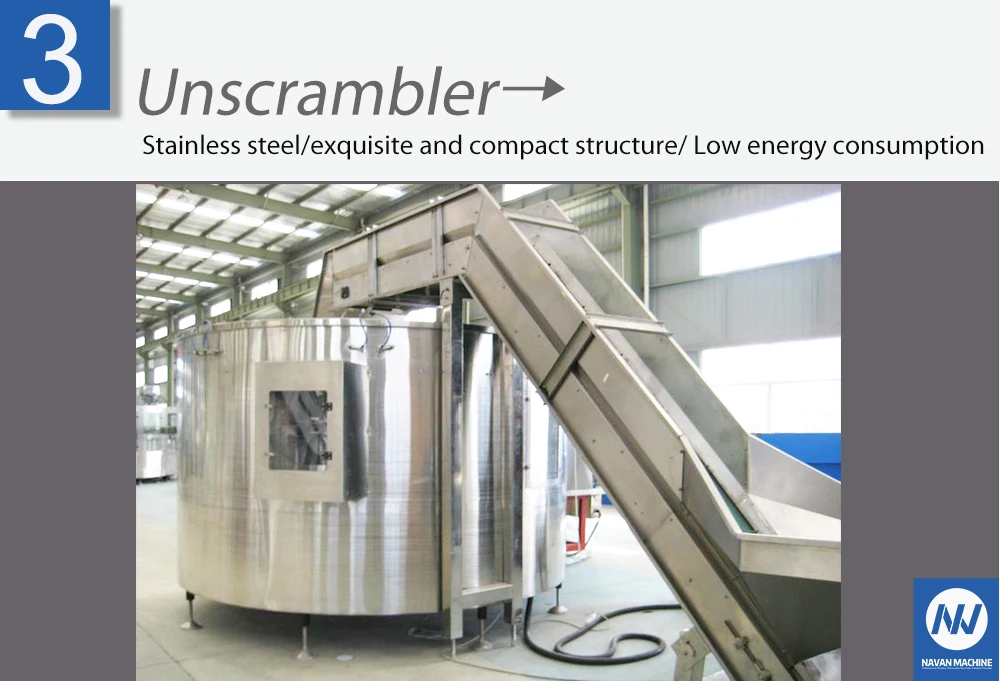

The LP type automatic bottle unscrambler is used for the sorting of disordered polyester or PET bottles. The scattered bottles are
sent by the elevator to the bottle unscrambler , and the bottles enter the bottle compartment to position themselves by the thrust
of the fan. With the function of the bottle turning device, the bottles are sorted into the bottle mouth to stand upright, and
output into the filling or next process through the air conveying or conveying system.
sent by the elevator to the bottle unscrambler , and the bottles enter the bottle compartment to position themselves by the thrust
of the fan. With the function of the bottle turning device, the bottles are sorted into the bottle mouth to stand upright, and
output into the filling or next process through the air conveying or conveying system.

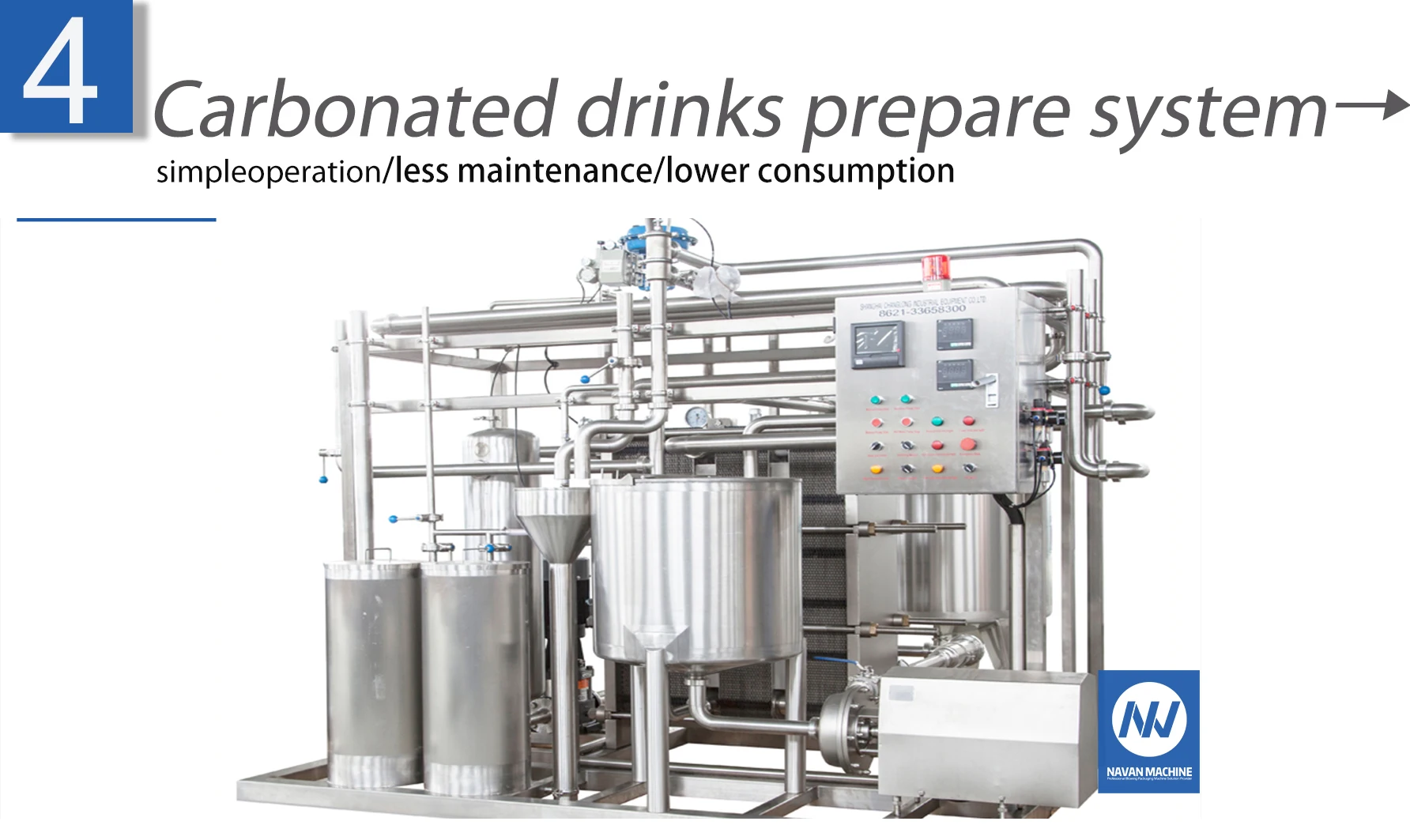

High CO2 mixer is a new type of mixer developed by ourselves on the basis of introducing foreign technology. With its good
performance and precision, the mixing and carbonization system provides you with good conditions to produce different kinds of beverages. The equipment has a compact structure, convenient operation and maintenance, and is equivalent to the advanced level of
foreign counterparts.
performance and precision, the mixing and carbonization system provides you with good conditions to produce different kinds of beverages. The equipment has a compact structure, convenient operation and maintenance, and is equivalent to the advanced level of
foreign counterparts.

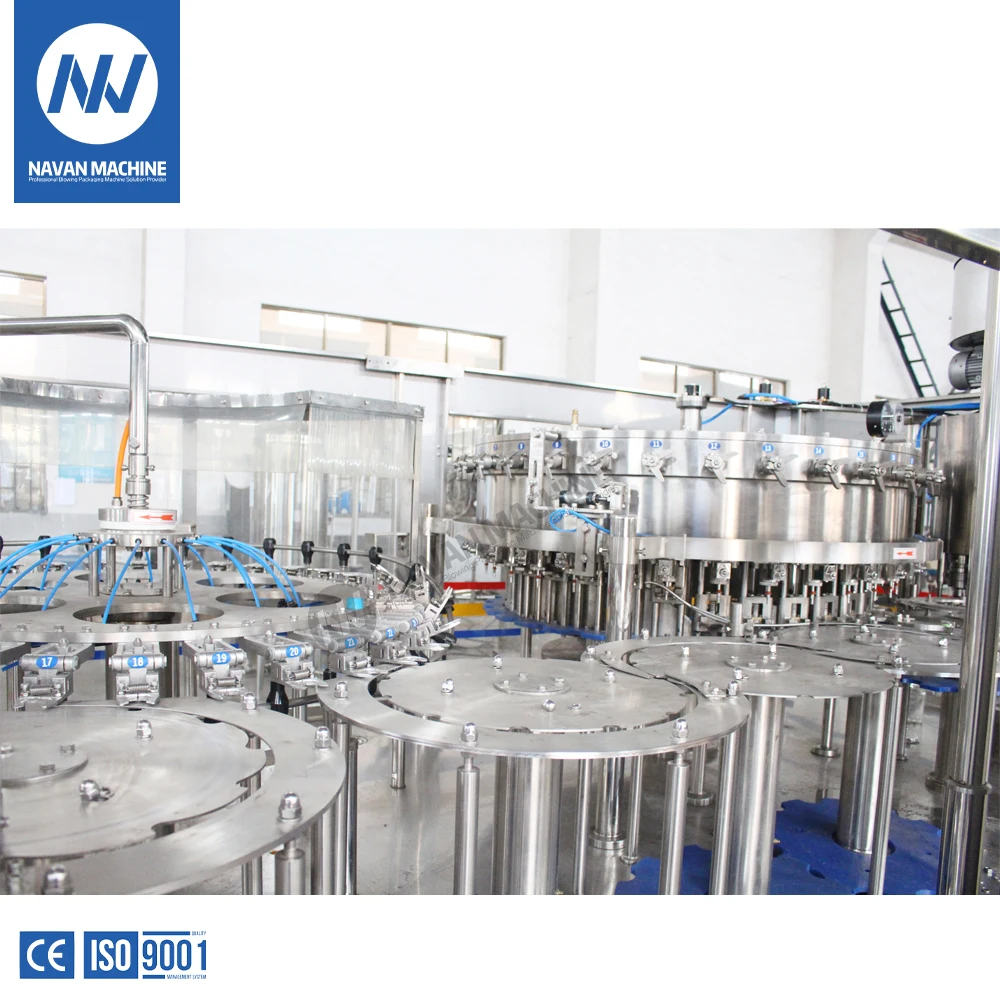

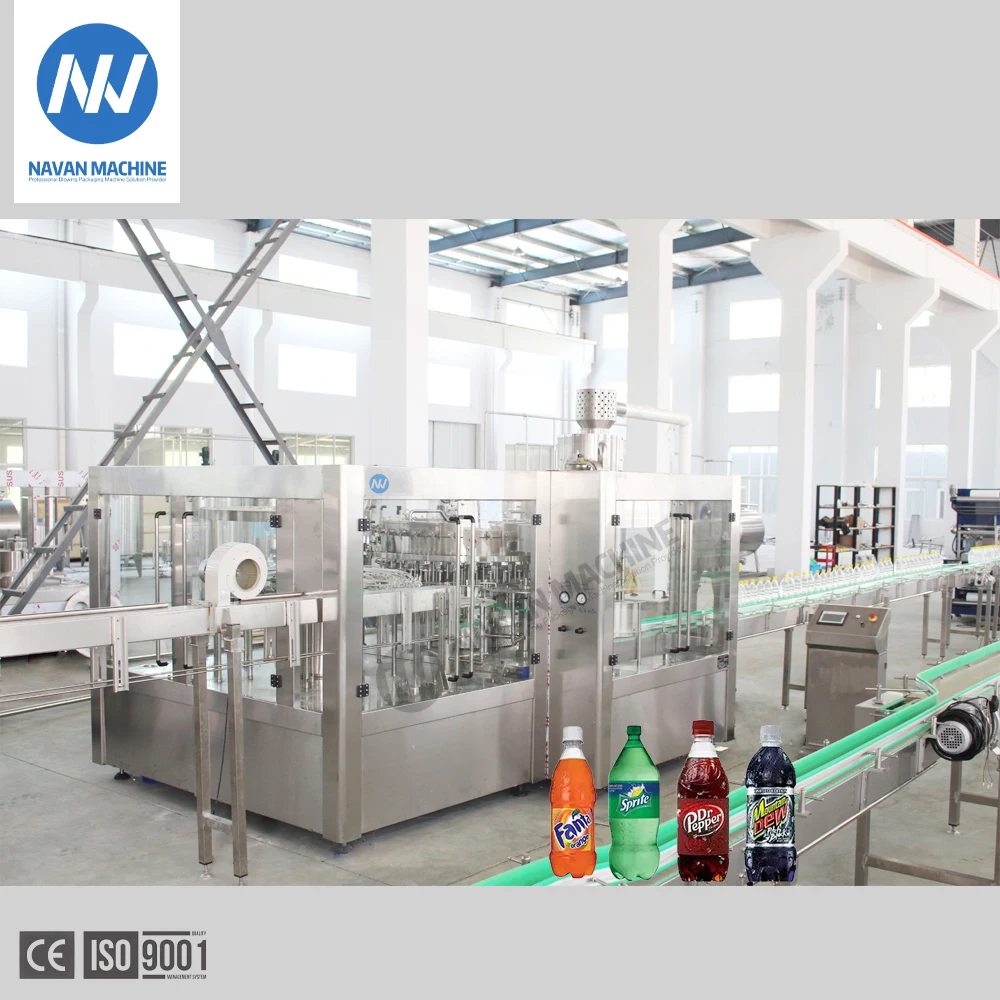

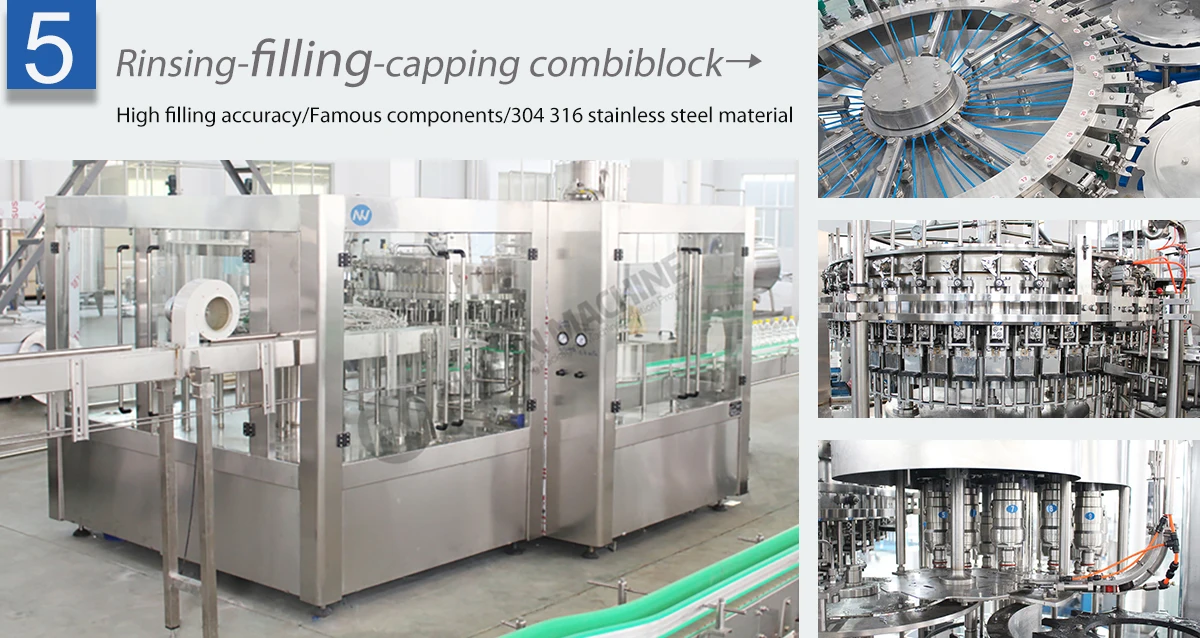

NAVAN carbonated drink bottling machine combines washing,filling and rotary capping functions into one unit which is a fully automatic and high efficieney liquid packing equipment.It is suitable for filling and packaging beverage containing carbon daroxide or other sparking drink .
All parts, such as rinsing vavles , filling valve , pipe , filling tank which directly contact medium are made of 304 Food stage stainless steel. Conforming to the requirements of Food sanitation.Adopting SIMENS programmable controller to realize fully automatic control from bottles entering rinsning , filling to finishing packing.
All parts, such as rinsing vavles , filling valve , pipe , filling tank which directly contact medium are made of 304 Food stage stainless steel. Conforming to the requirements of Food sanitation.Adopting SIMENS programmable controller to realize fully automatic control from bottles entering rinsning , filling to finishing packing.

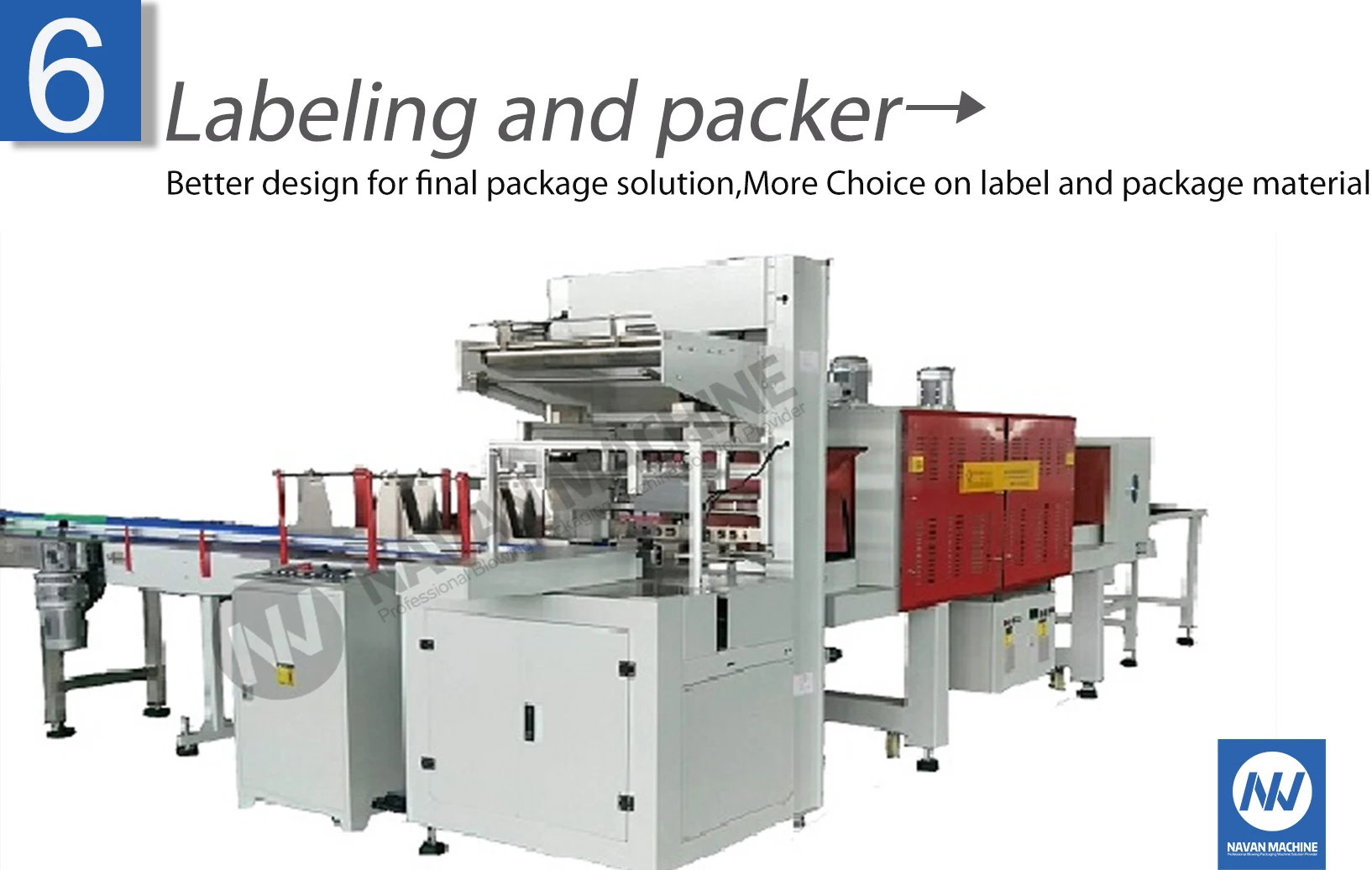

As a newly updated packaging equipment, Upper and Lower Heat Shrink Film Sealing & Cutting Machine is designed and manufactured with high efficiency and continuous operation based on the characteristics of heat shrinkable packaging film. It can arrange, set up a single product , set up a group, push the bottle and wrap the film, and finally form a collection package by heating shrinkage and cooling. The products after packaging are firm, regular and beautiful in appearance and cost saving.
