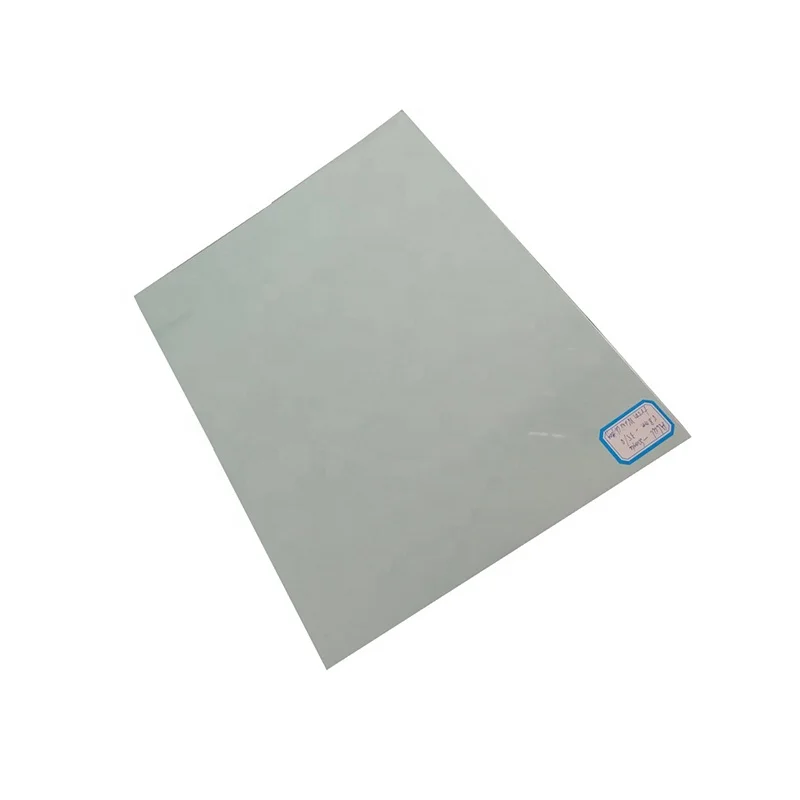

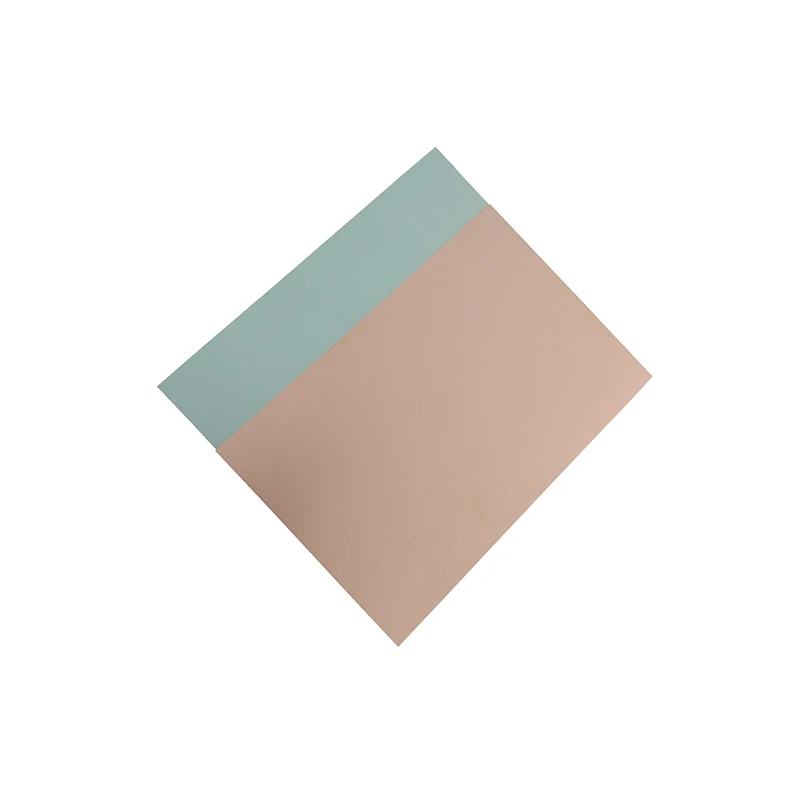

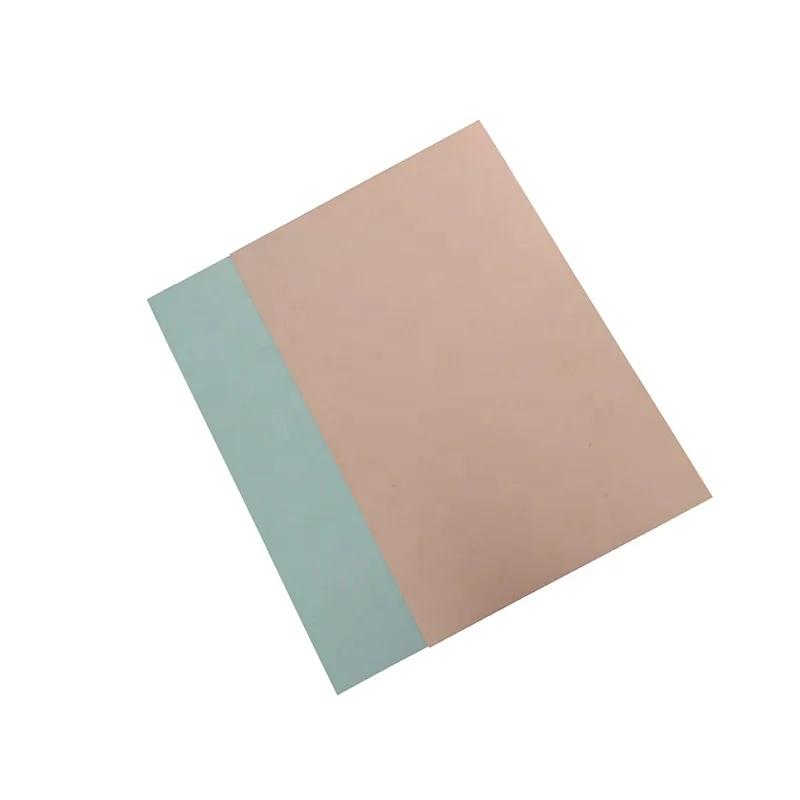

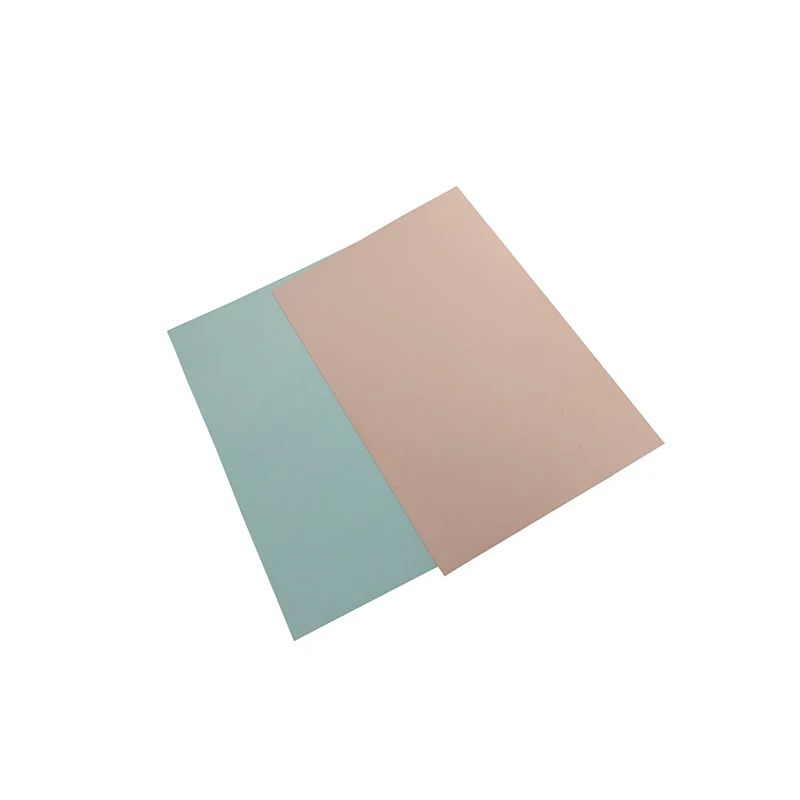

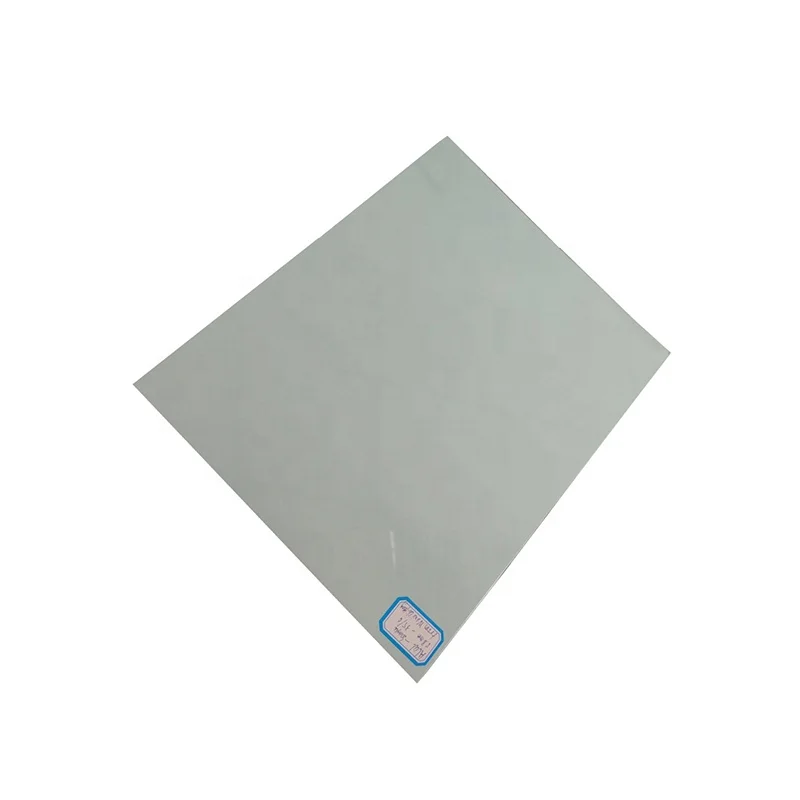

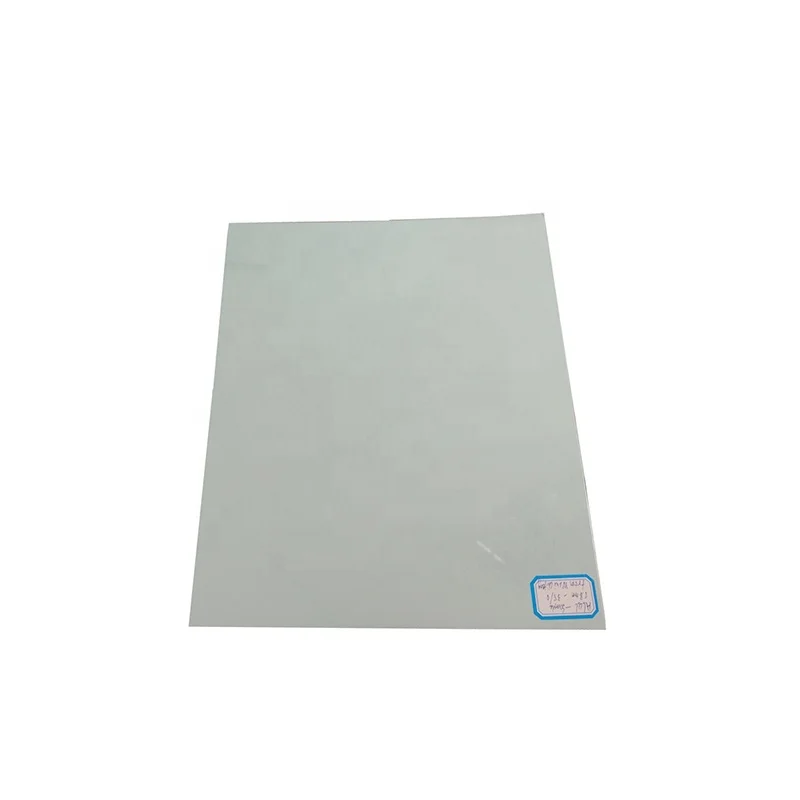

aluminum ccl factory aluminium substrate copper clad laminate metal substrates
- Category: >>>
- Supplier: Wuxi Different Plastic Co. Ltd.
Share on (1600435682906):
Product Overview
Description
Products Description
1.FR4/G10/G11 epoxy glass fiber laminate sheet is a composite material composed of woven fiberglass cloth and brominated flame retardant with an epoxy resin binder that is flame resistant (self-extinguishing).
2.FR stands for flame retardant, and denotes that safety of flammability of FR4 is in compliance with the standardUL94V-0.
2.FR stands for flame retardant, and denotes that safety of flammability of FR4 is in compliance with the standardUL94V-0.
Name | FR4/G10/G11 epoxy glass fiber laminate sheet | Size | 1020*1220mm,1020*2040mm,1220*2040mm,1220*2440mm |
Thickness | 0.2mm-100mm | Color | Light green,yellow,black |
Density | 2.06 g/cm3 | Component | Epoxy resin + Glass fiber cloth |
Product Paramenters
ITEM | UNIT | VALUE | ||
G10 | FR4 | |||
Density | g/cm3 | 1.90~2.08 | 1.90~2.08 | |
Warpage≤ | mm | - | - | |
Thickness:3~6mm | 10 | 10 | ||
Thickness:6~8mm | 8 | 8 | ||
Thickness:>8mm | 6 | 6 | ||
Flexural strength perpendicular to lamination ≥ | MPa | - | - | |
Lengthwise | 340 | 340 | ||
Transverse direction | 250 | 250 | ||
Impact strength (charpy,Lengthwise)≥ | kJ/m2 | 37 | 37 | |
Adhesion strength≥ | N | 6500 | 6500 | |
Insulation resistance≥ | Ω | 1×1012 | 1×1012 | |
Under normal condition | 5×1010 | 5×1010 | ||
After impregnated in water at 24h | - | - | ||
Dissipation factor≤ | - | - | - | |
50Hz: | 5.5 | 5.5 | ||
1MHz: | 5.5 | 5.5 | ||
Water absorption rate≤ | % | 0.25 | 0.25 | |
Voltage endurance perpendicular to lamination in transformer oil 1 min at 90±2℃≥ | - | - | - | |
Thickness:0.5~1.0mmmm | kV/mm | 20 | 20 | |
Thickness:1.1~2.0mmmm | - | 18 | 18 | |
Thickness:2.1~3.0mmmm | - | 16 | 16 | |
Voltage endurance parallel to lamination in transformer oil 1 min at 90±2℃≥ | kV | 35 | 35 | |
Flammability | - | - | - | |
Oxygen index | % | - | 40 | |
Area of the sheets | mm | 1020×1220 | ||
1020×2040 | ||||
