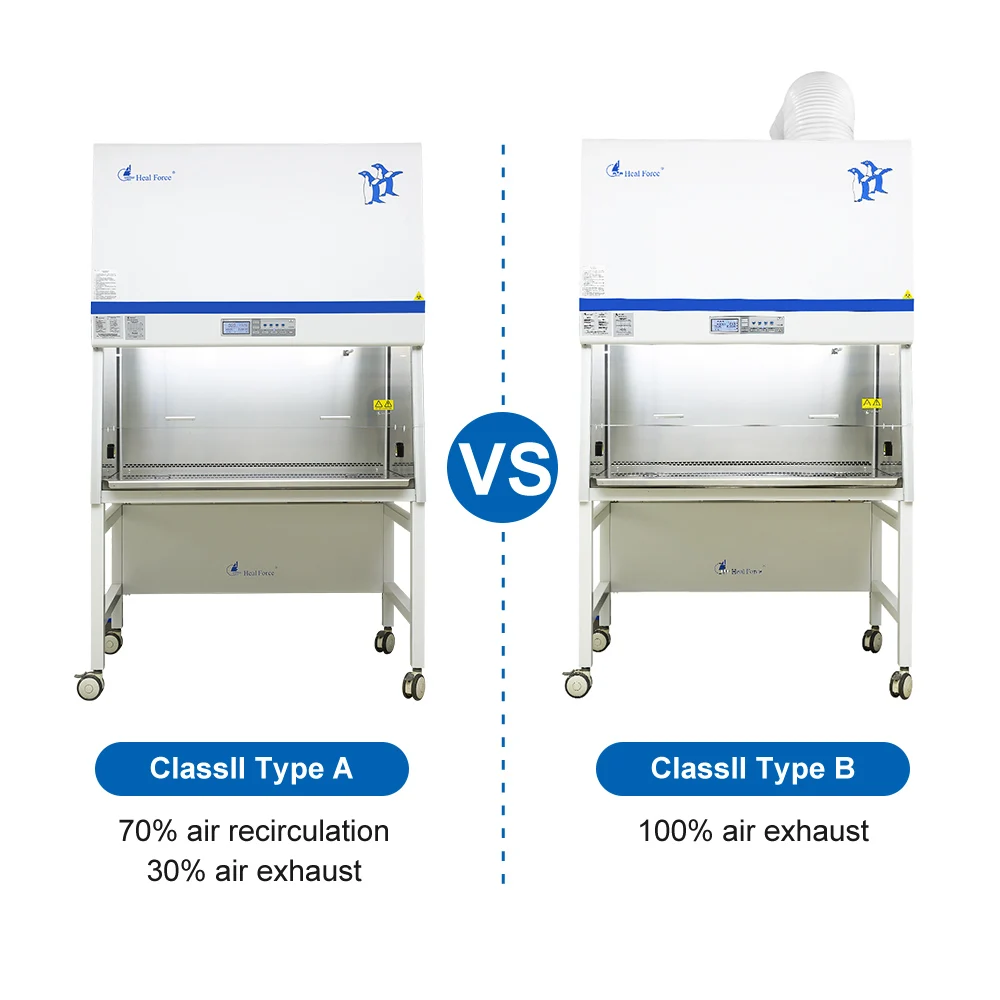

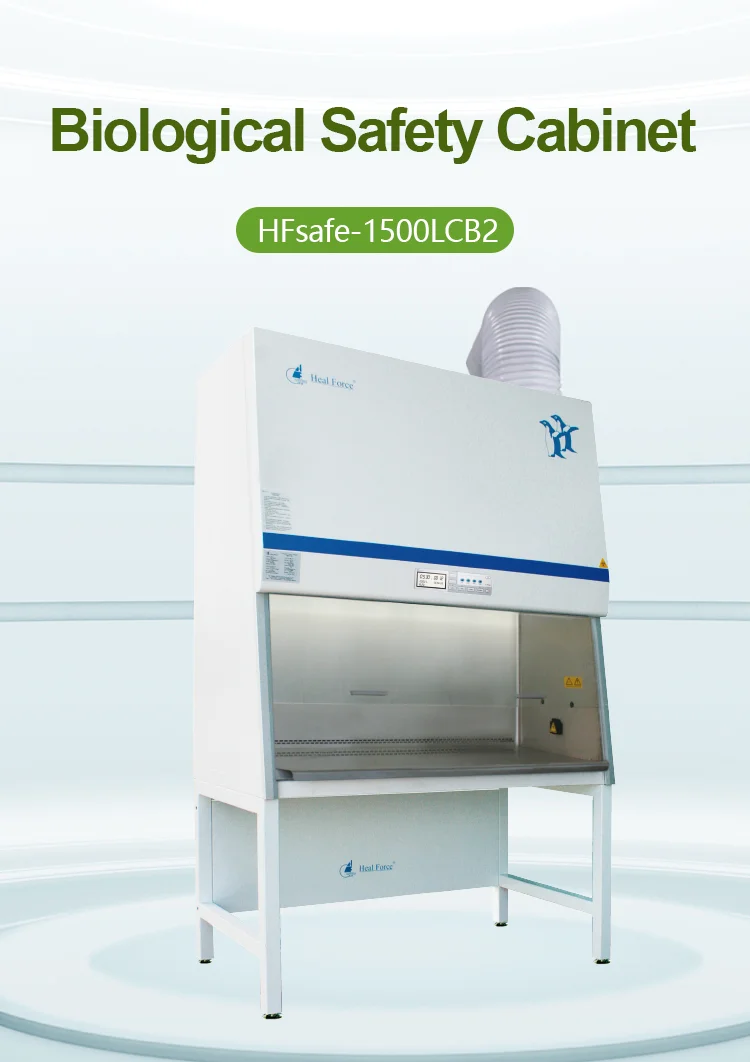

Laboratory Exhaust Safety Cabinet Class 2 Type A2 Grade Biosafety Cabinets Pcr Biological Safety Cabinet
- Category: >>>
- Supplier: Heal Force International Trading (Shanghai) Co. Ltd.
Share on (1600435689645):
Product Overview
Description
Recommend Products
Product parameters

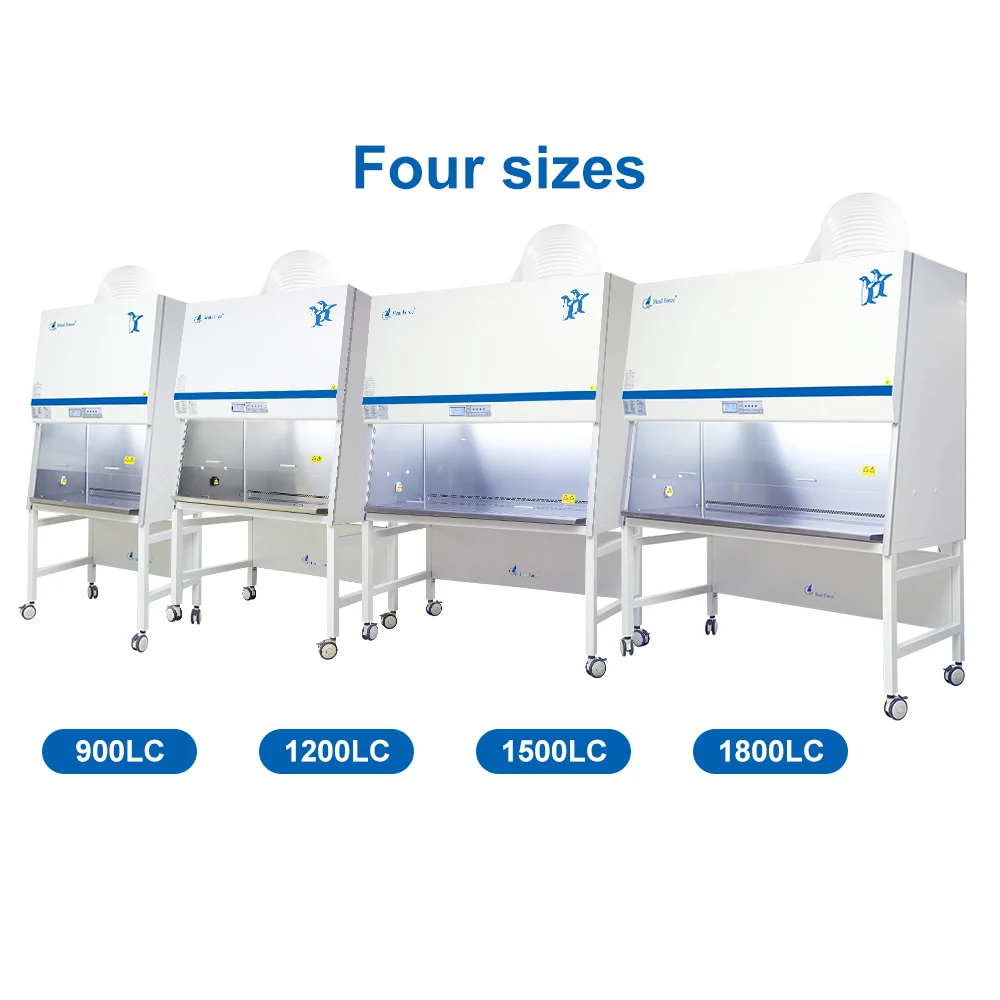

Model | HFsafe-900LCB2 | HFsafe-1200LC B2 | HFsafe-1500LC B2 | HFsafe-1800LC B2 | |||
Nominal Size | 0.9 meters(3') | 1.2 meters(4') | 1.5 meters(5') | 1.8 meters(6') | |||
External Dimensions with Base Stand | 1040x790x2200mm | 1340x790x2200 mm | 1640x790x2200 mm | 1940x790x2200 mm | |||
(WxDxH) | 40.9"x31.1 "x86.6" | 52.8"x 31.1 "x86.6" | 64.6"x 31.1 "x86.6" | 76.4"x 31.1 "x86.6" | |||
Internal Work Area, Dimensions | 950x575x625mm | 1250x575x625mm | 1550x575x625mm | 180x575x625mm | |||
(WxDxH) | 37.4"x22.6"x24.6" | 49.2"x22.6"x24.6" | 61.0"x22.6"x24.6" | 72.8"x22.6"x24.6" | |||
Average Airflow Velocity* | |||||||
Inflow | 0.53士0.025m/s(104.3士4.92fpm) | ||||||
Downflow | 0.30土0.025m/s(68.9士4.92fpm) | ||||||
Airflow Volume | |||||||
Downflow | 605m3/h(356cfm) | 769m3/h(468cfm) | 987m3/h(581cfm) | 1178m3/h(693cfm) | |||
Exhaust | 967m3/h(569cfm) | 1273m3/h(749cfm) | 1579m3/h(929cfm) | 1884m3/h(1108cfm) | |||
ULPA Filter Typical Efficiency | |||||||
Downflow | ULPA Filters provide 99.999% typical efficiency for particle size of 0.1 to 0.2 microns | ||||||
Exhaust | HEPA Filters provide 99.99% typical efficiency for particle size of 0.1 to 0.2 microns | ||||||
Biosafety Protection Test | |||||||
Personnel Protection Test | Kl-Discus containment and microbiological testing is performed | ||||||
Product Protection Test 1~8X106 | ≤5CFU | ≤5CFU | ≤5CFU | ≤5CFU | |||
Cross-contamination Test 1-8x106 | ≤2CFU | ≤2CFU | ≤2CFU | ≤2CFU | |||
Fluorescent Light Intensity | ≥650Lux (foot candles) | ||||||
Excellent light distribution | Yes | Yes | Yes | Yes | |||
RMS | ≤5µm | ≤5µm | ≤5µm | ≤5µm | |||
Cabinet Construction | |||||||
Main Body | Steel with white oven-baked epoxy-polyester | ||||||
Work Zone | Stainless steel, type 304 | ||||||
Side Walls | Stainless steel, type 304 | ||||||
Window material | Hardened/laminated safety glass | ||||||
Power Supply* | |||||||
220V/50Hz | Yes | ||||||
220V/60Hz | Yes | ||||||
Products Description

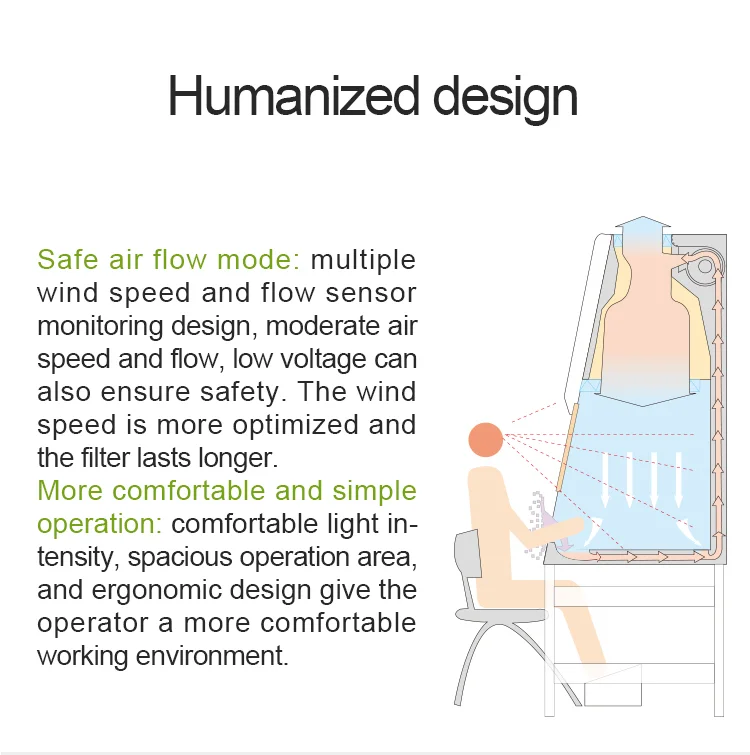

Safe and comfortable operation
The HFsafe LC series biological safety cabinet provides a clean operating environment inside the cabinet.The air-flow is filtered and blown to the sample vertically to prevent sample contamination and cross-contamination. At the same time, it protects the experimenters.The exhaust air of the biological safety cabinet is filtered by a high-efficiency filter to protect environment.
Scenes to be used
Clinical medicine
Pharmaceutical industry
Research experiment
Pharmaceutical industry
Research experiment

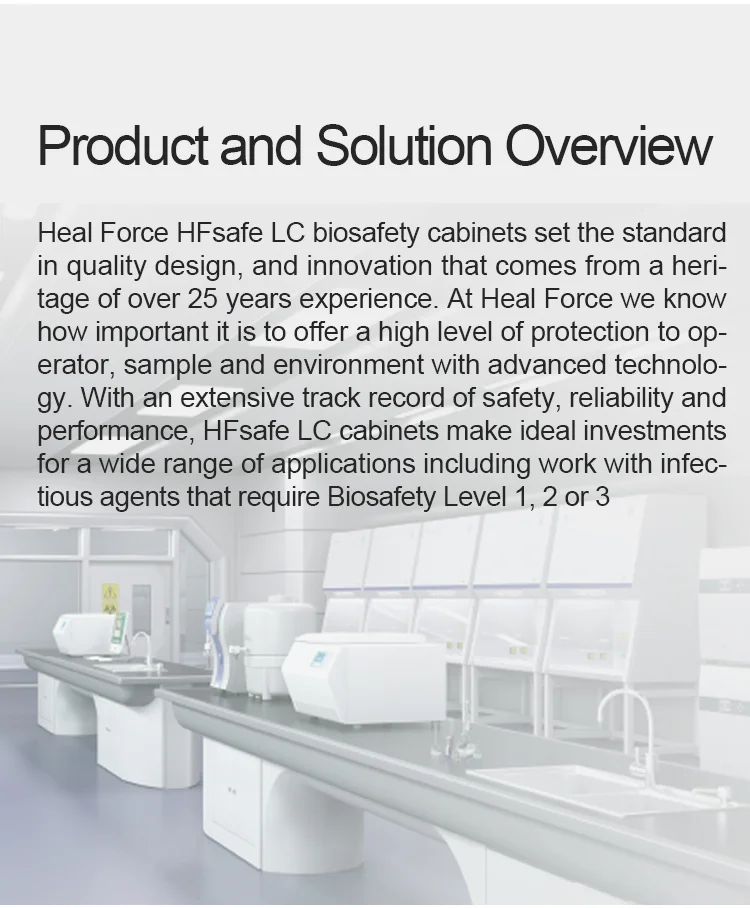

Product and Solution Overview
Heal Force HFsafe LC biosafety cabinets set the standard in quality design, and innovation that comes from a heritage of over 25
years experience.At Heal Force we know how important it is to offer a high level of protection to operator, sample and environment
with advanced technology. With an extensive track record of safety, reliability and performance,HFsafe LC cabinets make ideal
investments for a wide range of applications including work with infectious agents that require Biosafety Level 1, 2 or 3.
years experience.At Heal Force we know how important it is to offer a high level of protection to operator, sample and environment
with advanced technology. With an extensive track record of safety, reliability and performance,HFsafe LC cabinets make ideal
investments for a wide range of applications including work with infectious agents that require Biosafety Level 1, 2 or 3.

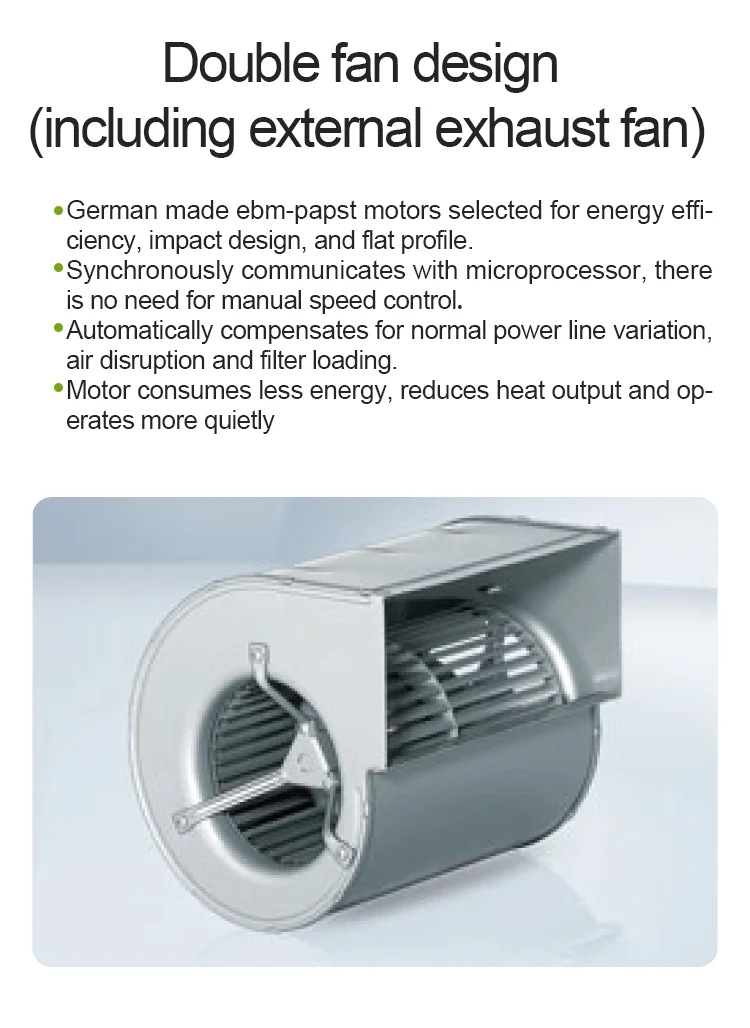

Double fan design
-German made ebm-papst motors selected for energy efficiency, impact design, and flat profile.
-Synchronously communicates with microprocessor, there is no need for manual speed control.
-Automatically compensates for normal power line variation,air disruption and filter loading.
-Motor consumes less energy, reduces heat output and operates more quietly
-Synchronously communicates with microprocessor, there is no need for manual speed control.
-Automatically compensates for normal power line variation,air disruption and filter loading.
-Motor consumes less energy, reduces heat output and operates more quietly

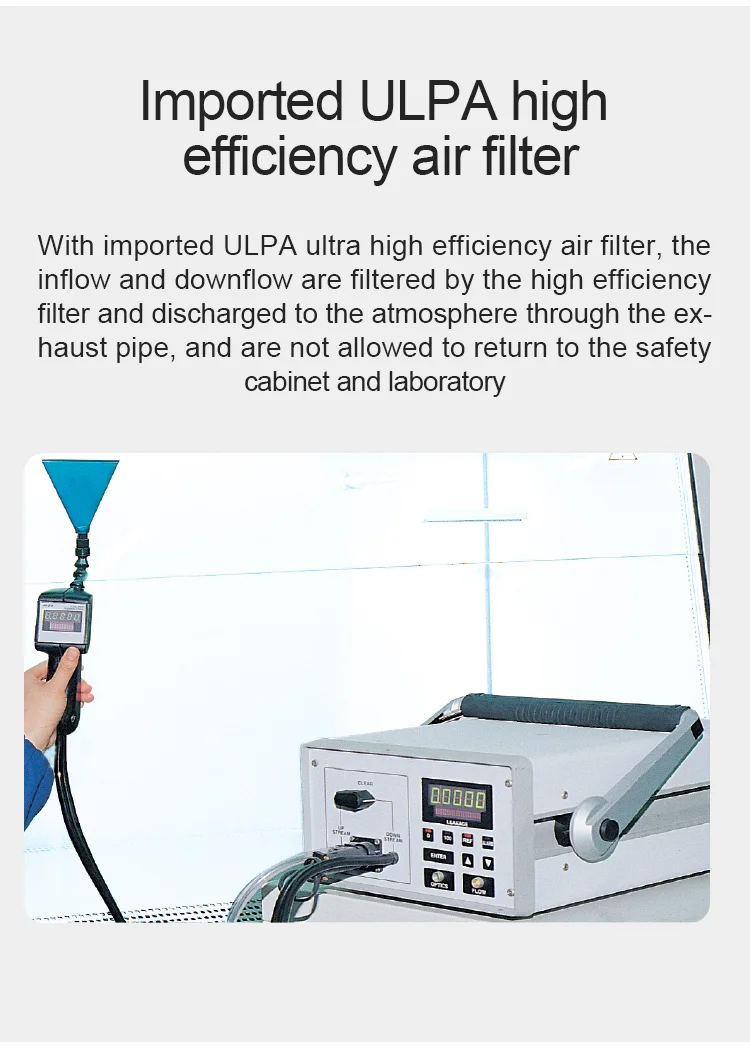

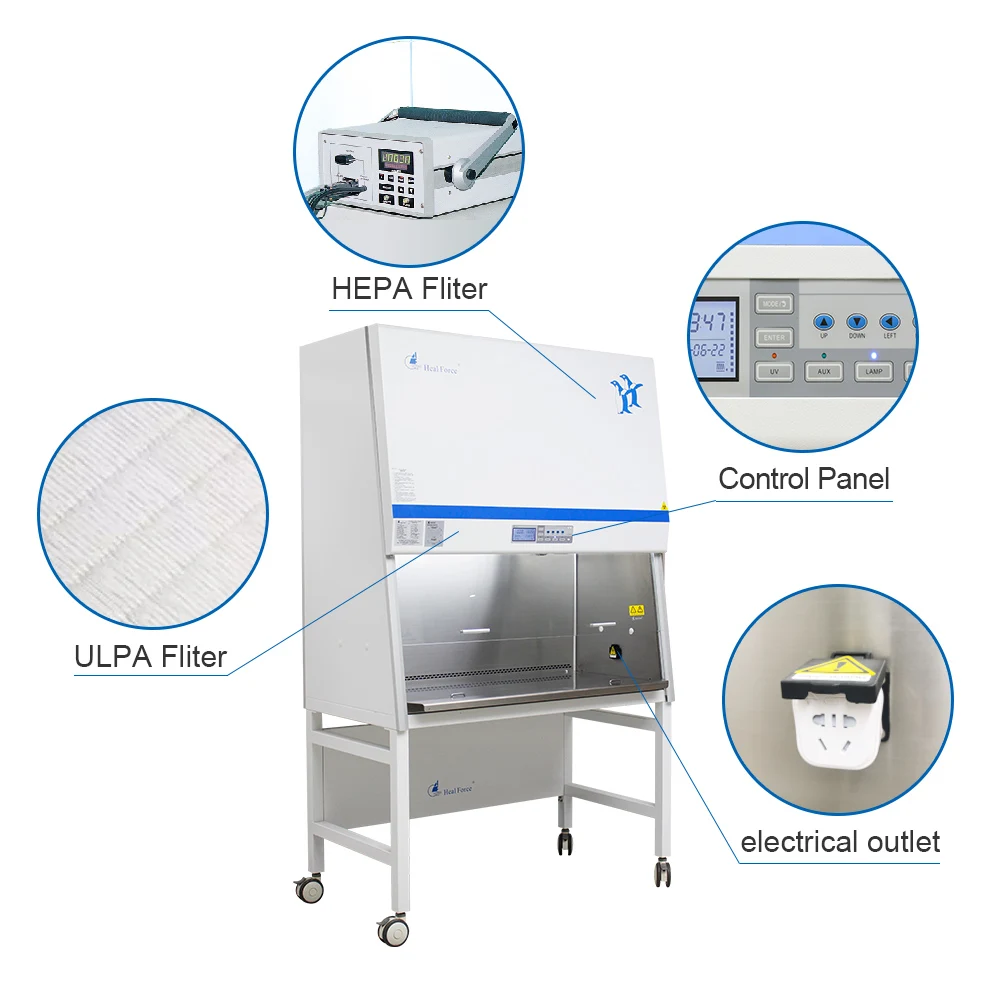

Imported ULPA high efficiency air filter
With imported ULPA ultra high efficiency air filter, the inflow and downflow are filtered by the high efficiency filter and
discharged to the atmosphere through the exhaust pipe, and are not allowed to return to the safety cabinet and laboratory.
discharged to the atmosphere through the exhaust pipe, and are not allowed to return to the safety cabinet and laboratory.
Double fan design
-German made ebm-papst motors selected for energy efficiency, impact design, and flat profile.
-Synchronously communicates with microprocessor, there is no need for manual speed control.
-Automatically compensates for normal power line variation,air disruption and filter loading.
-Motor consumes less energy, reduces heat output and operates more quietly
-Synchronously communicates with microprocessor, there is no need for manual speed control.
-Automatically compensates for normal power line variation,air disruption and filter loading.
-Motor consumes less energy, reduces heat output and operates more quietly

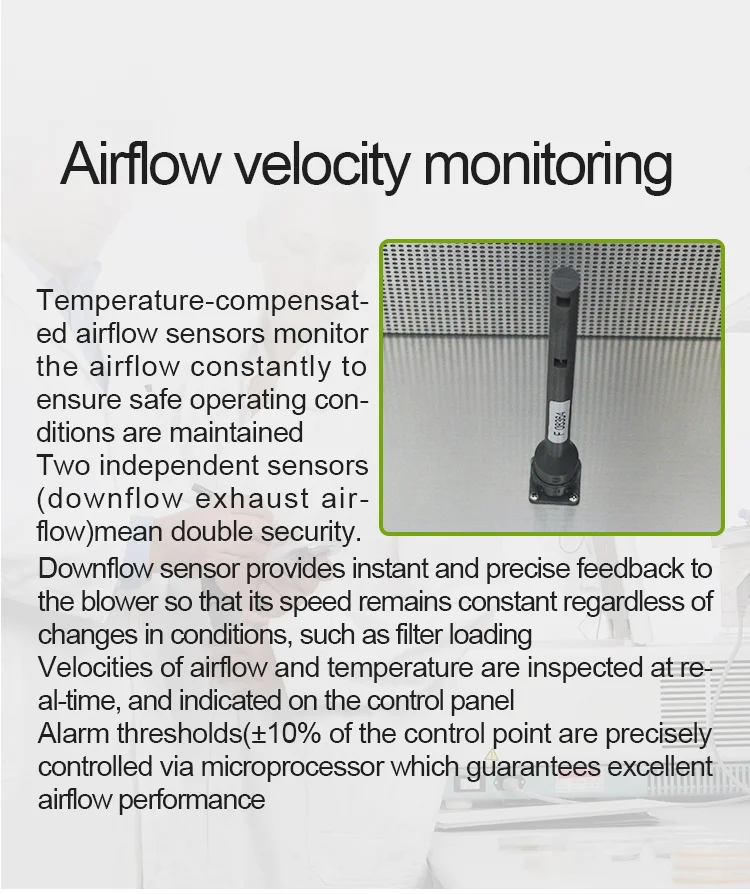

Airflow velocity monitoring
Temperature-compensated airflow sensors monitor the airflow constantly to ensure safe operating conditions are maintained.
Two independent sensors(downflow exhaust air-flow)mean double security.
Downflow sensor provides instant and precise feedback to the blower so that its speed remains constant regardless of changes in
conditions, such as filter loading.
Velocities of airflow and temperature are inspected at real-time, and indicated on the control panel.
Alarm thresholds(+10% of the control point are precisely controlled via microprocessor which guarantees excellent airflow
performance.
Two independent sensors(downflow exhaust air-flow)mean double security.
Downflow sensor provides instant and precise feedback to the blower so that its speed remains constant regardless of changes in
conditions, such as filter loading.
Velocities of airflow and temperature are inspected at real-time, and indicated on the control panel.
Alarm thresholds(+10% of the control point are precisely controlled via microprocessor which guarantees excellent airflow
performance.

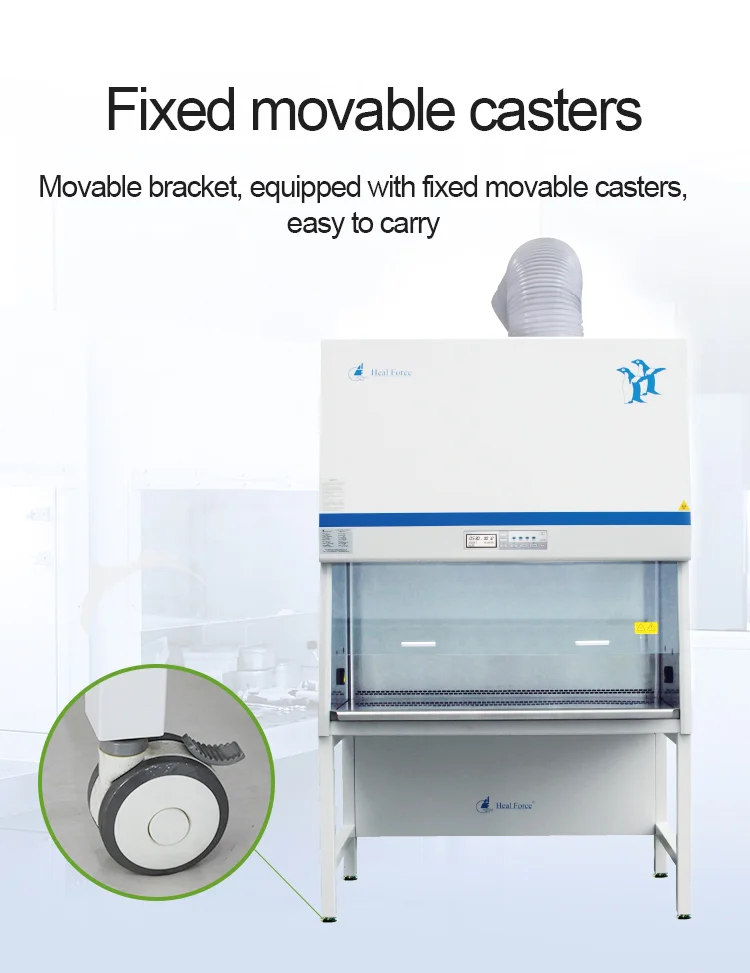

Fixed movable casters
Movable bracket, equipped with fixed movable casters,easy to carry.

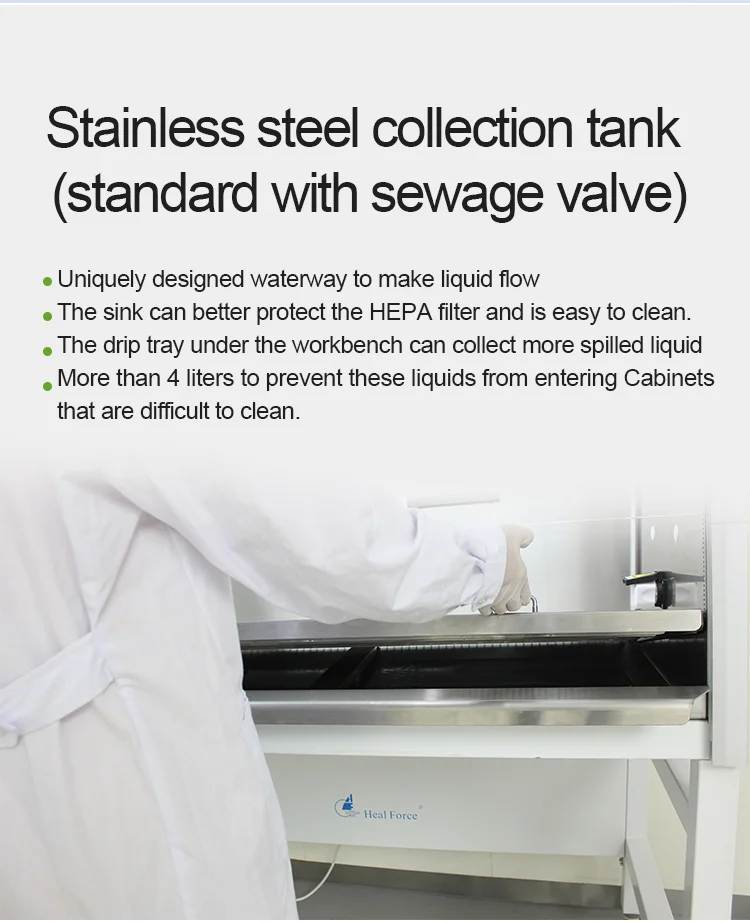

Stainless steel collection tank
(standard with sewage valve)
-Uniquely designed waterway to make liquid flow.
-The sink can better protect the HEPA filter and is easy to clean.
-The drip tray under the workbench can collect more spilled liquid.
-More than 4 liters to prevent these liquids from entering Cabinets that are difficult to clean.
-The sink can better protect the HEPA filter and is easy to clean.
-The drip tray under the workbench can collect more spilled liquid.
-More than 4 liters to prevent these liquids from entering Cabinets that are difficult to clean.
Easy to Clean
-The cabinet work zone has no welded joints to collect contaminants or rust.
-Details of cabinet developed further to ensure easier cleaning with normal cleaning solvents
-Airflow lamina tor protects the filter surface during wipe cleaning.
-Optional multiple piece stainless steel work surface is easier tore move and put into autoclave / washer.
-Bottom sink is made of stainless steel type 304 with round corners and draining valves
-Details of cabinet developed further to ensure easier cleaning with normal cleaning solvents
-Airflow lamina tor protects the filter surface during wipe cleaning.
-Optional multiple piece stainless steel work surface is easier tore move and put into autoclave / washer.
-Bottom sink is made of stainless steel type 304 with round corners and draining valves

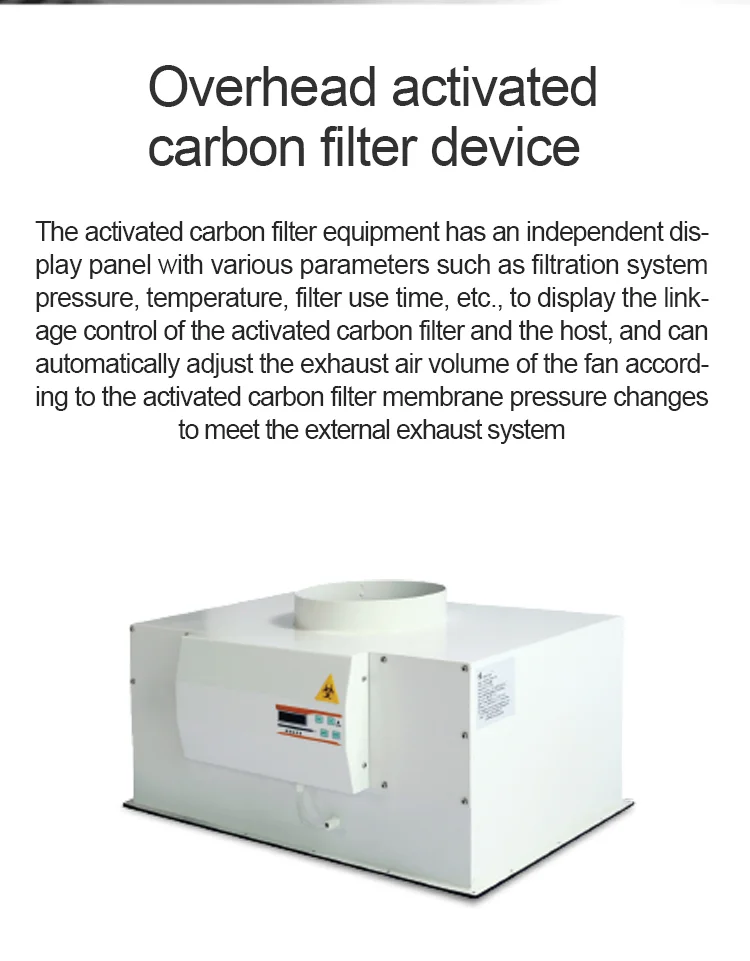

Overhead activated carbon filter device
The activated carbon filter equipment has an independent dis-play panel with various
parameters such as filtration system pressure, temperature, filter use time, etc., to display the link-age control of the
activated carbon filter and the host, and can automatically adjust the exhaust air volume of the fan according to the activated
carbon filter membrane pressure changes to meet the external exhaust system.
parameters such as filtration system pressure, temperature, filter use time, etc., to display the link-age control of the
activated carbon filter and the host, and can automatically adjust the exhaust air volume of the fan according to the activated
carbon filter membrane pressure changes to meet the external exhaust system.

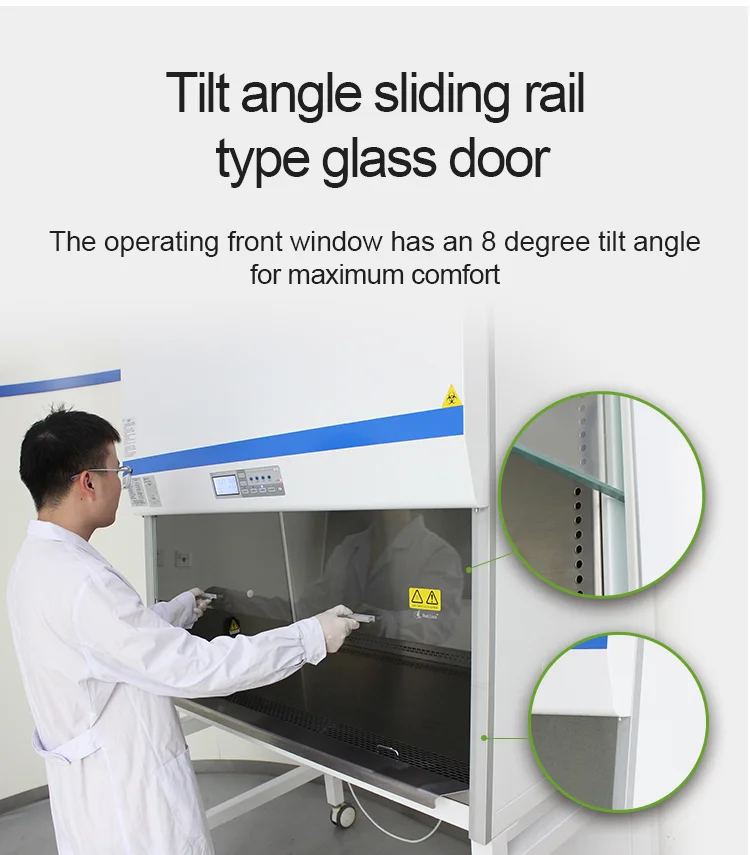

Tilt angle sliding rail type glass door
The operating front window has an 8 degree tilt angle for maximum comfort

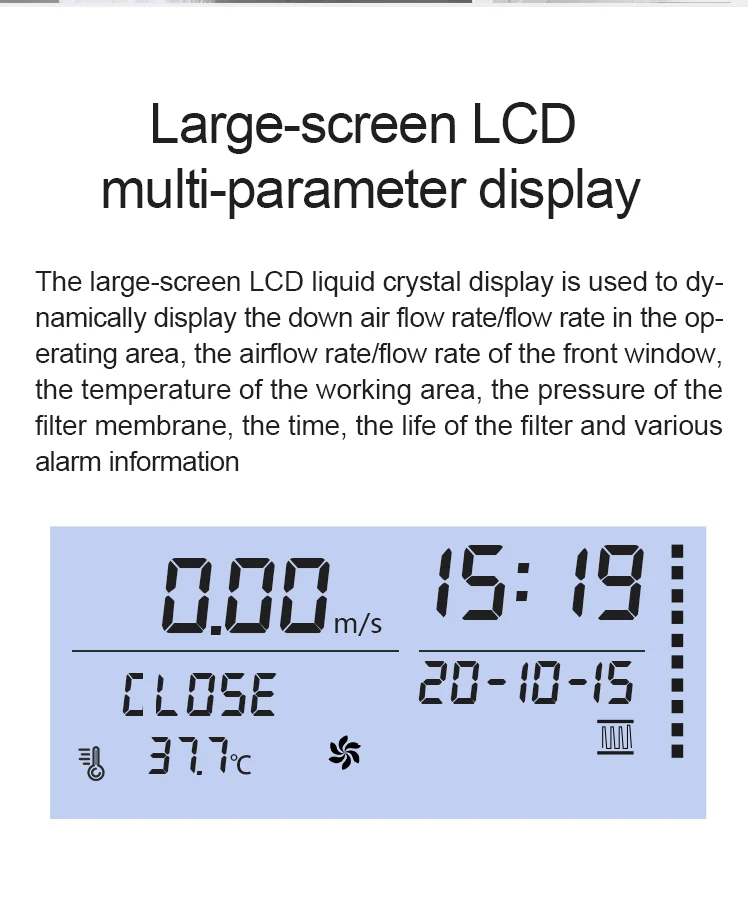

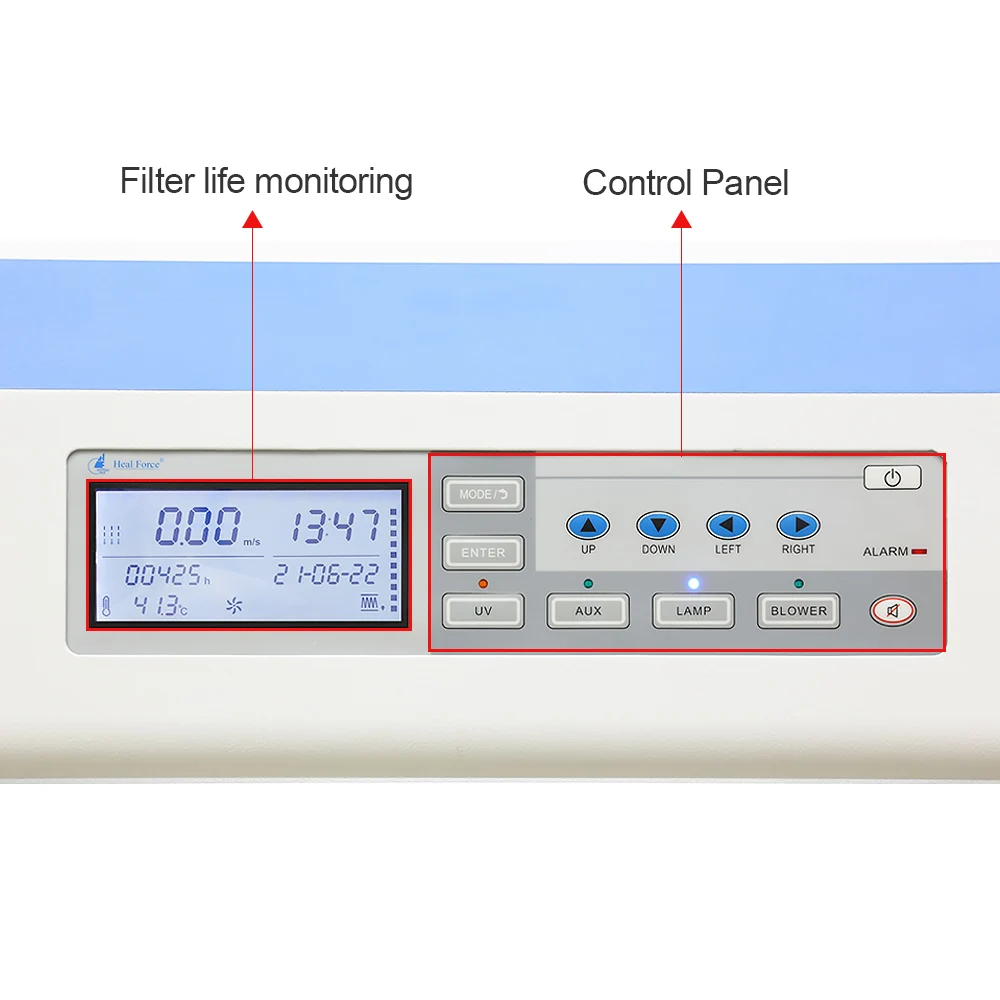

Large-screen LCD multi-parameter display
The large-screen LCD liquid crystal display is used to dynamically display the down air
flow rate/flow rate in the operating area, the airflow rate/flow rate of the front window,the temperature of the working area, the
pressure of the filter membrane, the time, the life of the filter and various alarm information.
flow rate/flow rate in the operating area, the airflow rate/flow rate of the front window,the temperature of the working area, the
pressure of the filter membrane, the time, the life of the filter and various alarm information.

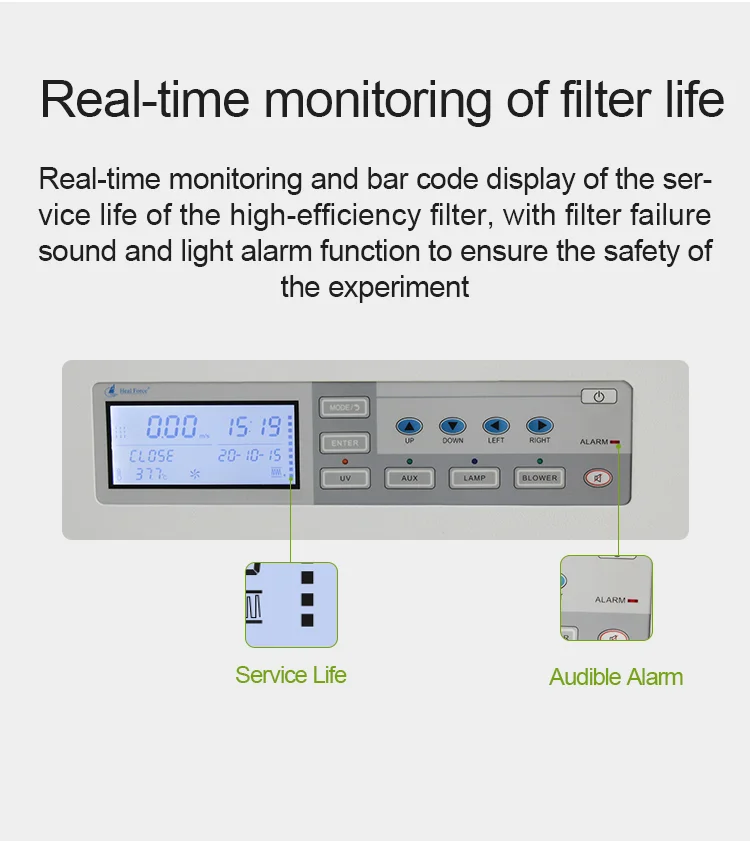

Real-time monitoring of filter life
Real-time monitoring and bar code display of the service life of the high-efficiency
filter, with filter failure sound and light alarm function to ensure the safety of the experiment.
filter, with filter failure sound and light alarm function to ensure the safety of the experiment.
Product packaging
For equipment usually we offer ply-wooden cases free fumigation,or multilayer carton boxes.or customized foam or aluminum suitcase. For IVD reagents.we use foam box with ice bag to guarantee the suitable temperature
