OEM ODM Custom Automatic Door Motion Sensor Electric Floor Sensor Mat Wireless Pressure Carpet
- Category: >>>
- Supplier: Shenzhen Winfor Canbo Technology Co. Ltd.
Share on (1600435695154):
Product Overview
Description
Product Description

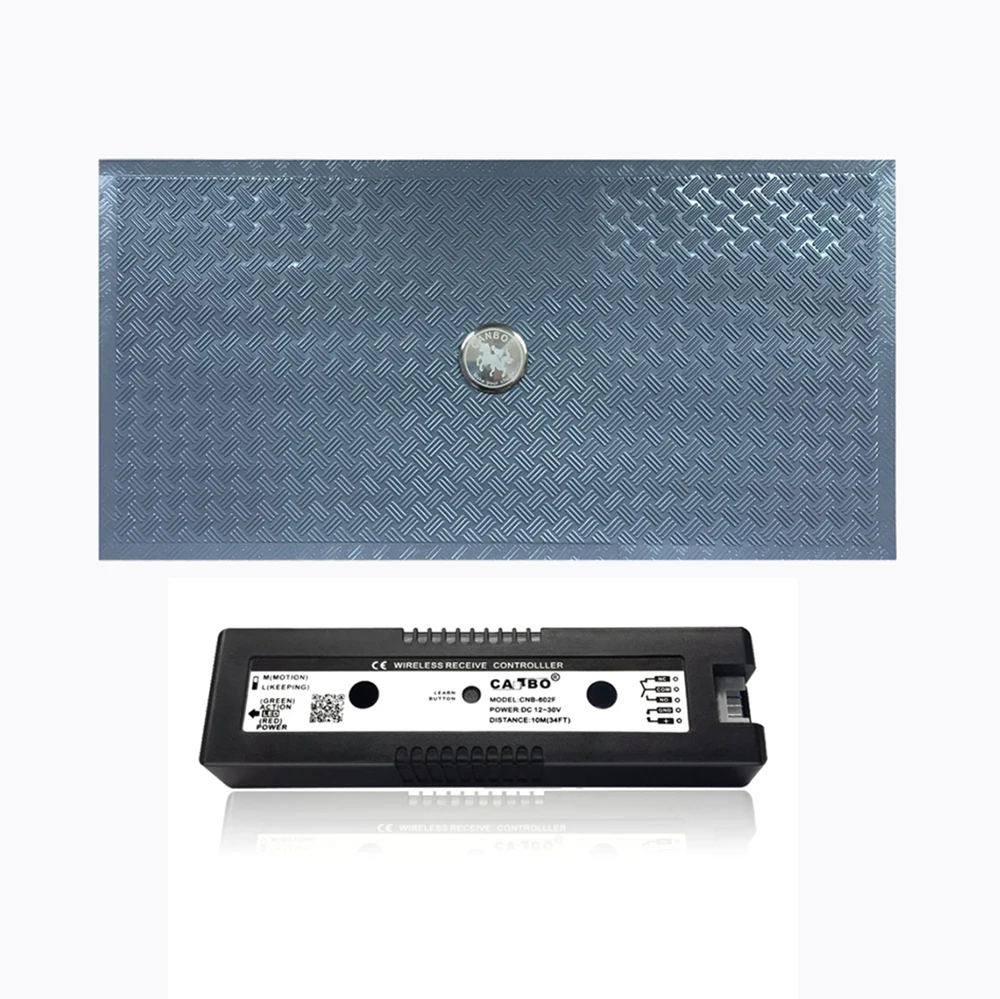

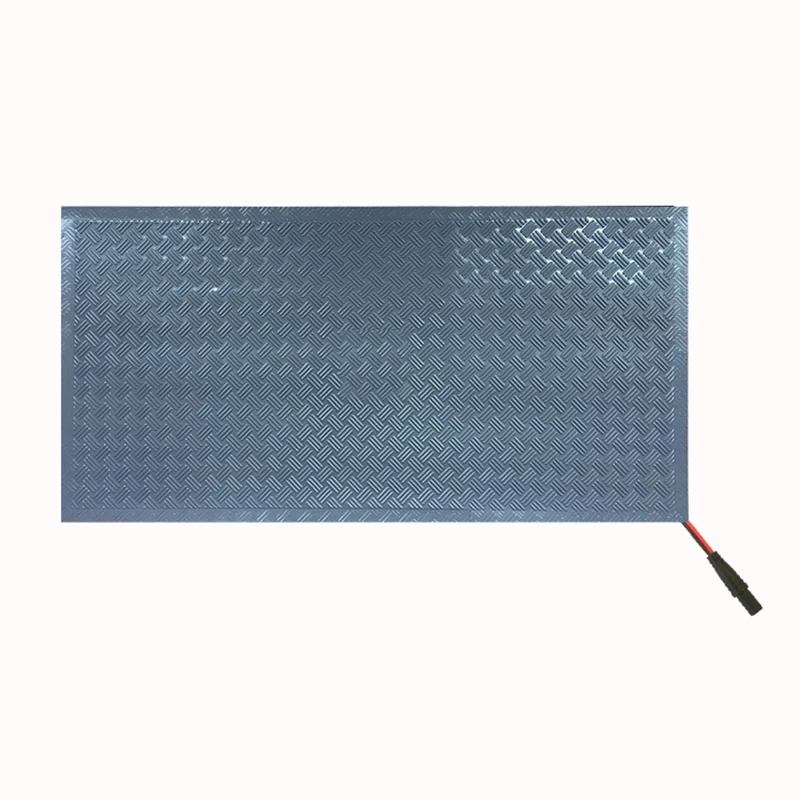

The mat switch is made of a carpet and a receiver. The carpet mat is made of high quality PVC material, which is wear-resistant and compressive.Up and down mat are joint by high wave welded to make it more waterproof.In the center of square carpet mat, there is a round stainless steel box, which is used to store wireless transmitting circuit and prevent electronic circuit from being broken, so that the service life of the floor mat is longer.
It adopts 2.4GHz wireless frequancy technoloty with strong anti-interference.Low power emission but long distance technology,battery life will be more longer.
The part with felt is an area that can be stepped on by the foot. When the foot steps on it, the door will be opened automatically. Simple and convenient without any hand touch. Wireless style, easy to install.
The all styles & sizes:

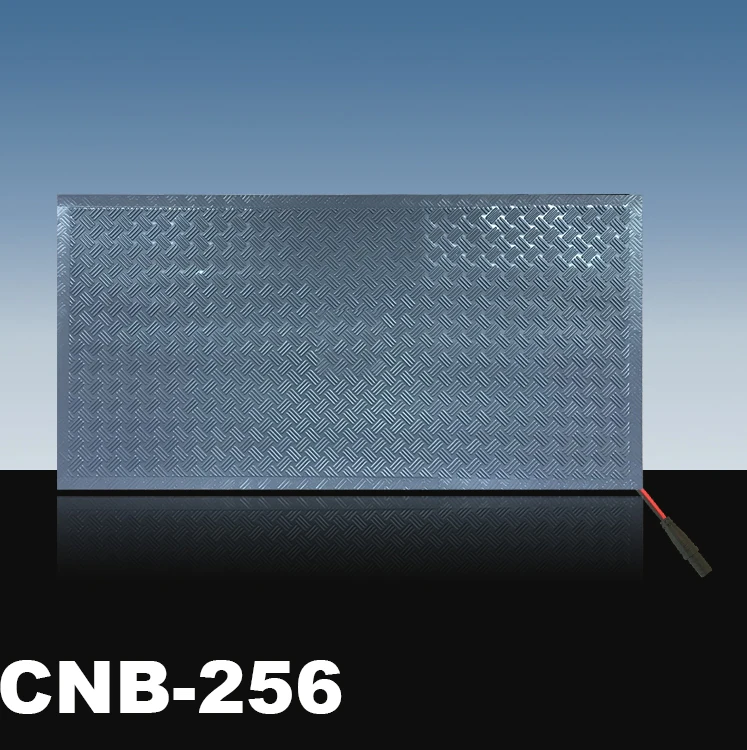

1, The surface with PVC material

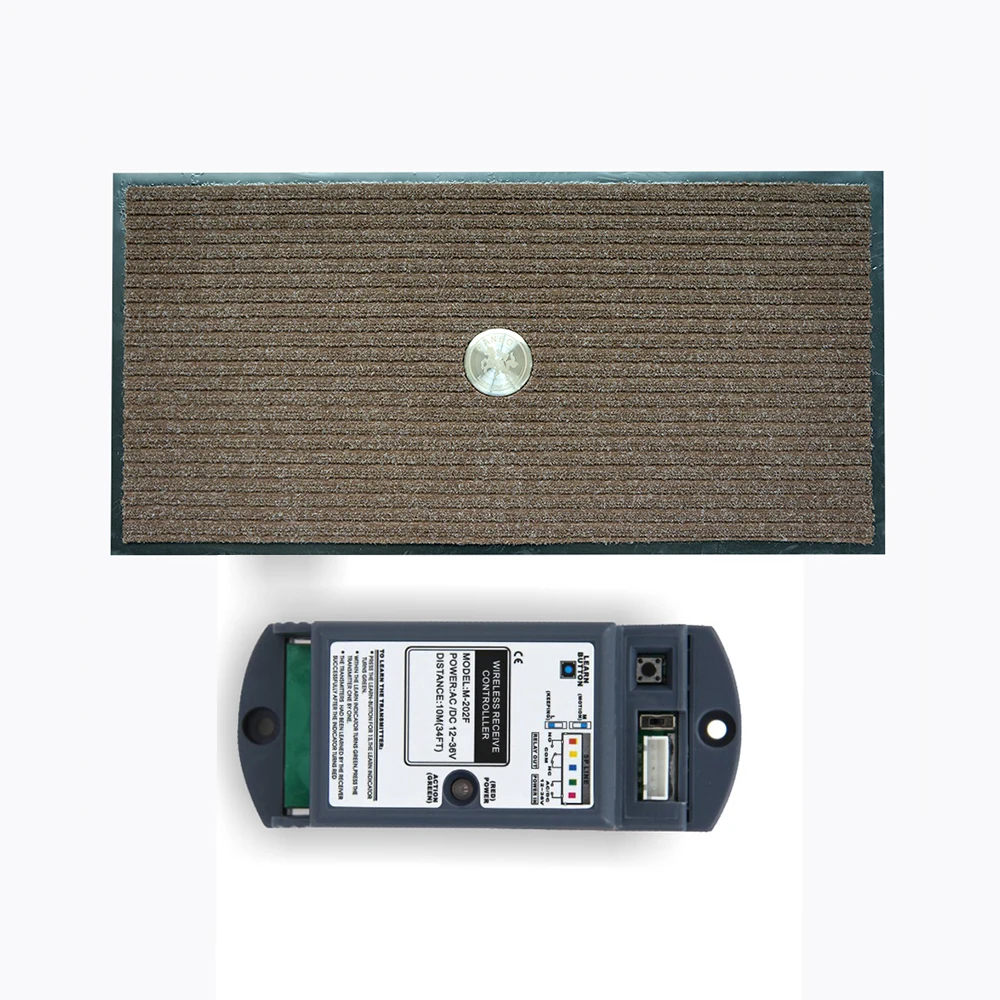

2, The surface with felt material
And all have wired type and wireless type, can be selected according different use occasions.

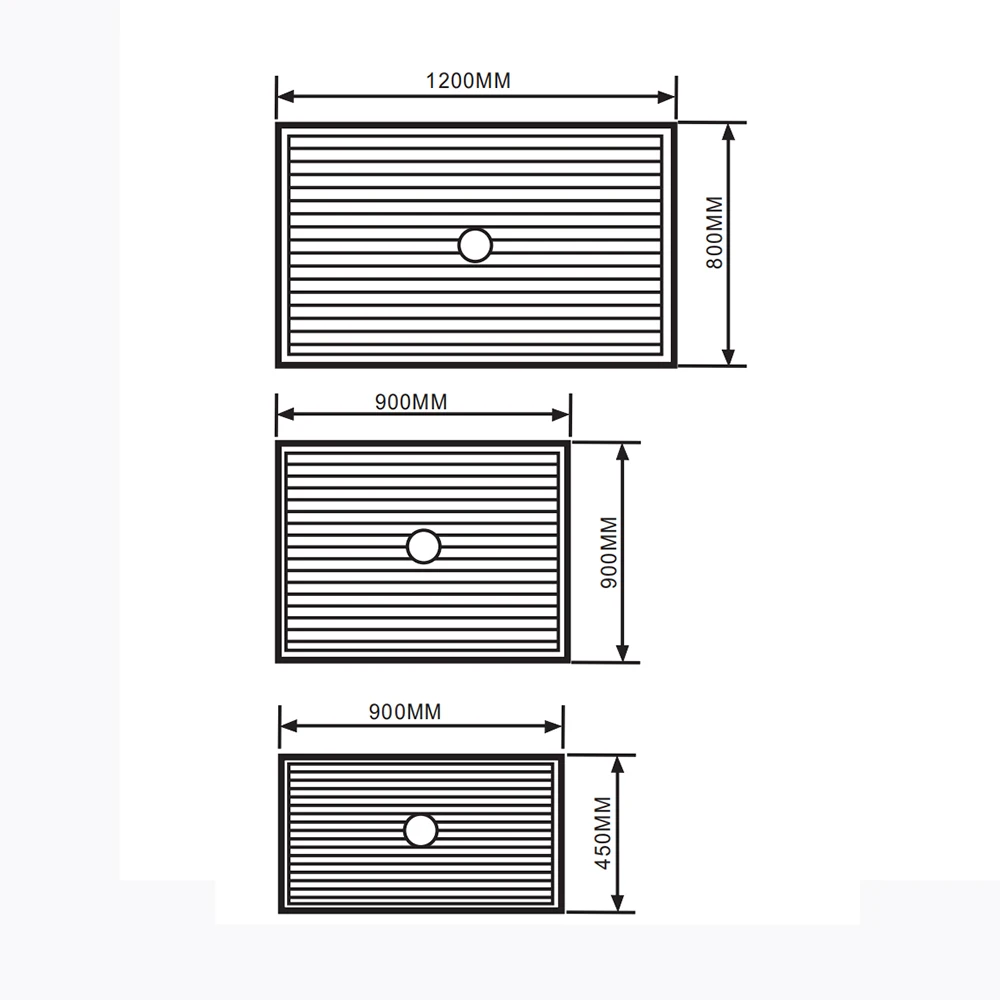

With 3 sizes as below:
Small : 450x900 mm
Middle: 900x900 mm
Large: 800x1200 mm
Features
2, Up and down mat are joint by high wave welded to make it more waterproof.
3, There have wired type and wireless type can be available.
3, There have wired type and wireless type can be available.
4, When the foot steps on the the carpet sensor, the door will be opened automatically.
5, Operated with your foot and no hand touch, and easy to install.
6, With 3 different sizes: 450x900 mm, 900x900 mm, 800x1200 mm
5, Operated with your foot and no hand touch, and easy to install.
6, With 3 different sizes: 450x900 mm, 900x900 mm, 800x1200 mm
Specification
Item | Wired & Wireless Carpet Motion Sensor |
Brand | Canbo |

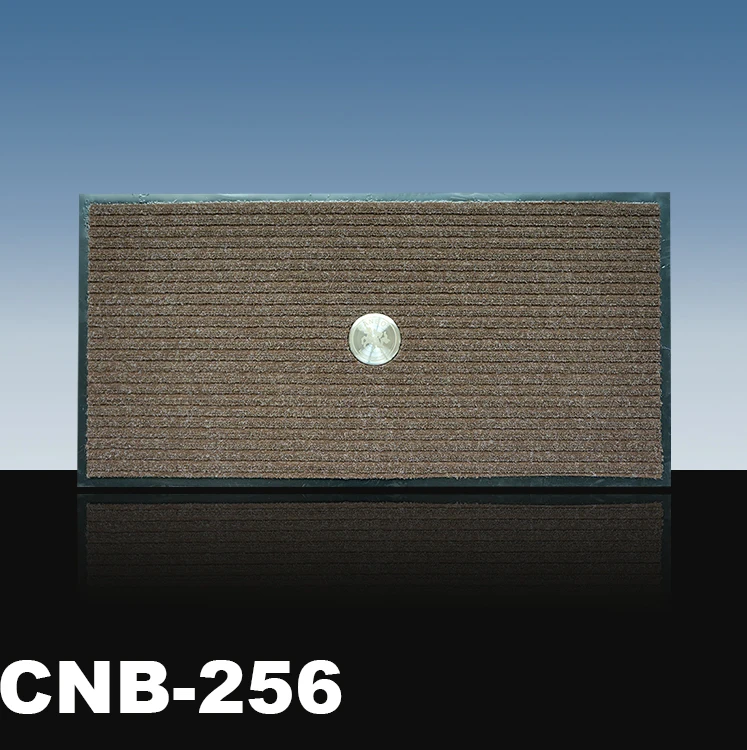

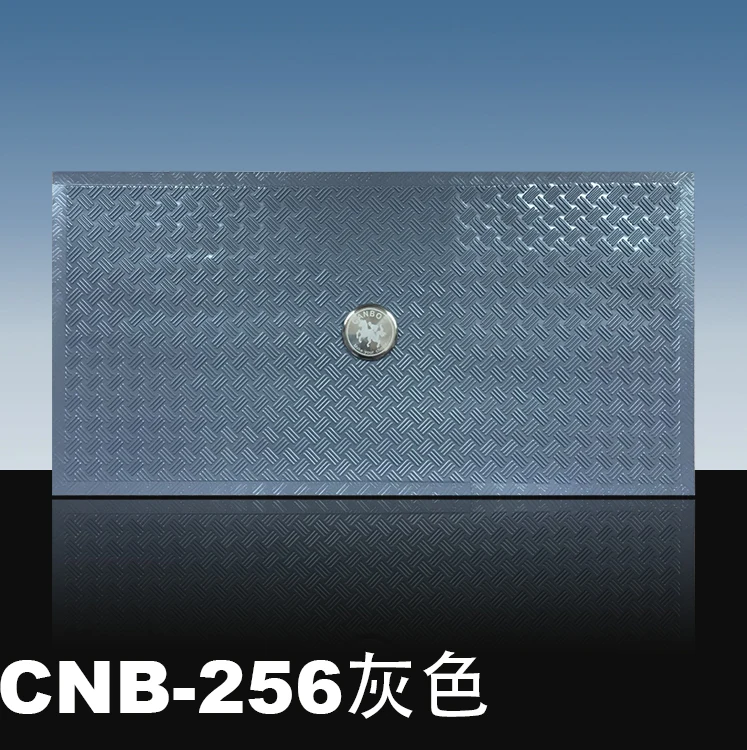

Model | CNB-256 |
Technical measures: | 2.4GHz wireless frequancy technoloty with strong anti-interference |
Supply Power | AC/DC 12~30V(receiver)、2pcs button batteries(carpet sensor) |
Certificate | ISO9001, CE |
Trigger strength: | 15 KG |
Maximum pressure: | 800kg |
Emission distance: | above 5 m ( without Shielding environment) |
Waterproof: | IP68( It is not good idea to put is in water for long time) |

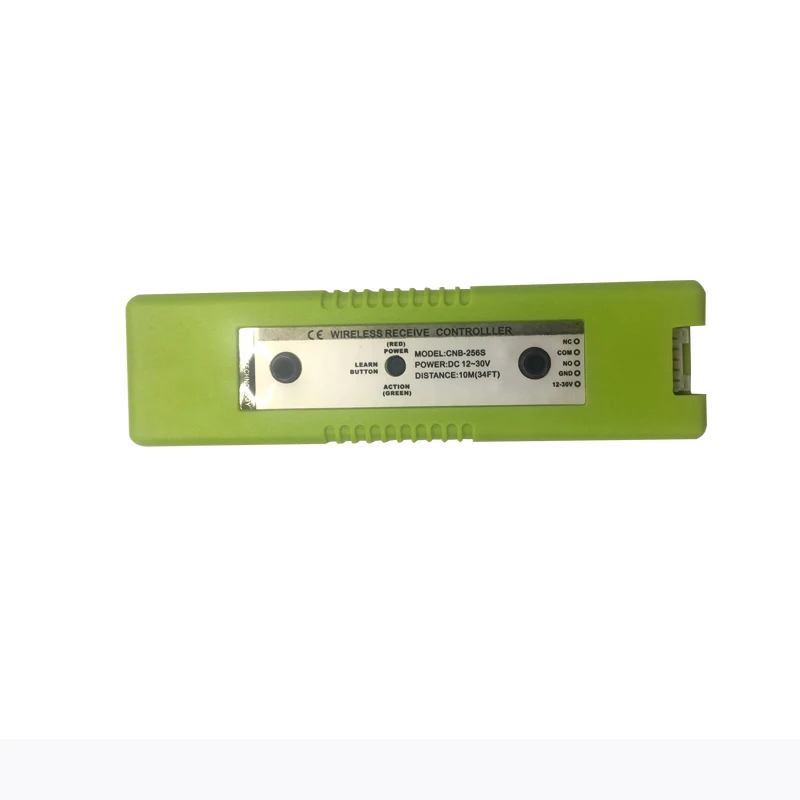

Size(receiver): | 110*30*15mm |
Size(carpet): | 450x900mm, 900x900mm, 800x1200mm |
Warranty | 1 Year |
Details Images
Packing & Delivery
Packing: poly bag + PE foam + inner box + outer box, screws will be packed into a zipcode bag.
(Maybe there will be some differences in the way of packing for different models of products )
Recommend Products
All are Wireless attendance access control kits for different occasions.
Certifications
Company Profile
Shenzhen Winfor Canbo Technology Co., Ltd.
We are a professional manufacturer engaged in research and manufacture of automatic door control and access & attendance products. We have rich experience in development of automatic door controlling system and product application on the market. "Canbo"(CANBO) series automatic door controlling products are widely used in auto door control system, business/office building access control and attendance checking systems, bank management system and medical purification control system.
With strong applicability, high stability, and exquisite appearance, CANBO products are regularly provided for many large scale automatic door manufactures, engineer contractors and export merchants. Winfor Canbo Company has become a globalized professional manufacturer in this field since our products sold to domestic and oversea markets such as Europe, United States and Asian markets, enjoying good reputation. In the spirit of innovative, pragmatic and high efficient, Winfo Canbo focus on providing high quality, advanced & pragmatic product to serve worldwide markets, in the fields of automatic door access control, intelligent security guard and medical purification. Winfor Canbo Company owns the following advantages: rich technology resources, a number of core techniques with proprietary intellectual property rights and exchanged European and US cooperation techniques. What's more, we have established long-term technical and business cooperative relationships with automatic door machine and matching product manufactures and system integrators of Germany, France, Spanish, Japan, Korea and Malaysia etc. we are providing all kinds of matching services for many large scale domestic automatic door manufacturers. With the characteristic of advanced technology, excellent quality and exquisite technics, our products have rather high cost performance and strong market competitiveness.
Pursuing for practical product applicability is the unremitting striving direction and also the enterprise mission of Winfor's
staff. Specific products are as follows: ATM card reader, magnetic card access controller, infrared presence sensor, passive infrared sensor, infrared presence detector, microwave sensor, palm inductive switch, wireless touch switch, auto-door switch for disable, pedal inductive switch, automatic door sensor beam, enhanced type remote controller, pet presence detector, automatic door function extender, five range programmed switch, ID card& password access controller, access controller and attendance integrated controller, fingerprint and attendance access controller, automatic timing switch, bad debt controller, electric mortise lock(anode lock) electric lock cath (cahode lock), magnetic lock, ID(IC) smart card, dedicated power for access control. Different kinds of metal accessory lockers and exit switch buttons etc. Automatic access control access series.
CANBO product has passed CE certification of European Union with CE certificate issued.
Pursuing for practical product applicability is the unremitting striving direction and also the enterprise mission of Winfor's
staff. Specific products are as follows: ATM card reader, magnetic card access controller, infrared presence sensor, passive infrared sensor, infrared presence detector, microwave sensor, palm inductive switch, wireless touch switch, auto-door switch for disable, pedal inductive switch, automatic door sensor beam, enhanced type remote controller, pet presence detector, automatic door function extender, five range programmed switch, ID card& password access controller, access controller and attendance integrated controller, fingerprint and attendance access controller, automatic timing switch, bad debt controller, electric mortise lock(anode lock) electric lock cath (cahode lock), magnetic lock, ID(IC) smart card, dedicated power for access control. Different kinds of metal accessory lockers and exit switch buttons etc. Automatic access control access series.
CANBO product has passed CE certification of European Union with CE certificate issued.
FAQ
1. Can i get one piece sample each model?
Yes, sample can be available.
2. How long will i get my products?
Generally, for sample and small quantity order, we will arrange delivery within 1 week.
5. what services we can choose?
Accepted Delivery Terms: FOB,EXW, etc.
Accepted Payment Currency: USD,EUR,HKD,CNY;
Accepted Payment Type: T/T, Escrow;
Yes, sample can be available.
2. How long will i get my products?
Generally, for sample and small quantity order, we will arrange delivery within 1 week.
for customized products and large quantity order, we will confirm and let you know the delivery time before order.
3. Can you add my logo? Or custom function according to our requirements?
Yes, color, logo, packaging, product function all can be customized.
4. Are you a Manufacturer or a trader? Can i be the agent of your brand in our country?
Shenzhen Winfor Canbo Technology Co.,Ltd is a professional factory engaged in research and manufacturer of automatic door access and attendance series products over 13 years.
3. Can you add my logo? Or custom function according to our requirements?
Yes, color, logo, packaging, product function all can be customized.
4. Are you a Manufacturer or a trader? Can i be the agent of your brand in our country?
Shenzhen Winfor Canbo Technology Co.,Ltd is a professional factory engaged in research and manufacturer of automatic door access and attendance series products over 13 years.
Yes, Welcome to discuss any kind of cooperation with us.
5. what services we can choose?
Accepted Delivery Terms: FOB,EXW, etc.
Accepted Payment Currency: USD,EUR,HKD,CNY;
Accepted Payment Type: T/T, Escrow;
