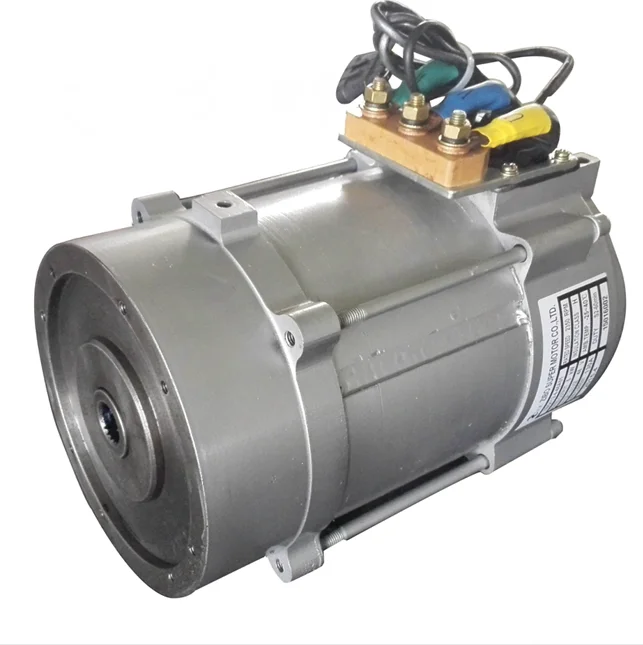

Electric Golf Cart shuttle sightseeing vehicle 5kw 48v AC Motor
- Category: >>>
- Supplier: Shandong Super Motor Power Tech Co. Ltd
Share on (1600435714210):
Product Overview
Description
Product Description
Specification
| Usage | Traction Motor For Golf Cart |
| Rated Voltage | 48V |
| Rated Power | 5KW |
| Peak Power | 10KW |
| Rated Speed | 3000RPM |
| Max Speed | 6000RPM |
| Insulation Grade | H |
| Protection Grade | IP54 |
| Working System | S2-60min |
| Working Temperature | -20 ℃ -+40 ℃ |
| Certification | CE ISO9001:2008 |
| Structure Features | 19 teeth or 10teeth |
Golf cart Ac Motor Advantage
1. Smooth and reliable. Joined with transaxle of vehicles with involute spline shaft,provide reliable and safe guarantee for vehicle.
2. Climbing ability. High starting torque, greater speed range and higher top speed, higher overload capability, which will supply big power for electric car and meet the climbing needs.
3. Long driving range of a single charge. Higher motor efficiency, provide the effectiveness.
4. Slipping-back preventing ability. When the cart stop on the slope, the ac motor will avoid it slipping.
5. Adapt to different road conditions ability, Enables regenerative braking.
6. Durable in use, easy maintenance.

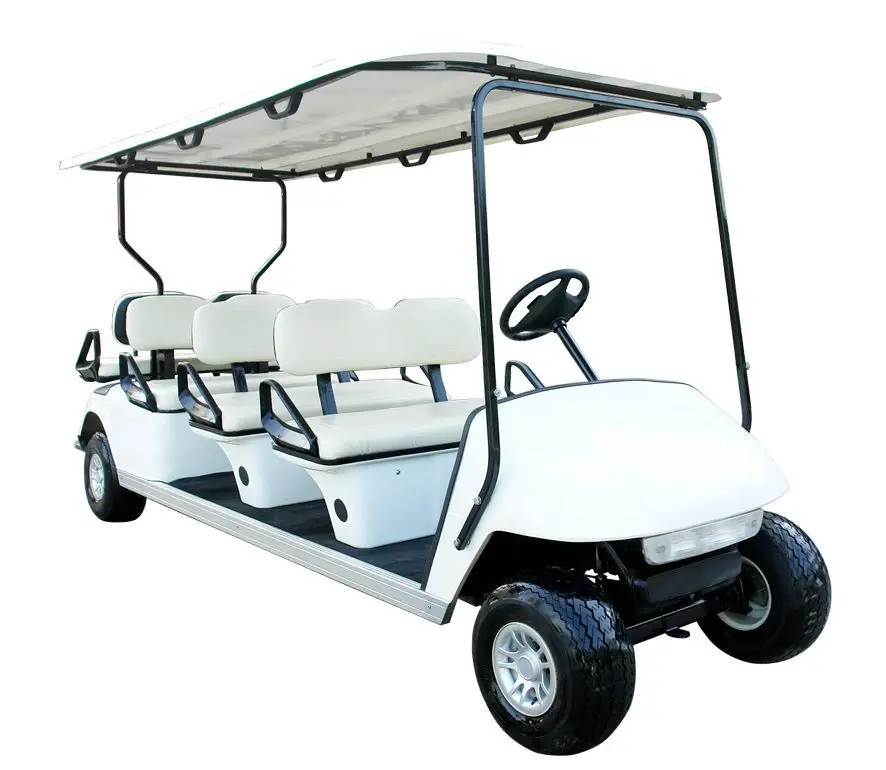

Application
Other parts for choosing:
DC-DC Converter
| Input Voltage | 72V |  |
| Output Voltage | 12V | |
| Max Current | 18A |
Battery Charger For Golf Cart
| According to your battery type to design |  | |
Packaging & Shipping
Package details
Size:40cm*28cm*27cm
Standard export package or special packing for motors, we take every possible precaution to ensure that our products can reach the customers all over the world, especially we can satisfy the customers different requirements about the packing.
Delivery detail
14-20 working days after payment received.
International express Ocean shipping Air transport
Our Services
1. One year warranty.
2. 24 hours technical support .
3. Provide solution for free.
4. On time delivery.
5. T/T payment online, L/C,Western Union payment can also be accepted.
Company Information
Company
Shandong Super Motor Power Tech Co., Ltd is a professional manufacturer of electric driving system, which was founded in early 2000, covering 80000 square meters, located in the state-level development zone – Zibo High&New Tech Zone. Now Shandong Super Motor Power Tech Co., Ltd is the biggest driving system supplier in China.
We focus on the research and development, production and sales of electric vehicle driving system, which include electric motors, transmissions, and motor control systems. We have the domestic advanced production equipment, production line, currently more than 400 employees, more than 60 people R&D team led by Doctors. the company registered capital of USD4 million, total assets of USD8 million, the production value is more than USD20 million in 2014.
Certification
We have passed the ISO9001:2008 quality management system certification,BV certification and European CE certification.
Super Motor Advantages:
1. Been Motor Manufacturer and Exporter for more than 15 years.
2. We own "three of the most",earliest research and development, biggest market share and strongest technical force.
3. Quality assurance, we have passed ISO9001:2008, BV and CE certification.
4. Leading service level, solve doubts online.
5. Provide customized products.
