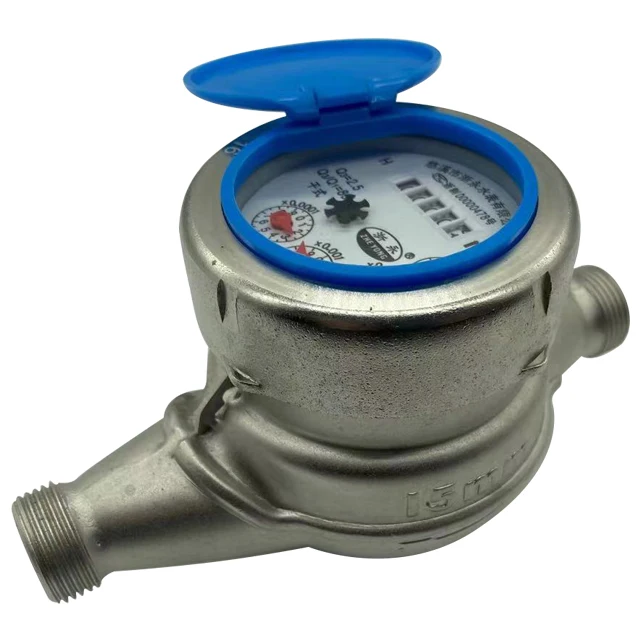

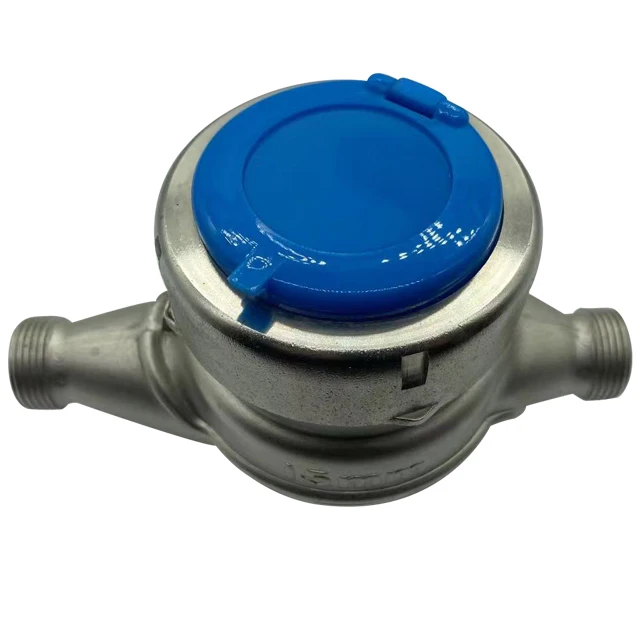

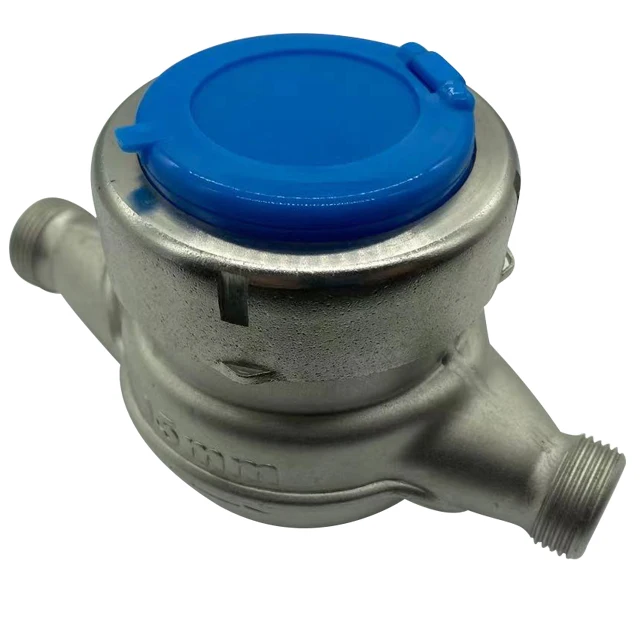

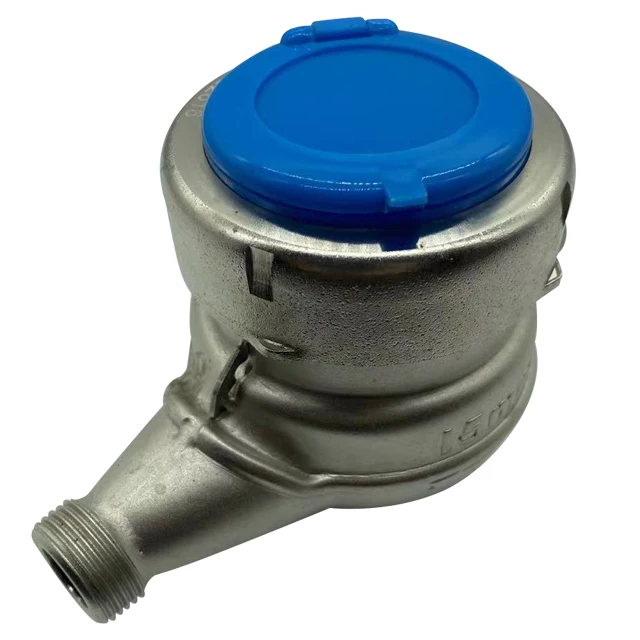

OEM Design 25mm Multi-Jet Dry-Dial High Pressure Stainless Steel Multi Jet Water Meter For Sale
- Category: Water Meters >>>
- Supplier: Cixi,Zheyong,Water,Meter,Co.,Ltd.
Share on:
Product Overview
Description
Home
Products Description
DESCRIPTION
This range of water meter is used to measure the total quantity of cold(hot) potable water which consumed in household or a resident unit, passing through the pipeline.
Compliance with standard: ISO 4064 Class B
FEATURE
•Dry-dial, magnetic drive, Resistance to exterior magnet interference
•Multi-jet
•Brass body，Cast iron body，Plastic body，Stainless steel body
•Selected high quality materials for steady&reliable characteristic
•Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
•Measuring accuracy conform to ISO 4064 class B Standard
•universal Use. Easy For Interchange&maintenance
This range of water meter is used to measure the total quantity of cold(hot) potable water which consumed in household or a resident unit, passing through the pipeline.
Compliance with standard: ISO 4064 Class B
FEATURE
•Dry-dial, magnetic drive, Resistance to exterior magnet interference
•Multi-jet
•Brass body，Cast iron body，Plastic body，Stainless steel body
•Selected high quality materials for steady&reliable characteristic
•Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
•Measuring accuracy conform to ISO 4064 class B Standard
•universal Use. Easy For Interchange&maintenance
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)
MAIN TECHNICAL DATA
Meter size Dia DN (mm) | Class | Q4 Overload Flow | Q3 Nominal Flow | Q2 Transitional Flow | Q1 Min Flow | Min Reading Lectura | Max Reading Lectura | |||
m3/h | 1/h | m3 | ||||||||
15 | 80 | 3.123 | 2.5 | 50 | 31.25 | 0.0001 | 99999 | |||
100 | 40 | 25 | ||||||||
20 | 80 | 5 | 4 | 80 | 50 | 0.0001 | 99999 | |||
100 | 64 | 40 | ||||||||
25 | 80 | 7.875 | 6.3 | 126 | 78.75 | 0.0001 | 99999 | |||
100 | 100.8 | 63 | ||||||||
DIMENSIONS AND WEIGHT
Meter size Dia DN (mm) | L length | B Width | H Height | Connecting Thread D | Weight kg | ||
mm | |||||||
15 | 165 | 99 | 104 | G3/4"B | 1.5 | ||
20 | 190 | 99 | 106 | G1"B | 1.7 | ||
25 | 225 | 104 | 120 | G11/4"B | 2.4 | ||
32 | 230 | 104 | 120 | G11/2"B | 2.7 | ||
40 | 245 | 125 | 155 | G2"B | 4.5 | ||
50 | 300 | 125 | 155 | G21/2"B | 7.2 | ||
280 | 165 | 175 | Flange connecting conform to GB4216.4 D=165 D1=125 | 14 | |||
WORKING CONDITION
Cold Water temperature:≤30°C
Hot Water temperature:≤90°C
Working pressure:≤1.0Mpa
Hot Water temperature:≤90°C
Working pressure:≤1.0Mpa
