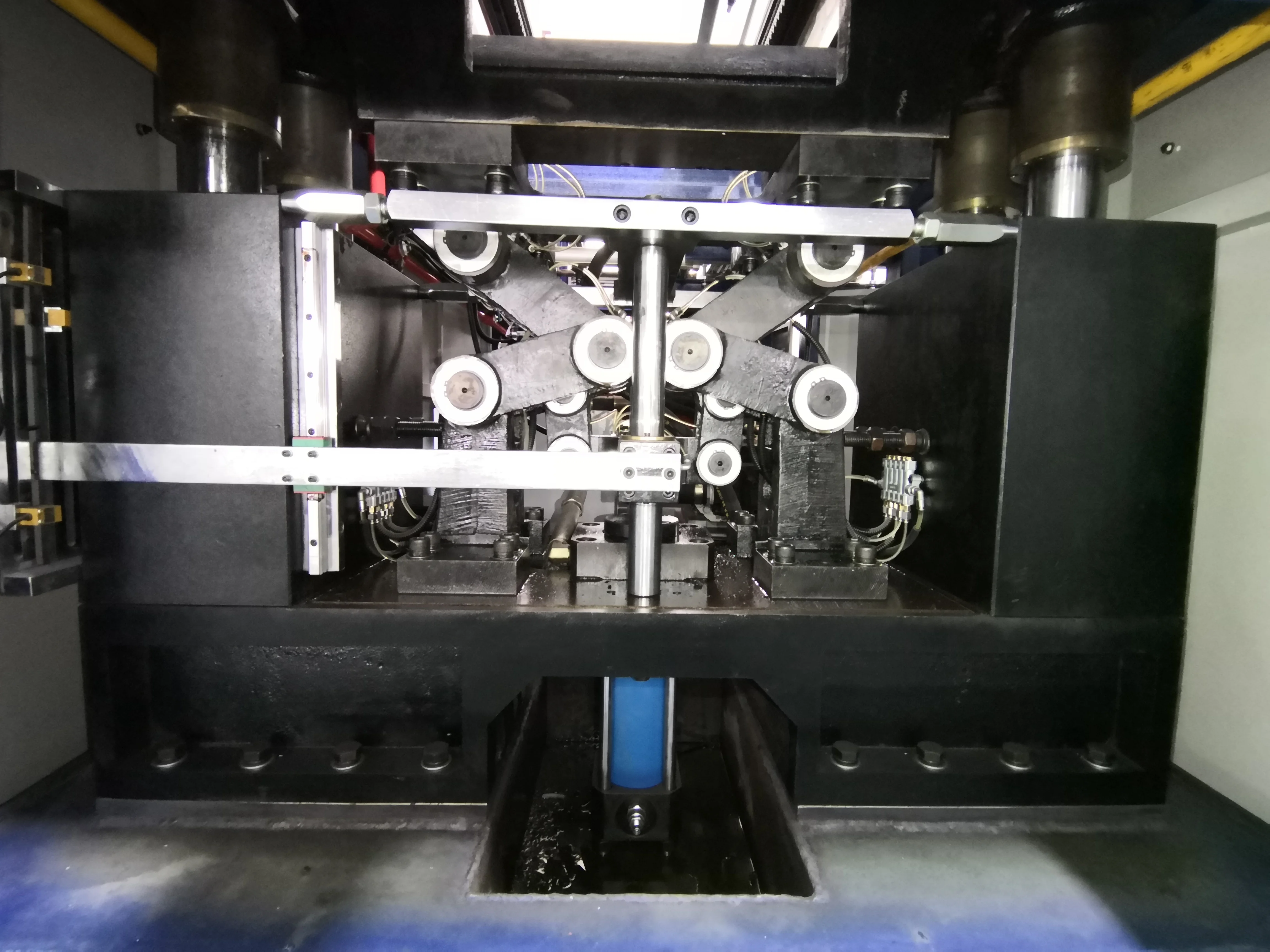

DB 750 High Speed full automatic equipment for making plastic lunch boxes and cups
- Category: >>>
- Supplier: Wenzhou Daba Machinery Co. Ltd.
Share on (1600435759284):
Product Overview
Description
Specification

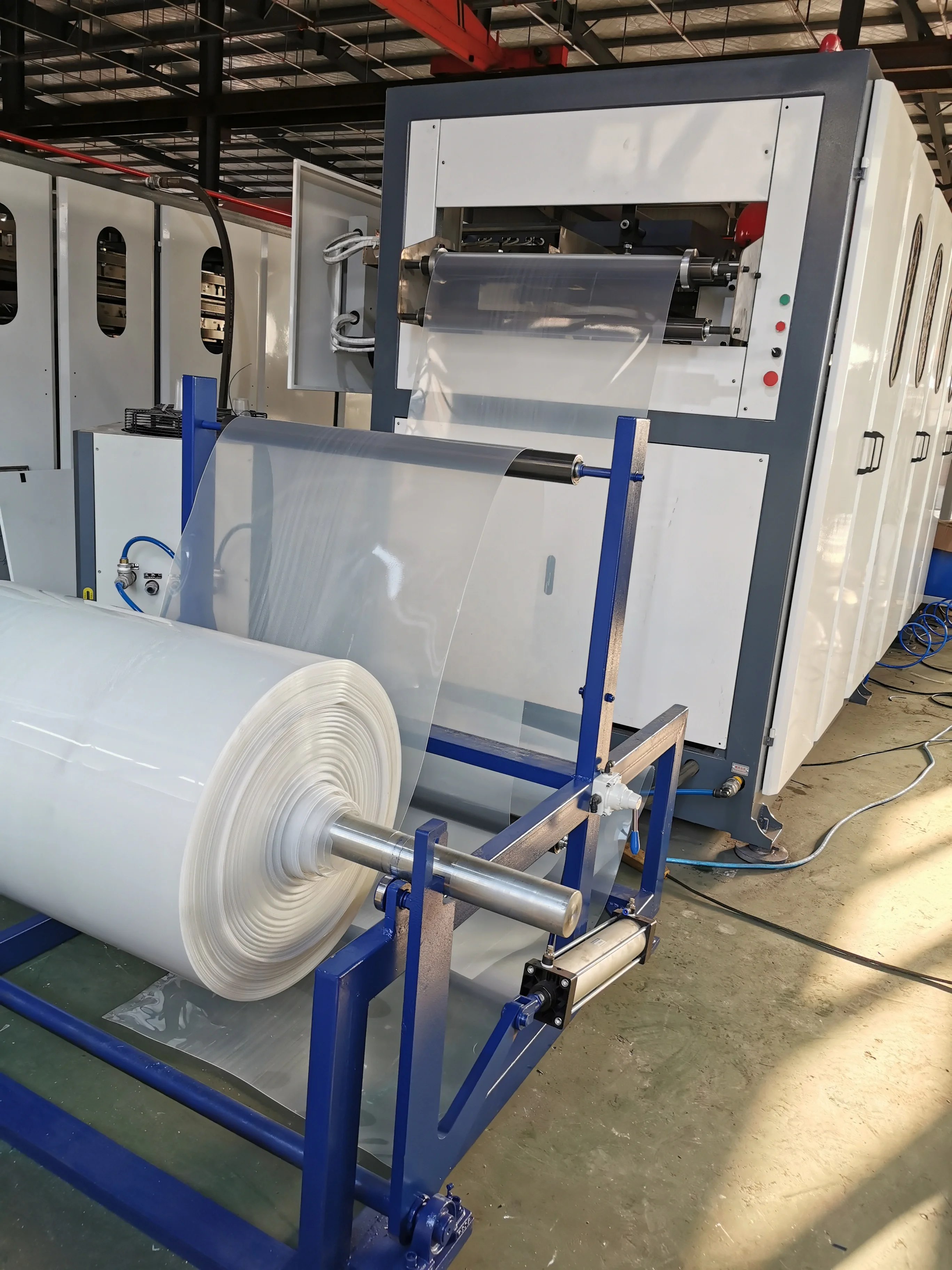

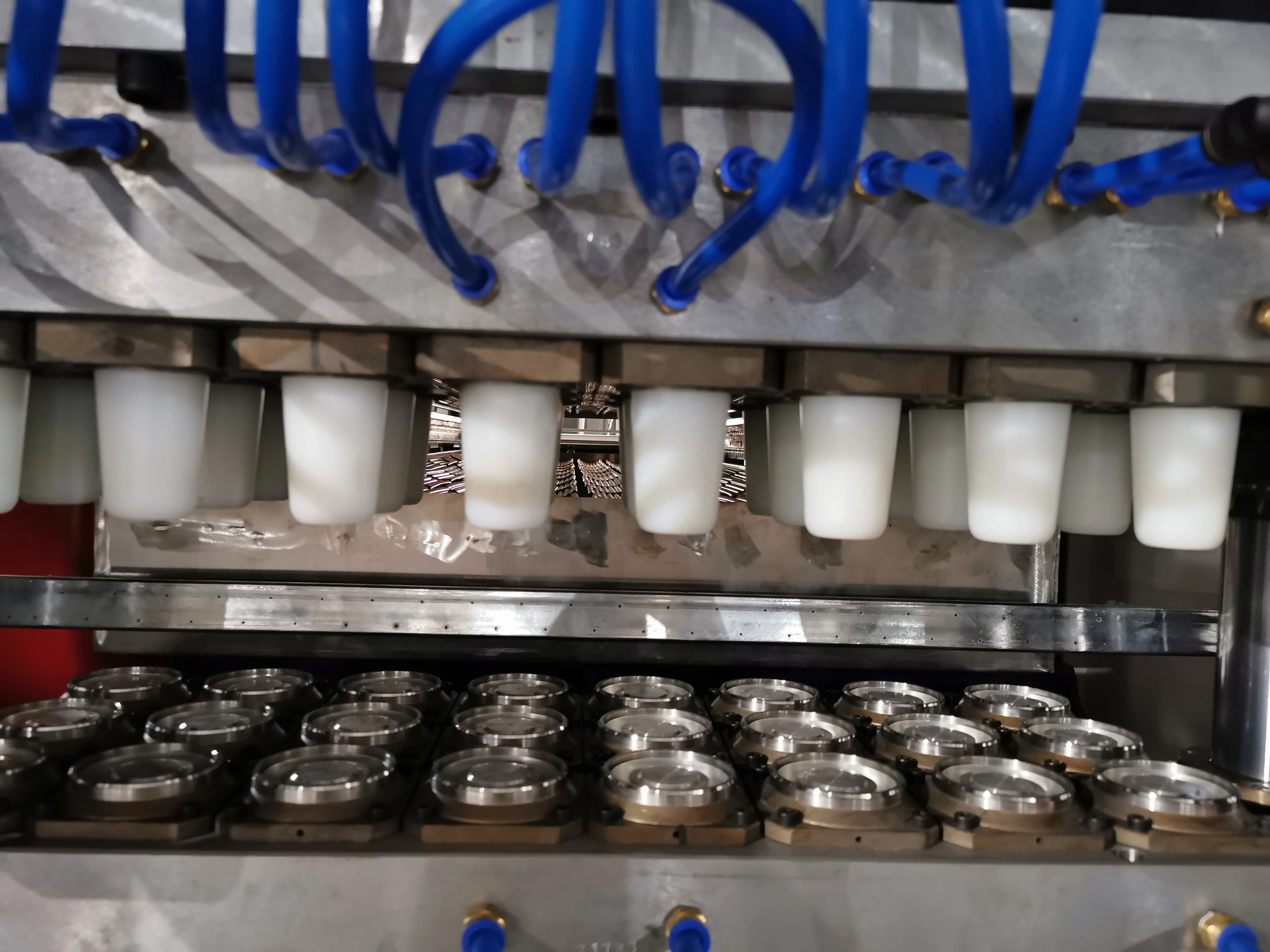

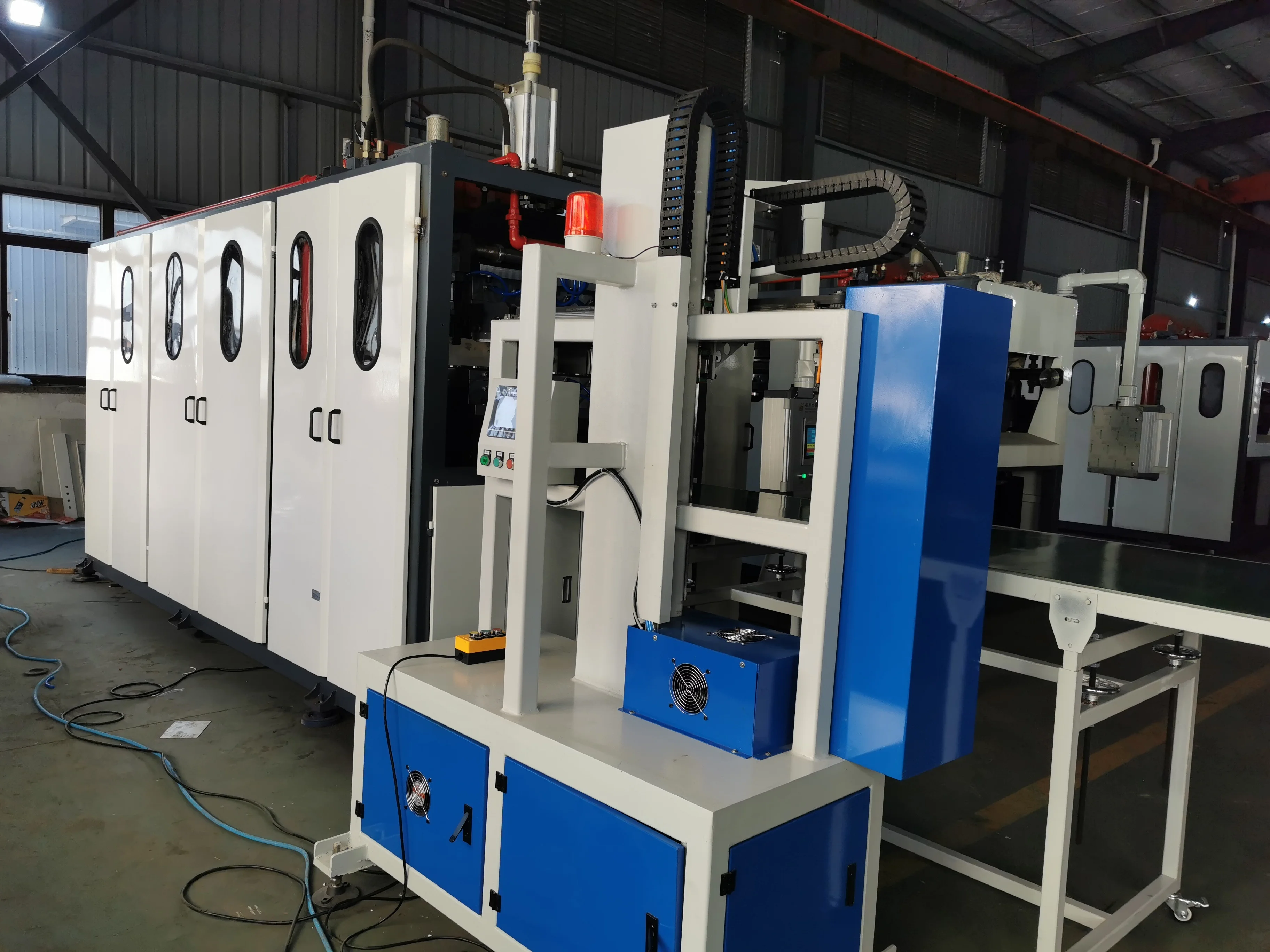

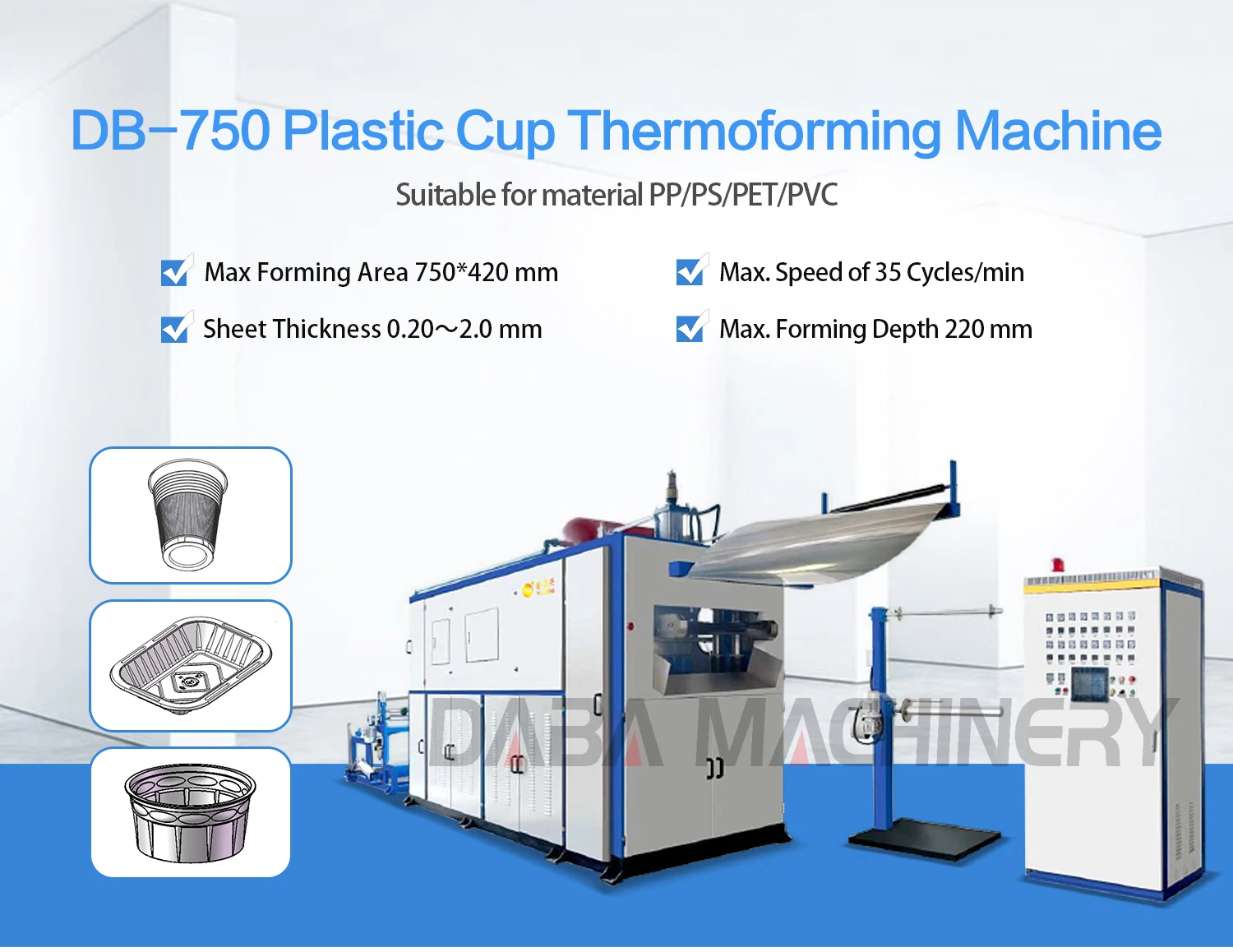

DB-750 plastic cup thermoforming machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled bye micro PLC.
It operates with man-interface, which can works all by itself. It combines the material feeding, heating, drawing, forming, cutting and transporting into one process. It is mainly using for production, production of disposable tableware, cold drink cup, yogurt cup, jelly cup, ice cream cup, snack box, plastic bowl, milk tea cover etc. At the same time also can processing medicine, light industry, textile, tourism, toys and other relevant plastic packaging products. Suitable material: PP, PS, HIPS, PVC, PET plastic sheet.
Item | Value |
Processing Type | Plastic Thermoforming Machine |
Max.Forming Height(mm) | 180mm |
Warranty of core components | 1 Year |
Sheet Thickness(mm) | 0.25mm - 3mm |
Heating Power (KW) | 15KW |
Air Comsumption(L/min) | 2400L/min |
Water Comsumption(L/min) | 10L/min |
Condition | New |
Dimension(L*W*H) | 4200*1600*2500mm |
Weight (T) | 7T |
Material | PP/PS/PET/PVC/HIPS |
Forming Area | 750*420mm |
Power Supply | 380V, 3P, 50HZ |
Sheet Thickness | 0.25-3mm |
Max forming depth | 220mm |
Forming Speed | 35cycles/min |
Air Pressure | 0.6-0.8Mpa |
Air Consumption | 2400L/min |
Total power | 120kw |
