2D 3D metal detector price water detector machine that detects metallic and non metallic minerals
- Category: >>>
- Supplier: Geomative Co.Ltd
Share on (1600435805146):
Product Overview
Description
Product Description

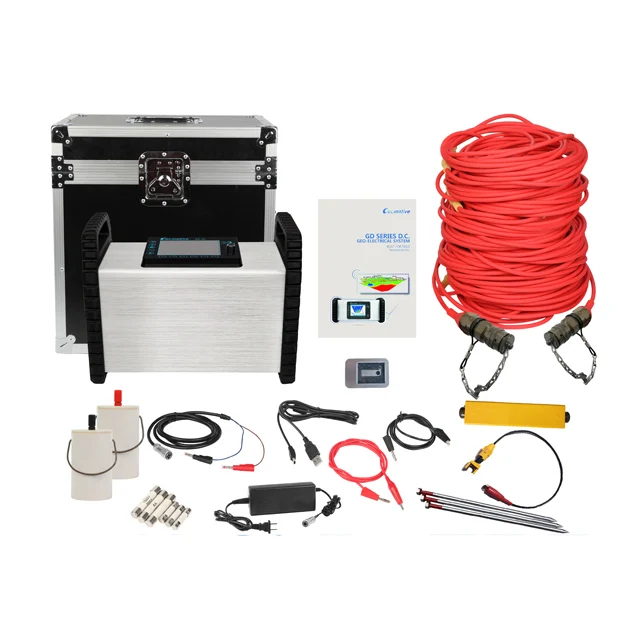

GD-10 Advanced 2D Multi-electrode Res Imaging System is the 2D ERI system with functions of SP survey, 1D Resistivity/IP sounding survey and 2D Resistivity Imaging survey. The mainframe including GD-10 mainframe and CS-60 multi-electrode switching box, which support max 60 pcs electrodes.

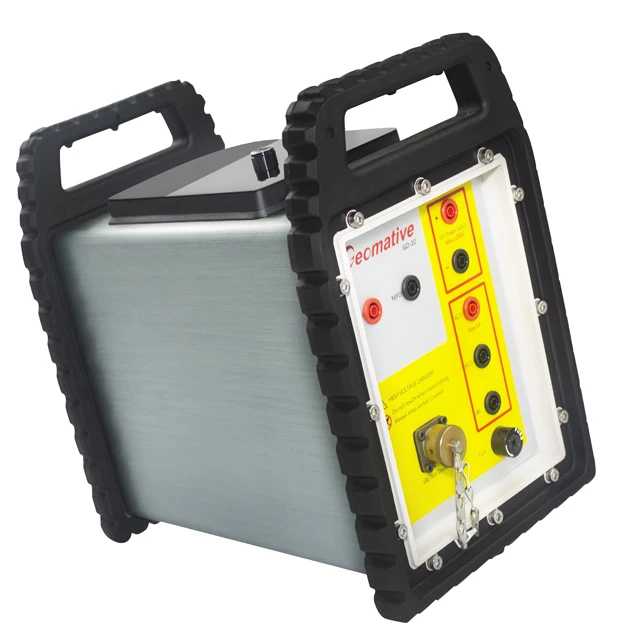

1. GD-10 mainframe
Specifications
| Transmitting | |
| Max transmitting power | 3200W |
| Max transmitting voltage | ±800V |
| Max transmitting current | ±4A |
| Protection | Seal, over-voltage, reverse, lighting, leakage, high temperature, over current short circuit |
| Pulse | Square wave |
| Pulse width | 0.5, 1, 2, 4, 8, 16, 32, 64s (option) |
| Current precision | 0.3% ± 1uA |
| Input resistance | ≥20MΩ |
| Iteration | 1~100 times |
| IP measuring method | Full time domain |
| IP transmitting wave | Positive, off, negative, off |
| IP wave period | Available set in software |
| Receiving | |
| Voltage range | ±24V |
| Voltage precision | 0.3% ± 1uV |
| SP compensation | ±10V (auto) |
| Frequency interference | >=95dB (50Hz or 60Hz,option) |
| A/D converter | 24 digit |
| Polarizability precision | 0.30%±1μA |
| Other | |
| Display | 5.7 inch full color LCD, with backlight, 640*480 |
| Interface | A/B/M/N/∞, ERI test console , charger, external power, USB, RS485 |
| Storage | ≥8GB for about 4000,000 readings |
| Battery | built-in 16.8V lithium battery for continuously 24 hours work |
| Charging voltage | 100~250V (50Hz or 60Hz) |
| External power | 30V~60V |
| Working temperature | -10°C~+50°C |
| Storage temperature | -20°C~+60°C |
| Humidity | 95% |
| Dimension | 39cm*20cm*29cm |
| Weight | 8KG |
2. CS-60 multi-electrode switching box
| Electrode no. | 60 |
| Insulation | 1000V/1G |
| Max working voltage | 800V |
| Max working current | 2A |
| Working temperature | -10℃~+50℃ |
| Weight | 6kg |
3. CB30 Multi-electrode resistivity Cable
| Material | Copper wire, TPU case |
| Max withstand current | 2A |
| Max withstand voltage | 1200V |
| Tensile strength | 100Kg |
| Protection | IP66 |
| Working temperature | -20℃~+60℃ |
| Storage temperature | -30℃~+60℃ |
Both ends of 30 take-outs multi-electrode cable are male connector, which all could be connected with CS-60 multi-electrode switching box.
Functions
1. 1D VES Sounding
1D Resistivity Sounding
1D IP Sounding
*BP-145 power source (right)is optional.
2. 2D Imaging
2D Resistivity Imaging - Conventional Res Mode
2D Resistivity Imaging - Double Res Mode
2D IP Imaging - Conventional IP Mode
3. 3D Res Imaging
Application
Resources Prospecting
- Underground water detection
- Geothermal prospecting
- Energy resource prospecting
- Metal and nonmetal mineral resources survey
Engineering Geology Exploration
- City engineering exploration
- Cave exploration
- Pile foundation
Environment Detection
- Underground pollutant change detection
- Seawater Intrusion Detection
- Dam Detection
- Underground tank leak detection
- Slope failure detection
Others
- Archaeology
- Geological mapping
- Drilling/cross hole detection
Company Information
Introduction
Geomative is devoted to researching, developing, manufacturing, marketing and selling geophysical exploration equipment, as well as provides satisfying services for clients around the world.
Geomative is developing the full range of geophysical exploration instrument, as electrical DC Resistivity/IP meter, 2D/3D Multi-function Res/IP imaging system, Proton Magnetometer, Seismograph, High Power Induced Polarization System and so on.
Now, the new generation DC electical Res/IP instrument, GD-10 Multi-function Geo-electrical System is pushing into the market. In addition, we supply relevant accessories in geophysics as star-like electrode, solid non-polarization electrode, BP-145 rechargable power source, multi-electrode intelligent cable, winch and so on. If you are facing some project problem, Geomative can provide professional engineering geophysical service, including design, prospecting plan and solution plan.
Developing domestic major events
Corporate Culture
- Positioning Regional leading geological exploration manufacturers
- Concept Integrity, professionalism, pragmatism and innovation
- Target Internationalization, branding and specialization
- Mission Achieve customers, achieve brand and achieve employees
Operating Performance
Our domestic market cooperate with universities, government agencies which more than 30 companies, overseas agents are mainly concentrated in Thailand, Malaysia, Indonesia, India, Nepal, Italy, Mexico, Spain, etc. which around twenty countries and regions, the types of customers including private owners, engineering exploration team, drilling company, the archaeological team, academic research institutions and other scheme companies.
